Starline MegaStar Valves

Forming part of the High Pressure range of Ball Valves from Starline, the Megastar Star Ball Valve is a pivotal component within the esteemed High Pressure range of Ball Valves from Starline. Engineered to meet the exacting demands of the Chemical, Petrochemical, and Gas Industries, where unwavering reliability stands as the cornerstone of operational success. Crafted with precision, the Megastar Star Ball Valve features a robust 3-piece bolted body design, ensuring structural integrity and longevity in even the most challenging environments. Versatility is inherent, with options for screwed, flanged, and welded connections (Full Bore only), providing flexibility in installation and integration.
Shop

Key Features

Key features and benefits of Starline MegaStar Valves.
1

Key Features

The Megastar Star Ball Valve is engineered with a durable 3-piece bolted body design, ensuring exceptional structural integrity and longevity, even in the most demanding industrial environments. This design enhances reliability and minimises maintenance requirements.
2

Key Features

With options for screwed, flanged, and welded connections (Full Bore only), the Megastar Ball Valve offers versatility in installation and integration. This flexibility allows for seamless adaptation to various piping systems and project requirements, enhancing ease of use and compatibility.
3

Key Features

Capable of withstanding pressures up to Class 2500LB (6000PSI) and operating temperatures ranging from -101 to 250 DegC, the Megastar Ball Valve excels in high-pressure and high-temperature applications. Its robust construction and superior materials make it suitable for a wide range of demanding industrial settings, ensuring reliable performance even in extreme conditions.

Valve Standards & Stuff
Size: DN08 - DN50 (1/4" - 2")
Body Material: ASTM A105 - LF2 - 316 - 316L - and Special Materials
Design Standard: ASME B16.34 - ASME B31.1 - BS5351 - P.E.D. 97/23/EC - ATEX 94/9 CE
Temperature: -101° C UP TO +250° C
Applications: Petroleum, Chemicals, Petrochemicals, Gas Application and Allied Industries
Test Certificate: UNI EN 10204 Type 3.1B

Frequent Interrogation

Starline Ultra Star Ball Valves are distinguished by their advanced features, including an anti-blowout proof stem design, double seal soft insert seats, and automatic relieving in case of over-pressuring. These features ensure enhanced safety, reliability, and performance in fluid control applications.

The anti-blowout proof stem design of Starline Ultra Star Ball Valves prevents stem ejection under pressure, minimising the risk of accidents or damage during operation. This feature ensures that the valve remains securely in place, even under high-pressure conditions.

The double seal soft insert seats provide superior sealing performance and leakage prevention, enhancing the valve's reliability and longevity. This design ensures tight sealing, even in demanding industrial environments, thereby reducing the risk of fluid leaks and minimizing maintenance requirements.

The automatic relieving feature in Starline Ball Valves activates in case of over-pressuring within the valve body, automatically relieving excess pressure to prevent damage or failure. This functionality ensures system integrity and uninterrupted operation, safeguarding equipment and personnel.

The three-piece bolted construction facilitates easy maintenance and servicing of Starline Ultra Star Ball Valves, allowing for quick disassembly and reassembly. This feature streamlines maintenance procedures, reducing downtime and enhancing operational efficiency.

Starline Ball Valves are designed to provide high-integrity shut-off at both low and high pressures, ensuring reliable performance across a wide range of operating conditions. This capability enhances process control and system safety in various industrial applications.

The double block and bleed feature in Starline Ball Valves allows for isolation and verification of fluid flow, providing added safety and security in critical processes. This functionality enables operators to maintain control over fluid flow and monitor system integrity effectively.

The floating seats spring energised design ensures consistent sealing and enhanced reliability in Starline Ball Valves. This feature enables the seats to adjust to variations in pressure and temperature, maintaining tight sealing and preventing leakage over time.

The ISO 5211 top cover flange provides a standardised interface for easy automation of Starline Ball Valves, facilitating seamless integration with actuation systems. This feature simplifies valve operation and control, enhancing overall system efficiency and performance.

Yes, Starline Ball Valves are fire test approved, ensuring compliance with industry standards for fire safety. This certification underscores the valves' ability to withstand high-temperature environments and maintain operational integrity during fire emergencies.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

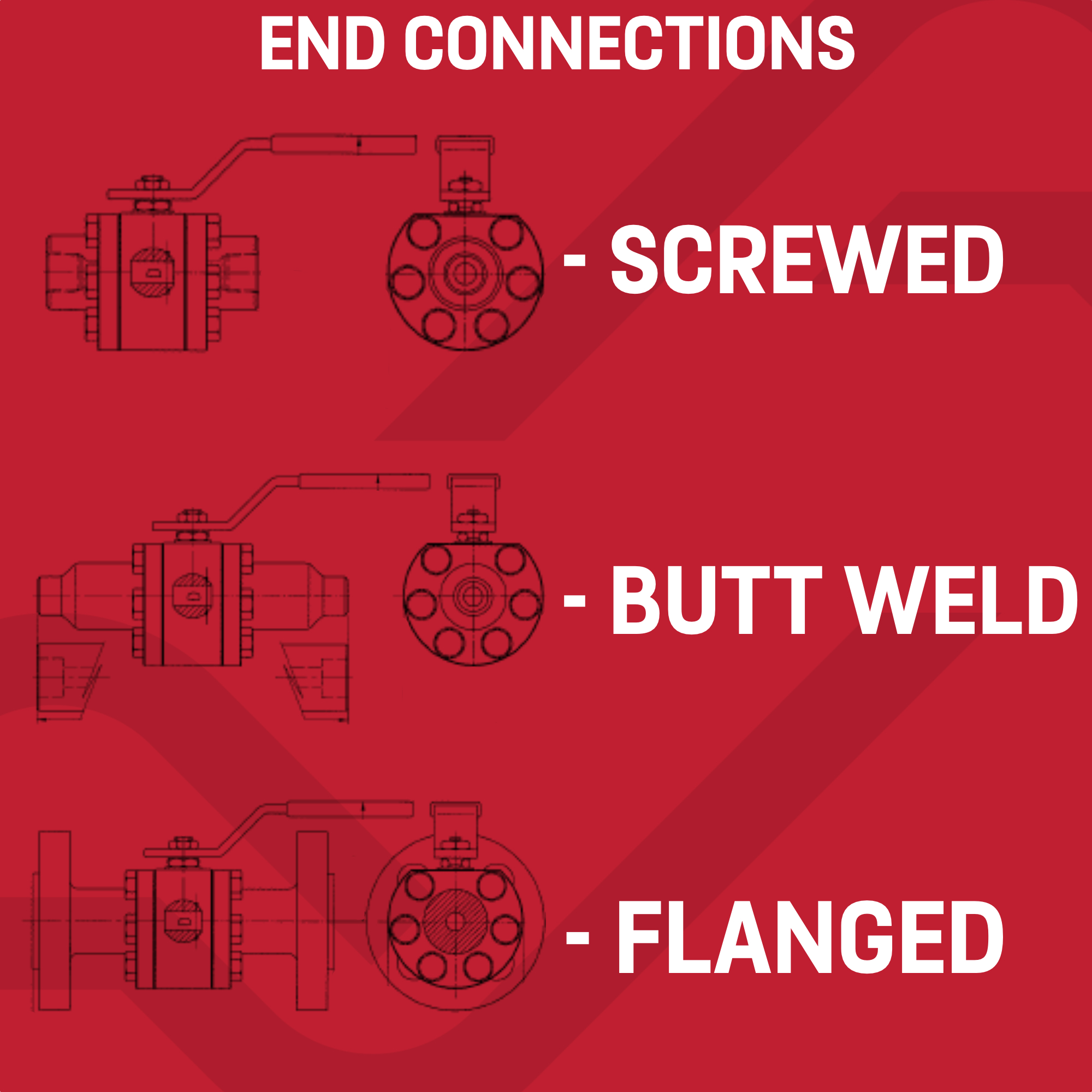

End Connections Available

The Mega Star Ball Valve offers three end connection options - screwed, butt weld, and flanged - each tailored to specific installation requirements and preferences.

Screwed Connection:

Construction: The valve's body is designed to accommodate threaded connections, allowing for easy installation onto threaded pipes or fittings.

Benefits: Screwed connections offer simplicity and ease of installation without requiring welding or additional sealing materials. This makes them suitable for applications where quick installation and flexibility are desired.

Butt Weld Connection:

Construction: The valve's body is designed with butt weld ends, enabling direct welding to compatible pipeline components.

Benefits: Butt weld connections provide a robust and leak-proof joint, minimising the risk of leakage and ensuring long-term integrity in high-pressure or high-temperature applications. They offer superior strength and reliability compared to threaded connections, making them suitable for critical process environments.

Flanged Connection:

Construction: The valve's body is configured with flanged ends, allowing for connection to flanged pipes or equipment using bolts and nuts.

Benefits: Flanged connections offer versatility and compatibility with a wide range of piping systems and equipment. They provide a secure and robust joint that can withstand high pressures and temperature fluctuations. Flanged connections also facilitate easy maintenance and disassembly, making them suitable for applications where frequent maintenance or accessibility is required.

Screwed, Butt Weld, Flanged

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Starline Megastar Ball Valve

(2 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In

Forming part of the High Pressure range of Ball Valves from Starline The Megastar Star Ball Valve is consistently used in the Chemical, Petrochemical & Gas Industries where reliability is paramount. The Megastar Ball Valve consists of a 3 piece bolted body design and is available in screwed, flanged & welded connections (Full Bore only). Capable of reaching pressures up to Class 2500LB (6000PSI) & Temperatures ranging from -101 to 250 DegC the Megastar Ball Valve can be used in virtually any high Pressure/Temperature application and sizes are available from 1/4”-2”. The Valve design features High Integrity Shut Off at both Low & High Pressure, an anti-blowout shaft, encapsulated soft seats, ISO5211 drilled mounting pad and is Antistatic/Firesafe approved. The Megastar Starline Ball Valve is available in several body materials, these include ASTM A105 Carbon Steel, LF2, 316 & 316L Stainless Steel. Other specialist alloys are available on request.

The Megastar Ball Valve is available both manual and Electric/Pneumatically Actuated from stock. Tommy Bar Manual Overrides can also be supplied as part of Precision Engineering services and can be seen the gallery page of our website.
