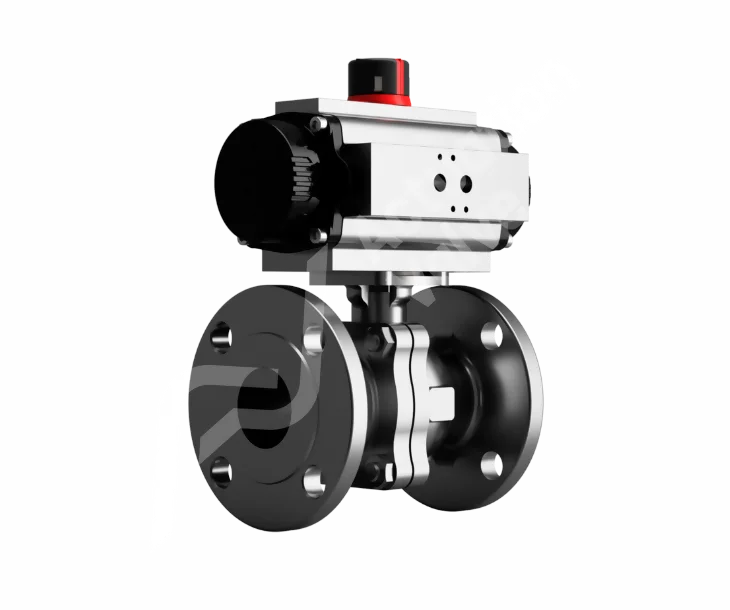

The AV-L6N00 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions. Our team has decades of experience working with complex automation systems, which means we can provide high quality products quickly and affordably. Simply tell us what you need, and we'll take care of everything else. High strength aluminium design reduces overall material whilst maintaining superior performance levels over comparable pneumatic actuators on the market. This lightweight unit reduces stress on supporting structures and products.

Shop Help Me

Key features and benefits of AV-L6N00AC Actuated Ball Valves.

Key Features

WRAS approved TFM 1600 PTFE seats ensure safe operation while our FDA-approved materials provide peace of mind knowing your products will be handled safely without compromising quality or performance when used correctly.

Key Features

The valve features a direct mount actuation pad for quick and easy automation. This allows us to get products out of the door to you quicker whilst also reducing the overall footprint of package and most importantly wight and cost.

Key Features

Position indicators available for the Actreg actuator include direct mounting puk sensors such as P&F, IFM and other manufactures depending on end user approved vendor lists (AVL’s). Position monitoring switch boxes and sensors are also available from stock for quick assembly.

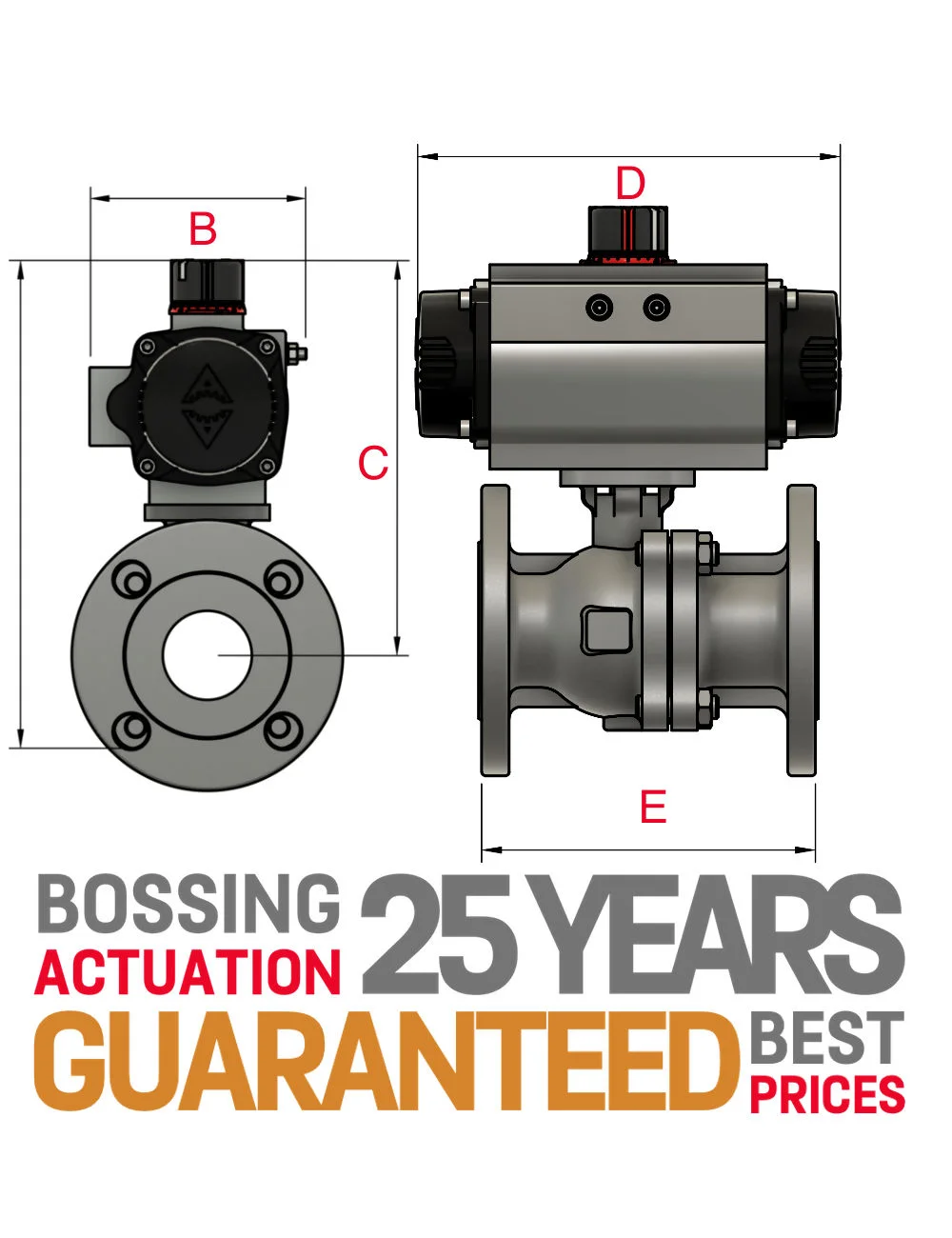

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	81.00	145.00	163.00	108.00	72.00	138.00	145.00	108.00
3/4"	81.00	149.00	163.00	117.00	72.00	142.00	145.00	117.00
1"	96.00	174.00	195.50	127.00	72.00	148.00	158.00	127.00
1 1/4"	96.00	186.00	195.50	140.00	72.00	160.00	158.00	140.00
1 1/2"	116.00	213.00	217.00	165.00	93.00	198.00	177.00	165.00
2"	116.00	219.00	217.00	178.00	93.00	204.00	177.00	178.00
2 1/2"	127.00	249.00	258.00	190.00	93.00	224.00	196.00	190.00
3"	140.00	277.00	299.00	203.00	106.00	247.00	225.00	203.00
4"	157.00	322.00	348.50	229.00	136.00	315.00	273.00	229.00
5"	197.00	404.00	473.50	356.00	166.00	390.00	372.00	356.00
6"	218.00	453.00	560.00	394.00	166.00	411.00	439.00	394.00
8"	248.00	533.00	601.00	457.00	181.00	479.00	461.00	457.00

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2,EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
