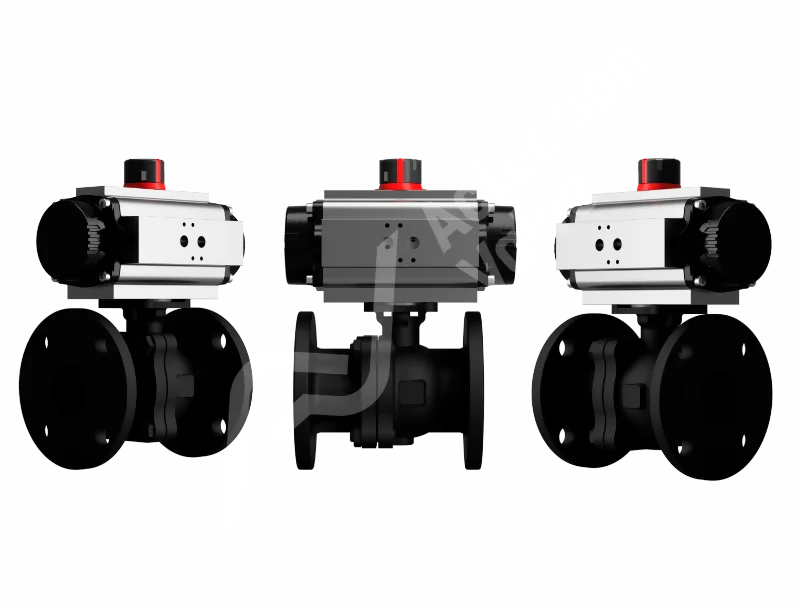

PN16 Carbon Steel Actreg Actuator Valves

The AV-L6KC0-AC flanged PN16 actuation valves offer a basic quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range of pneumatic actuator sizes in the US or UDA models allow setups including fail in position, return to set position and open or closed fail safe. Both spring return and double acting actuation valves can be offered with a range of feedback options for remote position monitoring. A greater detail of control can also be offered with 4-20mA electric or electro-pneumatic positioners.
Shop Help Me

Key Features

Key features and benefits of the AV-L6KC0-AC Actuated Ball Valves.
1

Key Features

The AV-L6KC0 carbon steel ball valves can be used on oils based paints and coatings applications such as automotive refinishing. They're 100% silicone free so they won't contaminate your product or leave behind residue which can ruin your finish over time.
2

Key Features

Utilising dual flange drillings and offering multiple drive inserts the Actreg pneumatic actuator allows for greater versatility when mounting to ball and butterfly valves. In particular our TTV Butterfly Valve. This eliminates requirements for additional mounting brackets reducing costs, weight and lead time.
3

Key Features

3D CAD and Step files readily available for new product line and system designs allowing integration within minutes. We also offer various mounting options including direct and bespoke box section kits so you can get the right fit for your project needs.

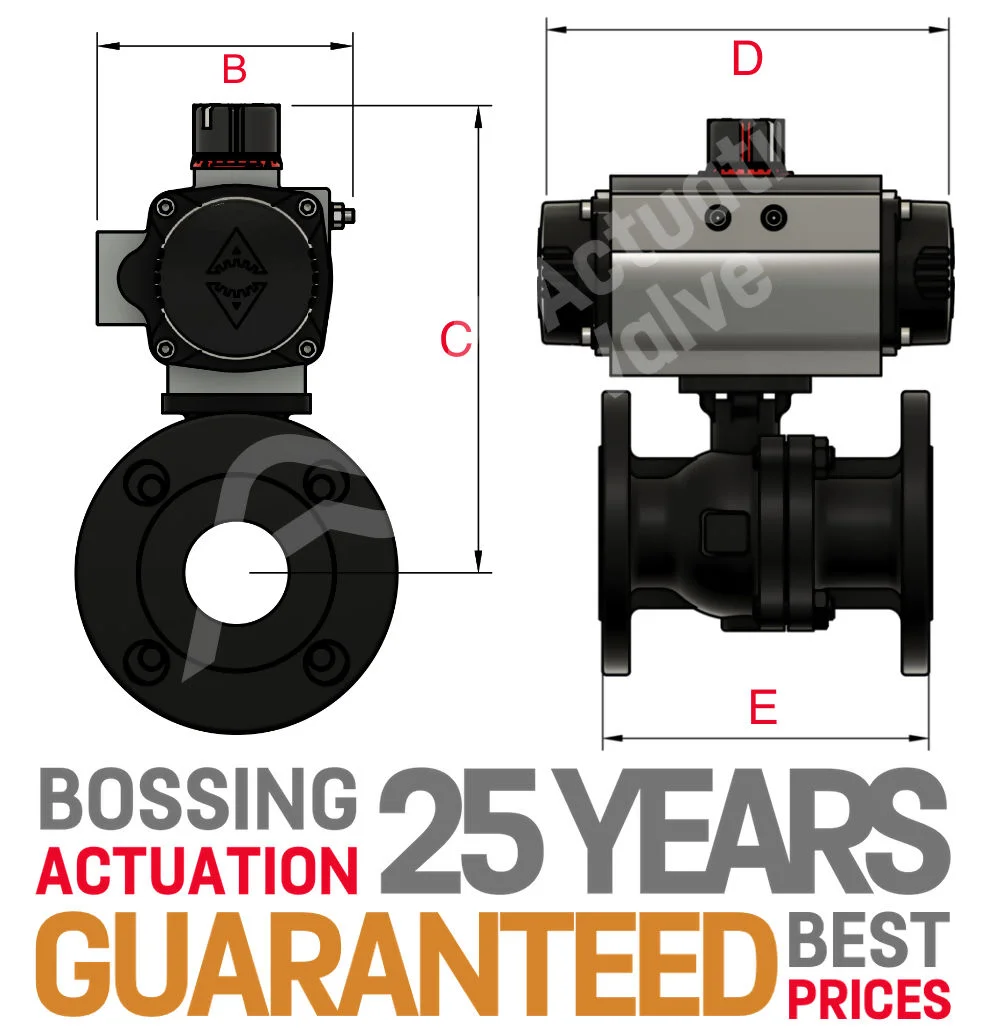

AV-L6KC0-AC Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6KC0-AC Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

010
  • PDF
DRAWINGS & SCHEMATICS

020
  • PDF
DRAWINGS & SCHEMATICS

040
  • PDF
DRAWINGS & SCHEMATICS

080
  • PDF
DRAWINGS & SCHEMATICS

130
  • PDF
DRAWINGS & SCHEMATICS

200

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

300
  • PDF
DRAWINGS & SCHEMATICS

500
  • PDF
DRAWINGS & SCHEMATICS

850
  • PDF
DRAWINGS & SCHEMATICS

1200
  • PDF
DRAWINGS & SCHEMATICS

1750
  • PDF
DRAWINGS & SCHEMATICS

2100

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Massive Actuators & Other STUFF

  • PDF
DRAWINGS & SCHEMATICS

2500
  • PDF
DRAWINGS & SCHEMATICS

4000
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

O&M
  • PDF
CERTIFICATES & APPROVALS

SPARES

Actreg Actuator Videos

Spring Change
Stroke Adjustment
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Carbon Steel DIN PN16 Actreg Actuator Valves
