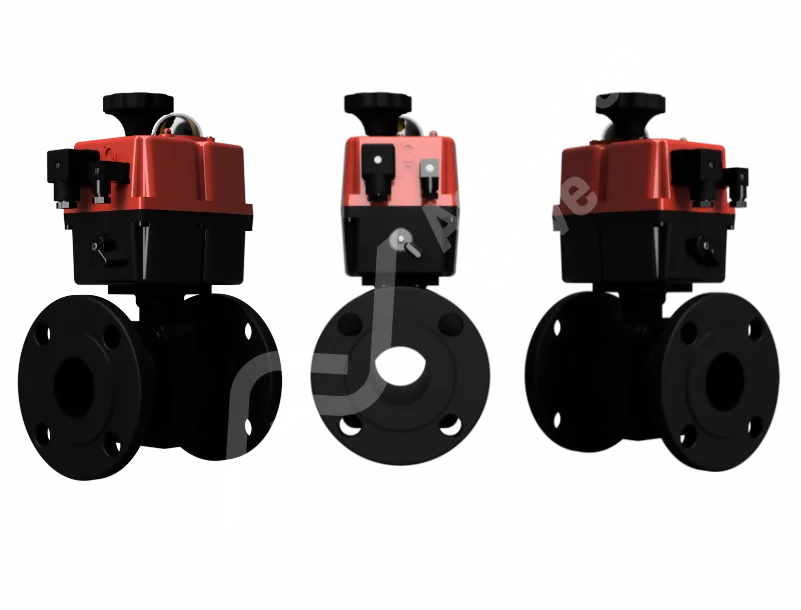

J4CS J&J Electric Actuator PN40 Carbon Steel Ball Valves

The AV-L6NC0-JJ DIN PN40 electrically actuated ball valves offer robust, high-pressure, full-flow operation with an impressive up to 6-inch bore. These versatile valves, designed for easy installation between different flanges in your pipeline, hold prestigious approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175, ensuring top-notch quality and reliability. Choose from various ball valve configurations, including options for an upstream and cavity relief hole drilled into the ball and a high-temperature spindle extension for insulation and steam actuation. Need swift delivery? We provide express shipping for stock components, ensuring your product arrives within 24-48 hours. Trust in AV-L6NC0-JJ DIN PN40 actuated ball valves for outstanding performance and convenience in fluid control systems.
Shop Help Me

Key Features

Key features and benefits of the AV-L6NC0-JJ Actuated Ball Valves.
1

Key Features

Password protected diagnostics directly available through bluetooth technology connection allow the end user technical information relating to the operations as well as current status, read parameters or functional errors. A total of 50 devices are connectable within a 20 meter distance.
2

Key Features

The AV-L6NC0 Actuated Ball Valves are an excellent choice for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions.
3

Key Features

The J&J J4CS electric valve actuators are designed for 75% duty rating and has been proven reliable by thousands of customers around the world. The actuator comes with a 3 year 60000 cycle warranty as a result of continuous research and development.

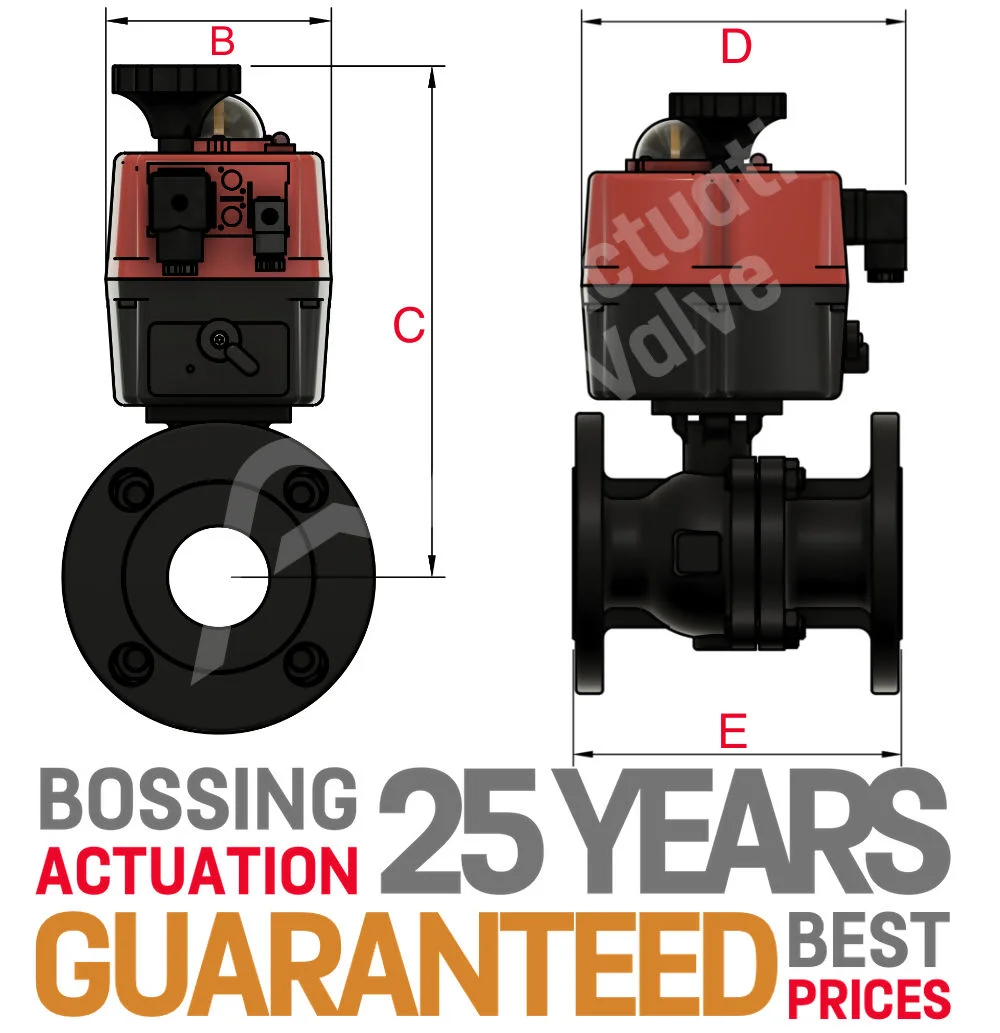

AV-L6NC0-JJ Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6NC0-JJ Ball Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Valve Standards & Stuff
Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Body Seal
Stem Packing Material: Grafoil
Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face 2 Face: DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Actuator Tech

  • PDF
DRAWINGS & SCHEMATICS

J4CS20
  • PDF
DRAWINGS & SCHEMATICS

J4CS35
  • PDF
DRAWINGS & SCHEMATICS

J4CS55
  • PDF
DRAWINGS & SCHEMATICS

J4CS85
  • PDF
DRAWINGS & SCHEMATICS

J4CS140
  • PDF
DRAWINGS & SCHEMATICS

J4CS300
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
