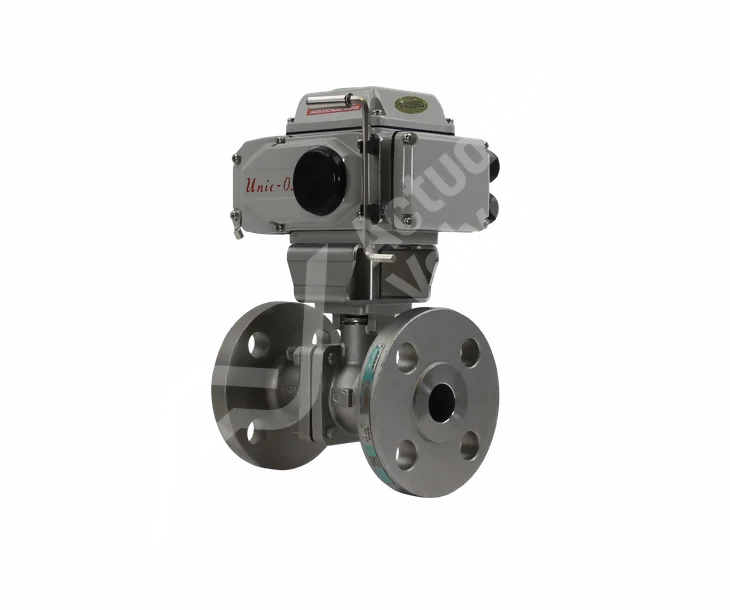

The AV-L6K00EK flanged PN16 actuation valves offer a reliable quarter turn actuated solution for low to medium pressure requirements with DIN flanged connections (Maximum 16 bar). A range options include additional internal heater, protection coatings and battery backup for return to set position and open or closed fail safe. All electric actuation valves can be offered with a range of feedback options for remote position monitoring. A greater detail of control can also be offered with 4-20mA electric Koei Nucom models.

Shop Help Me

Key features and benefits of AV-L6K00EK Actuated Ball Valves.

Key Features

We assemble and test all of our products in-house so we can control everything and make sure you get a high quality product that will last. All of our products come with a two page test report detailing every aspect of operation including opening/closing times and pressure ratings.

Key Features

Koei UNIC has developed a new type of worm gear drive that is easy to design and manufacture while providing excellent performance in terms of load capacity, stiffness, backlash and power transmission. All at a competitive and cost effective price.

Key Features

The Koei UNIC motor costs less to operate over its lifetime than traditional electric motors. Recognised as one of the most efficient in its class because it uses an innovative brushless motor design that eliminates costly maintenance requirements.

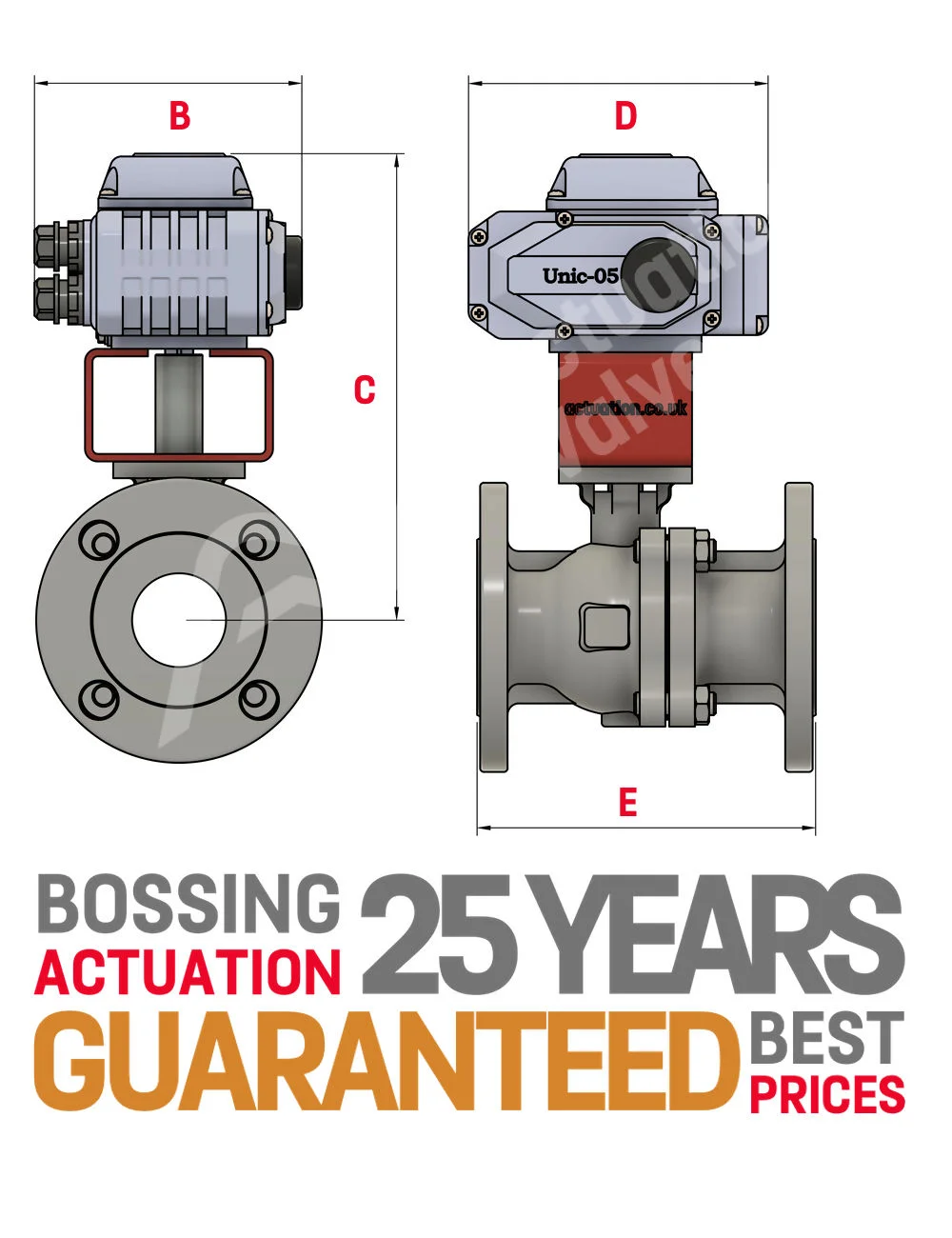

	B	C	D	E	Model

1/2"	145.00	224.00	159.00	115.00	UNIC 05
3/4"	145.00	229.00	159.00	120.00	UNIC 05
1"	145.00	235.00	159.00	125.00	UNIC 05
1 1/4"	145.00	247.00	159.00	130.00	UNIC 05
1 1/2"	145.00	252.00	159.00	140.00	UNIC 05
2"	145.00	261.00	159.00	150.00	UNIC 05
2 1/2"	155.00	304.00	208.00	170.00	UNIC 10
3"	155.00	314.00	208.00	180.00	UNIC 10
4"	187.00	350.00	257.00	190.00	UNIC 20
5"	187.00	393.00	257.00	325.00	UNIC 40
6"	272.00	440.00	381.00	350.00	UNIC 60
8"	272.00	489.00	381.00	400.00	UNIC 60
10"	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (2 1/2" - 4") & DIN 3202 F5 (5" - 8")

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
