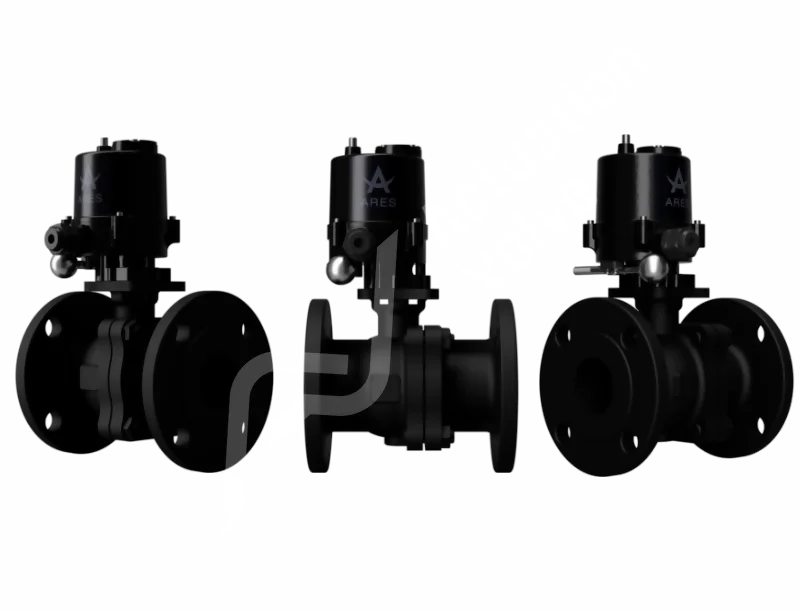

Carbon Steel PN16 Multi Voltage AV-ARES Electric Actuated Ball Valves

The industry-leading AV-A6KC0 ball valves have been meticulously tailored for compact to mid-sized control systems, significantly minimising torque requirements. This strategic design not only aids in cost reduction but also elevates performance by ensuring seamless valve operation.AV-ARES line of electric actuators have been designed specifically for industrial applications where space is at a premium. These lightweight units offer all the features and benefits found in standard models with none of associated weight or unwanted size. AV-ARES line of electric actuators have been designed specifically for industrial applications where space is at a premium. These lightweight units offer all the features and benefits found in standard models with none of associated weight or unwanted size.

Key Features

Key features and benefits of the AV-L6KC0-ARES Actuated Ball Valves.
1

Key Features

Our range of Carbon Steel ball valves have been designed to meet your needs from high to low pressure applications where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need at an affordable price.
2

Key Features

AV-ARES Electric Actuators offers a digital positioner that allows for precise control of your valves, with operation torques up to 40NM. The instrumentation signals accepted include 4-20mA and 0-10VDC for intelligent control.
3

Key Features

All of our Actuated Valve Assemblies are manufactured in house with the help from automation experts. Every completed unit comes equipped to meet high standards and can be traced back via two page test report detailing opening/closing times.

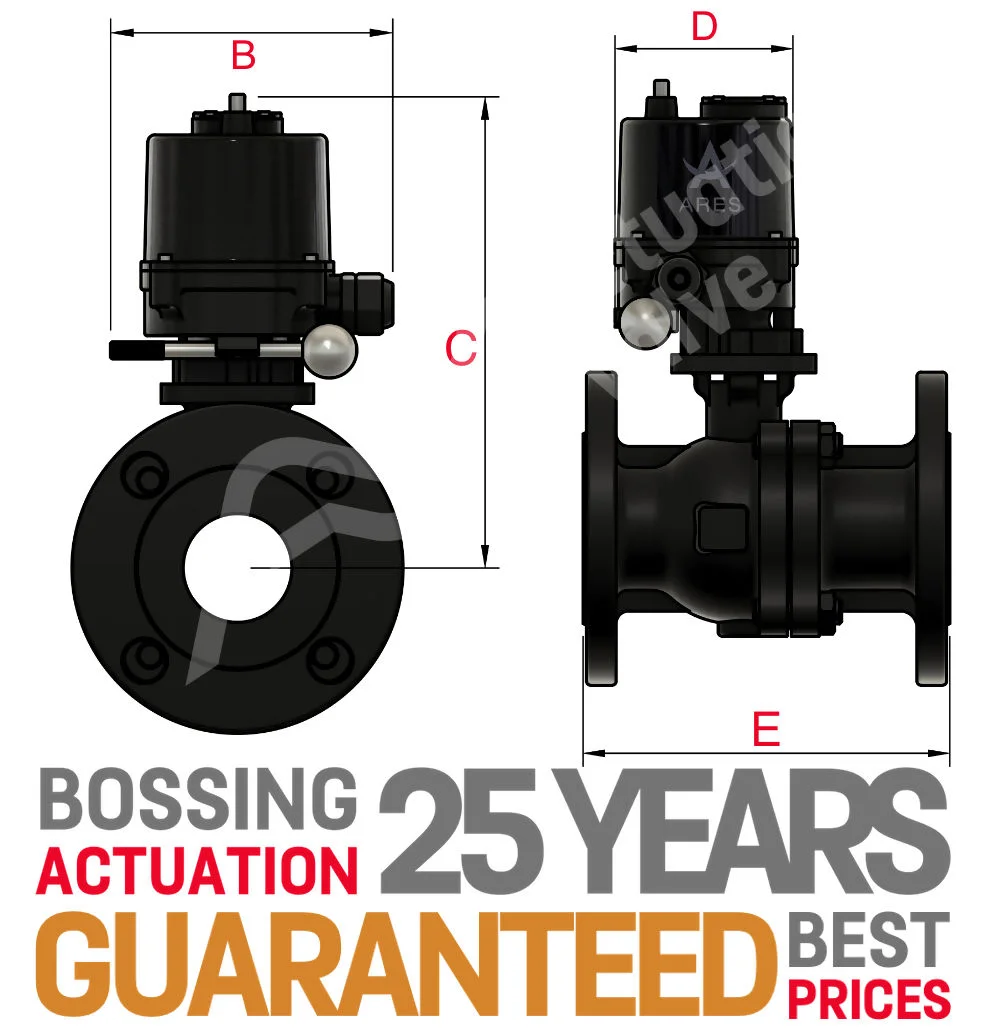

AV-L6KC0-ARES Ball Valve Technical Stuff

B C D B C D E
SR SR SR DA DA DA SR/DA
1/4" TBA TBA TBA TBA TBA TBA TBA
3/8" TBA TBA TBA TBA TBA TBA TBA
1/2" 72.00 120.00 137.00 72.00 120.00 137.00 59.00
3/4" 72.00 126.00 137.00 72.00 126.00 137.00 69.00
1" 72.00 130.00 137.00 72.00 130.00 137.00 83.00
1 1/4" 93.00 168.50 203.50 72.00 135.50 137.00 94.00
1 1/2" 93.00 180.00 203.50 84.50 163.00 153.50 102.00
2" 106.00 200.50 153.50 84.50 170.50 153.50 124.00
2 1/2" TBA TBA TBA TBA TBA TBA TBA
3" TBA TBA TBA TBA TBA TBA TBA

AV-L6KC0-ARES Ball Valve 3D Stuff

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: ASTM A216 WCB Carbon Steel construction, 304 Trim.
Seats Material: TFM 1600 PTFE Ball Seats
Body Seal Material: Grafoil/316 Stainless Steel
Stem Packing Material: Grafoil
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
Face 2 Face: ASME B16.10

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

PN16 Carbon Steel AV ARES Electric Actuated Ball Valves
