Bettis Scotch Yoke Actuators

Bettis Scotch Yoke Actuators, the epitome of reliability and efficiency in valve control systems. Engineered with precision and innovation, these actuators boast a range of features designed to ensure seamless operation and peace of mind for operators in various industrial applications. Despite their robust capabilities, Bettis Scotch Yoke Actuators are remarkably compact and lightweight, making them ideal for installations where space is at a premium. Their sleek design and efficient construction ensure optimal performance without compromising on size or weight, offering versatility and ease of integration into existing systems.

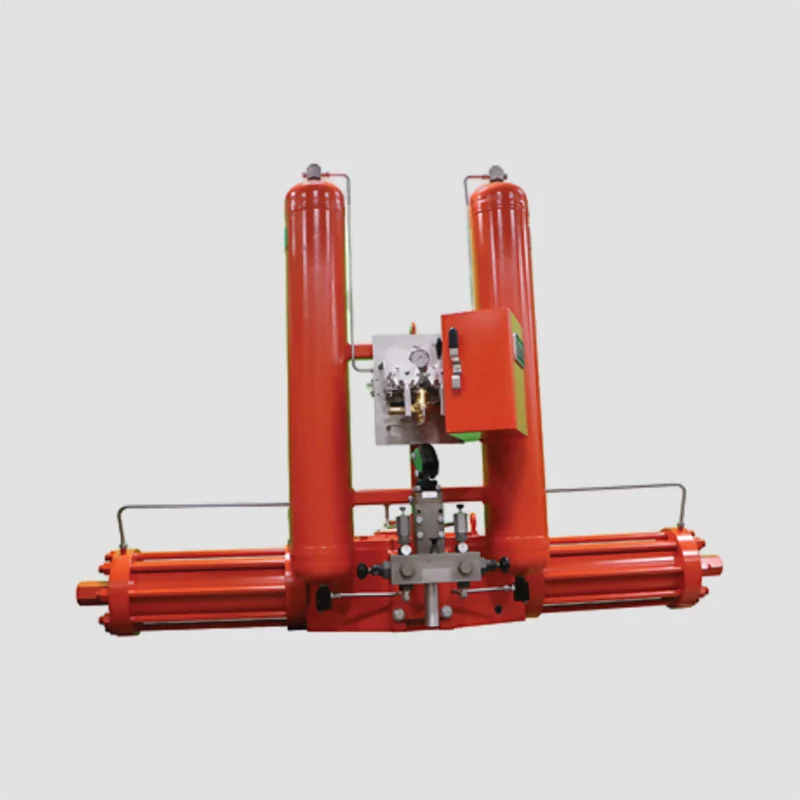

GH Series Series

Bettis GH Series Scotch Yoke Actuators, engineered with cutting-edge hydraulic technology to deliver unparalleled performance and reliability in demanding industrial environments. Designed specifically for large-scale fixed installations, these actuators are the epitome of precision and efficiency, providing seamless actuation for a wide range of valve applications.

Power Source: Hydraulic
Product Type: Scotch Yoke, Hydraulic
Actuation: Rotary, Quarter-turn, Linear
Certifications: Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS 2).
Control Type: On/off
Valve Type: Ball, Plug

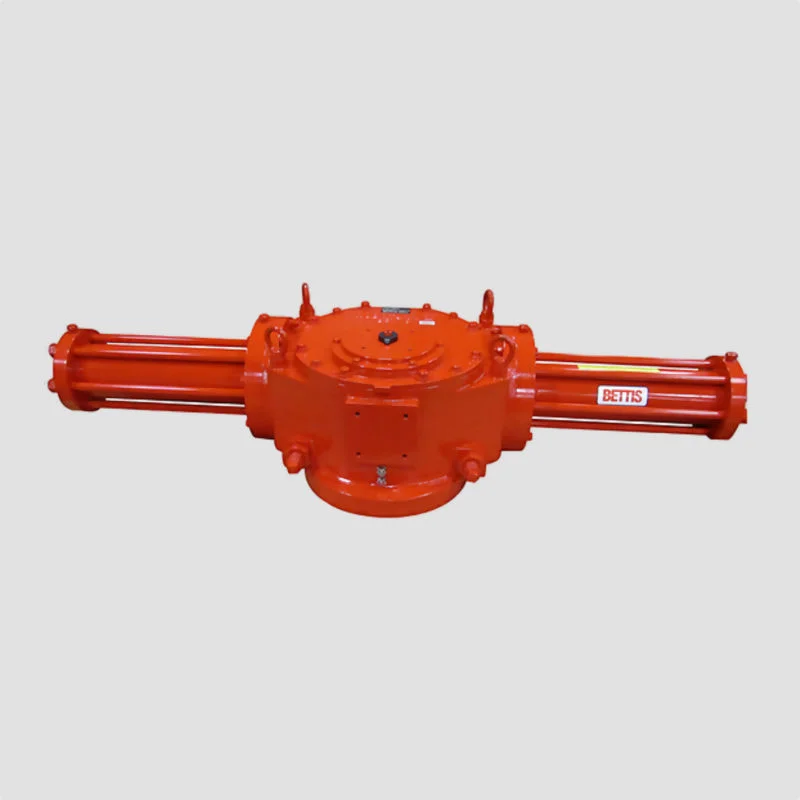

G Series

The Bettis G Series Scotch Yoke Actuators, engineered to excel in the most demanding environments and under the harshest conditions. Built with reliability and durability in mind, these actuators are trusted by industries worldwide for their outstanding performance and resilience.

Product Type: Pneumatic Actuator
Actuation: Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications: ATEX, PED, (CE), SIL capable, NACE,TRCU/EAC/GOST, SHELL DEP, ABS
Control Type: On/off
Operating Temperature: Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
Torque: Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 - 6,000,000 lbs-in (1420 - 678,000 Nm)
Operating Pressure: Up to 220 psig (14 Bar)

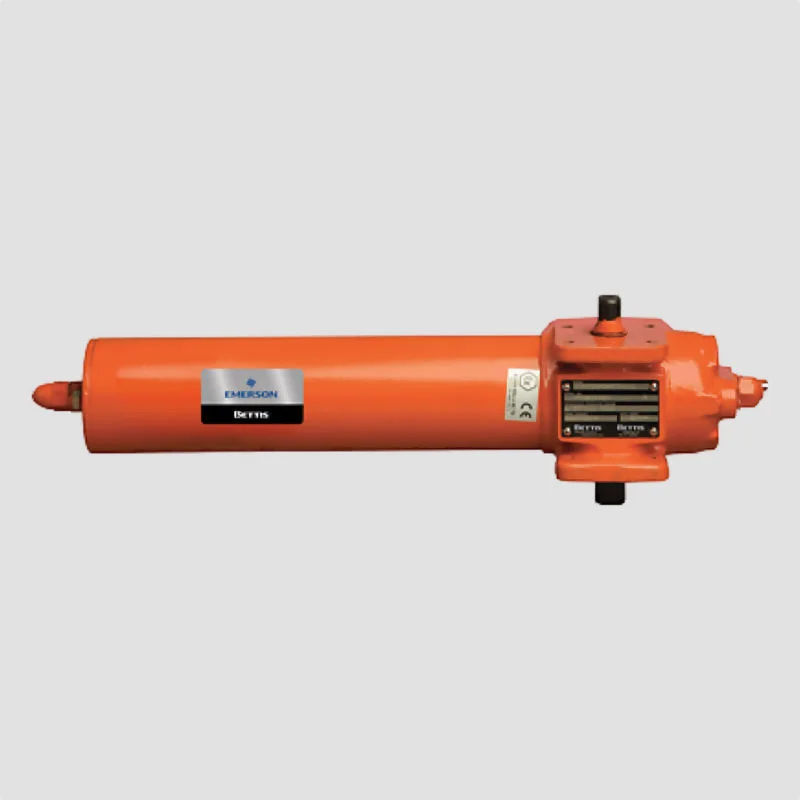

CBB Series

The Bettis CBB Series Scotch Yoke Actuators, setting the standard for dependable valve control solutions in industrial settings. Crafted with precision engineering and innovative design, these actuators deliver unmatched reliability and efficiency, ensuring seamless operation even in the face of unexpected challenges. At the heart of the CBB Series is an economical jackscrew manual override feature, providing operators with a fail-safe mechanism to maintain precise valve control in the event of power loss. This ensures uninterrupted operation and minimises downtime, allowing critical processes to continue without interruption.

Product Type: Pneumatic Actuator
Actuation: Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications: ATEX, PED, (CE), SIL capable, NACE, TRCU/EAC/GOST, SHELL DEP, ABS
Control Type: On/off
Operating Temperature: Available in three different temperature trims: · Standard trim is suitable for -20°F to +200°F (-29°C to +93°C) · Optional high temperature trim +350°F (-18°C to +177°C) · Cold temperature trim -40°F to +150°F (-40°C to °C)
Torque: Spring-return models in excess of 4,269 in-lbs (482 Nm), Double-acting in excess of 11,515 in-lbs (1,301 Nm)
Operating Pressure: Up to 150 psig (10 Bar)

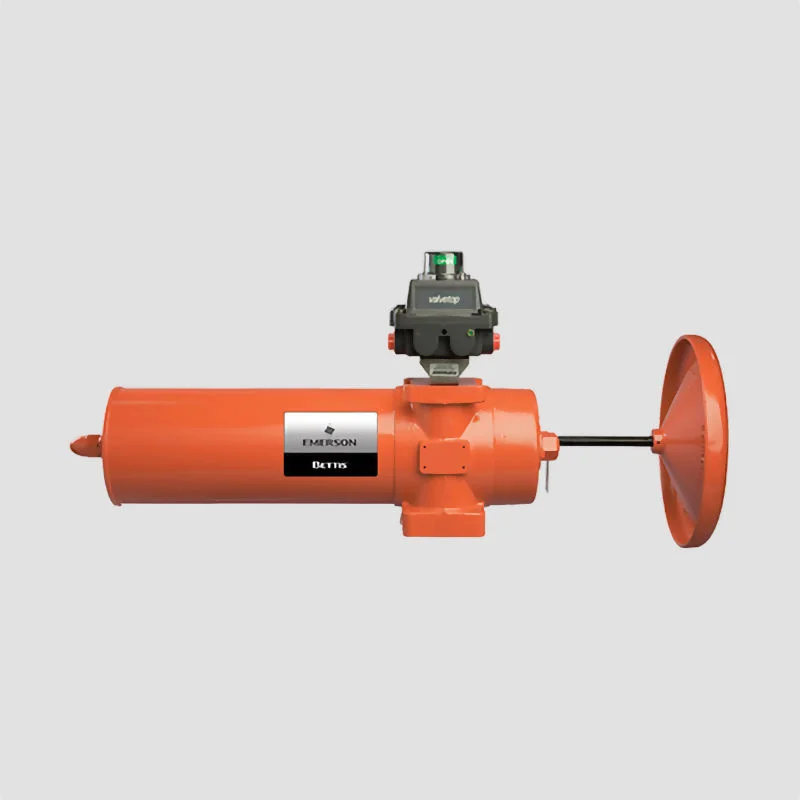

CBA300 Series

The Bettis CBA 300 Series Scotch Yoke Actuators, engineered to redefine efficiency and reliability in valve control systems. Built upon a foundation of innovation and precision engineering, these actuators offer a comprehensive suite of features designed to streamline integration, enhance performance, and ensure uninterrupted operation in diverse industrial environments.

Product Type: Pneumatic Actuator
Actuation: Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Certifications: ATEX, PED, (CE), SIL capable, NACE, TRCU/EAC/GOST, ABS
Control Type: On/off
Operating Temperature: Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
Torque: Spring-return models in excess of 10,457 lbs-in (1,182 Nm), Double-acting in excess of 20,030 lbs-in (2,273 Nm)
Operating Pressure: 40 to 150 psig (3 to 10 bar)

Frequently Asked Questions

Scotch Yoke Actuators are mechanical devices that convert linear motion into rotary motion, commonly used for quarter-turn valve control.

These actuators utilise a yoke mechanism to translate linear motion into rotary motion, providing the necessary force to operate valves.

Scotch Yoke Actuators are often employed in industrial settings for on/off or modulating control of valves in processes such as oil and gas, water treatment, and power generation.

The symmetric yoke design ensures peak torque at both ends of the stroke, providing a well-balanced and reliable performance.

The canted torque arm design delivers peak torque at only one end of the stroke, potentially reducing actuator size, weight, and cost for specific valve applications.

Yes, Scotch Yoke Actuators are available in both GP (pneumatic) and GH (hydraulic) variants to accommodate different system requirements.

Factors include torque requirements, operating conditions, valve size, and the duty cycle of the application.

Yes, these actuators can be designed to handle high-pressure environments, especially in hydraulic applications.

Some models can be designed to meet explosion-proof or hazardous area certifications for safe operation in such environments.

Maintenance requirements typically include lubrication, periodic inspections, and, if needed, replacement of wearing parts.

The size is determined based on the torque requirements of the valve, taking into account factors such as pressure and temperature.

In many cases, yes. However, it's crucial to ensure compatibility and proper sizing during the retrofitting process.
