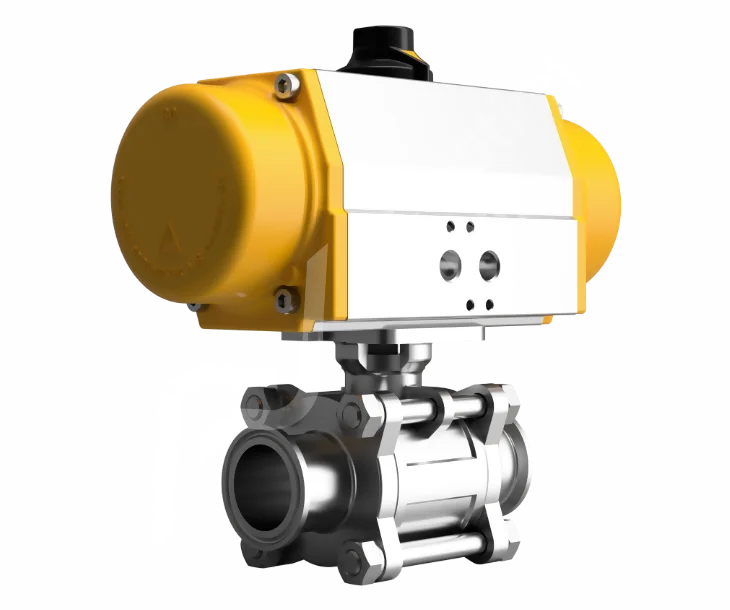

Hygienic Tri Clamp-Weld OD AV-Ventus Actuator Valves

The AV-L91B0UF & AV-L9CB0UF are part of the sanitary and hygienic full bore actuated valve series, featuring a three-piece body design with a swing-out center section ideal for scheduled maintenance and seat replacements. Their full bore body design and cavity-filled seats ensure a free-flow path, preventing the buildup of debris or contaminants. These valves are capable of withstanding temperatures suitable for steam cleaning up to 200°C, facilitating Clean-In-Place (CIP) and Sterilisation-In-Place (SIP) processes. AV-Ventus Actuators feature a compact and space-efficient design, providing a practical solution for various applications.
Shop Help Me

Key Features

Key features and benefits of AV-L91B0VE & AV-L9CB0VE Actuated Ball Valves.
1

Key Features

These units can be effortlessly integrated into existing systems using industry-standard NAMUR mountings (VDE/VDI 3845). This standardisation enables users to incorporate the unit into future upgrades or replacements without the need to redesign the entire system.
2

Key Features

The AV-Ventus actuator has been meticulously crafted with a design that incorporates specific attributes aimed at ensuring smooth and seamless sliding, thereby enhancing overall control precision in the actuator's movement. These thoughtfully integrated features not only minimise jerky motions but also play a crucial role in fostering stability, ultimately culminating in a heightened level of precision throughout the actuation process.
3

Key Features

The hard-anodised construction of the body serves a dual purpose by not only offering superior corrosion resistance but also by imparting robust durability to the actuator. This specialised design not only safeguards the actuator against the corrosive elements but also enhances its ability to endure challenging environmental conditions, thereby significantly extending its overall service life.

Valve Standards & Stuff
Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.
Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.
Yes, Actuated Ball Valves can be designed to handle high-pressure applications, making them versatile for various industries.
Uflow offers a warranty for its valves, and the duration may vary depending on the specific valve model.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

PED 2014/34/EU
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Firesafe API 607 5th Ed
  • PDF
CERTIFICATES & APPROVALS

SIL 2
  • Document
CERTIFICATES & APPROVALS

Nace MR-0175
  • PDF
CERTIFICATES & APPROVALS

Lloyds

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

AV Ventus Certification and Datasheets

  • PDF
Datasheets

AV Ventus Quarter Turn Pneumatic Actuator
  • PDF
Datasheets

AV Ventus Identification Chart
  • PDF
Datasheets

AV Ventus Torque Chart
  • Document
Certificates

ATEX Certificate
