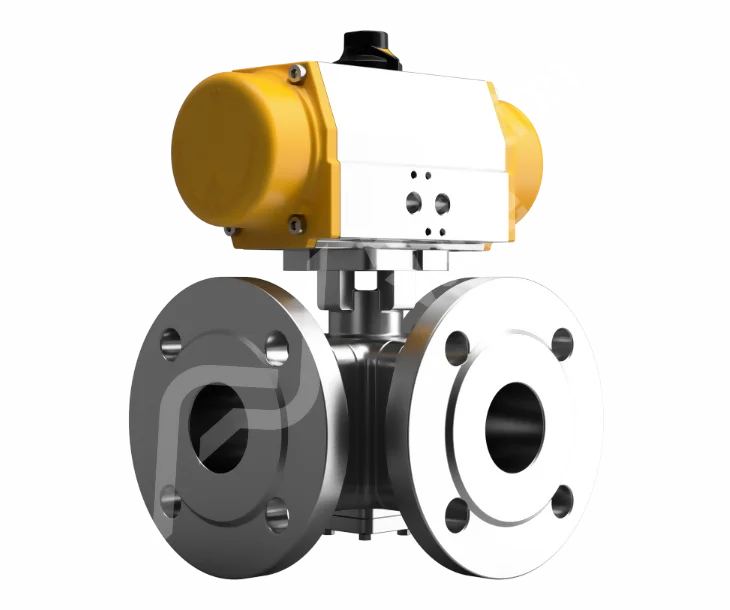

The AV-L5K00 & 5N00 series offers an economical range of high-quality stainless steel ball valves, providing a cost-effective solution without compromising on quality. These durable valves are designed to deliver years of trouble-free service, all at a fraction of the cost typically charged by other companies for comparable products. Our 3-Way stainless steel ball valves come pre-tested, ensuring immediate operational readiness upon installation. Additionally, you will receive a detailed two-page test report outlining all opening/closing times once your order is complete. The AV-Ventus actuator body is made from aluminium extrusion and hard-anodised, offering high corrosion resistance and durability in challenging environments.

Shop Help Me

Key features and benefits of AV-L5K00VE & AV-L5N00VE Actuated Ball Valves.

Key Features

The AV-L5N00 3-Way Multi Port Ball Valves, configurable for either L or T Port Operation, are designed to accommodate a broad range of applications. They excel in maintaining minimal pressure drop and cavitation, while offering outstanding flow characteristics.

Key Features

Three-way ball valves are versatile in their applications. They can function as diverter valves, directing flow to one of two different ports. Additionally, they are effective as input selectors, where an outlet is supplied by flow coming exclusively from one side.

Key Features

The AV-Ventus actuator distinguishes itself through the innovative integration of a patented rack and pinion mechanism, setting new standards for durability and reliability in actuator technology. Unlike conventional designs, this mechanism is wear-proof, offering a significant advantage in terms of longevity and consistent performance.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	PIFE
Stem Packing Material:	PIFE
Design Standard:	DIN3357 1,2, EN 12516-1
Wall Thickness:	ASME B16.34. EN12516-1
Inspection & Testing:	DIN3230/3. EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

Uflow Actuated Ball Valves are precision-engineered valves designed to control the flow of liquids or gases in industrial systems.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Yes, Uflow Actuated Ball Valves are designed to handle high-pressure conditions, making them ideal for demanding industrial settings.

Uflow Actuated Ball Valves are rigorously tested and meet industry-specific safety standards to ensure reliability and compliance.

Uflow Actuated Ball Valves can be equipped with materials that resist corrosion, making them suitable for corrosive environments.

Lead times for Uflow Actuated Ball Valves may vary, but the we aim to provide efficient and timely delivery.

Actuated Ball Valves are known for their reliability, quick operation, and suitability for a wide range of applications. They are also easy to automate.

Actuated Ball Valves are commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.

Actuated Ball Valves can be operated remotely, while Manual Ball Valves require manual turning of a handle or lever.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Datasheets

Document

Certificates

Please feel free to request information and advice using the form below or call us on 0151 547 1221

3 Way PN16-PN40 Full Bore Uflow Actuator Valves

3 Way PN16-PN40 Full Bore AV-Ventus Actuator Valves

Key Features

Key Features

Key Features

Key Features

Valve Standards & Stuff

Frequent Interrogation

Actuated Valve Testing & Calibration

Valve Rubber Stamps

PED 2014/34/EU

ATEX

Firesafe API 607 5th Ed

SIL 2

Nace MR-0175

Lloyds

Need More Dimensions?

AV Ventus Certification and Datasheets

AV Ventus Quarter Turn Pneumatic Actuator

AV Ventus Identification Chart

AV Ventus Torque Chart

ATEX Certificate
