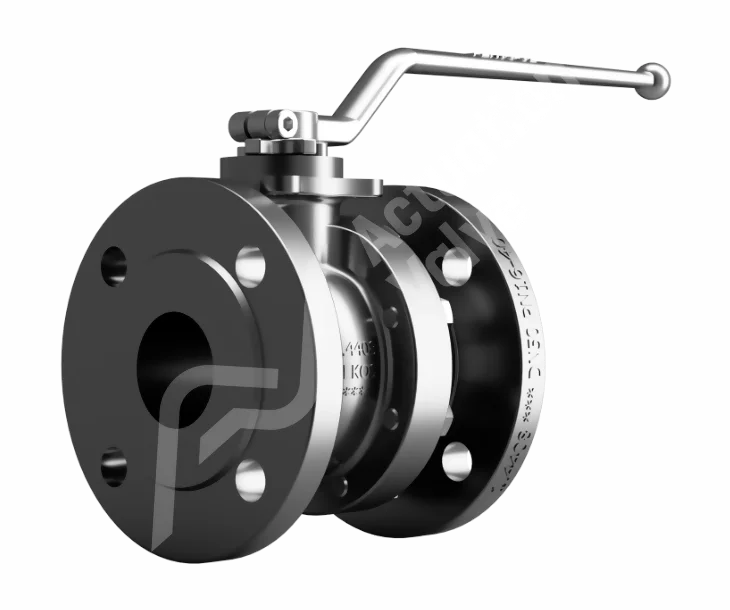

The Z14 Full Bore Carbon Steel ANSI 150 SSSGV Floating Pekos Ball Valves are engineered to provide exceptional performance and reliability in industrial applications. These valves feature a robust construction with a focus on durability and efficiency. Constructed from high-quality carbon steel, the Z14 valves are designed to withstand high-pressure environments while ensuring long-term durability. The full bore design minimises flow restrictions, allowing for efficient fluid handling and reduced pressure drop across the valve. The ANSI 150 rating ensures compatibility with a wide range of piping systems, making the Z14 valves suitable for various industrial applications. Whether it's in oil and gas, petrochemical, or chemical processing industries, these valves deliver consistent performance under demanding conditions.

Shop

Key features and benefits of Floating Pekos Ball Valves.

Key Features

The valves are built from durable carbon steel, ensuring strength and reliability even in high-pressure environments. This construction material provides excellent resistance to corrosion, extending the lifespan of the valves and minimising maintenance requirements.

Key Features

The full bore design minimises flow restrictions, allowing for efficient fluid handling and reduced pressure drop across the valve. This feature ensures optimal flow rates and system performance, making the valves ideal for applications where maximum flow capacity is required.

Key Features

The SSSGV (Super Slick Super Grind Valve) technology ensures smooth operation and tight shut-off, reducing the risk of leakage and enhancing system integrity. The floating Pekos ball design provides excellent sealing performance and allows for bi-directional flow control, making the valves versatile and reliable in various industrial applications.

	PTFE	Carbon Graphite	A	B	C	D
1/2"	Z015FB14TTTGV	Z015FB14SSSGV	108.00	185.00	90.00	11.00
3/4"	Z020FB14TTTGV	Z020FB14SSSGV	117.00	185.00	100.00	12.00
1"	Z025FB14TTTGV	Z025FB14SSSGV	127.00	185.00	110.00	14.00
1.25"	Z032FB14TTTGV	Z032FB14SSSGV	140.00	185.00	115.00	15.00
1.5"	Z040FB014TTTGV	Z040FB14SSSGV	165.00	293.00	125.00	16.00
2"	Z050FB14TTTGV	Z050FB14SSSGV	178.00	293.00	150.00	17.00
2.5"	Z065FB14TTTGV	Z065FB14SSSGV	190.00	293.00	180.00	19.00
3"	Z080FB14TTTGV	Z080FB14SSSGV	203.00	350.00	190.00	21.00
4"	Z100FB14TTTGV	Z100FB14SSSGV	229.00	350.00	230.00	25.00
5"	Z125FB14TTTGV	Z125FB14SSSGV	TBA	TBA	TBA	TBA
6"	Z150FB14TTTGV	Z150FB14SSSGV	394.00	740.00	280.00	27.00
8"	Z200FB14TTTGV	Z200FB14SSSGV	457.00	750.00	345.00	30.00
