Lever-Gear Operated Lugged Butterfly Valves WCB

Lugged Manual Butterfly Valves are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line. The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges.

Key Features

Key features and benefits of the 50L3040 Fully Lugged Type Butterfly Valves.
1

Key Features

The streamlined design allows for very low pressure drops making them ideal for commercial applications where energy costs need to be kept as low as possible. Their compact size makes them perfect for situations where space is limited.
2

Key Features

TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.
3

Key Features

TTV Butterfly Valves concentric design features an elastic, replaceable seat that takes the shape of both the inside and partially outer side of the body of the valve to form a perfect seal. This TTV Butterfly Valve is suitable for both on and off or throttling applications.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

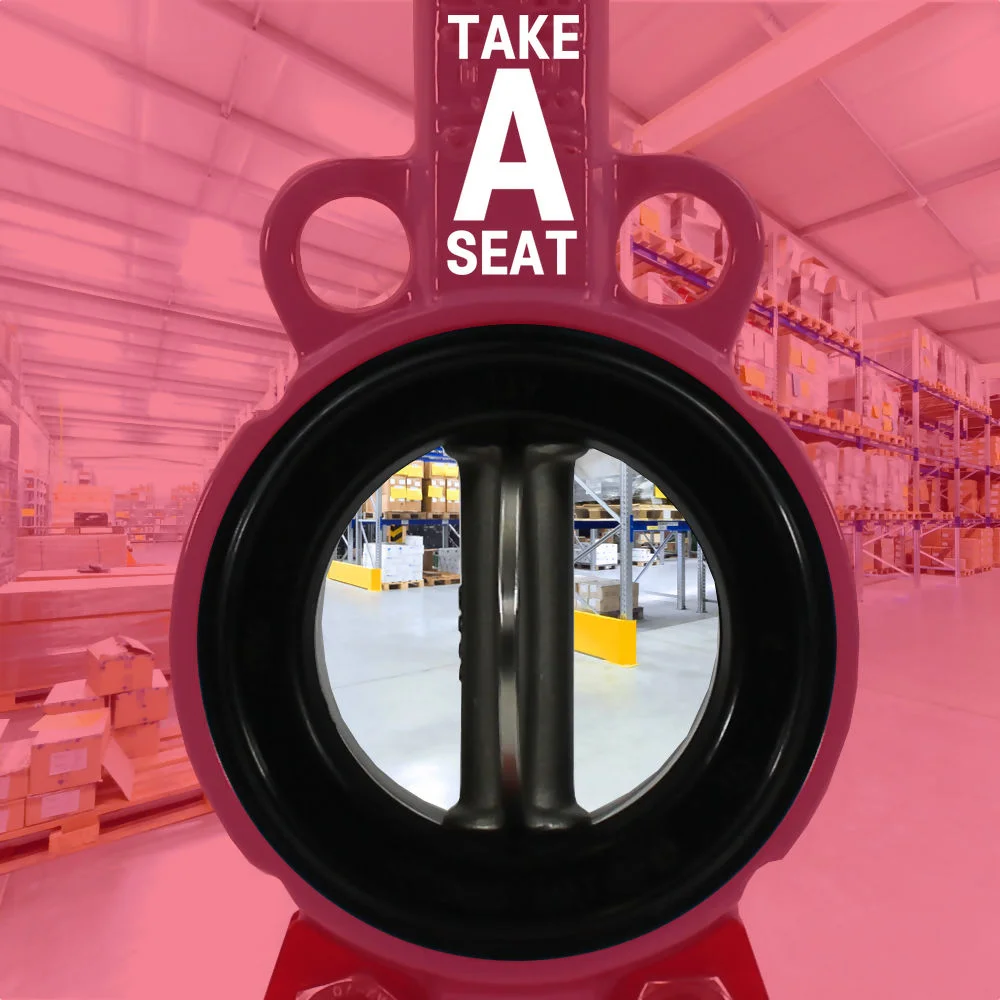

Take A Seat

Top Notch.

All Butterfly Valves come as standard with a Top Notch Lock Plate. Adjustable at set degrees throughout the Valve travel cycle. Are your current supplies as good? We very much doubt it.

Valve Standards & Stuff

Body Material: A216 WCB Carbon Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Yes. We have a number of options including chain wheel operators. They come as standard with a quick link chain connection and safety cable kit.

It certainly does. All of our TTV butterfly valves come complete with a full set of operations and maintenance manuals. We can also send this electronically in advance.

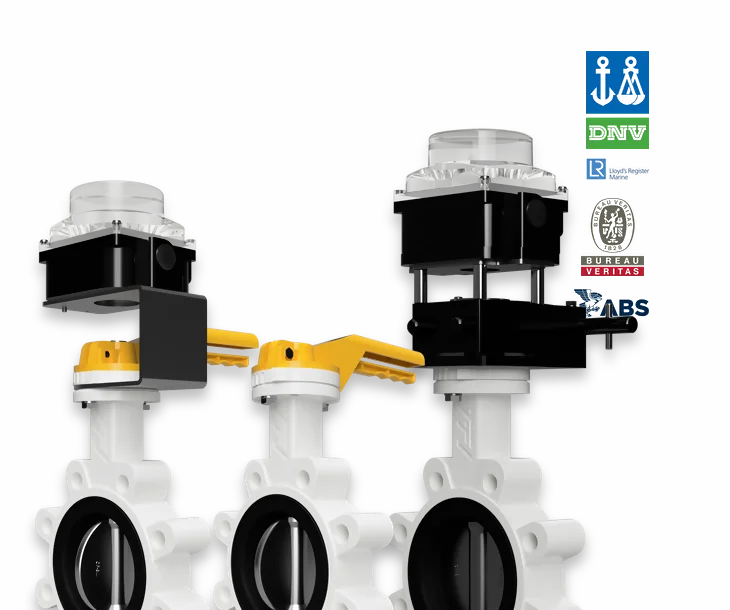

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.
