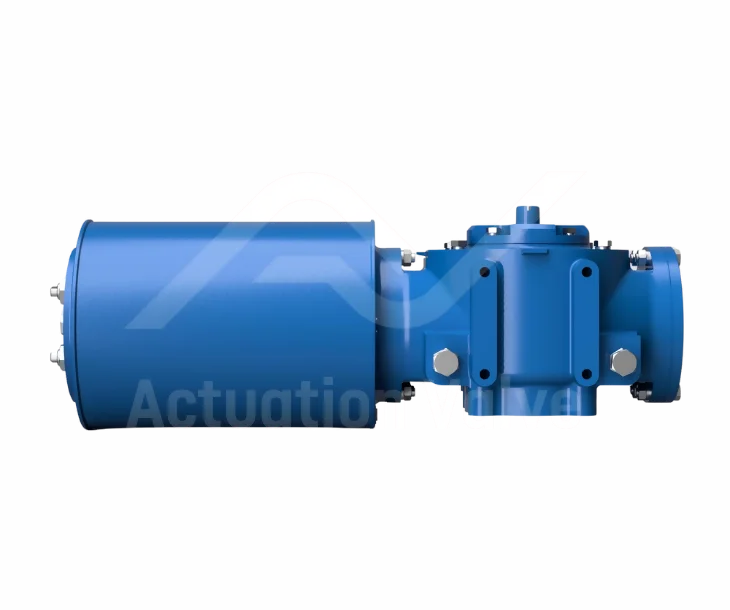

A Scotch Yoke Actuator is a mechanical device used to convert rotational motion into linear motion. It is commonly used in valve operation systems to control the flow of fluids by converting the rotary motion of the control signal into linear motion needed to move the valve.

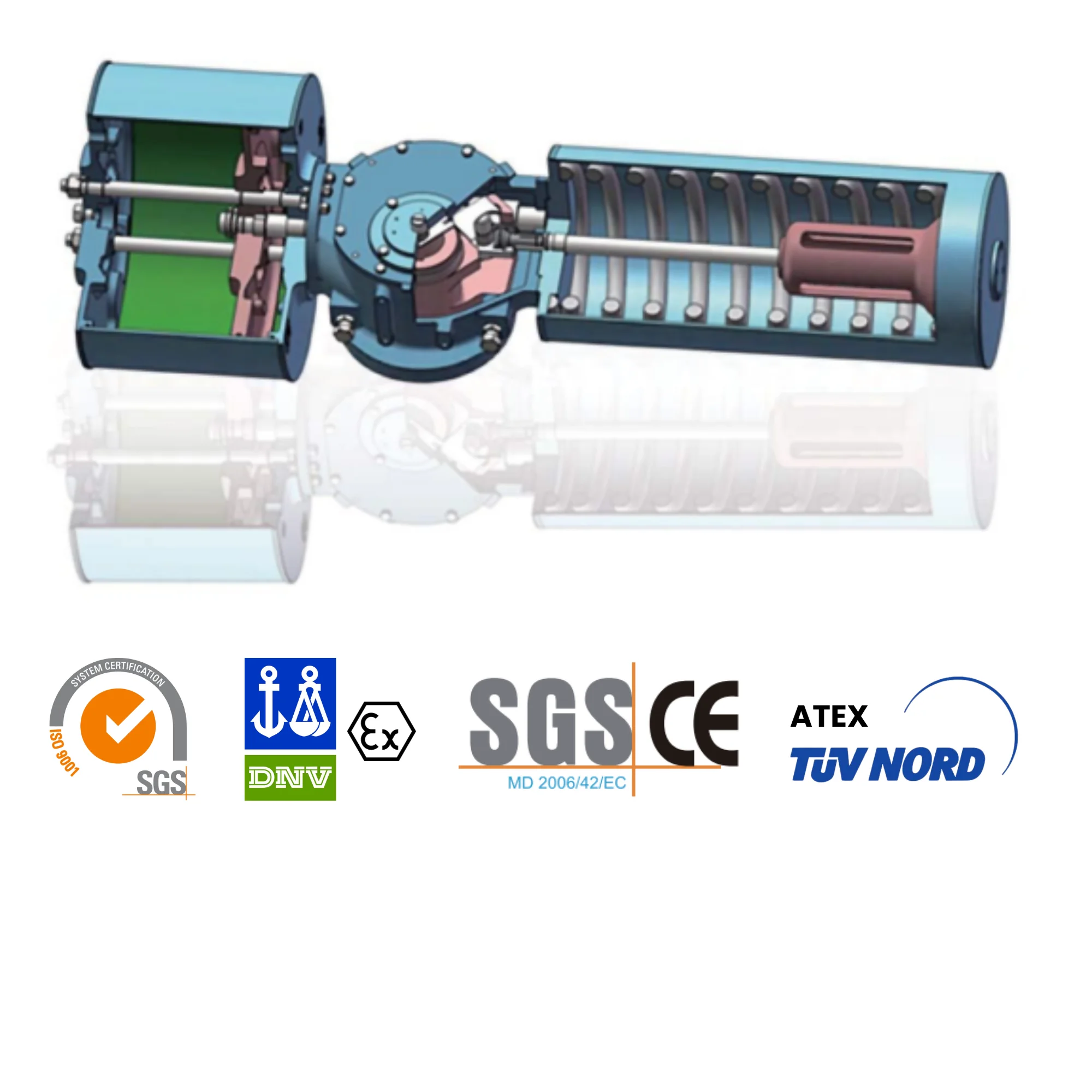

The mechanism involves a rotating pin or yoke attached to a piston. As the pin rotates, its circular motion forces the yoke to move in a linear path along a guide slot, which translates the rotational force into linear motion to operate a valve.
Scotch Yoke Actuators are known for their high torque output, especially at the end positions, making them ideal for heavy-duty operations. They also offer compact designs and reliable performance under repeated operations.
While they are highly effective for quarter-turn valves such as ball and butterfly valves, their specific design characteristics make them less suited for multi-turn valves like gate or globe valves.
These actuators are prevalent in various industries including oil and gas, water treatment, chemical processing, and power generation due to their efficiency and durability in tough working conditions.
Yes, these actuators are designed to withstand harsh environments. They often come with robust housings and coatings that protect against weather conditions and corrosive elements, making them suitable for outdoor applications.
Regular maintenance typically includes lubrication of moving parts, inspection of seals and bearings, and checks for corrosion or wear. Scheduled maintenance helps prolong the actuator's life and ensures reliable operation.
Sizing depends on the torque requirements of the valve, the operating pressure, and the specific conditions of the application. It's crucial to consult with a specialist or refer to manufacturer guidelines to select the appropriate size.
Yes, there are pneumatic and hydraulic Scotch Yoke Actuators, each suited for different operating environments. Pneumatic versions use air pressure while hydraulic versions utilize fluid pressure to operate the actuator.
Many actuators include safety features like manual overrides, position indicators, and emergency shut-off capabilities to enhance operational safety and reliability.
