V-Tork Pneumatic Rack & Pinion Actuators

Discover the V-Tork Pneumatic Rack & Pinion Actuators, designed for seamless integration and customization. The range includes VT, VTN, VT-3P, and VTX Series, each featuring a compact structure and high precision control. These actuators come in double-acting and spring return models, ensuring reliable performance with a variety of body materials and certifications like ISO 9001:2015 and ATEX. Suitable for diverse industrial applications, they offer an intelligent solution to meet specific torque requirements.

V-Tork VT New Series Pneumatic Actuator

The VT new series pneumatic actuator displays a sleek, compact design, facilitating easy integration and offering extensive customisation possibilities. This actuator ensures high precision and reliable control across various output torques, and includes mounting accessories compliant with the NAMUR standard. The VTN series is designed to enhance its lifecycle through an intelligent structural design and superior engineering features. It offers a wide range of output torques to meet the diverse needs of our customers.

Models: Double Acting & Spring Return
Diameter Range (mm): 32 to 400
Weight Range (kg): 0.47 to 283.5
Body Materials: Aluminium Alloy, 45# Steel, Advanced Polymer, Stainless Steel, NBR, & Spring Steel
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, ATEX TUV NORD, & Bureau Veritas SIL 3
Find Out More

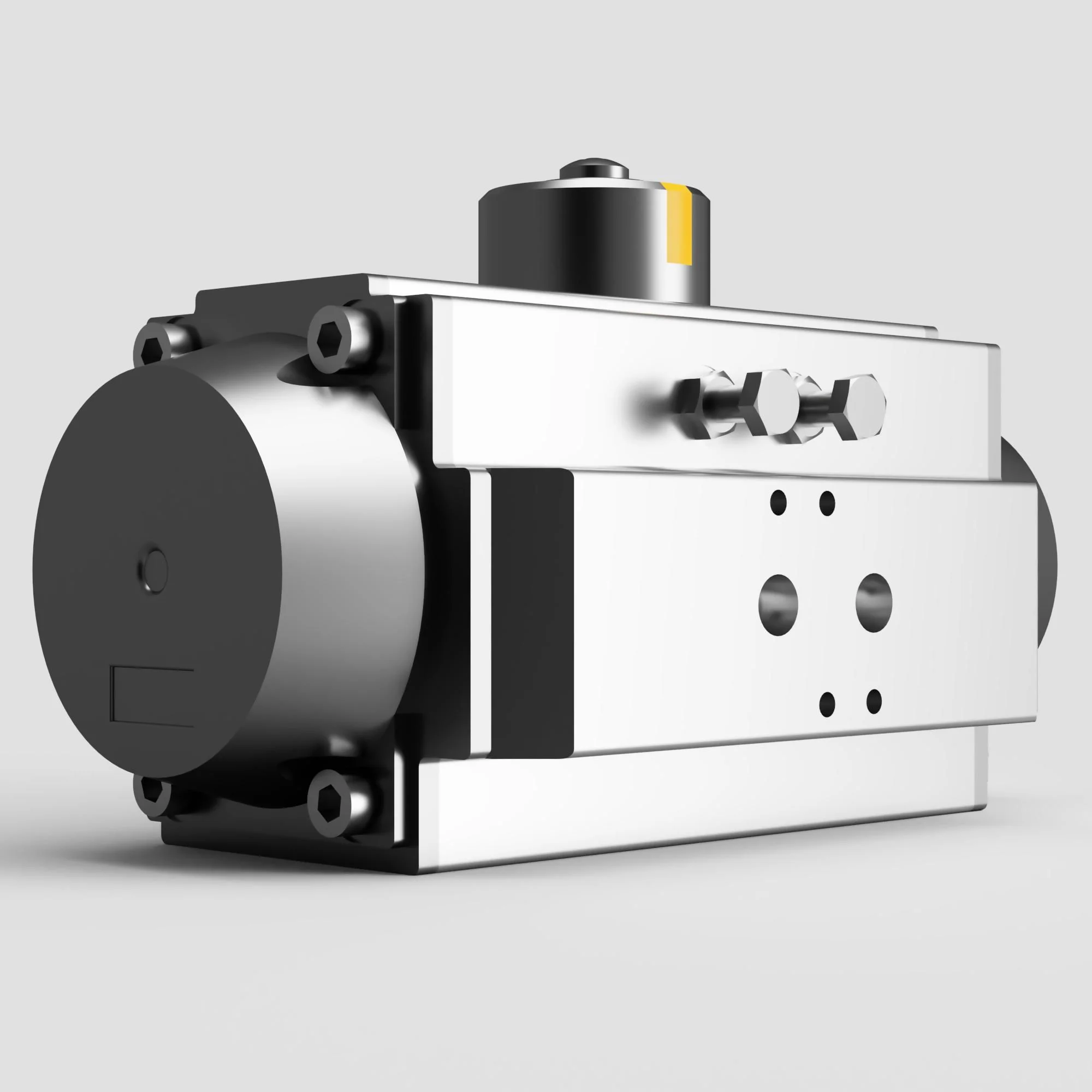

V-Tork VT Series Rack & Pinion Pneumatic Actuator

The VT series rack & pinion pneumatic actuator boasts a streamlined design, straightforward integration, and wide-ranging customisation possibilities. Featuring a patented reinforced piston design, this series guarantees accurate operation and offers a variety of output torques. Its mounting accessories adhere to the NAMUR standard, ensuring enhanced compatibility. The intelligently engineered structure and superior design qualities contribute to extending its lifespan.

Models: Double Acting & Spring Return
Diameter Range (mm): 32 to 400
Weight Range (kg): 0.47 to 283.5
Body Materials: Aluminium Alloy, 45# Steel, Advanced Polymer, Stainless Steel, Spring Steel, NBR, & Copper
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, & ATEX2014/34/EU
Find Out More

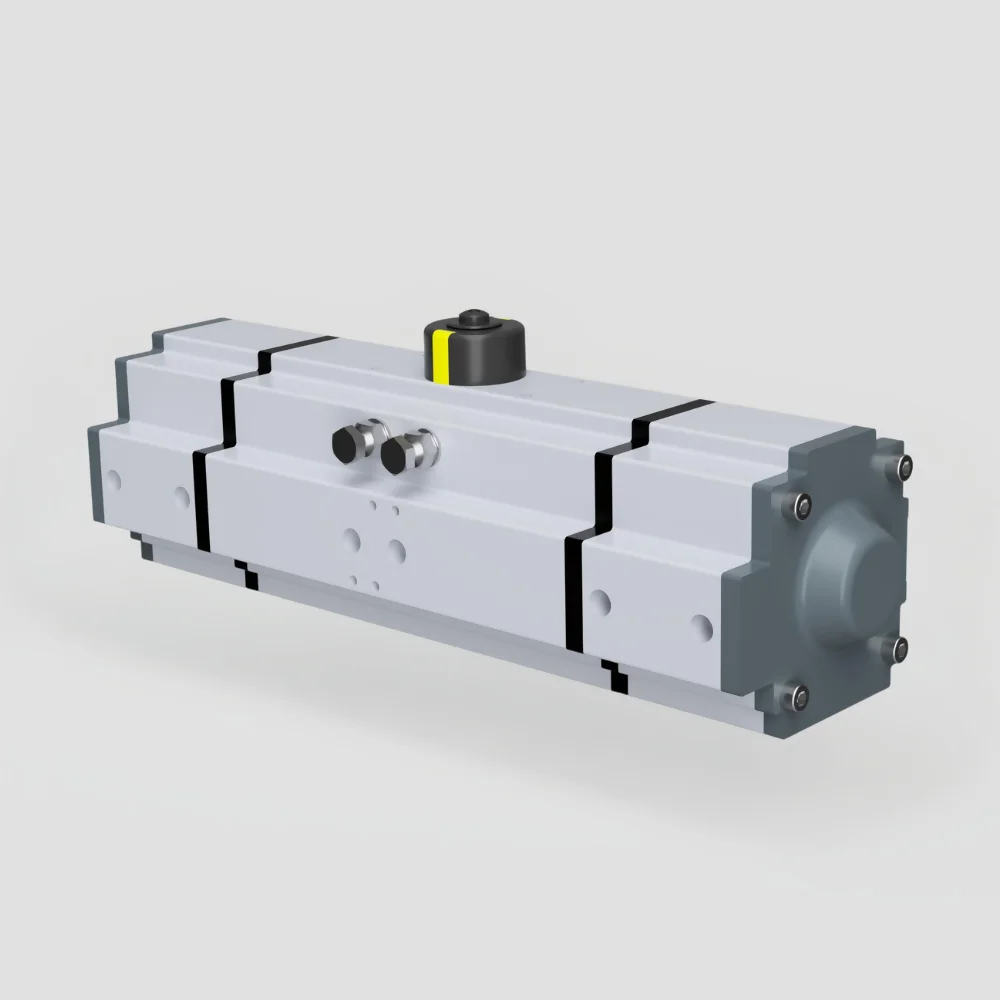

VT-3P Series Three Position Pneumatic Actuator

The VT-3P series, a three-position pneumatic actuator, expands its rotational capabilities with an adjustable mid-position, selectable from settings such as 20°, 30°, 50°, and 70°, all within a 90° stroke. Building on the VT series' heritage, this model features a compact build for seamless integration and enhanced customisation options. It delivers precise control, high accuracy, and significant output torque. The actuator comes with mounting accessories that meet NAMUR standards, which ensure an extended lifespan.

Models: Double Acting & Spring Return
Accessory Options: Bracket, Connector, Solenoid Valve, Limit Switch Box, Proximity Sensor, & More
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, & ATEX2014/34/EU
Find Out More

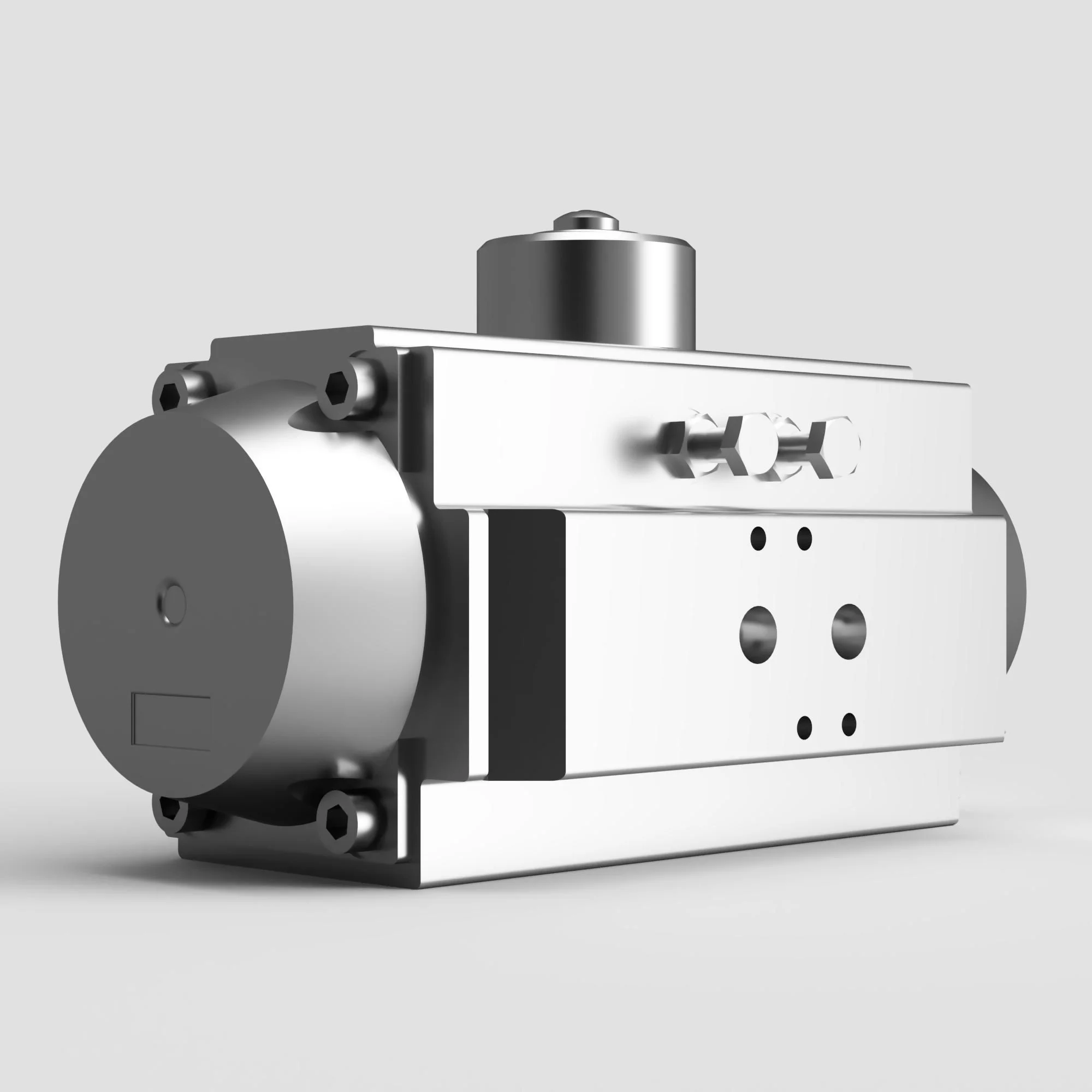

VTX Series Stainless Steel Pneumatic Actuator

The VTX Series Stainless Steel Pneumatic Actuator is ideal for both spring return and double-acting models, incorporating a durable pinion and a single-piece stainless alloy shaft. This device is compatible with mounting using heavy-duty springs, meeting ISO 5211 standards. Easily switch from a double-acting to a spring return setup with its interchangeable modules that include durable bearings and NAMUR slotted shafts.

Find Out More

Frequently Asked Questions

A valve actuator is a mechanical device used to control the opening and closing of valves, allowing for remote or automated operation.

Actuators can be used with various types of valves, including ball valves, butterfly valves, gate valves, globe valves, and plug valves, among others.

The main types of valve actuators include pneumatic actuators, electric actuators, hydraulic actuators, and manual actuators.

A pneumatic actuator uses compressed air to generate mechanical motion, which is then used to operate the valve, either by opening or closing it.

Electric actuators offer precise control, easier integration with control systems, and do not require a constant supply of compressed air like pneumatic actuators.

Factors to consider include the type and size of the valve, operating environment (temperature, pressure, hazardous conditions), control requirements, and available power sources.

Yes, there are valve actuators specifically designed for hazardous environments, such as those with explosive atmospheres, which comply with industry standards for safety.

The size of the actuator depends on factors such as the torque or thrust required to operate the valve, which can be calculated based on the valve size, pressure, and flow conditions.

Yes, many valve actuators are designed for easy retrofitting onto existing manual valves, allowing for automation without the need for valve replacement.

Regular maintenance includes lubrication, inspection of mechanical components, and checking for leaks. Troubleshooting may involve checking electrical connections, pneumatic systems, and control signals.

Yes, valve actuators can be equipped with various control options, including remote control through wireless or wired networks, as well as integration into SCADA (Supervisory Control and Data Acquisition) systems.

Valve actuators are used in a wide range of industries and applications, including oil and gas, petrochemical, water treatment, HVAC (heating, ventilation, and air conditioning), pharmaceuticals, and food processing, among others. They are essential wherever automated flow control is required.
