V-Tork Electric Actuators

V-Tork Electric Actuators offer versatile solutions for valve automation. The VTM Series features a compact design with precise valve positioning, suitable for various power voltages and ensuring durability with high-grade materials. The VTMR Series provides reliable safety with its spring return mechanism during power outages. For heavier duty, the VTMZ Series supports high torque outputs and includes advanced security features. The VTML Series excels in HVAC and industrial settings, offering efficient linear motion control.

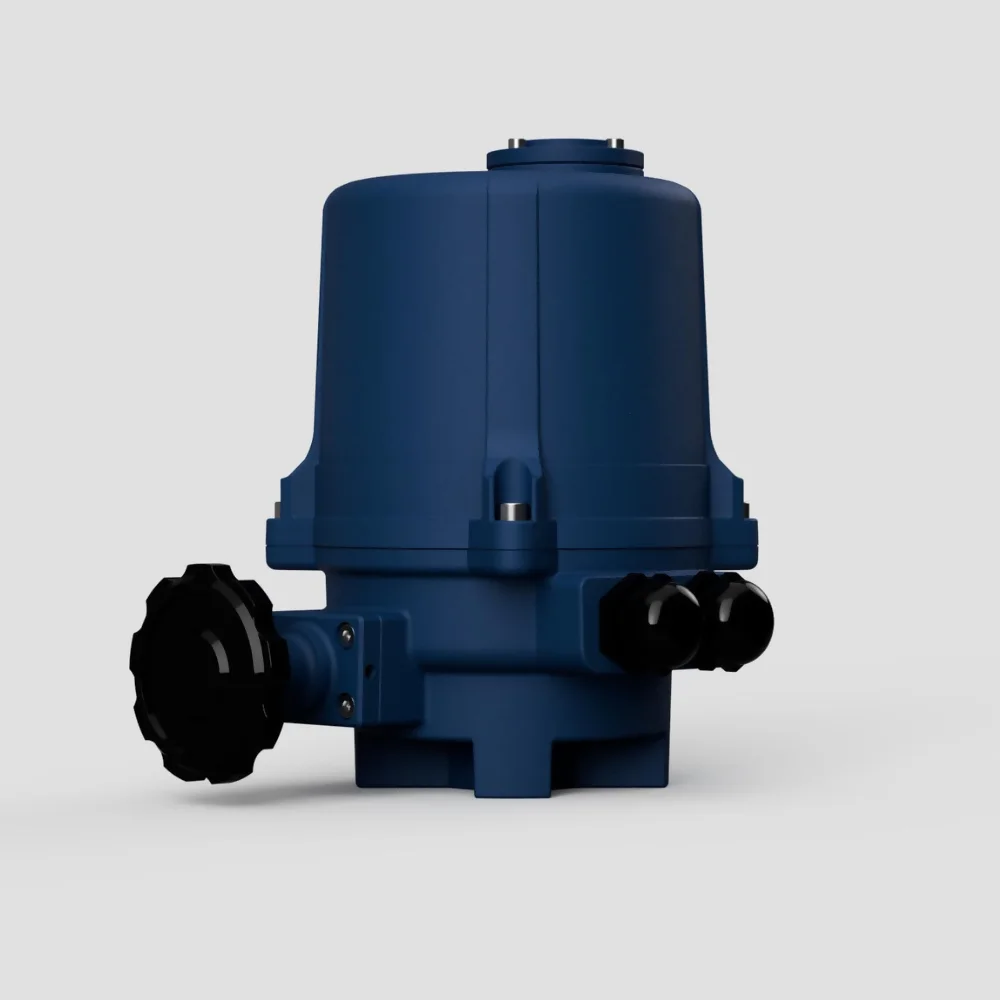

VTM Series Electric Actuator

The V-Tork VTM Series is a compact, durable electric quarter-turn actuator designed for both on-off and modulating control of valves and dampers. This series provides a high-quality, reliable option for valve automation at an economical price. The VTM Series Electric Actuator, compatible with a 4~20mA DC input signal and equipped with a single-turn absolute value encoder for precise valve positioning, is designed for diverse operational needs. It can be powered by either 220VAC/120VAC at 50/60Hz±10% or 24VDC. The actuator's body is made from aluminium alloy, anodised and coated with polyester powder, ensuring durability and corrosion resistance. It holds certifications from ISO 9001:2015, SGC MD 2006/42/EC, DNV, and ABS, confirming its compliance with rigorous industry standards.

Input Signal: 4~20mA.DC
Valve Position Sensor: Single-turn Absolute Value Encoder
Power Voltage: 220VAC/120VAC,50/60Hz±10% or 24VDC…
Body Materials: Aluminum alloy, Anodised and Coated with Polyester Powder
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, DNV, & ABS
Find Out More

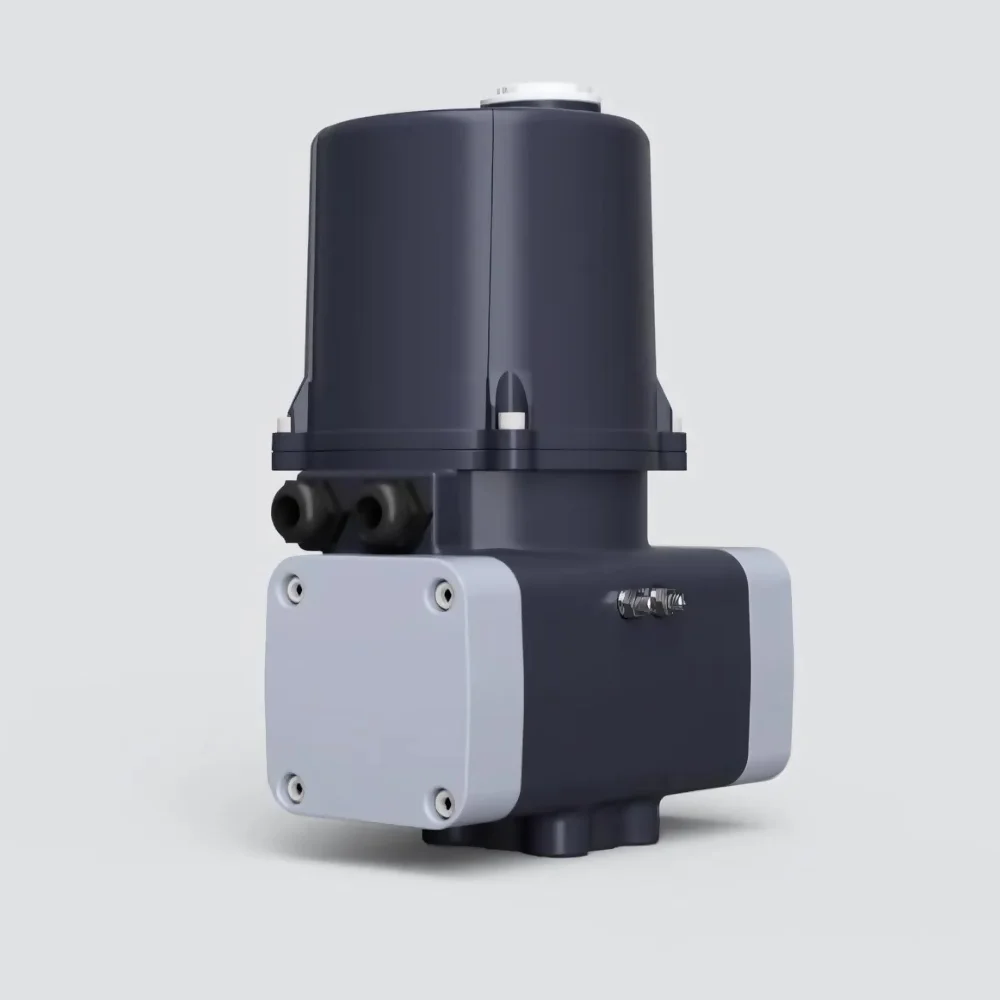

VTMR Series Spring Return Electric Actuator

The VTMR series spring return electric actuator utilises a spring-driven pinion and rack mechanism, offering torque capacities between 50Nm and 300Nm. Operating under standard power conditions, this actuator features a motor-driven system that also charges the spring. Should there be a power failure, the spring discharges its stored energy, promptly activating the actuator to return the connected devices to a secure state, either fully open or closed. This ensures a smooth and stable operation, effectively preventing any sudden pipe bursts (hammer-blow effect).

Body Materials: Nylon, Spring Steel, 34# Steel, 40CR, Tempered Glass, Ceramic, Q235, & Bearing Steel
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, & DNV
Working Temperature Range: -25°C to 65°C
Safety Integrity Grade: SIL2
Torque Range (NM): 50 to 300
Find Out More

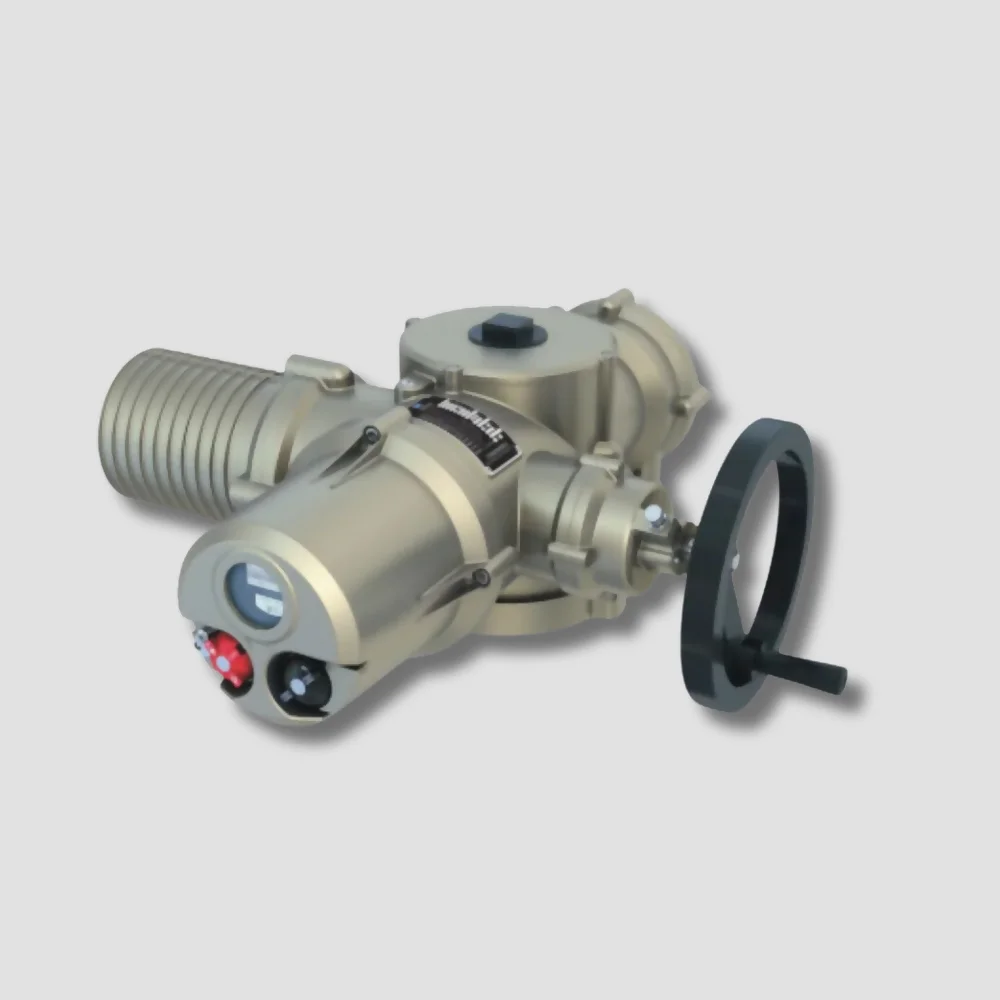

VTMZ Series Multi-Turn Electric Actuator

The VTMZ series multi-turn electric actuator delivers output torques ranging from 100Nm to 3500Nm, designed with custom solutions for various environments. These actuators feature high-precision worm gearing and a vortex rod, providing a self-locking mechanism that boosts security and dependability. The innovative design eliminates the need for handle-switching, ensuring a seamless operational transition. This series offers stable and straightforward functionality, further enhanced by an explosion-proof construction, weather-resistant enclosure, and compliance with ISO5211 standards for mounting.

Communication Protocols: Modbus, Profibus, HART Communication Protocol, DeviceNet, & Fieldbus Foundation
Torque Range (NM): 100 to 3500
Weight Range (Kg): 30 to 171
Certifications: ISO 9001:2015, SGC MD 2006/42/EC, & DNV
Find Out More

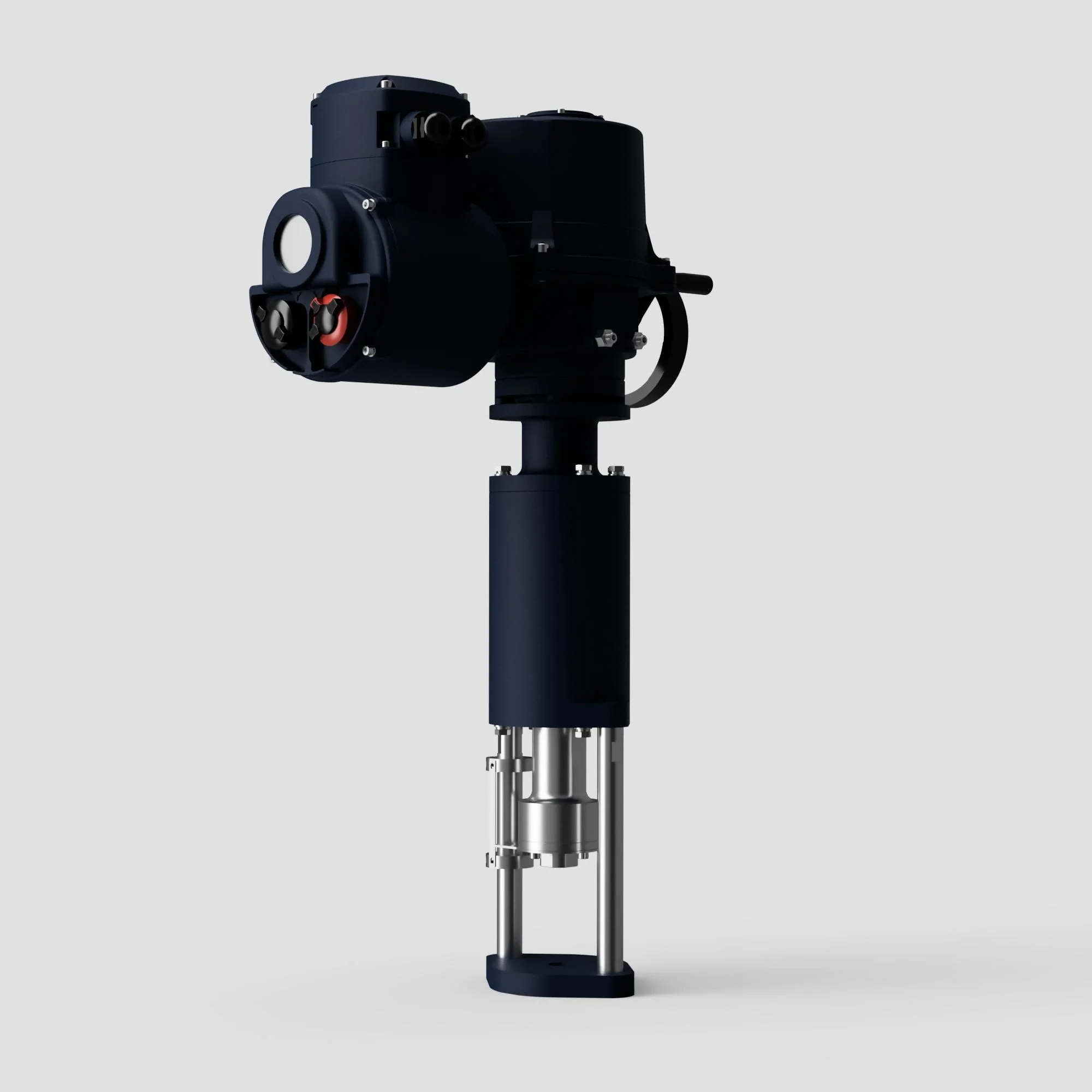

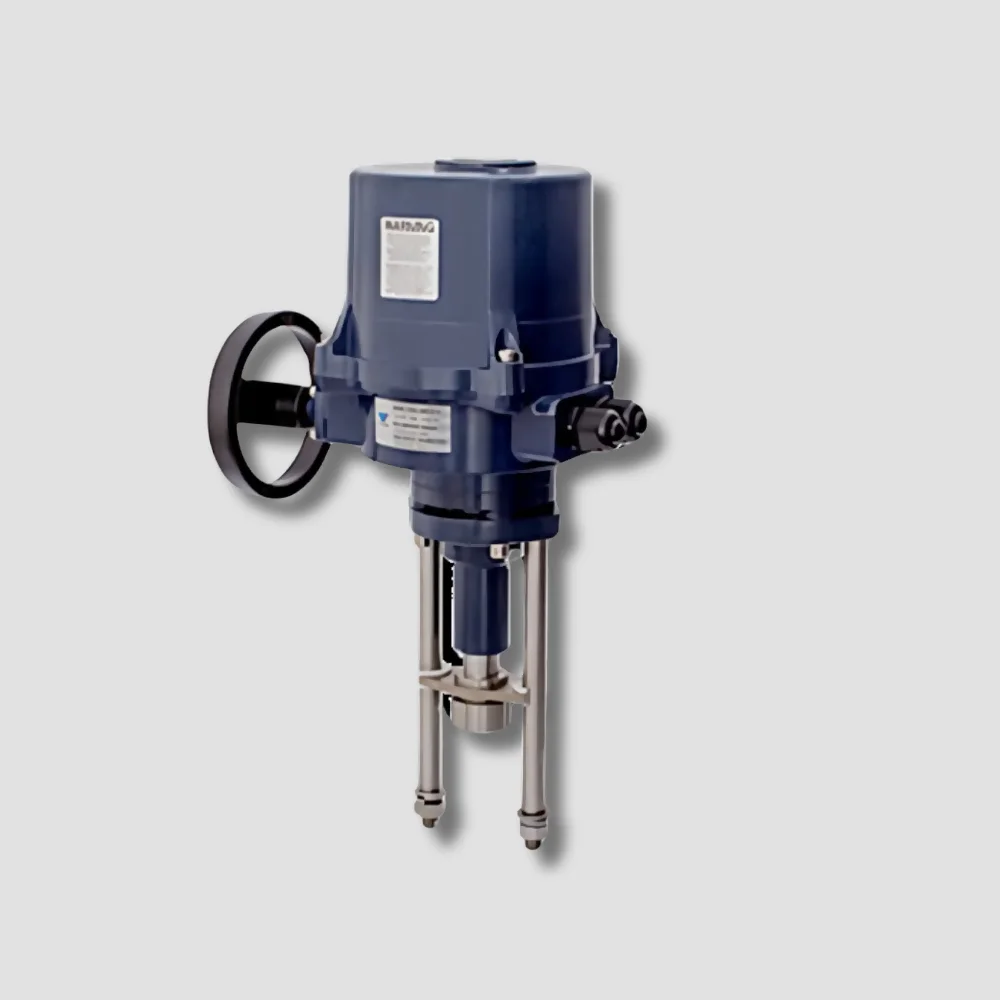

VTML Series Linear Electric Actuator

The VTML series linear electric actuator is engineered for conventional modulating valve control and various linear motion tasks, making it perfect for HVAC systems and industrial automation. It excels in steam or high-temperature settings due to its advanced and streamlined design. Despite its light weight, it delivers significant output thrust, ensuring precise and smooth movement with simple adjustment.

Find Out More

Frequently Asked Questions

A valve actuator is a mechanical device used to control the opening and closing of valves, allowing for remote or automated operation.

Actuators can be used with various types of valves, including ball valves, butterfly valves, gate valves, globe valves, and plug valves, among others.

The main types of valve actuators include pneumatic actuators, electric actuators, hydraulic actuators, and manual actuators.

A pneumatic actuator uses compressed air to generate mechanical motion, which is then used to operate the valve, either by opening or closing it.

Electric actuators offer precise control, easier integration with control systems, and do not require a constant supply of compressed air like pneumatic actuators.

Factors to consider include the type and size of the valve, operating environment (temperature, pressure, hazardous conditions), control requirements, and available power sources.

Yes, there are valve actuators specifically designed for hazardous environments, such as those with explosive atmospheres, which comply with industry standards for safety.

The size of the actuator depends on factors such as the torque or thrust required to operate the valve, which can be calculated based on the valve size, pressure, and flow conditions.

Yes, many valve actuators are designed for easy retrofitting onto existing manual valves, allowing for automation without the need for valve replacement.

Regular maintenance includes lubrication, inspection of mechanical components, and checking for leaks. Troubleshooting may involve checking electrical connections, pneumatic systems, and control signals.

Yes, valve actuators can be equipped with various control options, including remote control through wireless or wired networks, as well as integration into SCADA (Supervisory Control and Data Acquisition) systems.

Valve actuators are used in a wide range of industries and applications, including oil and gas, petrochemical, water treatment, HVAC (heating, ventilation, and air conditioning), pharmaceuticals, and food processing, among others. They are essential wherever automated flow control is required.
