Starline Ball Valves

Our Starline ball valves offer perhaps the most comprehensive range to anything else that we at Actuation Valve & Control Ltd offer. Sizes range from 1/4” to 12”, ANSI 150-Class 2500lb, PN16-PN420 & 1000-6000 PSI. Specialist features designed for Low & High Temperature/Abrasive applications, Trunnion Mounted Ball Valves, Single & Double Block & Bleed and Metal Seated Valves make us certain that this high quality, forged steel Italian manufactured Ball Valve will be able offer a suitable solution to your applications needs.

Starline MEGA STAR Ball Valves

Forming part of the High Pressure range of Ball Valves from Starline The Megastar Star Ball Valve is consistently used in the Chemical, Petrochemical & Gas Industries where reliability is paramount. The Megastar Ball Valve consists of a 3 piece bolted body design and is available in screwed, flanged & welded connections (Full Bore only). Capable of reaching pressures up to Class 2500LB (6000PSI) & Temperatures ranging from -101 to 250 DegC the Megastar Ball Valve can be used in virtually any high Pressure/Temperature application and sizes are available from 1/4”-2.

Size Range: DN008-DN50 (1/4"-2")
Body Materials: ASTM A150 Carbon Steel, LF2, 316 & 316L Stainless Steel (Others on request)
Body Type: Full Bore, Reduced Bore, Trunnion, Floating Ball
Applications: Water, Gas, Air, Chemical, Petro-Chemical, Oil & Gas, General Process
Pressure Rating: Maximum 2500LB, 6000PSI (Model Dependant)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

Starline MASTER STAR Ball Valves

The Master Star Starline Ball Vale is mainly used in the Chemical, Petroleum & Petrochemical Industries and consists of a 3 piece body design in screwed, welded & flanged connections. Forming part of the medium to low pressure range from Starline The Super Star Starline Ball Valve is capable of pressures up to and including Class 800LB (PN100) & Is capable of temperatures ranging from -200 to 260 DegC. Sizes are available from 1/4”-1 1/2”” for Full Bore Ball Valves & 1/2”-2” for Reduced Bore.

Size Range: DN008-DN40 (1/4"-1 1/2")
Body Materials: 321/316, A105/MONEL, A105/316, F4/F44, LF2/316, 316/316, 316L/316L, MONEL/MONEL & F51/F51
Body Type: Full Bore, Reduced Bore, Floating Ball
Applications: Water, Gas, Air, Chemical, Petro-Chemical, Oil & Gas, General Process,
Pressure Rating: Maximum 600LB (PN100)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

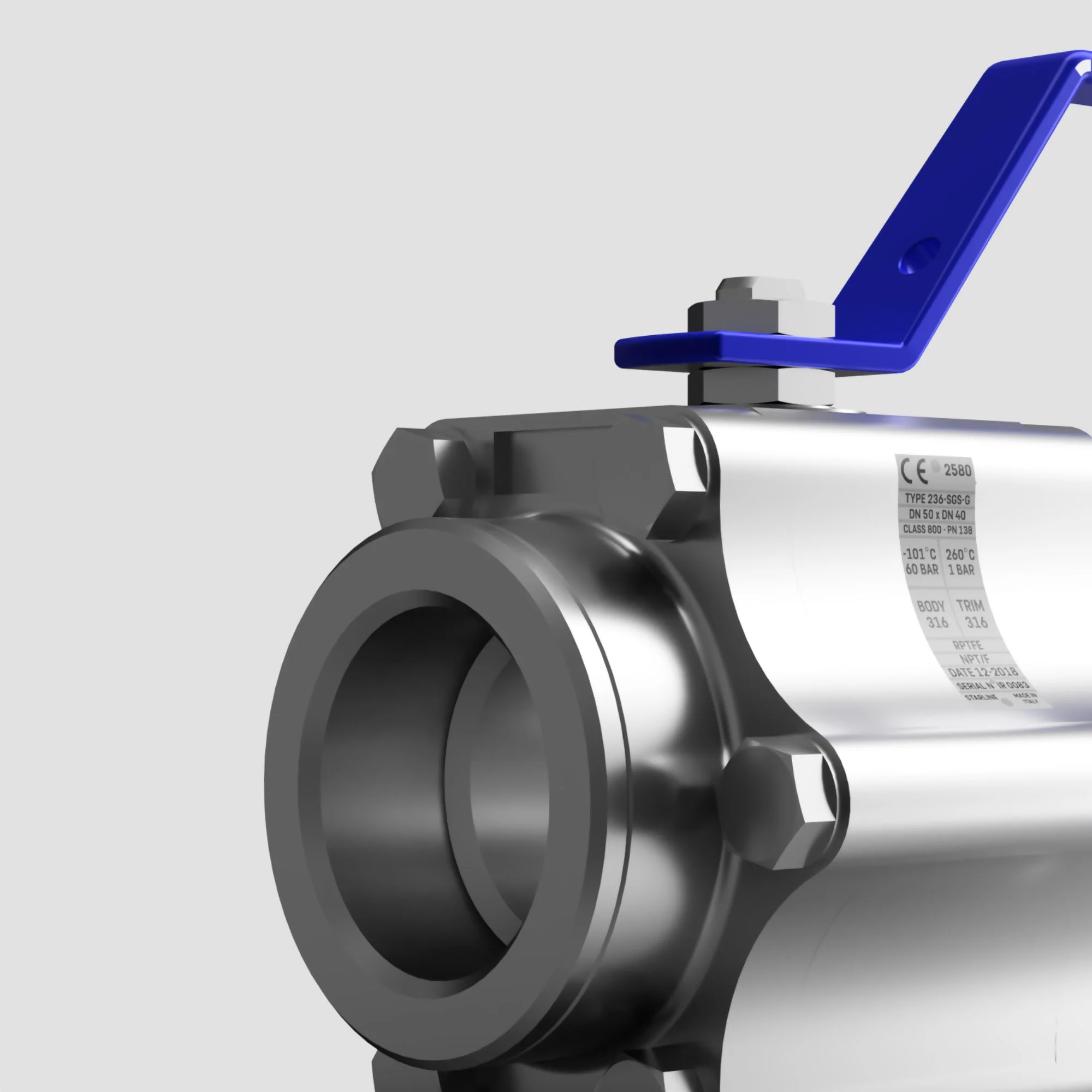

Starline SUPER STAR Ball Valves

The Super Star Starline Ball Valve forms part of the medium to low pressure range from Starline and is mainly used in the Chemical, Petrochemical & Petroleum Industries consisting of a 3 piece body design in screwed, welded & flanged connections. The Super Star is capable of pressures up to Class 900LB (PN150) & has a temperature range of -200 to 450 DegC incorporating sizes from 1/4”-3” for Full Bore Ball Valves & 1/2”-4” for Reduced Bore. The Valve design itself features an anti-blowout shaft, encapsulated soft seats, ISO5211 drilled mounting pad for easy actuation services and is Antistatic/Firesafe approved.

Size Range: DN008-DN80 (1/4"-3")
Body Materials: ASTM A150 Carbon Steel, LF2, 316 & 316L Stainless Steel (Others on request)
Body Type: Full Bore, Reduced Bore, Floating Ball
Applications: Water, Gas, Air, Chemical, Petro-Chemical, Oil & Gas, General Process
Pressure Rating: Maximum 900LB (PN150)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

Starline MULTIPORT Ball Valves

The Starline Multi-Port Range of Ball Valves combine the  Manufacturers range in 3 & 4 Way, L or T Port Ball Valves. Predominantly used in Petroleum, Chemical, Petrochemical and other allied Industries this multipurpose Ball Valve consists of a bolted body construction, anti-blowout shaft, encapsulated soft seat and Antistatic/Firesafe design. A High integrity shutoff shut off at both low and high pressures make this valve your perfect choice for critical applications.

Size Range: DN008-DN80 (1/4"-3")
Body Materials: 321/316, A105/MONEL, A105/316, F4/F44, LF2/316, 316/316, 316L/316L, MONEL/MONEL & F51/F51
Body Type: Full Bore, Reduced Bore, Floating Ball
Applications: Water, Gas, Air, Chemical, Petro-Chemical, Oil & Gas, General Process
Pressure Rating: Maximum 600LB (PN100)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

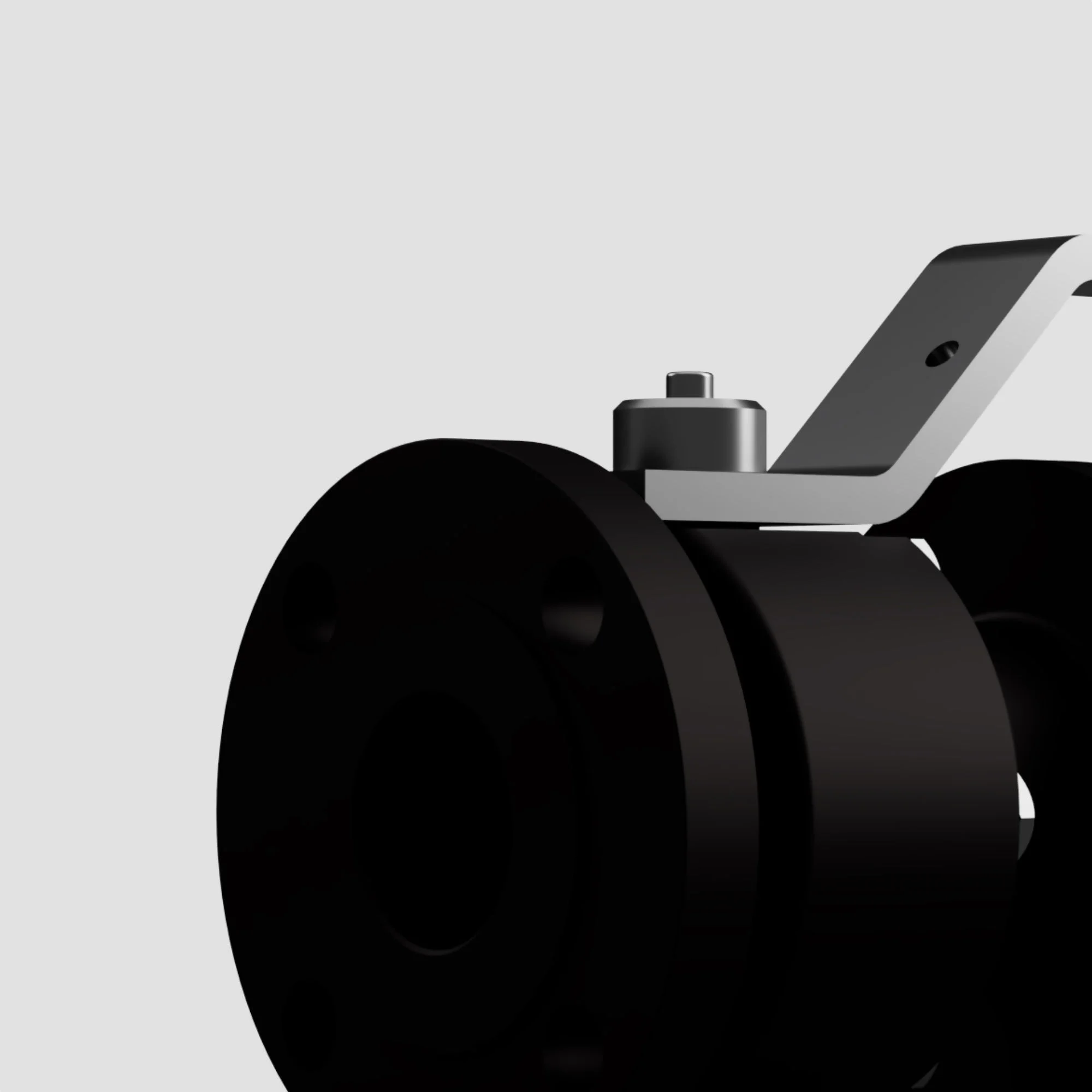

Starline SPLIT STAR Cryogenic Ball Valves
Size Range: DN008-DN250 (1/4"-10")
Body Materials: 304 & 316 Stainless Steel (Other On Request)
Body Type: Full Bore, Floating Ball, Trunnion
Applications: Cryogenic
Pressure Rating: Maximum 600LB (PN100)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

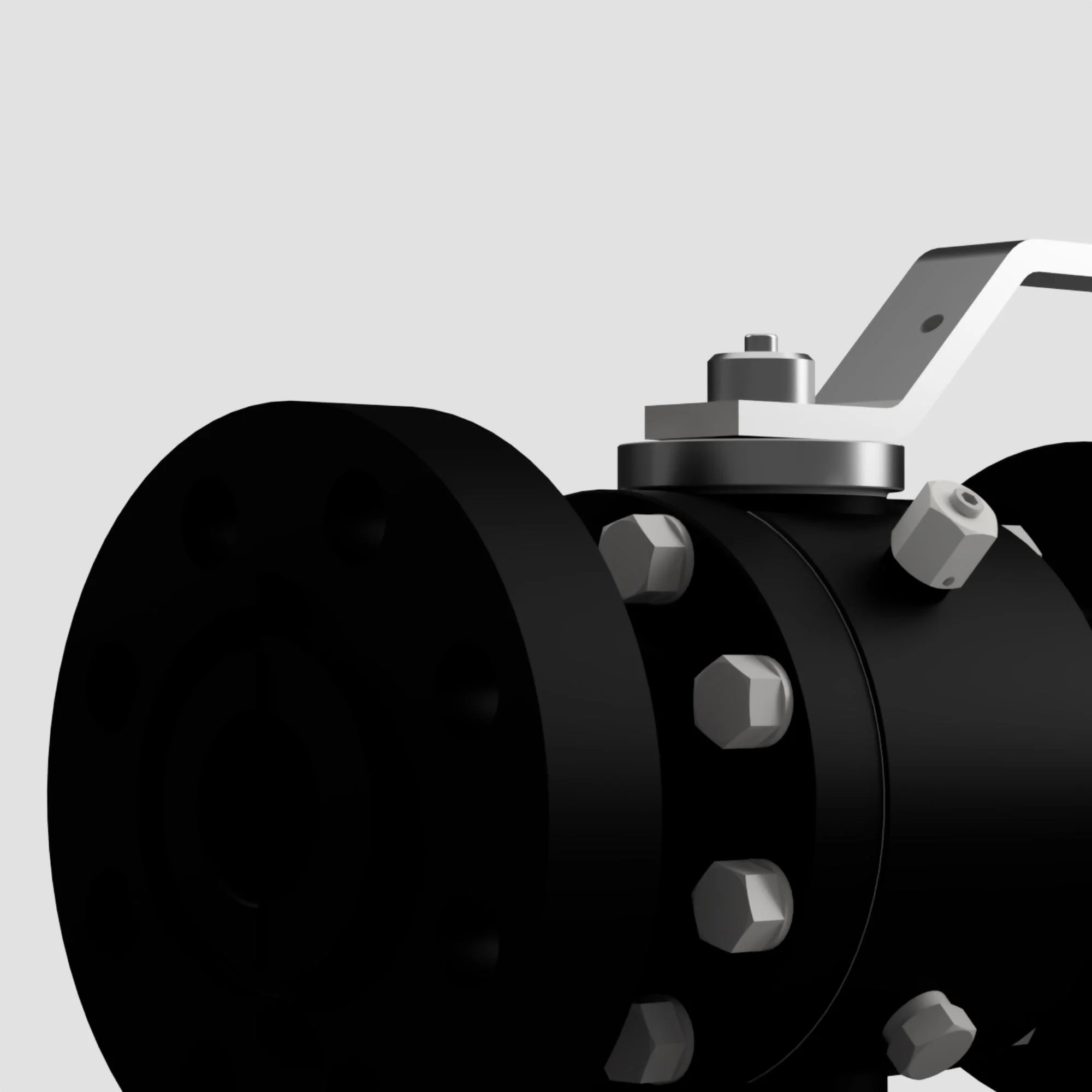

Starline ULTRA STAR Ball Valves
Size Range: DN008-DN80 (1/4"-3")
Body Materials: ASTM A105, LF2, 316/316L Stainless Steel, F22 & Inconel (Other On Request)
Body Type: Full Bore, Reduced Bore, Floating Ball, Trunnion
Applications: Gas, Air, Chemical, Petro-Chemical, Oil & Gas, High Temperature, Abrasive, Corrosive
Pressure Rating: Maximum 600LB (PN100)
End Connections: Screwed BSPP, BSPT, NPT, Flanged, Socket Weld, Butt Weld
Find Out More

Valve Standards & Stuff
Size: DN08 - DN50 (1/4" - 2")
Body Material: ASTM A105 - LF2 - 316 - 316L - and Special Materials
Design Standard: ASME B16.34 - ASME B31.1 - BS5351 - P.E.D. 97/23/EC - ATEX 94/9 CE
Temperature Range: -200° C UP TO +260° C
Applications: Petroleum, Chemicals, Petrochemicals, Gas Application and Allied Industries
Test Certificate: UNI EN 10204 Type 3.1B

Frequent Interrogation

Starline Ultra Star Ball Valves are distinguished by their advanced features, including an anti-blowout proof stem design, double seal soft insert seats, and automatic relieving in case of over-pressuring. These features ensure enhanced safety, reliability, and performance in fluid control applications.

The anti-blowout proof stem design of Starline Ultra Star Ball Valves prevents stem ejection under pressure, minimising the risk of accidents or damage during operation. This feature ensures that the valve remains securely in place, even under high-pressure conditions.

The double seal soft insert seats provide superior sealing performance and leakage prevention, enhancing the valve's reliability and longevity. This design ensures tight sealing, even in demanding industrial environments, thereby reducing the risk of fluid leaks and minimizing maintenance requirements.

The automatic relieving feature in Starline Ball Valves activates in case of over-pressuring within the valve body, automatically relieving excess pressure to prevent damage or failure. This functionality ensures system integrity and uninterrupted operation, safeguarding equipment and personnel.

The three-piece bolted construction facilitates easy maintenance and servicing of Starline Ultra Star Ball Valves, allowing for quick disassembly and reassembly. This feature streamlines maintenance procedures, reducing downtime and enhancing operational efficiency.

Starline Ball Valves are designed to provide high-integrity shut-off at both low and high pressures, ensuring reliable performance across a wide range of operating conditions. This capability enhances process control and system safety in various industrial applications.

The double block and bleed feature in Starline Ball Valves allows for isolation and verification of fluid flow, providing added safety and security in critical processes. This functionality enables operators to maintain control over fluid flow and monitor system integrity effectively.

The floating seats spring energised design ensures consistent sealing and enhanced reliability in Starline Ball Valves. This feature enables the seats to adjust to variations in pressure and temperature, maintaining tight sealing and preventing leakage over time.

The ISO 5211 top cover flange provides a standardised interface for easy automation of Starline Ball Valves, facilitating seamless integration with actuation systems. This feature simplifies valve operation and control, enhancing overall system efficiency and performance.

Yes, Starline Ball Valves are fire test approved, ensuring compliance with industry standards for fire safety. This certification underscores the valves' ability to withstand high-temperature environments and maintain operational integrity during fire emergencies.

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221

Starline Ball Valves

(17 Items)
Refine
Hide Filters Show Filters
Sort By
  • Low to High
  • High to Low
  • A to Z
  • Z to A
  • New In

Our Starline ball valves offer perhaps the most comprehensive range to anything else that we at Actuation Valve & Control Ltd offer. Sizes range from 1/4” to 12”, ANSI 150-Class 2500lb, PN16-PN420 & 1000-6000 PSI.

Specialist Features Of The Starline Ball Valves

Specialist features designed for Low & High Temperature/Abrasive applications, Trunnion Mounted Ball Valves, Single & Double Block & Bleed and Metal Seated Valves make us certain that this high quality, forged steel Italian manufactured Ball Valve will be able offer a suitable solution to your applications needs. With this wide and varied range, the Starline Ball Valves have been split into their own individual series’. These include the Standard Star, Master Star, Super Star, Split Star, Mega Star, Ultra Star, Threaded Star, Metal Star, Cryo Star & the Twin Star, all with their own specialist features aimed at certain applications and industries. For a more detailed breakdown of each individual Starline valve, please see the attached data.

UK Availability on our Valves

All of the above mentioned Starline ball valves are available ex-stock in the UK in a number of materials, from standard Carbon & Stainless Steel to Bronze, Duplex & Super Duplex. Other alloys are available on request, please ask us for details. Starline’s desire and drive to be one of the leading, accredited Valve Manufactures in the world has seen the Starline range of Ball Valves obtain recognition for Lloyds  ISO9001, ATEX 94/9 CE, PED 97/23 EC, GOST, Total-Fina-Elf, Stoomwezen, Shell and many more. Actuation Valve & Control have worked closely with Starline for more than a decade. Delivering a high quality product, reliable service and after sales support.
