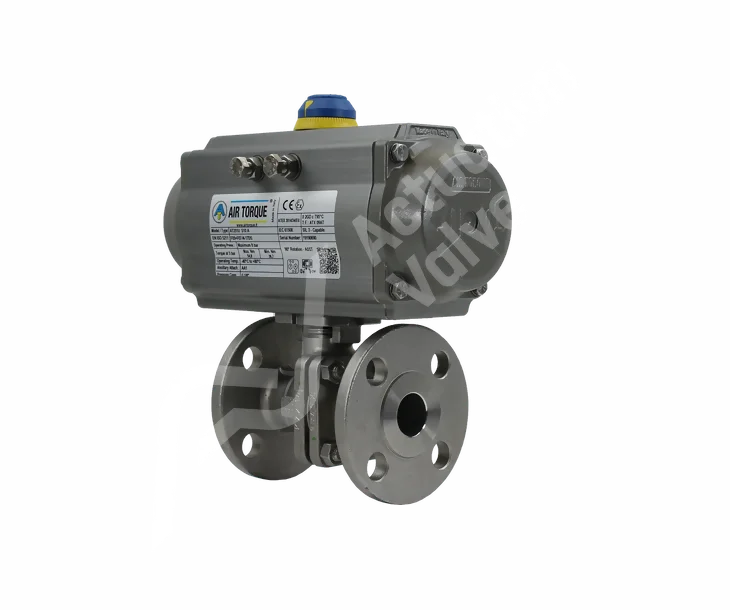

The AV-L6100AT 2 piece full bore actuated ball valves are available in sizes ranging from 1/2" to 8" for next day delivery. This flanged valve body offers installation between two pipeline flanges and end of line service with a relaible shut off performance. The AV-L6100AT actuated ball valve offers TFM 1600 ball seats that are a WRAS & FDA certified material. The ISO 5211 mounting pad allows actuation of the valve without the use of a mounting bracket so all assembly and testing procedures can be processed immediately after your order has been placed.

Shop Help Me

Key features and benefits of AV-L6100AT Actuated Ball Valves.

Key Features

The Air Torque Actuator is a new generation of pneumatic actuators that can be used in the most demanding environments, while meeting the highest performance standards. It’s perfect for applications requiring high reliability and long life at low cost.

Key Features

All Air Torque Pneumatic Actuators are continuously tested to 4 Million cycles, ensuring a trouble-free experience and fit and forget solution that comes with Manufacturers warranty as standard for correctly specified applications.

Key Features

Our range of stainless steel ball valves have been designed to meet your needs applications with pressure requirements up to 20 bar where long life expectancy is important. We also offer our ball valves in numerous sizes so you can be sure we’ll have what you need.

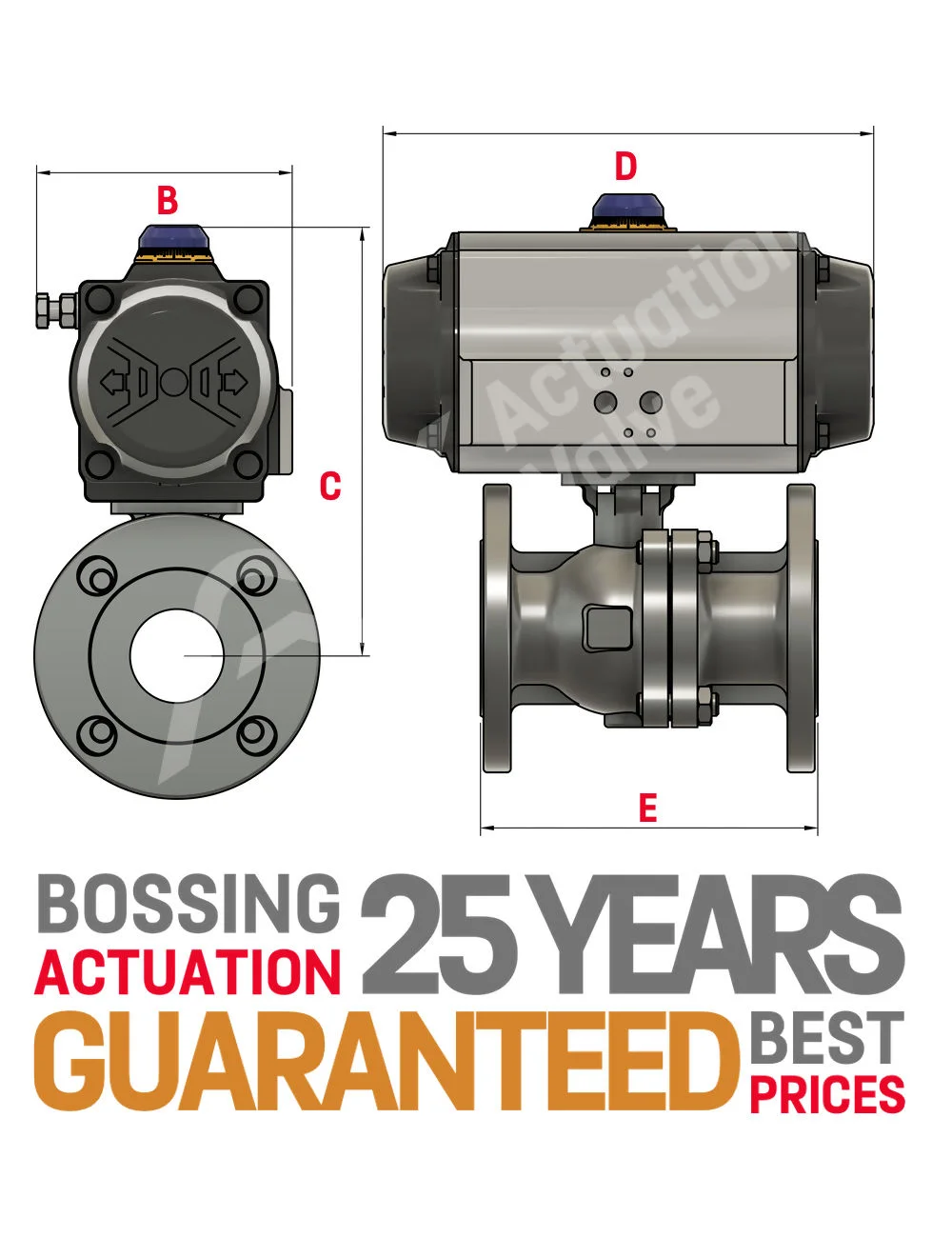

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	72.00	138.00	137.00	108.00	72.00	138.00	137.00	108.00
3/4"	72.00	142.00	137.00	117.00	72.00	142.00	137.00	117.00
1"	84.50	164.00	153.50	127.00	72.00	148.00	137.00	127.00
1 1/4"	93.00	193.00	203.50	140.00	72.00	160.00	137.00	140.00
1 1/2"	93.00	198.00	203.50	165.00	93.00	198.00	203.50	165.00
2"	106.00	217.00	241.00	178.00	93.00	204.00	203.50	178.00
2 1/2"	118.50	249.00	259.00	190.00	93.00	224.00	203.50	190.00
3"	136.00	287.00	304.00	203.00	106.00	247.00	241.00	203.00
4"	166.00	347.00	394.50	229.00	136.00	315.00	304.00	229.00
5"	181.00	409.00	422.50	356.00	166.00	390.00	394.50	356.00
6"	221.50	499.00	528.00	394.00	166.00	411.00	394.50	394.00
8"	262.00	601.50	605.00	457.00	181.00	479.00	422.50	457.00
10"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	ASME B16.34
Wall Thickness:	ASME B16.34
Inspection & Testing:	API 598
Face 2 Face:	ASME B16.10

What are the different types of stainless steel used in valve construction?

Common grades are 304, 316, 317, 254SMO, and alloy 20. 316 provides the best corrosion resistance for most applications.

What types of stainless steel valves are available?

Ball, butterfly, globe, check, gate, diaphragm, pinch, control, and relief valves are all available in stainless steel.

What are the advantages of stainless steel valves?

Stainless valves offer excellent corrosion resistance, temperature resistance, high strength, long service life, and good chemical compatibility.

What are typical applications for stainless steel valves?

Water and wastewater treatment, chemical processing, food and beverage, pharmaceuticals, petrochemical, pulp and paper, and other corrosive environments.

What end connection options are available?

Threaded, socket weld, butt weld, sanitary fittings, and flange connections in sizes from 1/4" to 36".

What types of actuation methods are used?

Manual actuation by hand lever or handwheel, pneumatic, electric, and hydraulic automation. Some valves are self-actuated.

What pressure and temperature ratings do stainless steel valves have?

Pressure ratings vary widely by valve type, but typically range from 150 psi to 4500+ psi. Temperature ratings range from -320°F to over 800°F.

How is valve leakage prevented?

Tight shutoff is achieved using metal seating surfaces, soft seats, live-loaded packing, isolating gaskets, or other tight sealing methods.

What standards and certifications apply to stainless steel valves?

Certifications can include NACE MR0175, MSS SP-70, API 598, BS6755, EN12266, and plant specifications like ARAMCO, Shell SPE, or MIL.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
