SOCLA Water Hammer Arrestors

SOCLA Water Hammer Arrestors are engineered to mitigate hydraulic shocks in domestic water systems, effectively reducing noise and potential damage caused by sudden pressure changes. Constructed from durable materials like chrome-plated bronze, these devices operate optimally around 3 bar pressure and require no maintenance due to their tankless design. They are available in various configurations, including vertical dead-end models and straight-line versions with flexible hoses, allowing for versatile installation close to the source of water hammer.

SOCLA 21 Water Hammer Arrestors
Plumbing

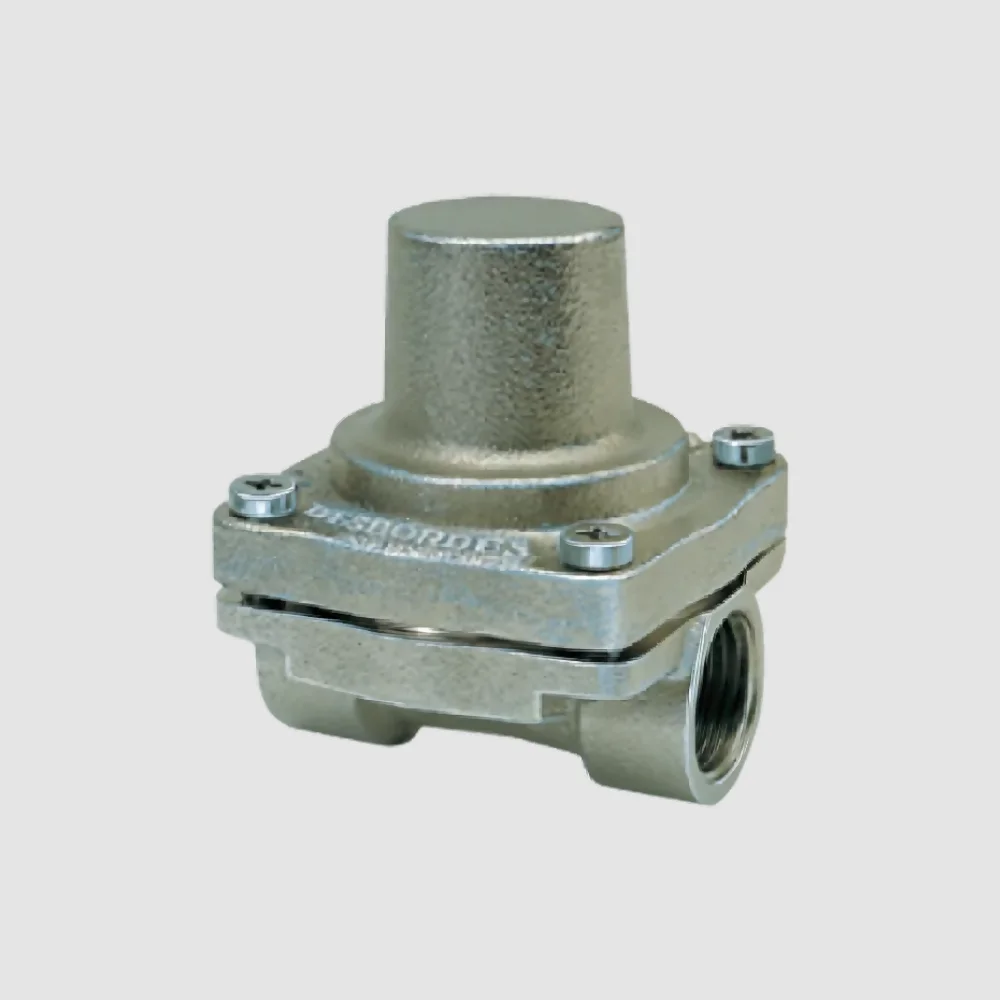

The SOCLA 21 Water Hammer Arrestor is designed for domestic water systems to minimise the impact of water hammer caused by equipment such as mixer taps, ball valves, and solenoid valves. Featuring a chrome-plated bronze body and NBR membrane, it operates efficiently in a 3-bar network and at temperatures between -10°C and 80°C. With male BSP threaded connections, it requires no maintenance and complies with NF EN ISO 228 standards, ensuring reliable performance in reducing water shock.

 Technical Datasheet

Pressure: PFA 5 Bar
Size Range: 20 mm
Body Materials: Chrome Plated Brass, NBR, Brass, Stainless Steel, & Anticorrosive Steel
Approvals: ACS
Weight Range (KG): 0.75
Enquire Here

SOCLA 21 BIS D Water Hammer Arrestors
Plumbing

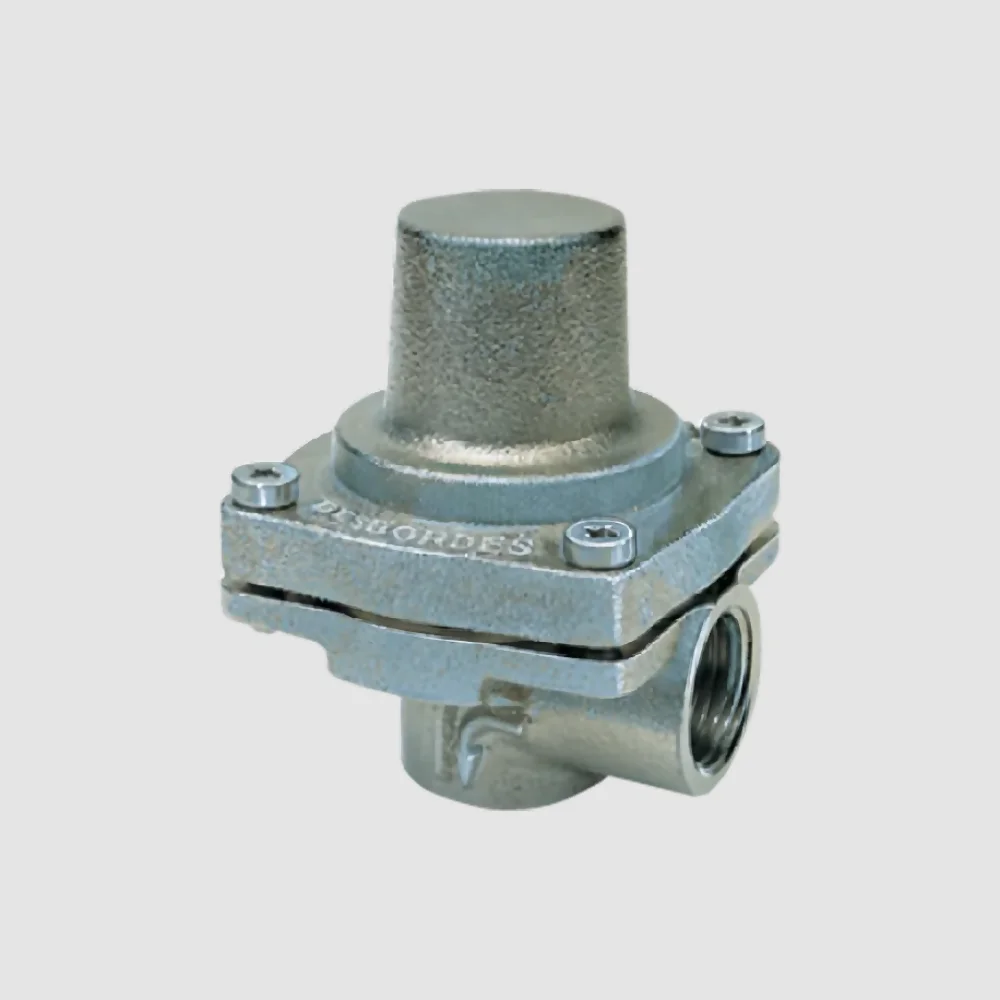

The SOCLA 21 BIS D Water Hammer Arrestor effectively reduces water hammer caused by taps, ball valves, and solenoid valves in domestic installations. Featuring a chrome-plated bronze body and NBR polyamide-reinforced membrane, it operates optimally in 3-bar networks with temperatures from -10°C to 80°C. With female BSP connections, it requires no maintenance and complies with NF EN ISO 228 standards. Its design ensures efficient performance near the hammer source.

 Technical Datasheet

Pressure: PFA 5 Bar
Size Range: 15 mm
Body Materials: Chrome Plated Bronze, NBR Polyamide, Brass, Stainless Steel, & Anticorrosive Steel
Approvals: ACS
Weight Range (KG): 0.50
Enquire Here

SOCLA 21 BIS E Water Hammer Arrestors
Plumbing

The SOCLA 21 BIS E Water Hammer Arrestor is ideal for domestic installations, effectively minimising water hammer caused by taps, ball valves, and solenoid valves. Made from chrome-plated bronze with a polyamide-reinforced NBR membrane, it operates efficiently in systems with a 3-bar network and temperatures from -10°C to 80°C. With female BSP threaded connections and no maintenance required, it ensures optimal performance and complies with NF EN ISO 228 standards.

 Technical Datasheet

Pressure: PFA 5 Bar
Size Range: 15 mm
Body Materials: Chrome Plated Bronze, NBR Polyamide, Brass, Stainless Steel, & Anticorrosive Steel
Approvals: ACS
Weight Range (KG): 0.50
Enquire Here

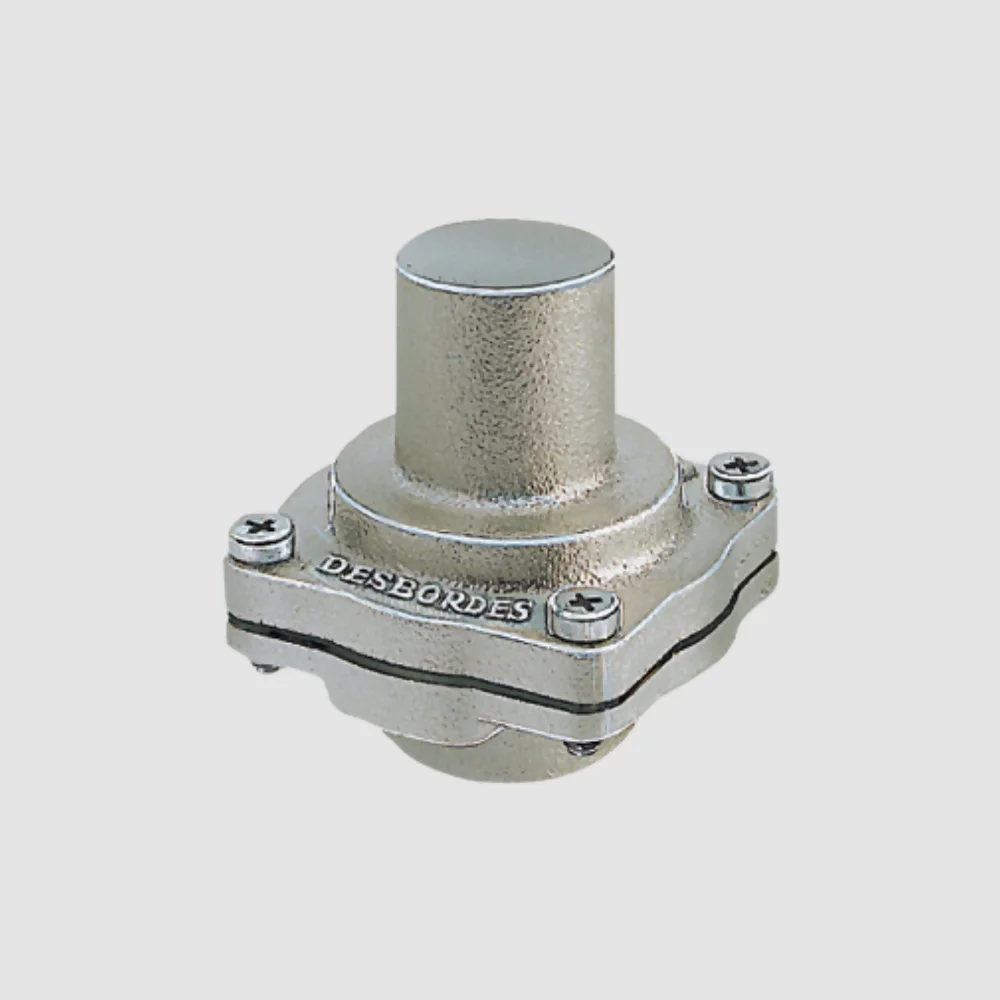

SOCLA 21 BIS EB Water Hammer Arrestors
Plumbing

The SOCLA 21 BIS EB Water Hammer Arrestors effectively reduce water hammer caused by equipment like mixer taps, ball valves, and solenoid valves. Made from chrome-plated bronze, they operate optimally in systems around 3 bar pressure and require no maintenance due to their tankless design. These vertical dead-end arrestors improve efficiency with a venturi internal effect and are suitable for domestic water installations, ensuring long-lasting performance.

 Technical Datasheet

Pressure: PFA 5 Bar
Size Range: 20 mm
Body Materials: Chrome Plated Bronze, NBR Polyamide, Brass, Stainless Steel, & Anticorrosive Steel
Approvals: ACS
Weight Range (KG): 0.45
Enquire Here

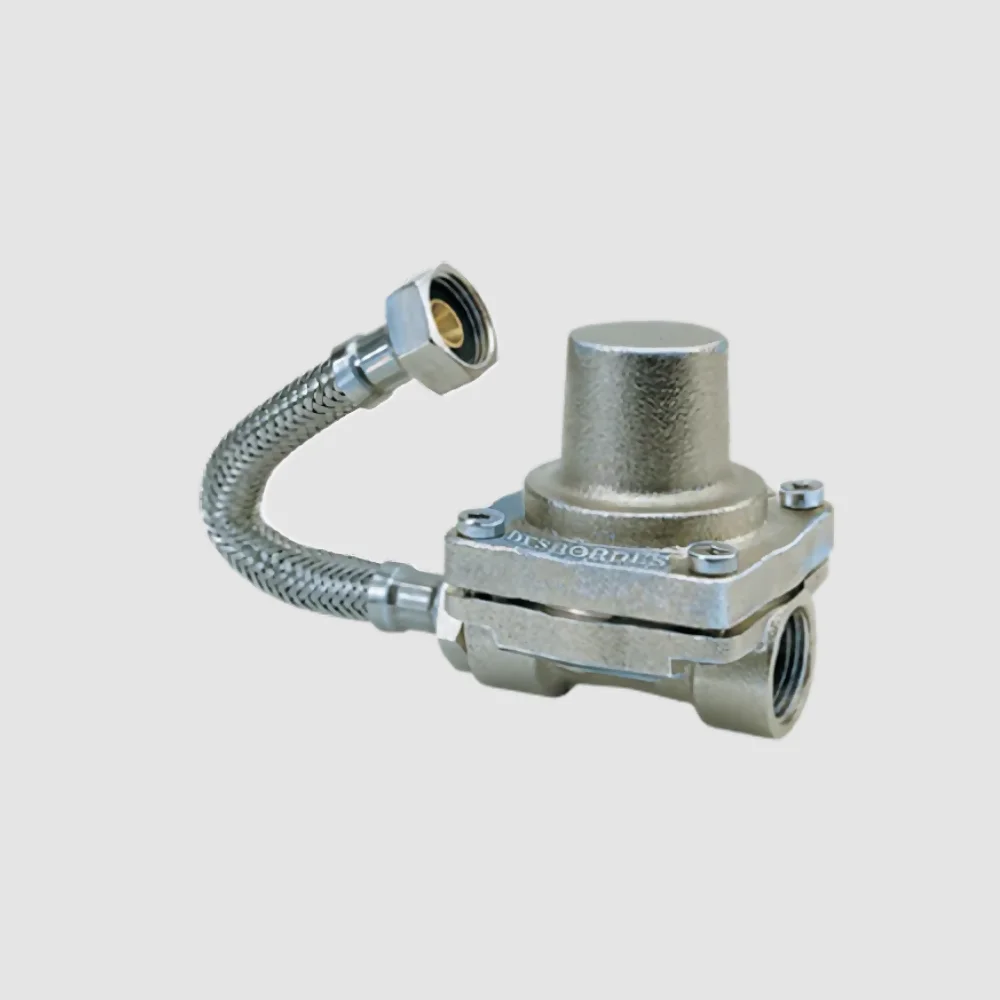

SOCLA 21 BIS FLEX Water Hammer Arrestors
Plumbing

The SOCLA 21 BIS FLEX Water Hammer Arrestors, designed for domestic installations, minimise water hammer effects from devices like mixer taps and solenoid valves. Featuring a chrome-plated bronze body and a stainless steel flexible hose, they ensure optimal performance in systems around 3 bar. Maintenance-free and tankless, they utilise a venturi internal effect for improved efficiency and can be installed in any position, placed close to the source of water hammer for maximum effectiveness.

 Technical Datasheet

Pressure: PFA 5 Bar
Size Range: 15 mm
Body Materials: Chrome Plated Bronze, NBR Polyamide, Brass, Stainless Steel, & Anticorrosive Steel
Approvals: ACS
Weight Range (KG): 0.50
Enquire Here
Pressure Reducing Valves

Frequently Asked Questions

What is a SOCLA Water Hammer Arrestor?

A SOCLA Water Hammer Arrestor is a device designed to absorb shock waves caused by sudden stops in water flow, preventing potential damage to plumbing systems.

How does the SOCLA 21 Water Hammer Arrestor function?

The SOCLA 21 Water Hammer Arrestor utilizes a chrome-plated bronze body and a reinforced NBR membrane to cushion pressure surges, effectively reducing water hammer effects.

Where should the SOCLA 21 BIS EB Water Hammer Arrestor be installed?

The 21 BIS EB model is designed for vertical dead-end installations and should be placed as close as possible to the source of water hammer generation, such as near quick-closing valves.

What are the operating pressure and temperature ranges?

SOCLA Water Hammer Arrestors operate optimally at 3 bar, with a maximum permissible pressure of 5 bar, and can handle temperatures ranging from -10°C to 80°C.

Do SOCLA Water Hammer Arrestors require maintenance?

No, SOCLA Water Hammer Arrestors are designed to be maintenance-free, eliminating the need for greasing or recharging, as they do not contain a swellable tank.

Are these products suitable for both residential and industrial applications?

Yes, while models like the 21 and 21 BIS EB are ideal for domestic plumbing, SOCLA also offers industrial anti-water hammer devices for higher pressure requirements.

What materials are used in the construction of SOCLA Water Hammer Arrestors?

These arrestors feature a chrome-plated bronze body, a polyamide-reinforced NBR membrane, and stainless steel components, ensuring durability and corrosion resistance.

How do I select the appropriate SOCLA Water Hammer Arrestor for my system?

Selection depends on factors like pipe size, operating pressure, and installation type. Consulting SOCLA's technical datasheets or a professional plumber can aid in choosing the right model.

Can SOCLA Water Hammer Arrestors be installed in any position?

Certain models, such as the 21 BIS FLEX, can be installed in various positions, offering flexibility to suit different plumbing configurations.

What approvals do SOCLA Water Hammer Arrestors have?

SOCLA Water Hammer Arrestors are ACS approved, ensuring compliance with health and safety standards for drinking water systems.

How do SOCLA Water Hammer Arrestors compare to traditional air chambers?

Unlike air chambers that can become waterlogged over time, SOCLA Water Hammer Arrestors maintain consistent performance without the need for recharging, providing reliable long-term protection.

Can SOCLA Water Hammer Arrestors be used with all types of water supply systems?

Yes, SOCLA Water Hammer Arrestors are compatible with most water supply systems, including those with varying pipe materials and flow rates.
