SOCLA TJ, TJO, FL, & 04 Systems

SOCLA's TJ, TJO, FL, and 04 Systems encompass a range of guided check valves engineered for efficient backflow prevention across various applications, including water distribution, heating, and hydrocarbon pumping. These valves feature materials such as brass, polyacetal, and stainless steel, with seals available in EPDM or FKM, ensuring compatibility with diverse media. Designed for minimal head loss and reliable sealing, they support BSP or NPT threaded connections and comply with PED 2014/68/UE standards, making them suitable for both domestic and industrial installations.

SOCLA 60S Guided Check Valves
Domestic Pumping, & Housing

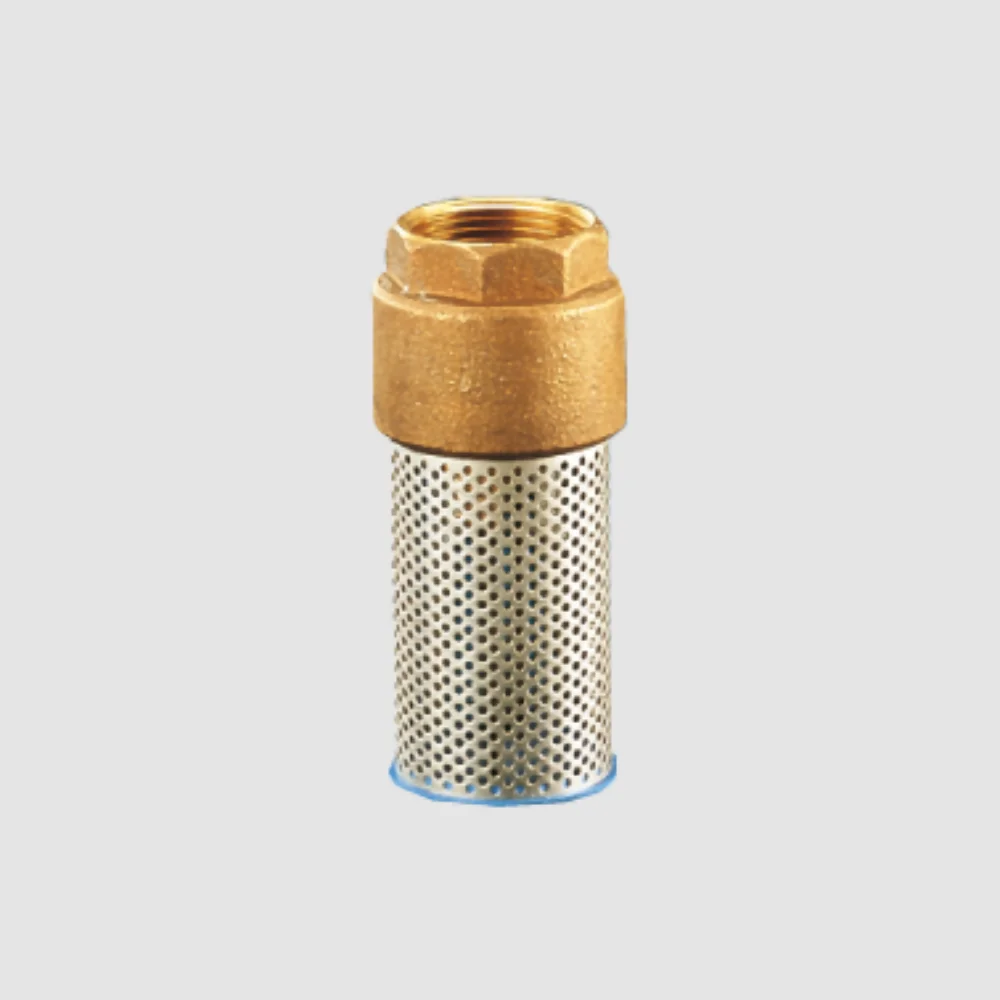

The SOCLA 60S Guided Check Valve is a non-return foot valve designed for clear liquids and hydrocarbons in systems requiring substantial flow. Featuring a bronze body, stainless steel spring, and NBR seal, it ensures reliable sealing and minimal head loss. Operating at pressures up to 16 bar and temperatures from -10°C to 80°C, it supports BSP threaded connections and can function in any position. Compliant with PED 2014/68/UE standards, it is suitable for construction and domestic pumping applications.

 Technical Datasheet

Pressure: PFA 16 Bar
Size Range: 20 ... 100 mm
Body Materials: Unleaded Bronze, Stainless Steel, Hostaform, Delrin, NBR, & Polycarbonate
Approvals: BVERITAS
Weight Range (KG): 0.14 ... 8.64
Enquire Here

SOCLA 104 Guided Check Valves
Domestic Pumping, & Housing

The SOCLA 104 Guided Check Valve is a non-return foot valve designed for high flow rates in pumping systems. It features a brass body, POM closing system, stainless steel spring, and EPDM seals, ensuring efficient backflow prevention with minimal head loss. Operating at pressures up to 10 bar and temperatures from -10°C to 65°C, it supports BSP threaded connections and can function in any position. Compliant with PED 2014/68/UE standards, it is ideal for construction and domestic applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 20 ... 32 mm
Body Materials: Brass, POM, EPDM, Stainless Steel, & PE
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.082 ... 0.237
Enquire Here

SOCLA 104P Guided Check Valves
Domestic Pumping, & Housing

The SOCLA 104P Guided Check Valve is a non-return foot valve designed for clear water pumping systems with high flow requirements. It features a PPO or POM body, a POM tripod-closing system, a stainless steel spring, EPDM seals, and a PE strainer. Operating at pressures up to 10 bar and temperatures from -10°C to 65°C, it ensures minimal head loss and reliable sealing. Compliant with PED 2014/68/UE standards, it supports BSP threaded connections for versatile applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 20 ... 32 mm
Body Materials: PPO, POM, EPDM, PE, & Stainless Steel
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.026 ... 0.069
Enquire Here

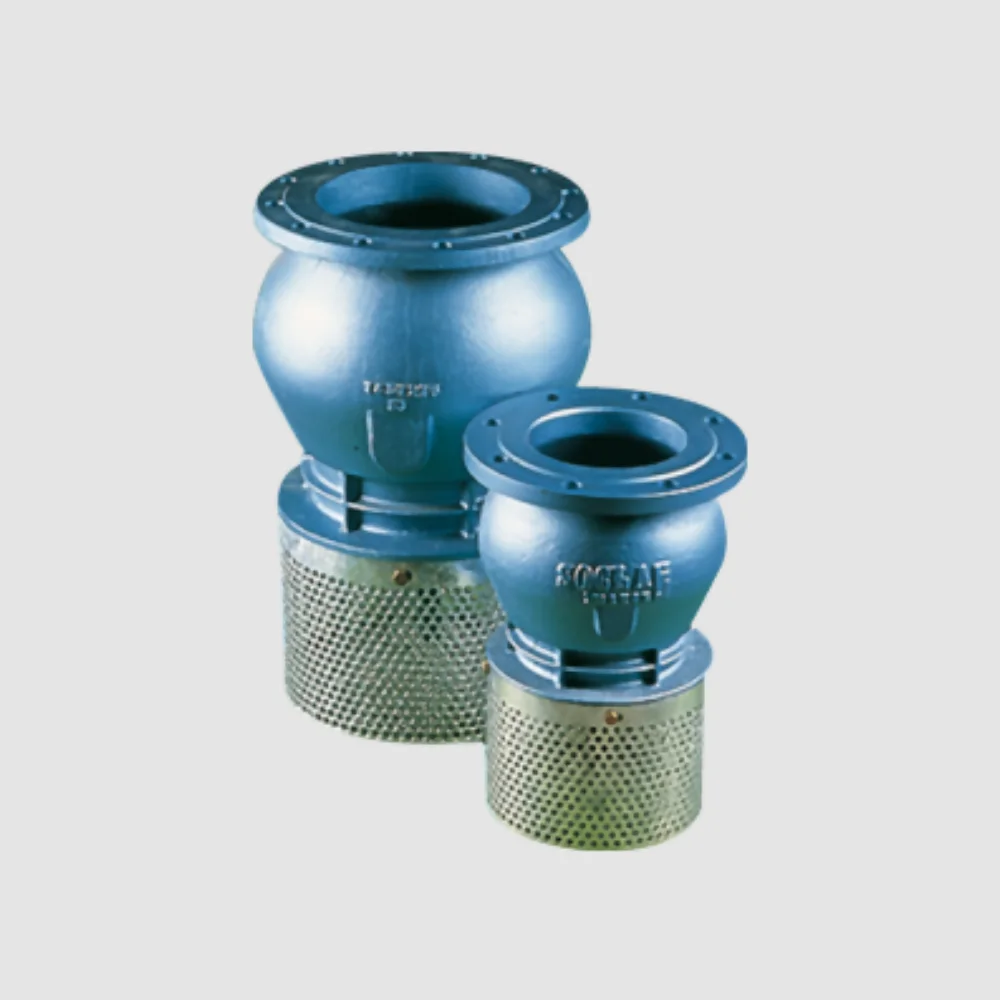

SOCLA 144 Guided Check Valves
Pumping, & Water Distribution

The SOCLA 144 Guided Check Valve ensures efficient backflow prevention in water distribution and pumping systems. Designed for vertical installations, it operates at pressures up to 10 bar and temperatures from -10°C to 60°C. The valve features a cast iron body with an epoxy coating, an EPDM seal, and a galvanised steel strainer for optimal performance. Its axial tripod guiding system minimises head loss, while compliance with EN1092-2 and PED 2014/68/UE standards ensures reliability.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 200 ... 600 mm
Body Materials: Cast Iron, Epoxy, EPDM, & Galvanised Steel
Approvals: ACS, CE Marking, & BVERITAS
Weight Range (KG): 50 ... 790
Enquire Here

SOCLA 190 Guided Check Valves
Domestic Pumping, & Housing

The SOCLA 190 Guided Check Valve is a non-return foot valve designed for efficient backflow prevention in water distribution and pumping systems. It features a brass body, POM closing system, EPDM seals, and a PE strainer for optimal performance. Operating at pressures up to 10 bar and temperatures from -10°C to 65°C, it ensures minimal head loss and reliable sealing. Suitable for BSP threaded connections, it complies with PED 2014/68/UE standards, making it ideal for demanding applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 40 ... 50 mm
Body Materials: Brass, POM, EPDM, Stainless Steel, & PE
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.330 ... 0.688
Enquire Here

SOCLA 190D Guided Check Valves
Housing, & Pumping

The SOCLA 190D Guided Check Valve is a non-return foot valve designed for clear water and chemical systems requiring substantial flow rates. It features a POM body, stainless steel spring, and EPDM seals, ensuring reliable sealing and minimal head loss. Suitable for horizontal and vertical installations, it operates at pressures up to 10 bar and temperatures from -10°C to 60°C. Compliant with PED 2014/68/UE standards, it supports BSP or NPT threaded connections for versatile applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 50 mm
Body Materials: POM, PA 12, Stainless Steel, EPDM, & PE
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.012 ... 0.165
Enquire Here

SOCLA 190P Guided Check Valves
Pumping of Special Fluids (Chemical & Hydrocarbons)

The SOCLA 190P Guided Check Valve is designed for clear liquid systems requiring efficient backflow prevention. It features a polypropylene body, a tripod-formation closing system with a stainless steel spring, and FKM seals. Operating at pressures up to 10 bar and temperatures from -10°C to 60°C, it supports BSP threaded connections and functions in horizontal or vertical positions. Compliant with PED 2014/68/UE standards, it ensures minimal head loss and reliable sealing.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 20 mm
Body Materials: PP, Stainless Steel, & FKM
Approvals: BVERITAS
Weight Range (KG): 0.009 ... 0.044
Enquire Here

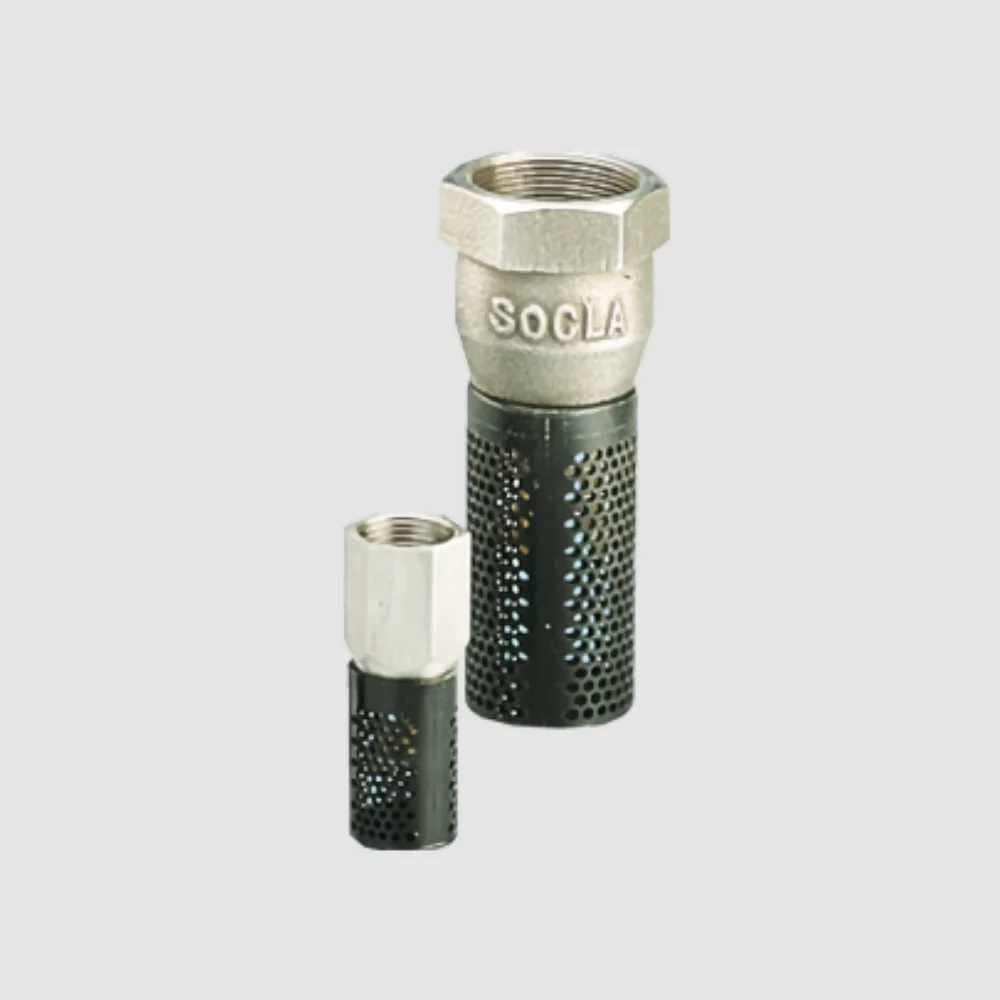

SOCLA 190X Guided Check Valves
Industry, Chemical Applications, Hydrocarbons, & Pumping

The SOCLA 190X Guided Check Valve ensures reliable backflow prevention in clear liquid systems with substantial flow requirements. Featuring a stainless steel body, a POM tripod-closing system, and an FKM seal, it delivers excellent hydraulic performance with minimal head loss. Operating at pressures up to 10 bar and temperatures from -10°C to 60°C, it supports BSP threaded connections. Compliant with PED 2014/68/UE standards, it is suitable for industrial and chemical applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 20 ... 50 mm
Body Materials: Stainless Steel, POM, FKM, & PE
Approvals: BVERITAS
Weight Range (KG): 0.120 ... 0.850
Enquire Here

SOCLA 193/114 Guided Check Valves
Housing, Pumping, & Hydrocarbons

The SOCLA 193/114 Guided Check Valve is a non-return foot valve designed for clear water and hydrocarbon systems requiring high flow rates. Featuring a brass body, POM or PA closing system, stainless steel spring, FKM seals, and a PE strainer, it ensures efficient operation with minimal head loss. Suitable for BSP or NPT threaded connections, it operates at pressures up to 10 bar and temperatures from -10°C to 65°C. Compliant with PED 2014/68/UE standards, it supports versatile applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 50 mm
Body Materials: Brass, POM, PA 12, Stainless Steel, FKM, & PE
Approvals: BVERITAS
Weight Range (KG): 0.061 ... 0.670
Enquire Here

SOCLA 193D Guided Check Valves
Housing, Pumping, & Hydrocarbons

The SOCLA 193D Guided Check Valve is a non-return foot valve designed for clear liquid systems requiring substantial flow. Constructed with a POM body, stainless steel spring, FKM seals, and a PE strainer, it operates efficiently at pressures up to 10 bar and temperatures from -10°C to 60°C. With a tripod-guided closing system and BSP or NPT threaded connections, it ensures reliable sealing and minimal head loss. Compliant with PED 2014/68/UE standards, it is suitable for industrial applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 50 mm
Body Materials: POM, PA 12, Stainless Steel, FKM, & PE
Approvals: CE Marking, & BVERITAS
Weight Range (KG): 0.014 ... 0.142
Enquire Here

SOCLA 209 Guided Check Valves
Water Distribution, Building, & Heating

The SOCLA 209 Guided Check Valve provides efficient backflow prevention for clear water and gas systems. Designed with a tripod-guided closing system and an EPDM seal, it ensures minimal head loss and reliable sealing. Constructed with a brass body and stainless steel spring, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. Suitable for BSP threaded connections, it complies with PED 2014/68/UE standards, making it ideal for water distribution and domestic pumping.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 15 ... 50 mm
Body Materials: Brass, POM, PA 12, Stainless Steel, & EPDM
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.160 ... 1.090
Enquire Here

SOCLA 290 Guided Check Valves
Housing, Water Distributions, & Pumping

The SOCLA 290 Guided Check Valve is designed for efficient backflow prevention in clear water pumping systems with high flow rates. Featuring a brass body, stainless steel spring, and EPDM seals, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. The valve’s axial tripod guiding system minimises head loss while ensuring reliable sealing. Suitable for female threaded BSP connections, it complies with PED 2014/68/UE standards and supports diverse water distribution applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 8 ... 50 mm
Body Materials: Brass, POM, PA, Stainless Steel, & EPDM
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.084 ... 1.135
Enquire Here

SOCLA 290D Guided Check Valves
Housing, Water Distribution, & Pumping

The SOCLA 290D Guided Check Valve ensures reliable backflow prevention for clear water systems requiring high flow rates. Featuring a POM body, stainless steel spring, and EPDM seals, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. The valve's axial tripod-guided system offers minimal head loss, while its female BSP threaded connections ensure easy installation. Compliant with PED 2014/68/UE standards, it is suitable for water distribution and domestic pumping applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 25 mm
Body Materials: POM, PA, Stainless Steel, & EPDM
Approvals: ACS, & BVERITAS
Weight Range (KG): 0.016 ... 0.072
Enquire Here

SOCLA 290P Guided Check Valves
Industry, & Chemical & Food Industries

The SOCLA 290P Guided Check Valve ensures reliable backflow prevention for high-flow clear water systems. It features a polypropylene body, stainless steel spring, and FKM seals, offering durability and effective sealing. Operating at pressures up to 10 bar and temperatures from -10°C to 80°C, it supports BSP threaded connections and can function in any position. Designed for low head loss, it complies with PED 2014/68/UE standards, making it suitable for industrial and chemical applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 20 mm
Body Materials: PP, Stainless Steel, & FKM
Approvals: BVERITAS
Weight Range (KG): 0.012 ... 0.032
Enquire Here

SOCLA 290X Guided Check Valves
Industry, & Chemical & Food Industries

The SOCLA 290X Guided Check Valve ensures efficient backflow prevention for high-flow clear water and industrial systems. Featuring a stainless steel body, stainless steel spring, and FKM seals, it supports BSP threaded connections and operates at pressures up to 10 bar and temperatures from -10°C to 80°C. Its tripod-guided closing system ensures minimal head loss and reliable sealing. Compliant with PED 2014/68/UE standards, it offers durability and performance across diverse applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 10 ... 50 mm
Body Materials: Stainless Steel, POM, PA, & FKM
Approvals: BVERITAS
Weight Range (KG): 0.075 ... 1,650
Enquire Here

SOCLA 297 Guided Check Valves
Heating, Hydrocarbons Pumping, & Circulating Pumps

The SOCLA 297 Guided Check Valve provides efficient backflow prevention for high-flow clear water systems. Featuring a brass body, stainless steel spring, and FKM seals, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. The valve's tripod-guided closing system ensures minimal head loss and reliable sealing. Suitable for female threaded BSP connections, it complies with PED 2014/68/UE standards, offering dependable performance in various industrial and water supply applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 10 ... 50 mm
Body Materials: Brass, POM, PA, Stainless Steel, & FKM
Approvals: BVERITAS
Weight Range (KG): 0.060 ... 1.050
Enquire Here

SOCLA 297D Guided Check Valves
Heating, Hydrocarbons Pumping, & Circulating Pumps

The SOCLA 297D Guided Check Valve provides reliable backflow prevention for clear liquids, hydrocarbons, and gas systems. Featuring a POM body, stainless steel spring, and FKM seals, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. The valve’s tripod-guided system ensures minimal head loss and effective sealing. Suitable for female BSP threaded connections, it complies with PED 2014/68/UE standards, supporting efficient operation in diverse applications.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 12 ... 25 mm
Body Materials: POM, PA, Stainless Steel, & FKM
Approvals: BVERITAS
Weight Range (KG): 0.019 ... 0.800
Enquire Here

Frequently Asked Questions

What are SOCLA's TJ Systems & TJO + FL + 04 Systems?

SOCLA's TJ Systems & TJO + FL + 04 Systems comprise a range of guided check valves designed for various applications, including water distribution, building services, heating, and pumping systems. These valves ensure unidirectional flow and prevent backflow, enhancing system efficiency and safety.

What materials are used in the construction of SOCLA's guided check valves?

The construction materials vary by model:

  • Model 209: Brass casing with POM (polyacetal) closing system and EPDM O-ring seal.

    Model 193/114: Brass body with PA (polyamide) or POM closing system, FKM seal, and PE (polyethylene) strainer.

  • Model 290: Brass casing with PA or POM closing system and EPDM O-ring seal.

What are the pressure ratings for these guided check valves?

The permissible operating pressure (PFA) for these valves is typically 10 bar for water applications. However, this can vary based on the specific model and application. It's essential to consult the technical datasheet of each valve for precise pressure ratings.

In which industries can SOCLA's guided check valves be used?

These valves are suitable for various industries, including:

  • Water distribution

  • Building services

  • Heating systems

  • Pumping applications

  • Hydrocarbons handling

  • Domestic installations

What are the temperature limits for operating these valves?

The operating temperature range for these valves varies by model. For instance, Model 193/114 operates between -10°C to 65°C. It's crucial to refer to the specific technical datasheet for accurate temperature limits.

How do SOCLA's guided check valves ensure reliable sealing?

These valves utilise high-quality seals, such as EPDM or FKM O-rings, combined with precision-engineered closing systems. This design ensures effective sealing and prevents backflow, maintaining system integrity.

Are these valves suitable for both horizontal and vertical installations?

Yes, many of SOCLA's guided check valves are designed for versatile installation, allowing for both horizontal and vertical placements. However, it's advisable to consult the specific product's technical datasheet to confirm installation orientations.

Do these valves have any certifications or approvals?

Certain models come with specific approvals. For detailed information on certifications, it's recommended to refer to the technical datasheet or contact SOCLA directly.

What are the available connection types for these valves?

The guided check valves typically feature female threaded connections, adhering to standards like BSP or NPT. The exact connection type depends on the specific valve model.

What maintenance is required for SOCLA's guided check valves?

Regular inspection is recommended to ensure optimal performance. Maintenance procedures may vary based on the specific valve model and application conditions. Refer to the product's instruction manual for detailed maintenance guidelines.

How do SOCLA's guided check valves prevent water hammer?

SOCLA's guided check valves are designed with precision-engineered components to reduce water hammer by ensuring a smooth, controlled closure. This minimises pressure surges and vibrations within the pipeline.

Are SOCLA TJ Systems & TJO + FL + 04 Systems easy to install?

Yes, these systems are designed for straightforward installation. They are compact, lightweight, and compatible with various pipeline configurations, making them suitable for both new installations and retrofitting existing systems.
