SOCLA Solenoid Valves

SOCLA offers a diverse range of solenoid valves tailored for various applications, including models like WBI2, HK2, WZB2, WKB2, and AKB2. These valves are available in configurations such as direct-acting, indirect-acting, normally open, and normally closed, with body materials like brass or stainless steel. They accommodate different media, including dry or lubricated air, neutral gases, and fuel oil, and operate across a temperature range from -30°C to +100°C. Designed for reliability and efficiency, SOCLA solenoid valves are suitable for diverse industrial and domestic systems.

SOCLA AKB2 Solenoid Valves
Direct Action for Gas & Oil, Normally Closed

The SOCLA AKB2 Solenoid Valves are direct-acting valves designed for water, oil, compressed air, and neutral gases. Featuring a brass body with FKM seals, they operate within -10°C to 140°C and handle viscosities up to 25 cSt. These normally closed valves ensure precise flow control, with IP65 protection and compatibility with various coil configurations. Suitable for industrial applications, they provide reliable performance and flexible installation options.

 Technical Datasheet

Size Range: 3 ... 6.4 mm
Temperature Range: -10°C ... 140°C
Body Materials: Brass, Stainless Steel, & FKM
Approvals: N/A
Weight Range (KG): 0.30 ... 0.36
Enquire Here

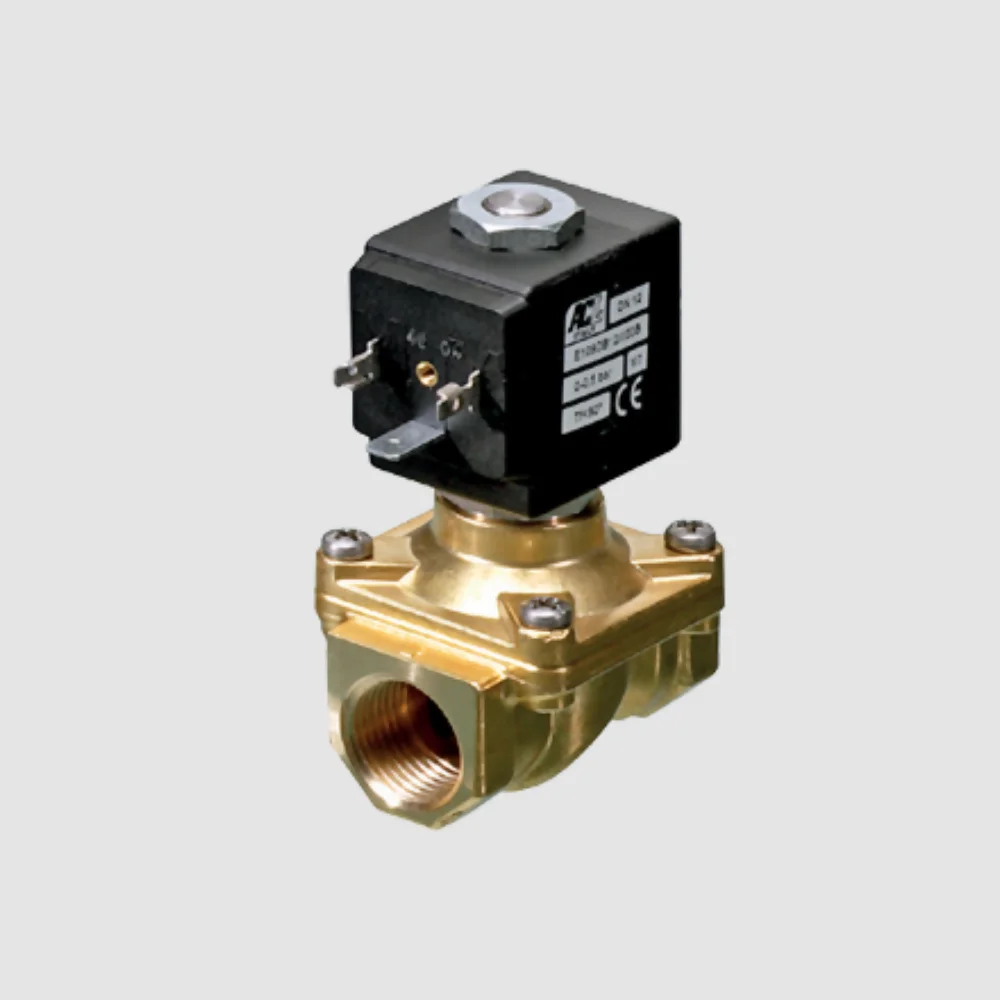

SOCLA HK2 Solenoid Valves
Assisted Lift Operated, Normally Closed

The SOCLA HK2 Solenoid Valves are assisted lift-operated, normally closed valves designed for controlling water systems. Featuring a brass body with EPDM seals, they operate efficiently between -10°C and 140°C and require a minimum differential pressure of 0.15 bar. With IP65 protection, they are compatible with standard or customised coils and minimise water hammer effects. These valves are ideal for precise flow control in industrial and domestic applications.

 Technical Datasheet

Orifice Size Range: 12 ... 25
Connection Range ("): 3/8 ... 1
Body Materials: Brass CW617N, AISI 303, AISI 430FR, AISI 302, & EPDM
Approvals: ACS
Weight Range (KG): 0.60 ... 1.22
Enquire Here

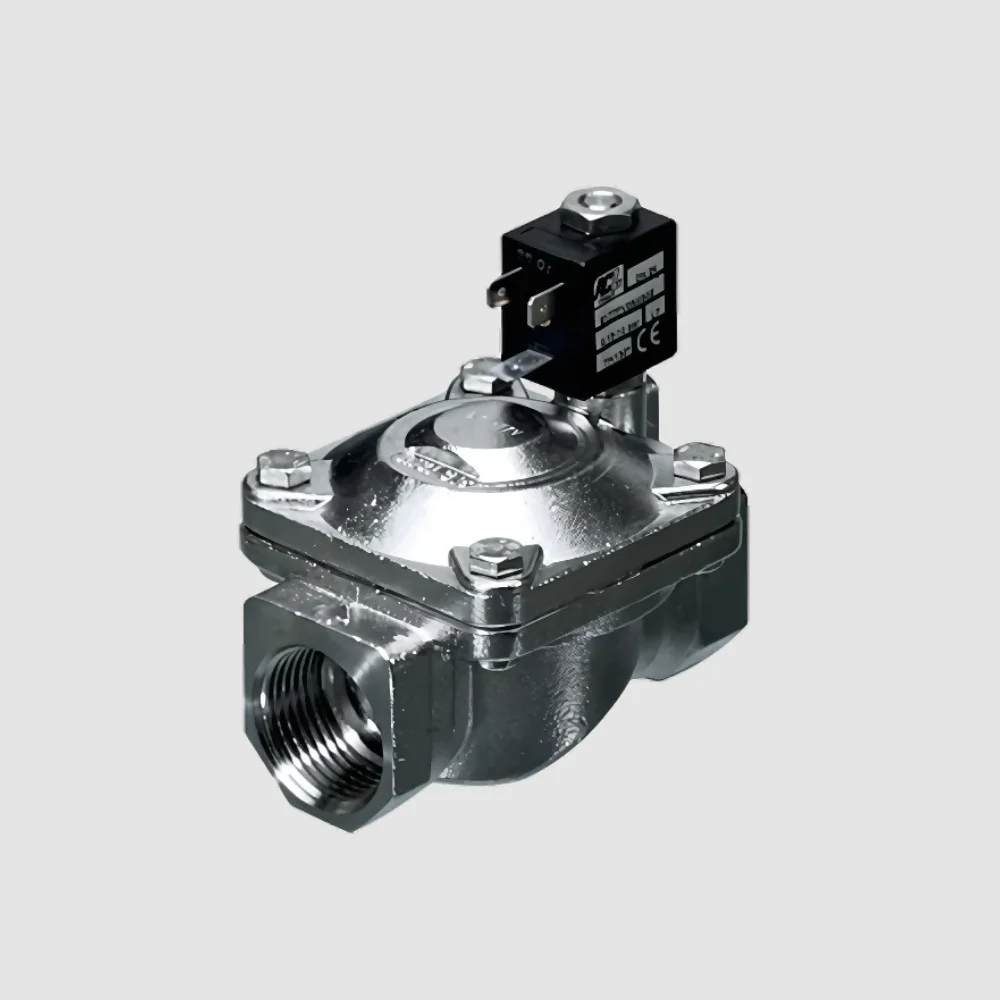

SOCLA WBI2 Solenoid Valves
Indirect Action, Direct Action 1/8 & 1/4

The SOCLA WBI2 Solenoid Valves are stainless steel, indirect-action valves designed for controlling neutral or corrosive gases and liquids. Available with EPDM or FKM membranes, they operate effectively between 0°C and 100°C (up to 60°C for water). With IP65 protection and compatibility with various coil configurations, these valves offer flexible installation for high-pressure systems. Their durable construction ensures reliable performance in industrial applications, reducing downtime and maintenance.

 Technical Datasheet

Size Range: 4.5 ... 40 mm
Temperature Range: 0°C ... 100°C
Body Materials: Stainless Steel, & FKM
Approvals: ACS
Weight Range (KG): 0.36 ... 3.36
Enquire Here

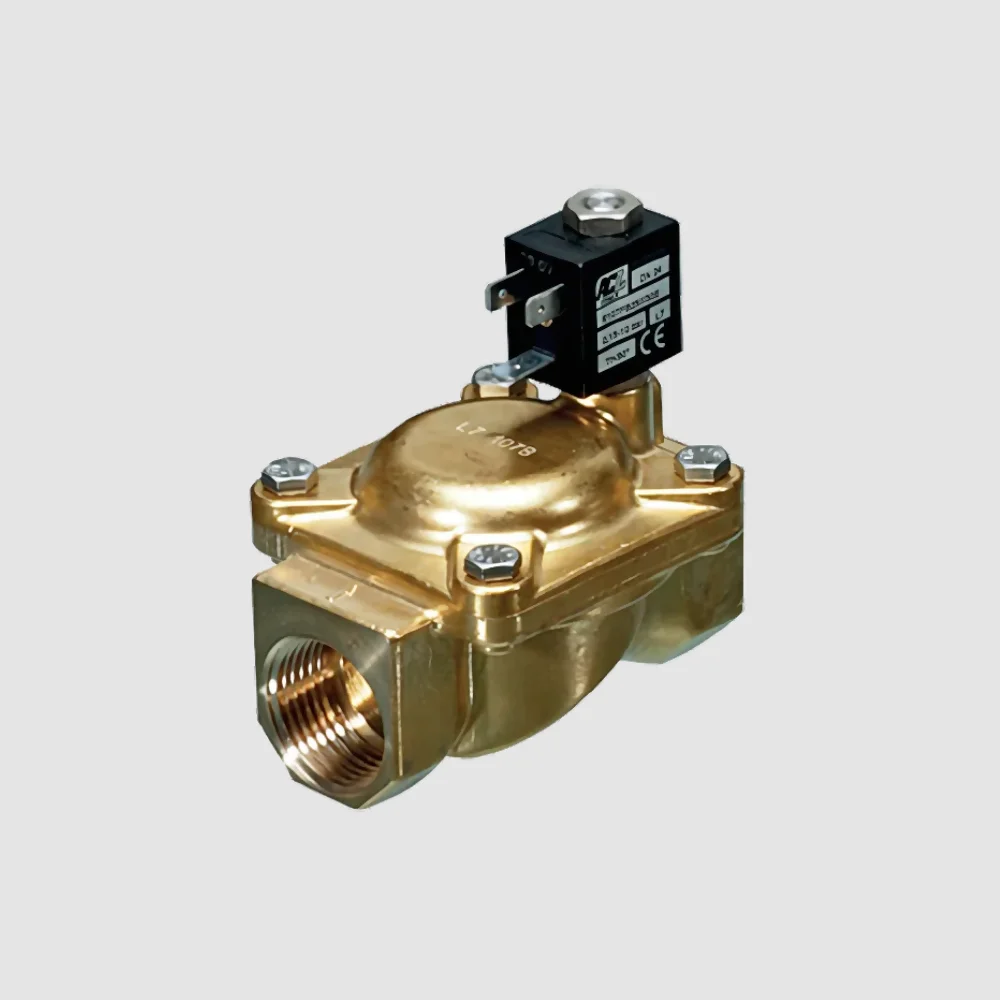

SOCLA WKB2 Solenoid Valves
Indirect Action, Normally Closed

The SOCLA WKB2 Solenoid Valves are indirect-action, normally closed valves designed for efficient control of water, oil, and air systems. Featuring a brass body and EPDM or FKM seals, they operate between -10°C and 140°C and require a minimum differential pressure of 0.15 bar. These valves minimise water hammer, offer optional manual actuation, and come with IP65 protection. They are suitable for diverse applications with quick response times and compatibility with standard and custom coil configurations.

 Technical Datasheet

Orifice Size Range: 12 ... 50
Connection Range ("): 3/8 ... 2
Body Materials: Brass CW617N, AISI 303, AISI 430FR, AISI 302, EPDM, & FKM
Approvals: ACS, & NSF
Weight Range (KG): 0.39 ... 4.30
Enquire Here

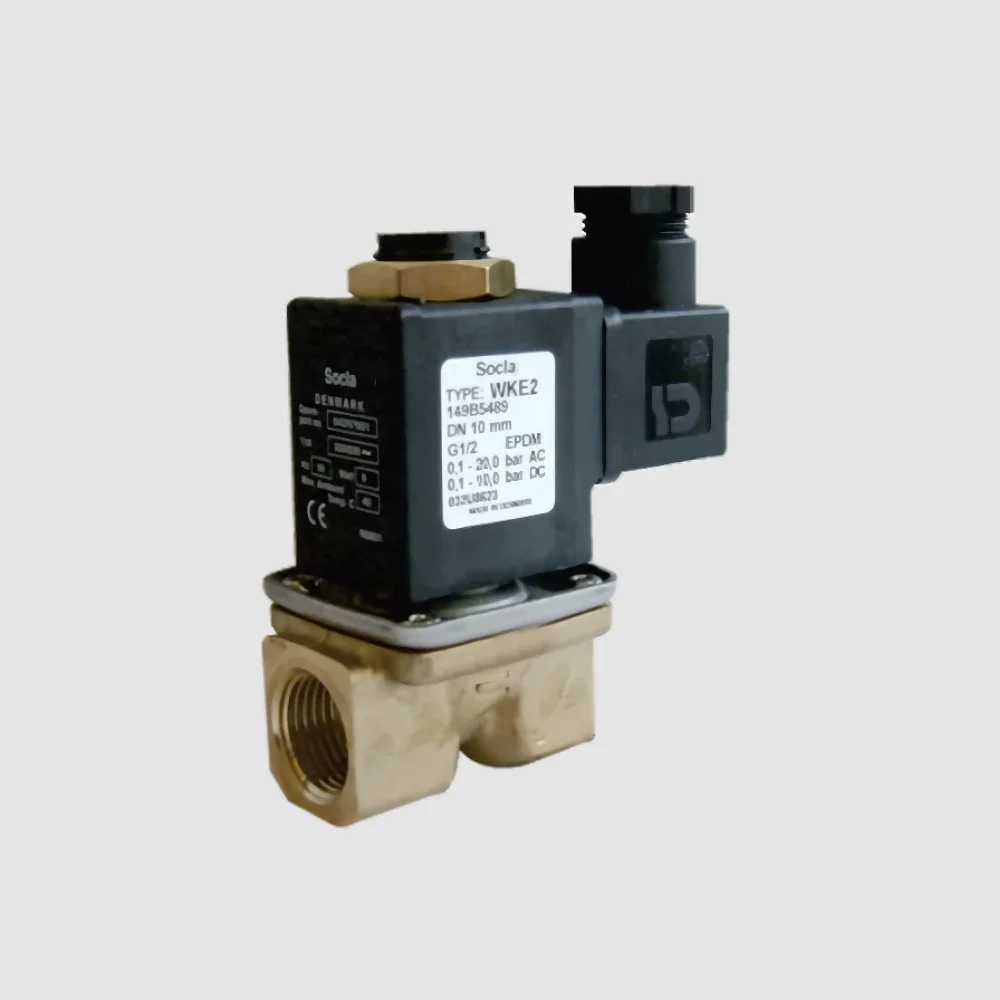

SOCLA WKE2 Solenoid Valves
Indirect Action, Normally Closed

The SOCLA WKE2 Solenoid Valves are indirect-action, normally closed valves designed for OEM applications requiring moderate flow. Constructed with a brass body and EPDM membrane, they operate within -30°C to 100°C and handle viscosities up to 50 cSt. These valves offer IP65 protection, compatibility with various coil configurations, and precise control with a minimum differential pressure of 0.1 bar. Ideal for water applications, they ensure efficient and reliable performance.

 Technical Datasheet

Size Range: 10 ... 20 mm
Temperature Range: -30°C ... 100°C
Body Materials: Brass, Stainless Steel, & EPDM
Approvals: ACS, & WRAS
Weight Range (KG): 0.45 ... 0.81
Enquire Here

SOCLA WZB2 Solenoid Valves
Indirect Action, Normally Open

The SOCLA WZB2 Solenoid Valves are indirect-action, normally open valves ideal for water, oil, and air applications. Featuring a brass body with EPDM or FKM seals, they operate efficiently between -10°C and 140°C and require a minimum differential pressure of 0.15 bar. These valves minimise water hammer, offer optional manual actuation, and are delivered with IP65 protection. They support standard and customised coils, ensuring flexibility for various system requirements.

 Technical Datasheet

Orifice Size Range: 12 ... 50
Connection Range ("): 3/8 ... 2
Body Materials: Brass CW617N, AISI 303, AISI 430FR, AISI 302, EPDM, & FKM
Approvals: ACS, & NSF
Weight Range (KG): 0.39 ... 4.30
Enquire Here

Frequently Asked Questions

What types of solenoid valves does SOCLA offer?

SOCLA provides a range of solenoid valves, including direct-acting, indirect-acting (pilot-operated), and assisted lift operated valves. These are available in various materials such as brass and stainless steel to suit different applications.

What are the key features of SOCLA's WKB2 solenoid valve?

The WKB2 is an indirect-acting, normally closed, 2-way solenoid valve with a brass body and stainless steel internal components. It operates with EPDM membranes suitable for temperatures from -10°C to 140°C.

For which applications is the HK2 solenoid valve suitable?

The HK2 is an assisted lift operated, normally closed, 2-way solenoid valve with a DZR brass body. It's designed for applications requiring reliable shut-off and control, handling fluids at temperatures up to 100°C.

What materials are used in SOCLA's WBI2 solenoid valves?

The WBI2 series features a 316 stainless steel body and internal components, with FKM membranes suitable for temperatures ranging from 0°C to 100°C, ensuring durability and compatibility with various media.

How does the AKB2 solenoid valve operate?

The AKB2 is a direct-acting solenoid valve with a hitched membrane design, providing precise control in compact applications. It's available in sizes ranging from 1/4" to 3/8".

What are the operating temperature ranges for SOCLA's solenoid valves?

SOCLA's solenoid valves operate within various temperature ranges depending on the membrane material: EPDM membranes handle -10°C to 140°C, while FKM membranes are suitable for 0°C to 100°C.

Are SOCLA solenoid valves suitable for water applications?

Yes, many SOCLA solenoid valves, such as the WKB2 with EPDM membranes, are designed for water applications, offering reliable performance in controlling water flow.

Do SOCLA solenoid valves have manual override options?

Certain models, like the WKB2, offer manual actuation options upon request, providing flexibility for manual control when needed.

What protection ratings do SOCLA solenoid valves have?

SOCLA solenoid valves typically feature an IP65 protection rating when equipped with the appropriate connector, ensuring protection against dust and low-pressure water jets.

Can SOCLA solenoid valves handle high-pressure applications?

The permissible operating pressure varies by model. For instance, the WKB2 series has specific pressure ratings depending on the valve size and coil specifications. It's advisable to consult SOCLA's technical data sheets for precise information.

Are there options for different coil voltages in SOCLA solenoid valves?

Yes, SOCLA offers solenoid valves with standard coils in various voltages, including 220V/50Hz, 24V/50Hz, and 24VDC. Other coil options are available upon request to meet specific application requirements.

How can I select the appropriate SOCLA solenoid valve for my application?

Selecting the right solenoid valve involves considering factors like fluid type, temperature, pressure, and required flow rate.
