SOCLA Protection Valves

SOCLA Protection Valves are engineered to safeguard water distribution systems from overpressure, water hammer, and pump-related issues. The C401 series functions as discharge valves, offering overpressure protection, while the C601 series provides pump protection by eliminating pressure fluctuations and water hammer during pump operations. These valves are suitable for various applications, including domestic, urban, agricultural, and industrial systems, ensuring the integrity and efficiency of fluid control networks.

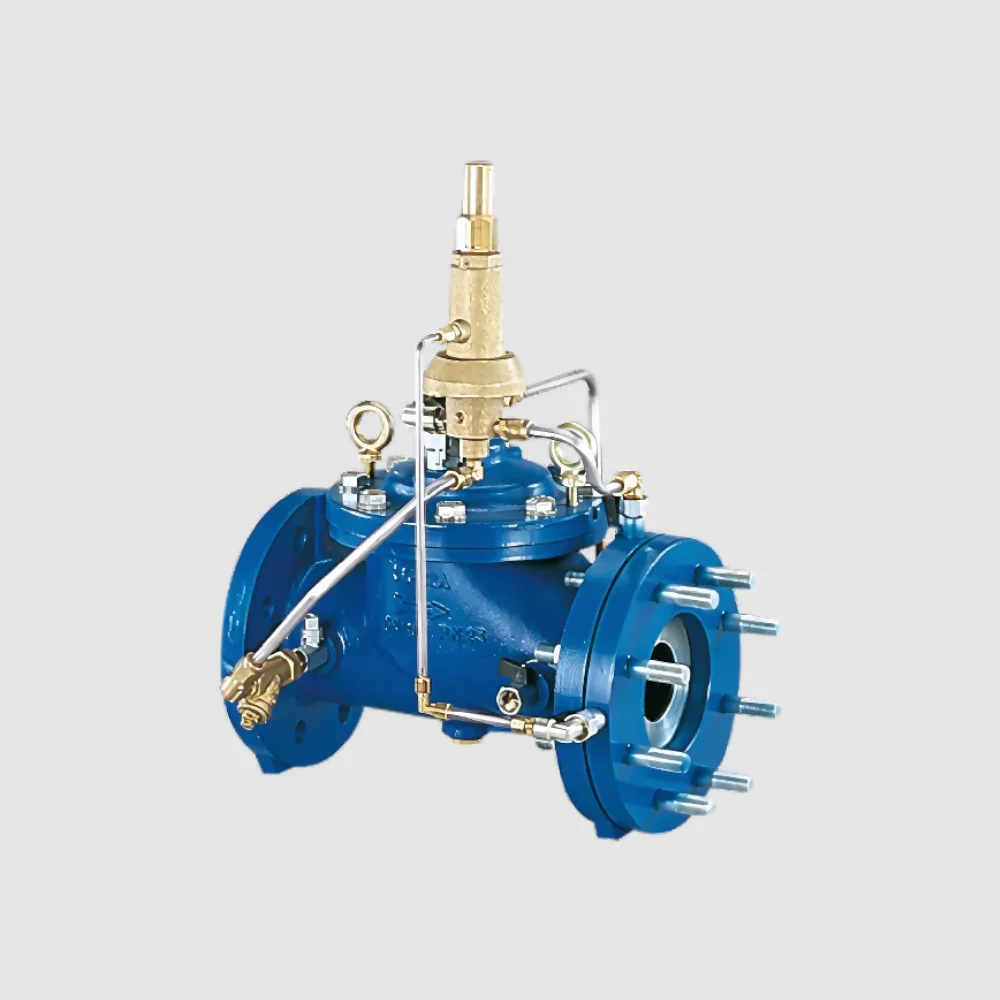

SOCLA C401 Control Valves
Overpressure Protection, Discharge Valve

The SOCLA C401 Control Valve is designed for overpressure protection and discharge in water networks. It automatically opens when upstream pressure exceeds the set limit, safely releasing excess water to prevent system damage. Featuring a ductile iron body with an epoxy coating, EPDM seals, and stainless steel components, it operates at pressures up to 25 bar and temperatures from -10°C to 90°C. Compliant with PED 2014/68/UE standards, it supports flanged or threaded connections.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, & CE Marking
Weight Range (KG): 8 ... 328
Enquire Here

SOCLA C401C Control Valves
Overpressure Protection, Discharge Valve

The SOCLA C401C Control Valve is a discharge valve with integrated check valve functionality for overpressure protection. It features a ductile iron body with epoxy coating, stainless steel components, and EPDM seals. Suitable for use with clear water systems, it operates at pressures up to 25 bar and temperatures from -10°C to 90°C. With threaded and flanged connection options, it complies with PED 2014/68/UE standards, making it ideal for maintaining system safety and efficiency.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, & CE Marking
Weight Range (KG): 8 ... 328
Enquire Here

SOCLA C501 Control Valves
Anti-hammer Protection

The SOCLA C501 Control Valve effectively manages pressure surges, minimising water hammer in pumping systems. Designed for bypass installation, it features a ductile iron body with an epoxy coating, EPDM seals, and stainless steel components. Operating between -10°C to 90°C and pressures up to 25 bar, it complies with PED 2014/68/UE standards. Available with threaded or flanged connections, it ensures reliable performance for applications requiring precise pressure control and safety.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, & CE Marking
Weight Range (KG): 8 ... 328
Enquire Here

SOCLA C601 Control Valves
Pump Protection

The SOCLA C601 Control Valve ensures efficient protection for electric pumps by eliminating pressure fluctuations during start-up or shutdown. Featuring a ductile iron body with epoxy coating, EPDM seals, and stainless steel components, it operates at pressures up to 25 bar and temperatures from -10°C to 90°C. Compatible with threaded and flanged connections, the valve complies with PED 2014/68/UE standards, making it suitable for clear water systems with precise pressure control needs.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, & CE Marking
Weight Range (KG): 8 ... 328
Enquire Here

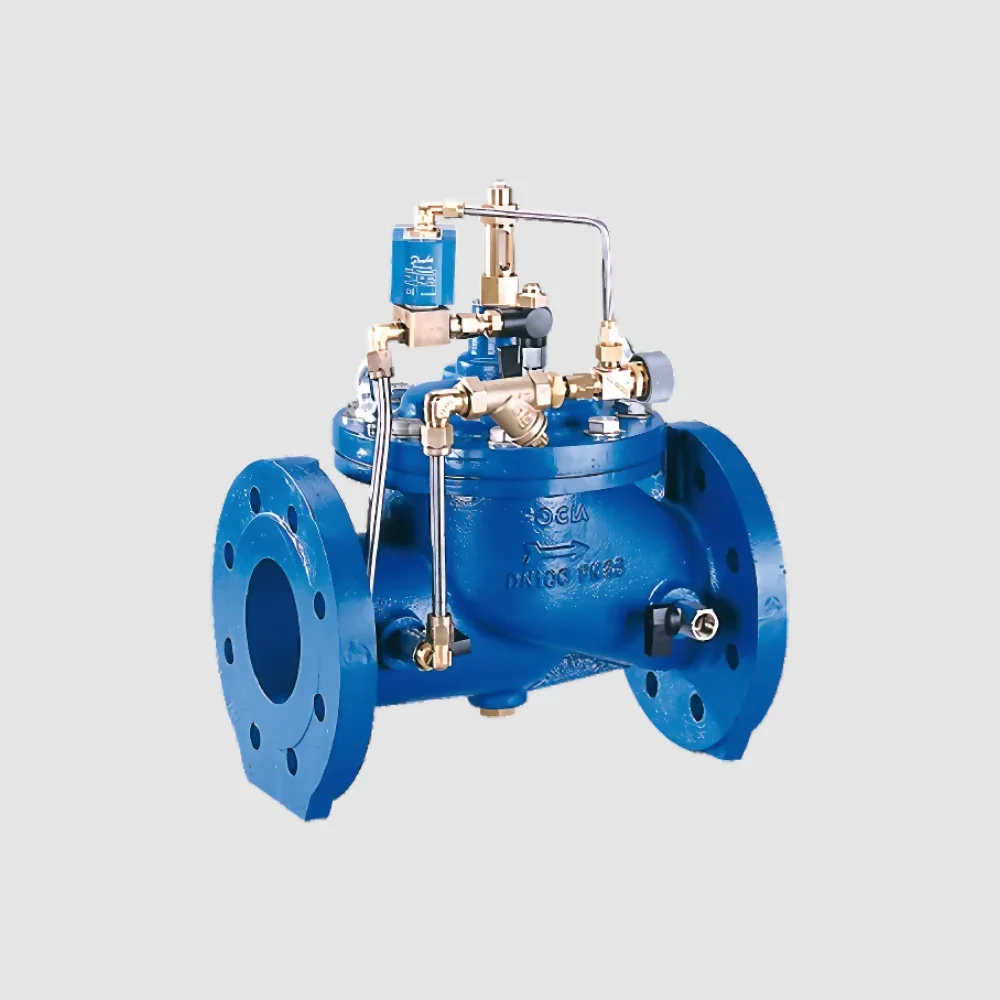

SOCLA C801 Control Valves
On/Off Option Electrically Controlled

The SOCLA C801 Control Valve is designed for ON/OFF operation in water distribution systems, tanks, and pump suction lines. It uses a solenoid valve for electrical control and features a ductile iron body with an epoxy coating, EPDM seals, and stainless steel components. Operating at pressures up to 25 bar and temperatures from -10°C to 90°C, it supports threaded or flanged connections and complies with PED 2014/68/UE standards. It ensures reliable performance in demanding applications.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 8 ... 328
Enquire Here

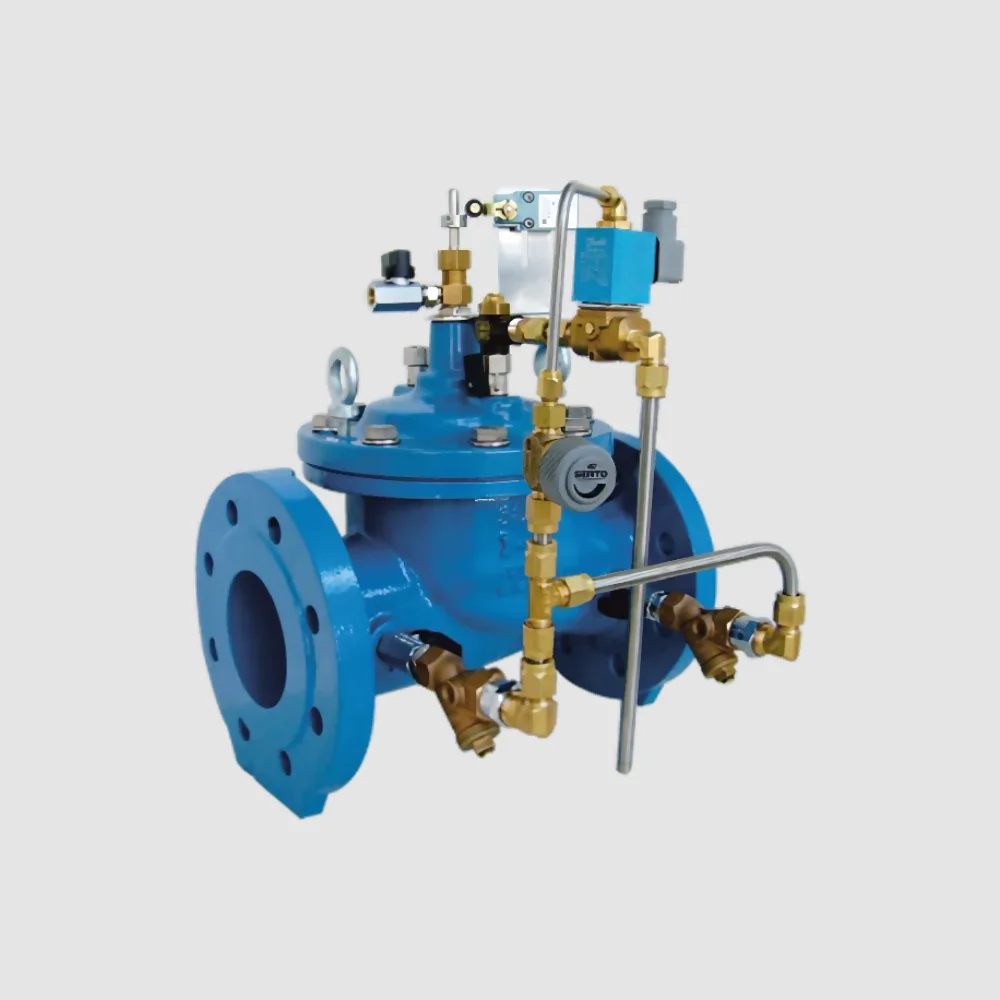

SOCLA C802 Control Valves
On/Off Option Electrically Controlled

The SOCLA C802 Control Valve is designed for precise flow regulation in water distribution networks, tanks, or pump suction systems. It features a solenoid valve for ON/OFF operation and a ductile iron body with epoxy coating, EPDM seals, and stainless steel components. Operating at pressures up to 25 bar and temperatures from -10°C to 90°C, it supports flanged and threaded connections. Compliant with PED 2014/68/UE standards, it ensures reliable performance in demanding applications.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 8 ... 328
Enquire Here

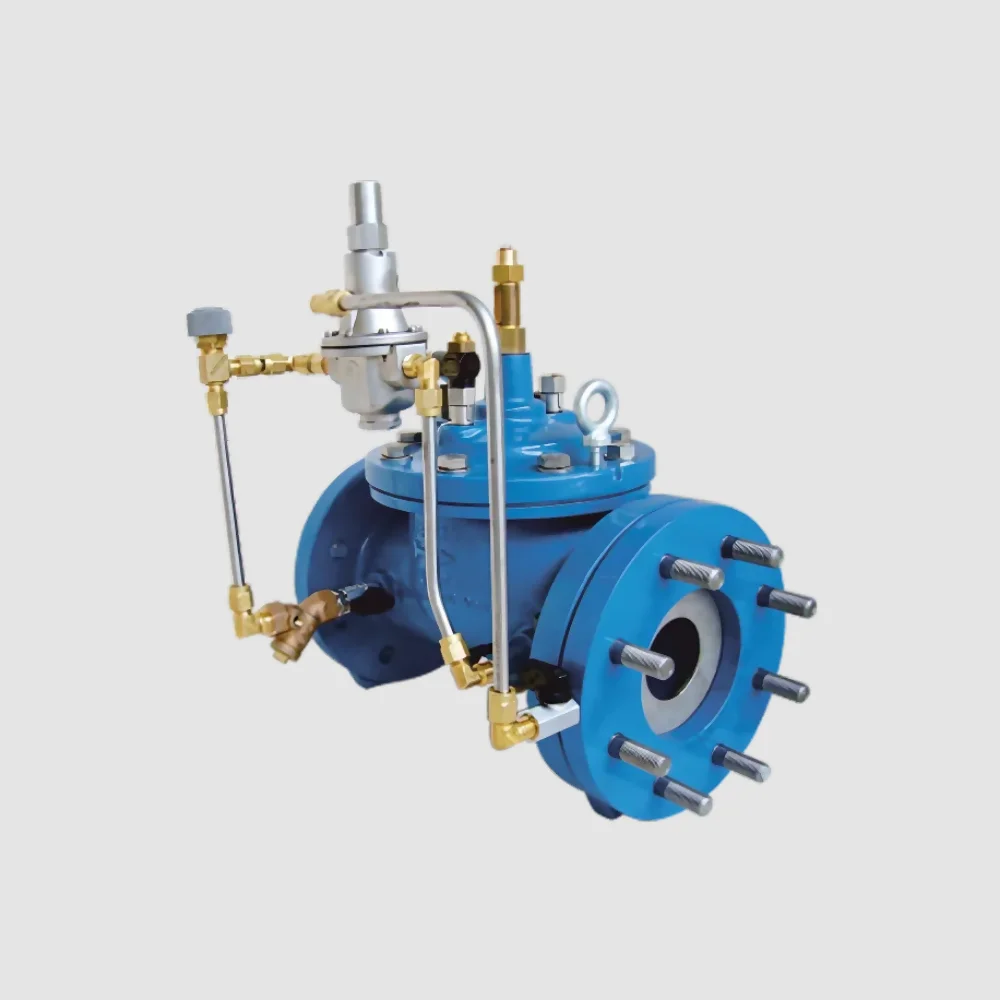

SOCLA C901 Control Valves
Flow Rate Control / Flow Limiter

The SOCLA C901 Control Valve maintains a preset maximum flow rate, regardless of upstream or downstream pressure variations. Featuring a ductile iron body with epoxy coating, stainless steel components, and EPDM seals, it operates between -10°C and 90°C with pressures up to 25 bar. Suitable for clear water systems, it supports vertical or horizontal installation and complies with PED 2014/68/UE standards. This valve ensures reliable flow control in demanding applications.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here

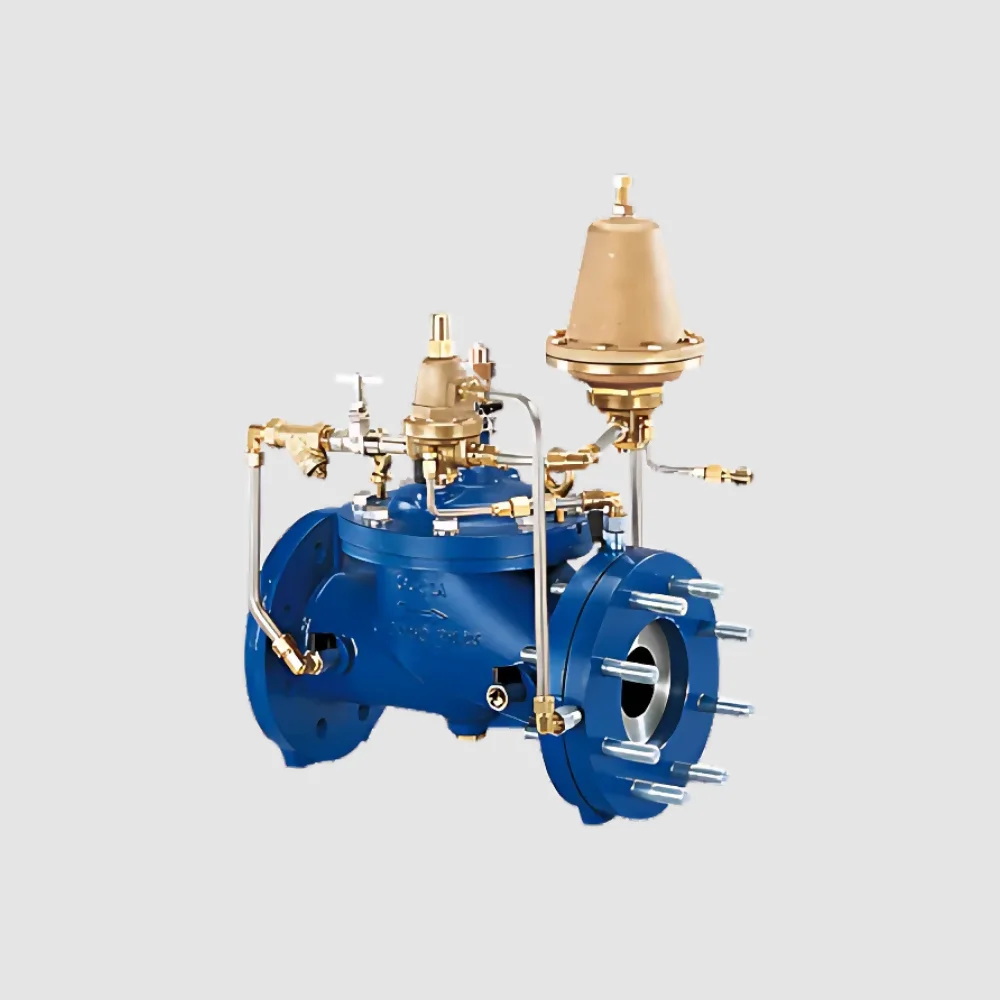

SOCLA C902 Control Valves
Flow Rate Control / Flow Limiter

The SOCLA C902 Control Valve combines maximum flow rate limitation with downstream reduced pressure control. It features a ductile iron body with epoxy coating, stainless steel components, and EPDM seals, operating at pressures up to 25 bar and temperatures from -10°C to 90°C. Compliant with PED 2014/68/UE standards, it supports flanged connections and ensures efficient flow and pressure stabilisation for water distribution and irrigation systems.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here

SOCLA C903 RB Control Valves
Flow Rate Control / Flow Limiter

The SOCLA C903 RB Control Valve combines flow limitation and tank level control using a modulating altitude pilot. It ensures smooth opening and closing near the required level and is ideal for systems where supply pressure exceeds the tank's full charge by at least 1 bar. Featuring a ductile iron body with epoxy coating, EPDM seals, and stainless steel components, it operates at pressures up to 25 bar and temperatures from -10°C to 90°C, adhering to PED 2014/68/UE standards for efficient performance.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here

SOCLA C903 RH Control Valves
Flow Rate Control / Flow Limiter

The SOCLA C903 RH Control Valve combines maximum flow control and precise tank level regulation using a modulating altitude pilot. Designed for systems where supply pressure exceeds the tank's full charge by at least 1 bar, it offers progressive opening and closing near the set level. Featuring a ductile iron body with epoxy coating and stainless steel components, it operates up to 25 bar and 90°C. This valve is ideal for efficient and reliable water supply and tank management systems.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here

SOCLA C904 Control Valves
Flow Rate Control / Flow Limiter

The SOCLA C904 Control Valve ensures precise flow limitation while maintaining a minimum upstream pressure. Featuring a ductile iron body with an epoxy coating, it operates effectively between -10°C and 90°C with upstream pressures from 1.5 to 25 bar. This valve complies with PED 2014/68/UE standards and is suitable for horizontal or vertical installations. Equipped with a non-return feature, it provides automatic closure in case of backflow, ensuring reliable water distribution and irrigation system performance.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here

SOCLA C906 Control Valves
Overspeed Protection

The SOCLA C906 Control Valve is a safety device designed for over-speed protection, automatically closing when flow rates exceed preset thresholds to prevent downstream pipe breakage. It features a ductile iron body with an epoxy coating, EPDM seals, and stainless steel components. Operating at pressures up to 25 bar and temperatures between -10°C and 90°C, it complies with PED 2014/68/UE standards and supports flanged connections for efficient performance in high-risk applications.

 Technical Datasheet  Mounting Instructions

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 300 mm
Body Materials: EPDM, Polyamide, Brass, Stainless Steel, Ductile Iron, Epoxy, & Chromed Brass
Approvals: ACS, CE Marking, & WRAS
Weight Range (KG): 15 ... 348
Enquire Here
Control Valve Introduction
Control Valve Working Principle
Control Valve Range

Frequently Asked Questions

What are SOCLA protection valves?

SOCLA protection valves are devices designed to safeguard water distribution systems from contamination and pressure-related issues. They include backflow preventers, non-return valves, and pressure reducing valves, ensuring the integrity and safety of water networks.

How do SOCLA backflow preventers work?

SOCLA backflow preventers, such as the BA backflow preventers, protect drinking water networks by interrupting supply continuity and evacuating water to waste in case of backflow risk, preventing contamination.

What types of non-return valves does SOCLA offer?

SOCLA provides a variety of non-return valves, including guided check valves, plate check valves, ball check valves, membrane check valves, and metal-seated check valves, catering to diverse application needs.

What is the purpose of SOCLA pressure reducing valves?

SOCLA pressure reducing valves, like the Desbordes range, control and maintain downstream pressure at a reduced, adjustable value, ensuring consistent pressure in water distribution systems.

How does the SOCLA C401 control valve function?

The SOCLA C401 is an overpressure protection discharge valve that safeguards systems against excess pressure by discharging surplus pressure, maintaining system integrity.

Are SOCLA protection valves certified?

Yes, many SOCLA protection valves hold certifications such as NF, ACS, Bureau Veritas, KIWA UK ReG.4, VA, Uni, and Belgaqua, ensuring compliance with industry standards.

Can SOCLA valves be used in aggressive water conditions?

SOCLA offers valves like the 10 BIS BZ, specifically designed for sea water applications and very aggressive water conditions, ensuring durability and performance.

What materials are used in SOCLA valves?

SOCLA valves are constructed from materials such as cast iron, stainless steel, bronze, and brass, chosen for their suitability to specific applications and durability.

How often should SOCLA backflow preventers be maintained?

According to antipollution standards and hygiene regulations, SOCLA backflow preventers should undergo annual performance checks to ensure proper functionality.

Do SOCLA valves comply with European standards?

Yes, SOCLA valves comply with European standards, including EN 1567 for pressure reducing valves, ensuring quality and reliability.

What industries utilise SOCLA protection valves?

SOCLA protection valves are used across various industries, including domestic, urban, agricultural, and industrial sectors, to protect drinking water pipelines and control fluid distribution.

Where can SOCLA protection valves be installed?

SOCLA protection valves are suitable for a variety of systems, including potable water networks, industrial applications, and heating systems. Installation must follow specific guidelines for optimal performance.
