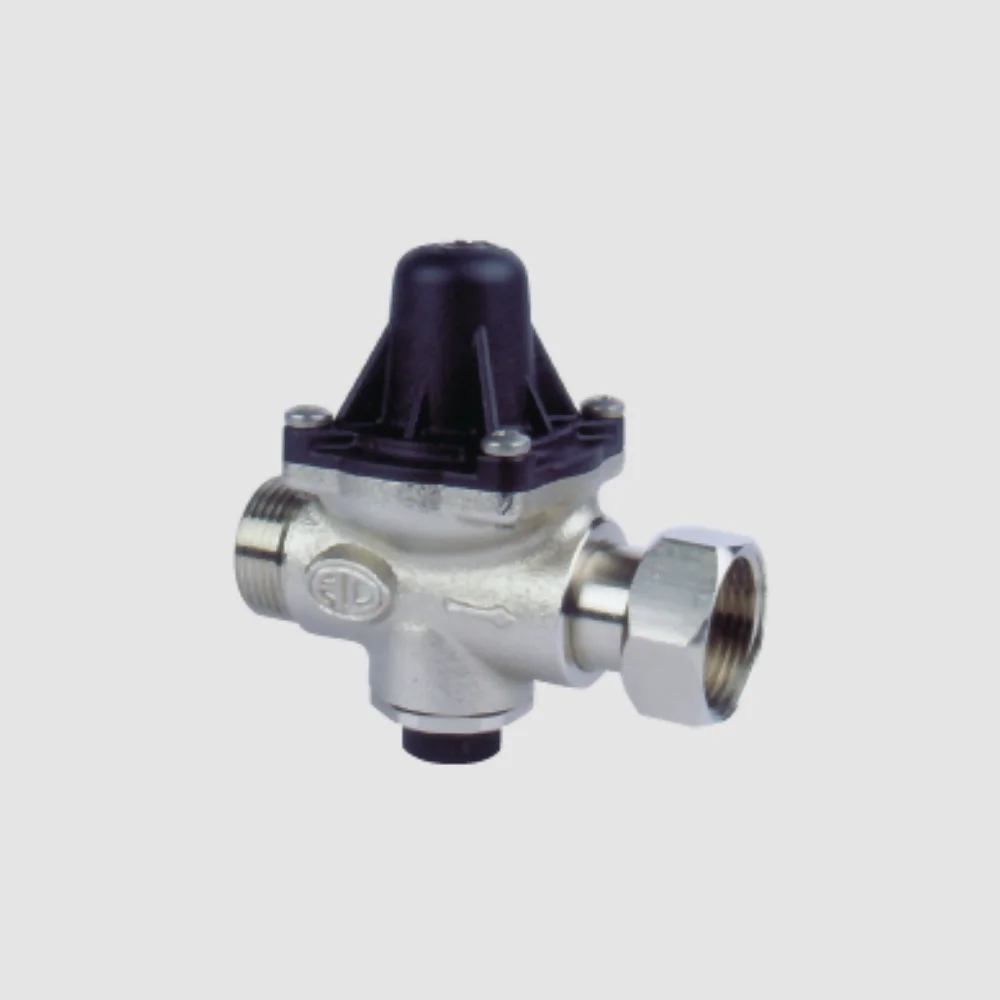

The SOCLA 5 SP SECURO Pressure Reducing Valves feature a chrome-plated bronze body and are designed to maintain consistent downstream pressure, even with fluctuating upstream conditions. Adjustable from 1 to 5.5 bar and pre-set at 3 bar, they ensure efficient performance with low head loss. These valves are scale-resistant, require no maintenance, and include pressure gauge ports for monitoring. Suitable for various installations, they operate reliably in a wide temperature range of -10°C to 80°C.

 Technical Datasheet Mounting Instructions

The SOCLA 7 BIS Pressure Reducing Valve maintains consistent downstream pressure in domestic water systems, reducing water hammer and ensuring smooth flow. With a bronze body and EPDM or NBR seals, it operates at pressures up to 16 bar and temperatures between -10°C and 80°C. Adjustable from 1 to 5.5 bar, it features BSP threaded connections and complies with EN 1567 standards, offering efficient performance in varied orientations and protecting installations from pressure surges.

 Technical Datasheet Mounting Instructions

The SOCLA 7 EP Pressure Reducing Valves, made from durable bronze, are ideal for domestic water systems, ensuring stable downstream pressure between 1.5 and 5.5 bar with a factory pre-set of 3 bar. Designed to minimise scale and dirt interference, they require no maintenance and feature dual pressure gauge ports. These valves maintain a constant outlet pressure with low head loss and are suitable for versatile installation positions, offering effective protection against water hammer.

 Technical Datasheet Mounting Instructions

The SOCLA 7 SP Pressure Reducing Valves are designed for domestic water systems, ensuring stable downstream pressure adjustable from 1.5 to 5.5 bar with a factory pre-set of 3 bar. Constructed from bronze, these valves resist scale and dirt build-up and require no maintenance. Featuring low head loss and dual pressure gauge ports, they can be installed in any orientation, providing effective flow control and protection against water hammer in various applications.

 Technical Datasheet Mounting Instructions

The SOCLA 10 BIS Pressure Reducing Valves feature durable bronze construction and ensure stable downstream pressure, adjustable between 1 and 6 bar, with a factory pre-set of 3 bar. Designed for water, compressed air, neutral gases, and fuel oil, these valves minimise scale build-up and require no maintenance. Equipped with pressure gauge ports and adaptable installation options, they effectively manage flow with low head loss across domestic and industrial applications.

 Technical Datasheet Mounting Instructions

The SOCLA 10 BIS BZ Pressure Reducing Valve is designed for marine and industrial applications, effectively reducing and maintaining downstream pressure within an adjustable range of 1 to 6 bar. Constructed from bronze, it resists scale and dirt, requires no maintenance, and operates at pressures up to 25 bar with temperatures ranging from -10°C to 80°C. Compliant with EN 1567, it supports BSP threaded connections and ensures high flow rates with minimal head loss, ideal for aggressive water environments.

 Technical Datasheet  Mounting Instructions

The SOCLA 10 RC Pressure Reducing Valve effectively maintains downstream pressure at a reduced, adjustable level, even with upstream pressure variations. Featuring a bronze body and EPDM diaphragm, it operates at pressures up to 25 bar and temperatures from -10°C to 80°C. The factory setting is 3 bar, adjustable from 1 to 6 bar, with a compensating spring for precise control. Compliant with EN 1567, it supports BSP threaded connections and minimises water hammer and vibrations in diverse systems.

 Technical Datasheet  Mounting Instructions

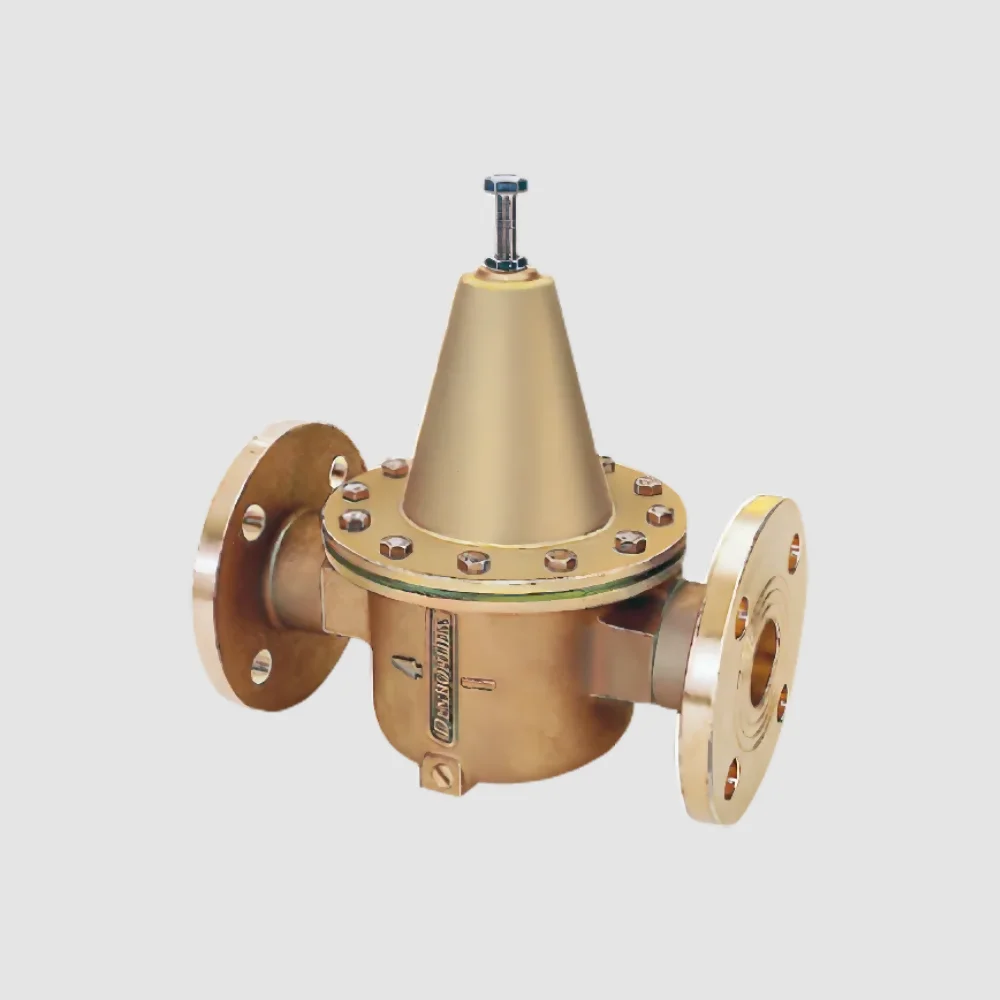

The SOCLA 10 TER Pressure Reducing Valve maintains consistent downstream pressure in water, compressed air, and fuel oil systems. With a bronze body, it resists scale and dirt, requiring no maintenance. It operates at pressures up to 16 bar and temperatures from -10°C to 80°C, offering an adjustable outlet pressure range from 1 to 6 bar (pre-set at 3 bar). Designed for PN 16 flanges, it ensures high flow with minimal head loss, meeting EN 1567 standards for reliable industrial and domestic use.

 Technical Datasheet  Mounting Instructions

The SOCLA 10 TER RC Pressure Reducing Valve maintains consistent downstream pressure in water and compressed air systems. Made from bronze, it operates at pressures up to 16 bar and temperatures from -10°C to 80°C. It features EPDM or NBR diaphragms, adjustable settings from 0.5 to 6 bar, and BSP threaded or PN16 flange connections. Designed for domestic, industrial, and fuel oil systems, it minimises water hammer and complies with EN 1567 for reliable performance.

 Technical Datasheet  Mounting Instructions

The SOCLA 11 Pressure Reducing Valve ensures consistent downstream pressure for water and other mediums, minimising head loss and maintaining a high flow rate. Made from durable bronze with EPDM or NBR diaphragms, it operates at pressures up to 25 bar and temperatures between -10°C and 80°C. Adjustable from 1 to 6 bar (factory set at 3 bar), it features BSP threaded connections and complies with EN 1567 standards, making it suitable for domestic, industrial, and compressed air systems.

 Technical Datasheet Mounting Instructions

The SOCLA 11 BIS Pressure Reducing Valve effectively controls downstream pressure, maintaining it at a constant adjustable value, even with upstream pressure variations. Made from durable bronze, it operates at pressures up to 25 bar and temperatures from -10°C to 80°C. With BSP female connections and a factory setting of 3 bar adjustable between 1 and 5.5 bar, it reduces water hammer and vibration, ensuring efficient water distribution in domestic and industrial systems.

 Technical Datasheet Mounting Instructions

The SOCLA 11 BIS RC Pressure Reducing Valve provides effective control of downstream pressure, ensuring minimal variation despite upstream fluctuations. With a durable bronze body, it operates at pressures up to 25 bar and temperatures between -10°C and 80°C. Adjustable from 0.5 to 5.5 bar, with a factory setting of 3 bar, it minimises water hammer and vibrations. Compliant with EN 1567, it supports BSP connections, making it suitable for domestic and industrial water systems.

 Technical Datasheet Mounting Instructions

The SOCLA 11 BIS RCBP Pressure Reducing Valve is designed for precise downstream pressure control in domestic and industrial systems, with an adjustable range of 0.1 to 0.6 bar. Its bronze body resists scale and dirt, ensuring minimal maintenance. Suitable for water, neutral gases, and compressed air, it operates at pressures up to 10 bar and temperatures from -10°C to 80°C. With BSP threaded connections, it reduces water hammer and ensures efficient performance in low-pressure applications.

 Technical Datasheet Mounting Instructions

The SOCLA 11 BIS VA Pressure Reducing Valves feature a durable bronze body and are ideal for managing downstream pressure in both cold and hot water systems, as well as compressed air and fuel oil. Adjustable from 1.5 to 5.5 bar and pre-set at 3 bar, they offer consistent performance with low head loss. Equipped with dual pressure gauge ports, these valves are suitable for various installations, ensuring efficient flow control and reducing water hammer risks.

 Technical Datasheet Mounting Instructions

The SOCLA 11 DO Pressure Reducing Valve ensures consistent downstream pressure with minimal variation, even under fluctuating upstream conditions. Constructed from bronze, it resists scale and dirt, requiring no maintenance. It operates with pressures up to 25 bar and temperatures from -10°C to 80°C, featuring adjustable downstream pressure settings from 1 to 5.5 bar (factory set at 3 bar). Compliant with EN 1567 standards, it suits water, compressed air, and fuel oil systems.

 Technical Datasheet Mounting Instructions

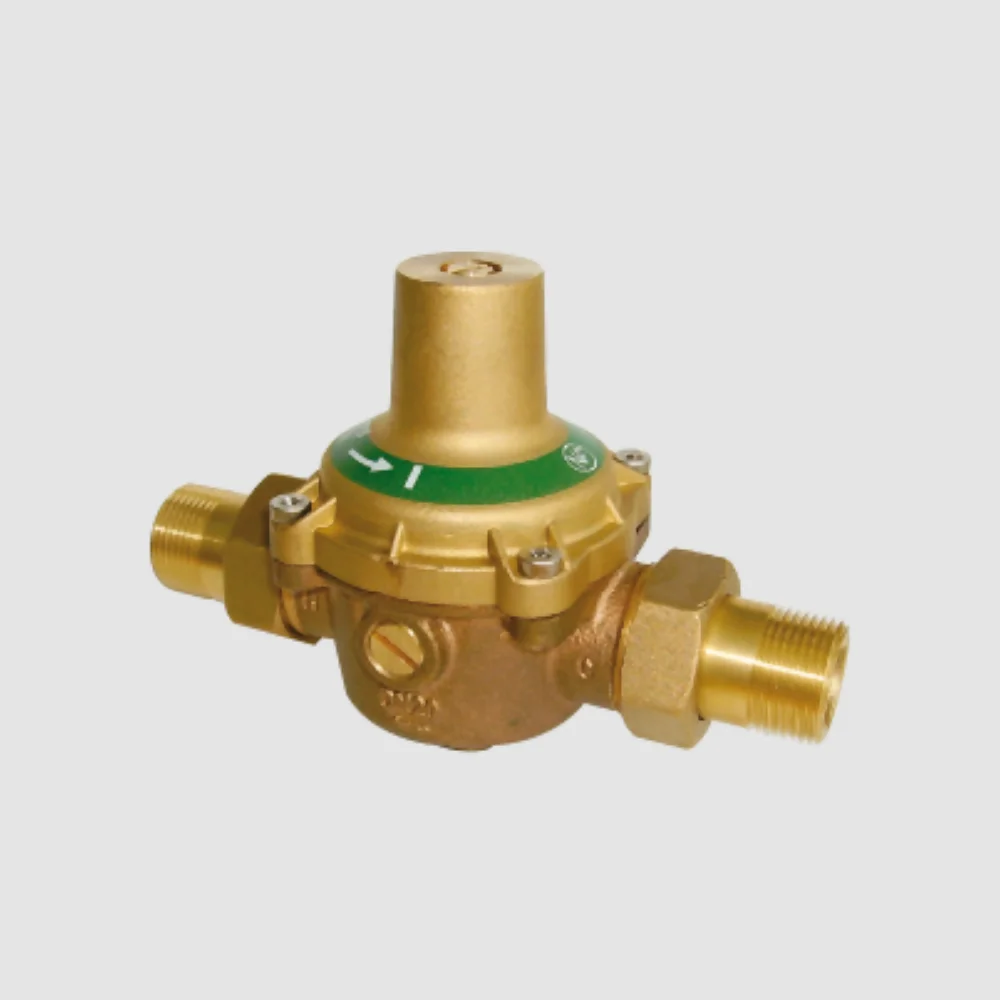

The SOCLA 11 EP Pressure Reducing Valve maintains constant downstream pressure with minimal head loss, even during flow or upstream pressure variations. Featuring a bronze body, EPDM diaphragm, and stainless steel components, it operates between 1 and 5.5 bar, with a factory setting of 3 bar. Suitable for water, neutral gases, and fuel oil systems, it complies with EN 1567 standards and supports union-nut or BSP threaded connections, ensuring efficiency in domestic and industrial applications.

 Technical Datasheet Mounting Instructions

The SOCLA 11 RC Pressure Reducing Valve provides efficient downstream pressure control for domestic and industrial systems. Made from durable bronze, it minimises water hammer and vibration while maintaining high flow rates. It features BSP male connections, a pressure gauge port, and an adjustable range of 0.5 to 6 bar with a factory setting of 3 bar. Operating at pressures up to 25 bar and temperatures from -10°C to 80°C, it complies with EN 1567 standards for reliable performance.

 Technical Datasheet Mounting Instructions

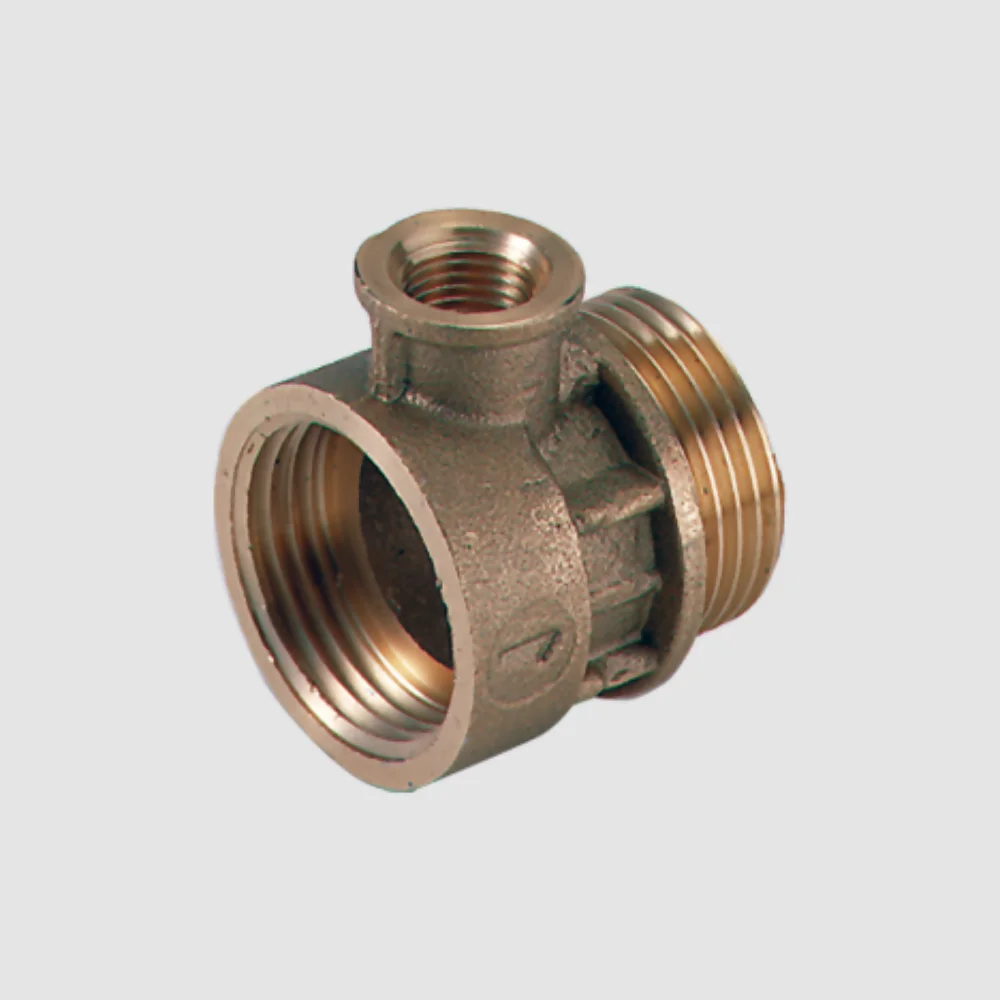

The SOCLA 487 Pressure Reducing Valve is designed for efficient pressure regulation in water systems. Featuring a durable bronze casing, it operates with a female/male 1/4” plug connection, supporting various applications. The valve ensures precise pressure control to maintain system performance and safety. With a compact and reliable design, it is suitable for demanding environments and complies with relevant standards for quality and performance.

 Technical Datasheet  Mounting Instructions

The SOCLA Multi 7 Pressure Reducing Valve ensures consistent downstream pressure in domestic water systems, with an adjustable range of 1.5 to 5.5 bar, factory-set at 3 bar. Its bronze body resists scale and dirt, operating efficiently at pressures up to 16 bar and temperatures between -10°C and 80°C. Featuring BSP connections and minimal head loss, it supports various orientations and includes a pressure gauge port, complying with EN 1567 standards for reliable water distribution systems.

 Technical Datasheet Mounting Instructions
