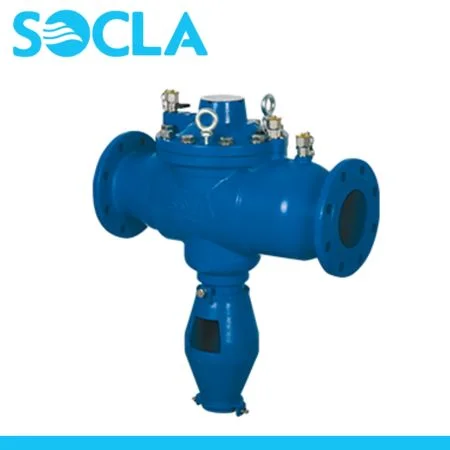

The SOCLA BA4760 backflow preventer safeguards drinking water networks against contamination from fluids up to category 4, as defined by EN 1717. Featuring a verifiable reduced pressure zone and an integrated funnel, it ensures reliable protection. The device comprises a cast iron body with an epoxy coating, DZR brass or bronze valve heads, and PPO or bronze valve seats. It operates at a permissible pressure of 10 bar and a maximum temperature of 65°C. Designed for horizontal installation, the BA4760 is available in sizes ranging from DN65 to DN250, with PN10 flanges.

 Technical Datasheet  Mounting Instructions

The SOCLA BABM Backflow Preventer is designed to protect drinking water networks by preventing backflow of potentially contaminated water. It features a verifiable reduced pressure zone with an integrated funnel and utilises Pson technology, eliminating the need for a membrane and allowing full access for maintenance of modular components. The casing is made of brass, the relief valve is constructed from polymer PA, and the check valves are made of polymer POM. The device operates at a pressure rating of PFA 10 bar and can function effectively at temperatures up to 65°C. It is available in sizes ranging from DN15 to DN50, catering to various installation requirements.

 Technical Datasheet  Mounting Instructions

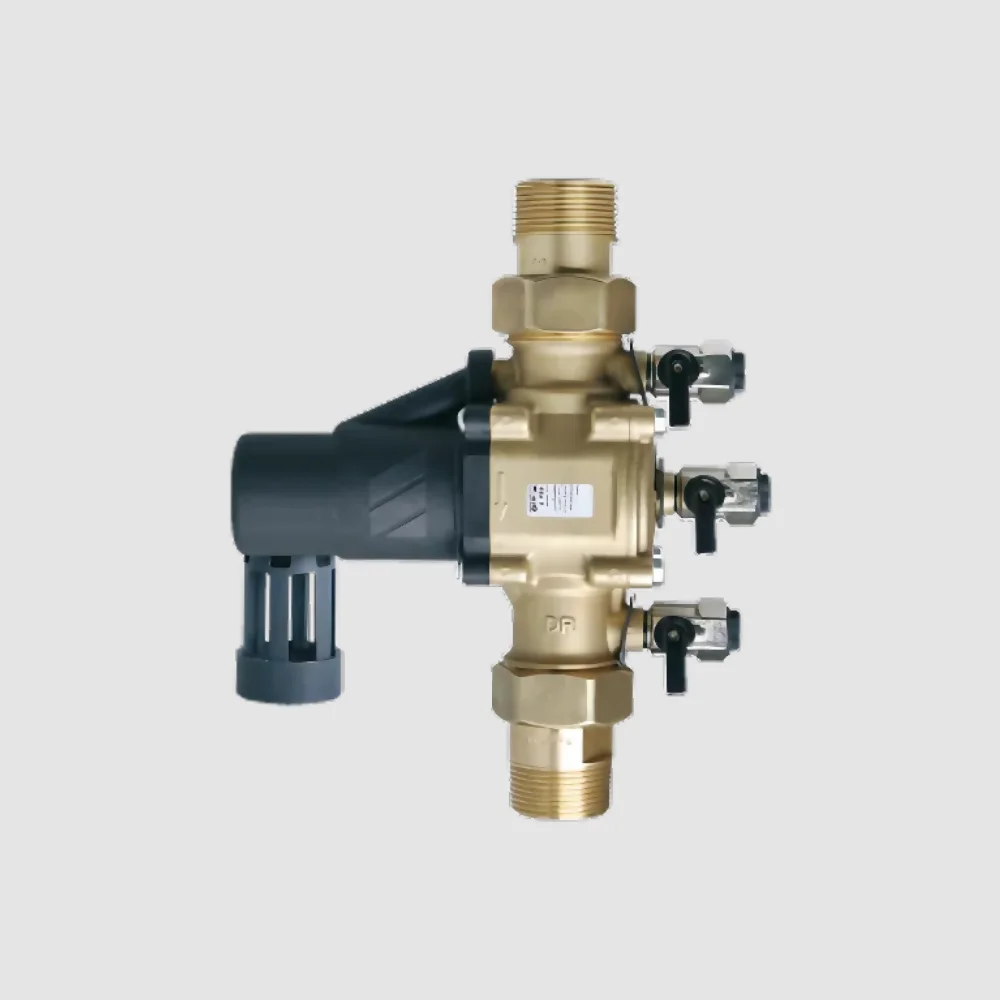

The SOCLA BABM CD Backflow Preventer safeguards drinking water networks by preventing backflow risks, including back pressure and siphonage. Designed for vertical descending installations, it features piston technology for easier maintenance and longevity. Operating at a maximum pressure of 10 bar and temperature up to 65°C, it supports various applications like hospitals, irrigation, and industrial facilities. Sizes range from DN15 to DN50, and it complies with EN 1717 standards.

 Technical Datasheet

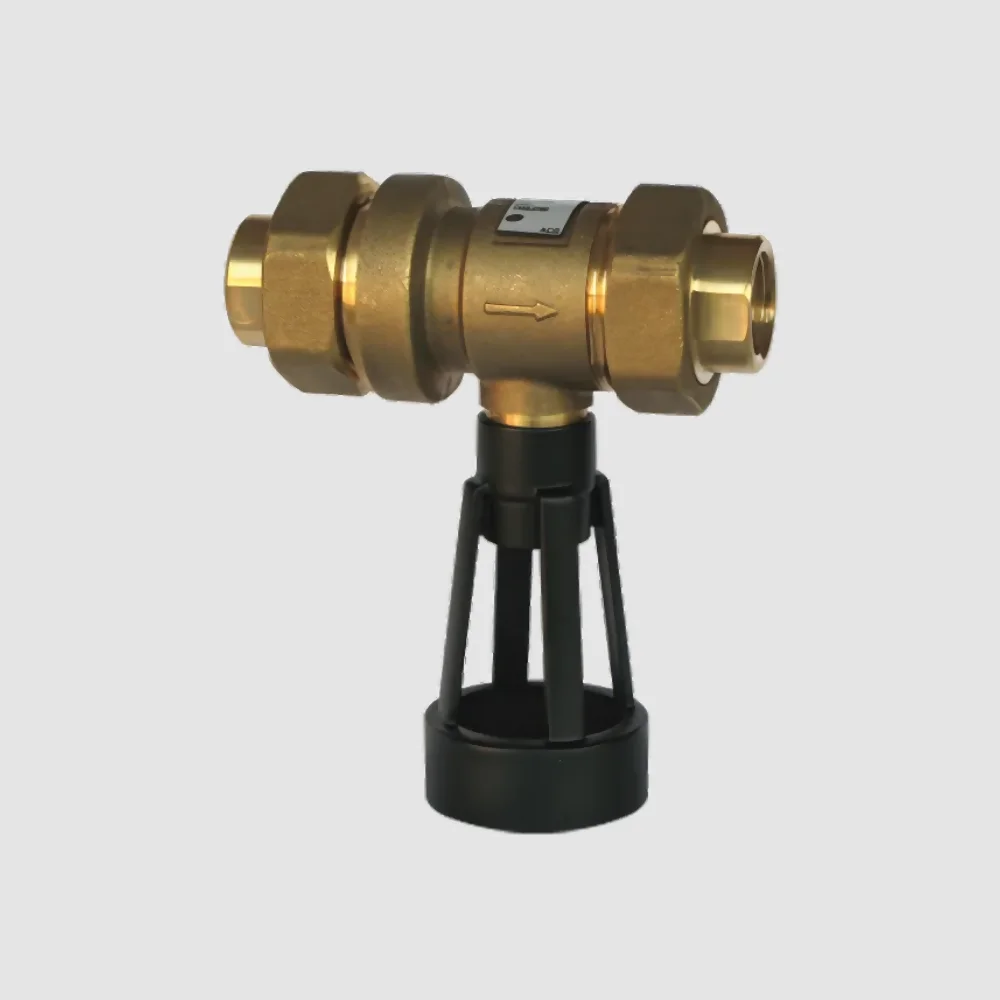

The SOCLA CA 2096 Backflow Preventer features a non-verifiable reduced pressure zone with dual check valves, separating upstream and downstream circuits to prevent backflow. Ideal for low-risk applications like heating systems and vending machines, it operates at up to 10 bar and 65°C. The compact brass design supports horizontal installation and complies with EN 1717 standards, ensuring reliable protection against water contamination in domestic and intermittent risk systems.

 Technical Datasheet  Mounting Instructions

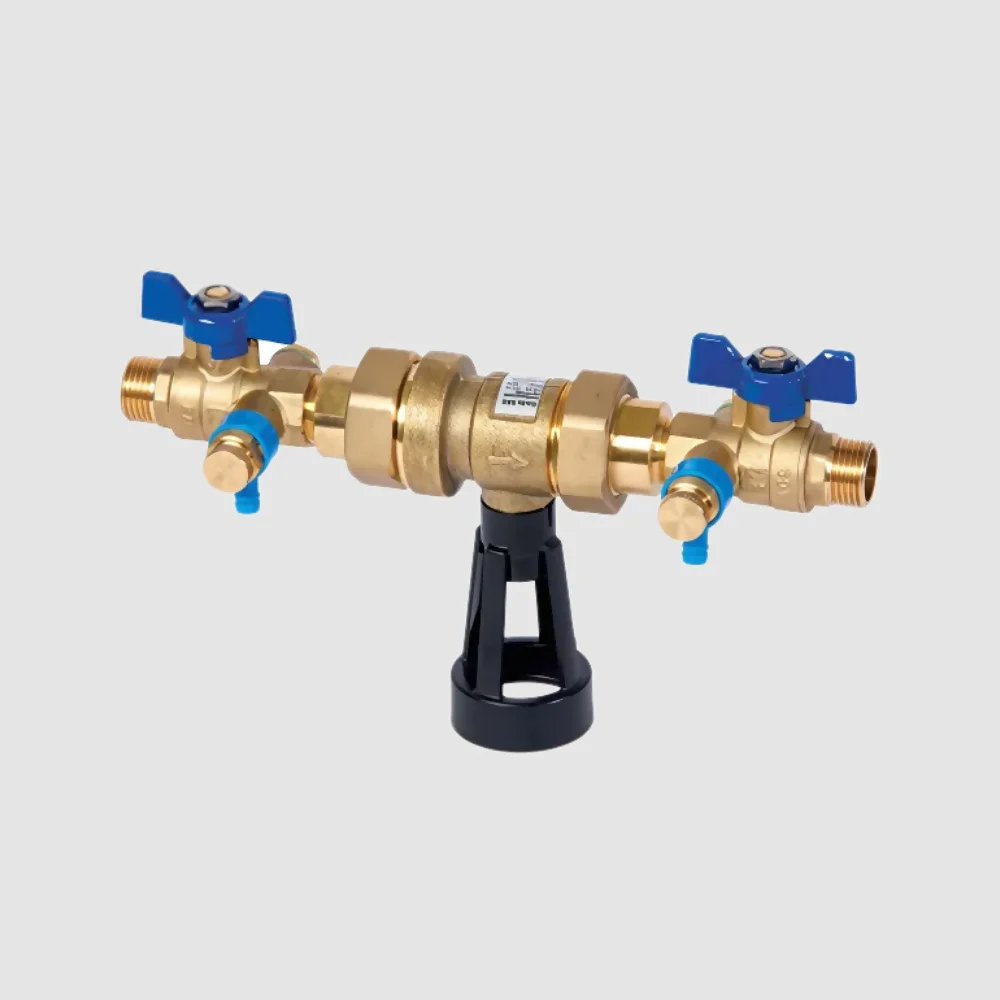

The SOCLA EDP CA 2096 Backflow Preventer is a ready-to-install solution for low or intermittent risk systems, combining the CA 2096 unit with ball valves and drainers. Designed for applications like heating systems, beverage dispensers, and coffee machines, it prevents water contamination through dual check valves and an atmospheric zone. Operating up to 10 bar and 65°C, it supports horizontal installations and meets EN 1717 standards, ensuring effective protection against backflow risks.

 Technical Datasheet

The SOCLA Y333P Backflow Preventer, also known as the Y pattern strainer, protects pumps, valves, and backflow prevention systems by filtering impurities like rust and debris from pipelines. It features an internal epoxy coating and stainless steel strainer, with filtration ranging from 500 to 1600 microns based on size. Suitable for temperatures from -10°C to 100°C and pressures up to 16 bar, it supports clear liquids and meets EN 1092-2 standards for effective system protection.

 Technical Datasheet  Mounting Instructions

The SOCLA Y222P Backflow Preventer, or Y pattern strainer, safeguards pumps and valves by filtering impurities like rust and debris from pipelines. It operates at up to 25 bar and temperatures from -10°C to 110°C. With a brass body and stainless steel strainer, it provides filtration of 300 microns for DN15 and 500 microns for larger sizes. Suitable for clear liquids, its female BSP threaded connections and compact design make it ideal for protecting systems against contamination.

 Technical Datasheet  Mounting Instructions
