SOCLA Air Valves

SOCLA offers a comprehensive range of air valves designed to efficiently manage air flow in water systems, enhancing performance and preventing issues like air entrapment and vacuum formation. The VE120 model is tailored for clear water applications, providing reliable air release to maintain system integrity. For wastewater systems, the VE330 model delivers triple-function capabilities, effectively handling air intake, air release, and protection against vacuum conditions.

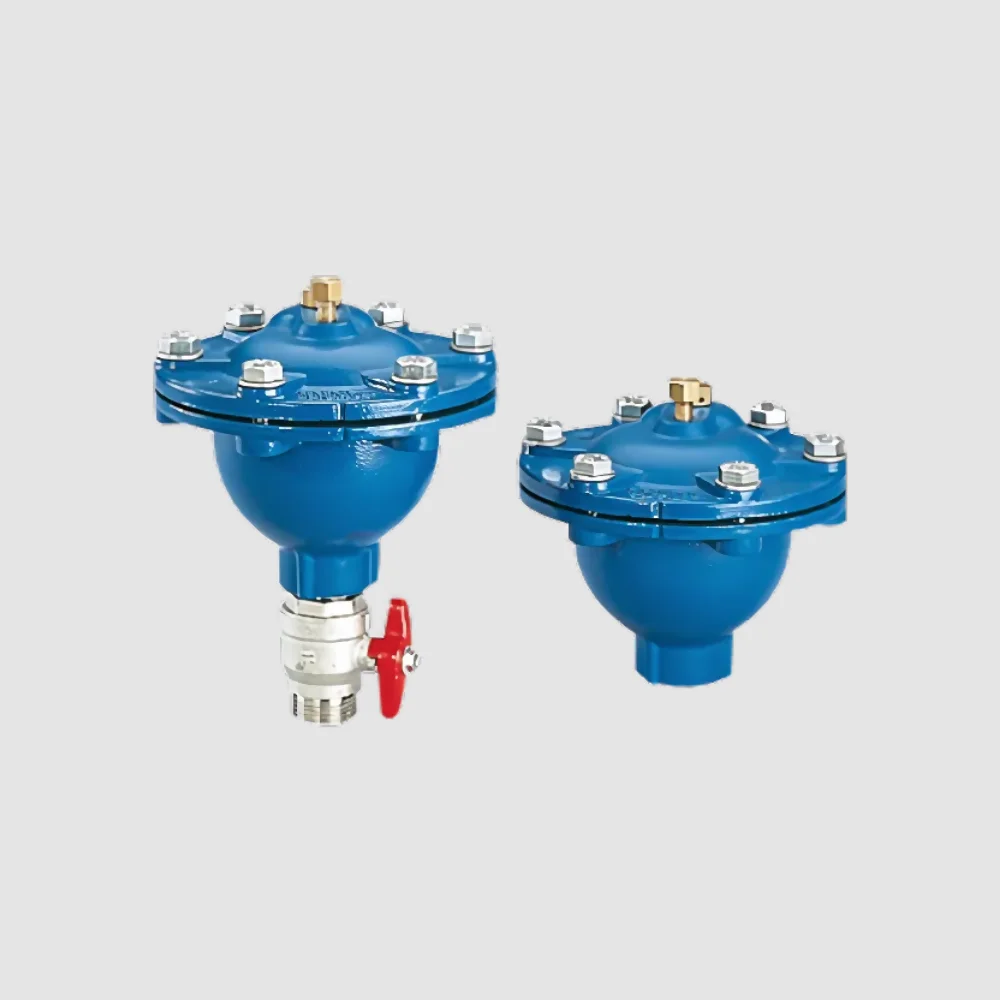

SOCLA VE120 Air Valves
Simple Function for Clear Water

The SOCLA VE120 Air Valves, designed for clear water systems, automatically evacuate accumulated air from high points in installations. Operating at pressures up to 25 bar and temperatures from 0°C to 100°C, they feature a ductile iron body with epoxy coating and options for BSP threaded or flanged connections. The valves ensure continuous performance with a float mechanism controlling the degassing orifice, making them ideal for maintaining system efficiency.

 Technical Datasheet

Pressure: PFA 16 ... 25 Bar
Temperature Range: 0°C ... 100°C
Body Materials: Ductile Iron, Epoxy, EPDM, Stainless Steel, Brass, & Grivory Black
Approvals: ACS, & SCP
Weight Range (KG): 5.16 ... 8.40
Enquire Here

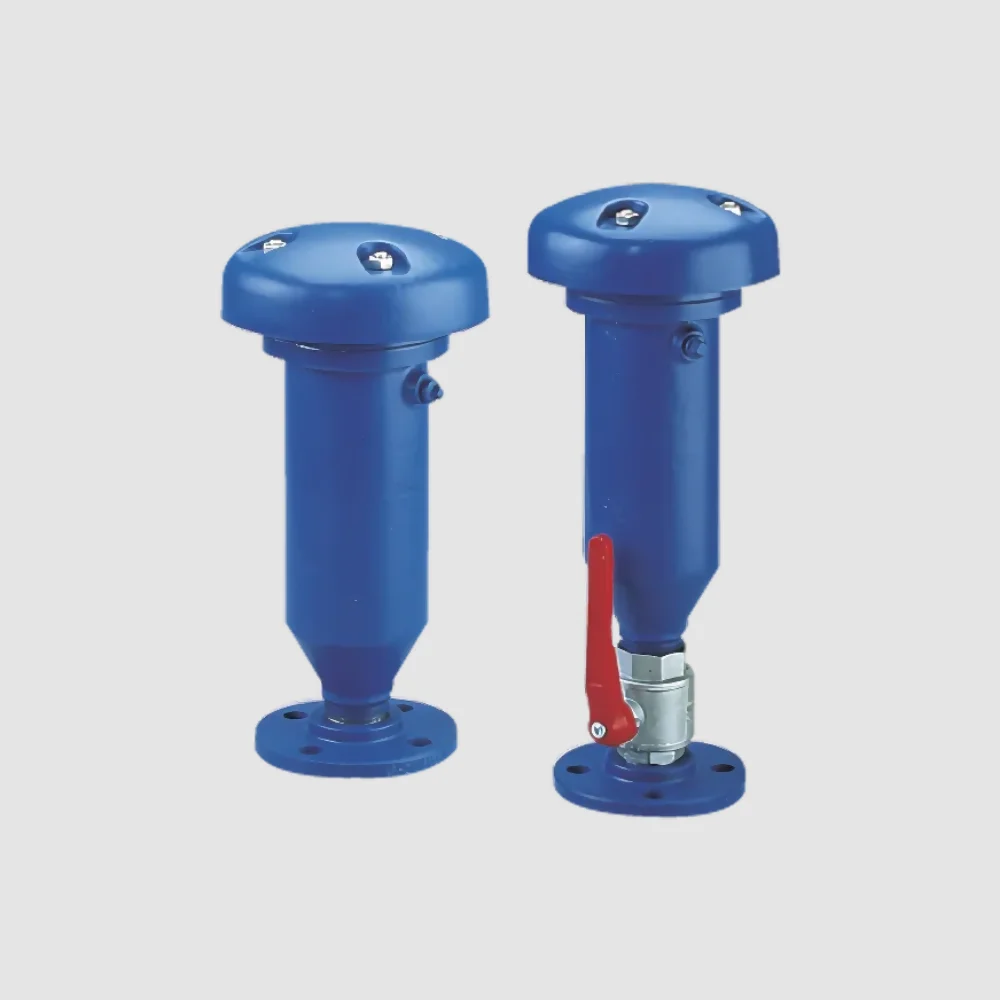

SOCLA VE320 Air Valves
Triple Function for Clear Water

The SOCLA VE320 Air Valves, designed for clear water systems, provide triple functionality by automatically releasing accumulated air, allowing rapid air inflow during draining, and maintaining air evacuation during operation. Featuring a cast iron body with epoxy coating, these valves are suitable for pressures up to 25 bar and temperatures from 0°C to 60°C. With no continuous maintenance required, they enhance system efficiency and are compatible with flanged connections.

 Technical Datasheet

Pressure: PFA 10 ... 25 Bar
Size Range: 40 ... 100 mm
Body Materials: Cast Iron, Epoxy, PE, PVC, PA, Polyurethane, NBR Nitrile, Stainless Steel, & Brass
Approvals: ACS
Weight Range (KG): 12 ... 22
Enquire Here

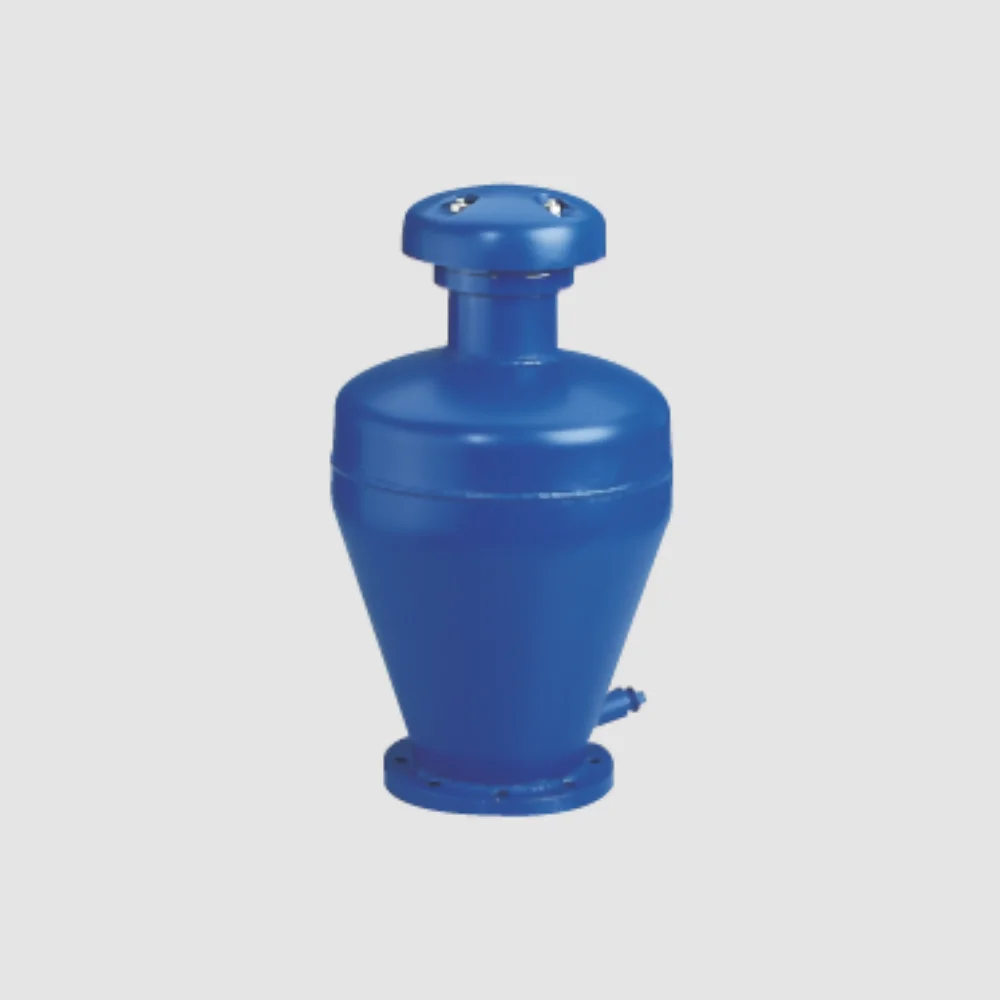

SOCLA VE330 Air Valves
Triple Function for Waste Water

The SOCLA VE330 Air Valves are designed for wastewater systems, providing triple functionality by automatically releasing accumulated air, enabling rapid air inflow during emptying, and ensuring continuous air evacuation. With an oversized body to prevent contact between wastewater and moving components, these valves operate efficiently at pressures up to 16 bar. Suitable for various pipe sizes, they are equipped with flanged connections and epoxy coating for enhanced durability.

 Technical Datasheet

Pressure: PFA 16 Bar
Size Range: 80 ... 150 mm
Body Materials: Cast Iron, Epoxy, Stainless Steel, Steel, Polyurethane, PVC, PE, Bronze,Nylon, & Nickel Plated Brass
Approvals: EN1092-2
Weight Range (KG): 33 ... 55
Enquire Here

Frequently Asked Questions

What are SOCLA air valves used for?

SOCLA air valves are designed to release trapped air from pipelines and systems, ensuring efficient operation and preventing issues like air pockets and pressure surges.

What materials are SOCLA air valves made from?

SOCLA air valves, such as the VE120 model, feature ductile iron casings with NBR (nitrile) seals, offering durability and reliable performance.

What sizes are available for SOCLA air valves?

SOCLA offers air valves in various sizes, including options with flanges DN40, DN50, and DN60, catering to different system requirements.

Are SOCLA air valves suitable for potable water systems?

Yes, certain SOCLA air valves, like the VE120 model, have received ACS approval, indicating their suitability for potable water applications.

How should SOCLA air valves be installed?

It's recommended to install a strainer upstream and an air relief valve downstream or at the high point near the control valve to ensure optimal performance.

What maintenance is required for SOCLA air valves?

Regular maintenance includes purging the upper chamber, flushing infrequently used valves, and checking and cleaning filters in the pilot circuit and main piping system.

Can SOCLA air valves handle high-pressure systems?

Yes, models like the VE120 are designed to operate at pressures up to PN25, making them suitable for high-pressure applications.

Do SOCLA air valves come with stop valves?

Certain configurations of SOCLA air valves, such as the VE120, are available with integrated stop valves for added control during maintenance.

Are there specific installation orientations for SOCLA air valves?

For horizontal installations, the valve cap should be oriented to the top and inclined at a maximum of 45°. In vertical setups, changing the spring of the main valve is recommended.

What approvals do SOCLA air valves have?

SOCLA air valves, like the VE120 model, have received ACS approval, ensuring compliance with safety and quality standards.

What is the operating temperature range for SOCLA air valves?

SOCLA air valves are designed to operate effectively within a temperature range of -10°C to 90°C, accommodating various environmental conditions.

Do SOCLA air valves come with stop valve

Yes, certain SOCLA air valves are available with optional stop valves, facilitating easy maintenance and system isolation when required.
