SOCLA 03 HP Systems

The SOCLA 03 HP Systems include the 233 and 233X Guided Check Valves, designed for high-pressure fluids, water, hydrocarbons, and industrial applications. The 233 valve operates up to 350 bar with carbon steel construction, while the 233X handles 160 bar with stainless steel and enhanced chemical resistance. Both ensure reliable backflow prevention, precise axial guiding, and low head loss, with ISO 228 compliance and sizes ranging from 8 to 15 mm for female threaded connections.

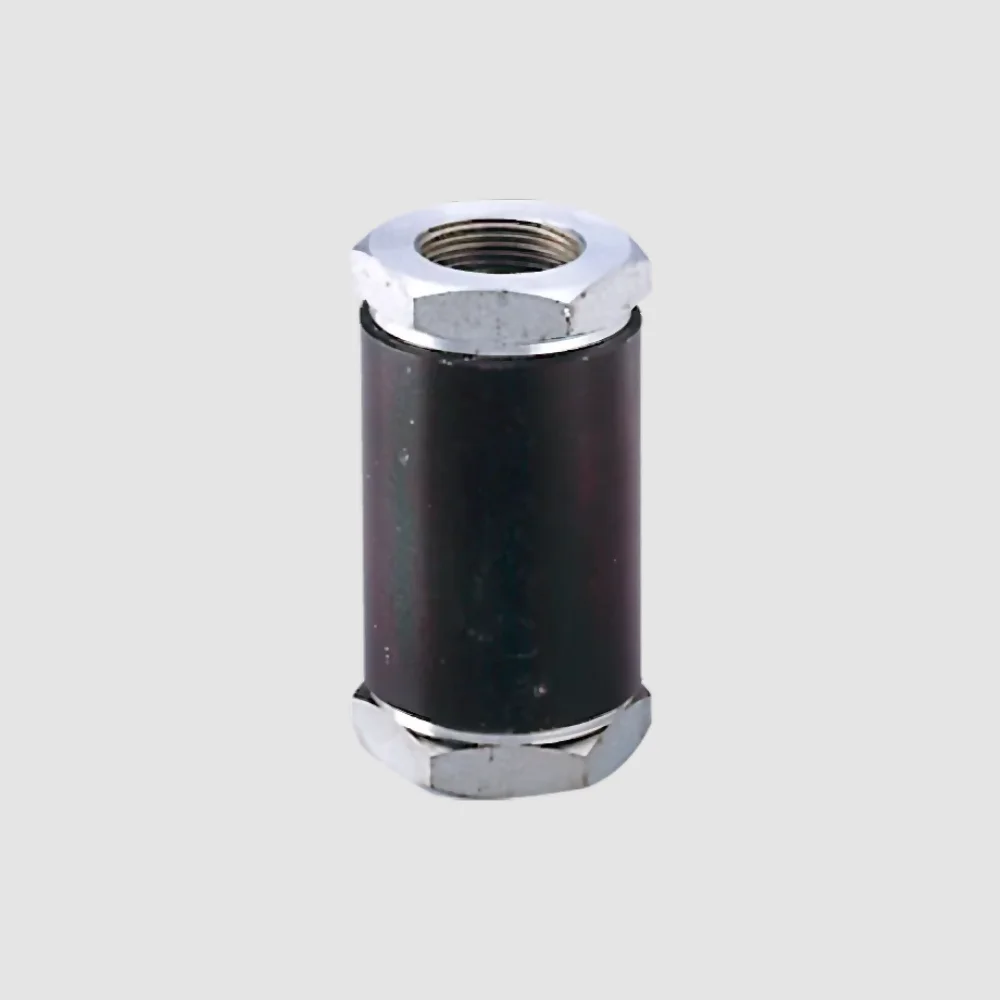

SOCLA 233 Guided Check Valves
High Pressure Fluids, Water, Hydrocarbons, Gas, & General Industrial Applications

The SOCLA 233 Guided Check Valve ensures reliable backflow prevention for high-pressure fluids, water, hydrocarbons, oils, and acids. Operating at pressures up to 350 bar and temperatures from -20°C to 100°C, it features a carbon steel casing, stainless steel internal components, and NBR seals. Its design includes precise axial guiding for optimal sealing and minimal head loss. Suitable for industrial applications, it complies with ISO 228 standards and supports female threaded connections.

 Technical Datasheet

Pressure: PFA 10 Bar
Size Range: 10 ... 15 mm
Body Materials: Carbon Steel, NBR Nitrile, Galvanised Steel, Stainless Steel, & Brass
Approvals: NFE 03-005 ISO 228
Weight Range (KG): 0.28 ... 0.41
Enquire Here

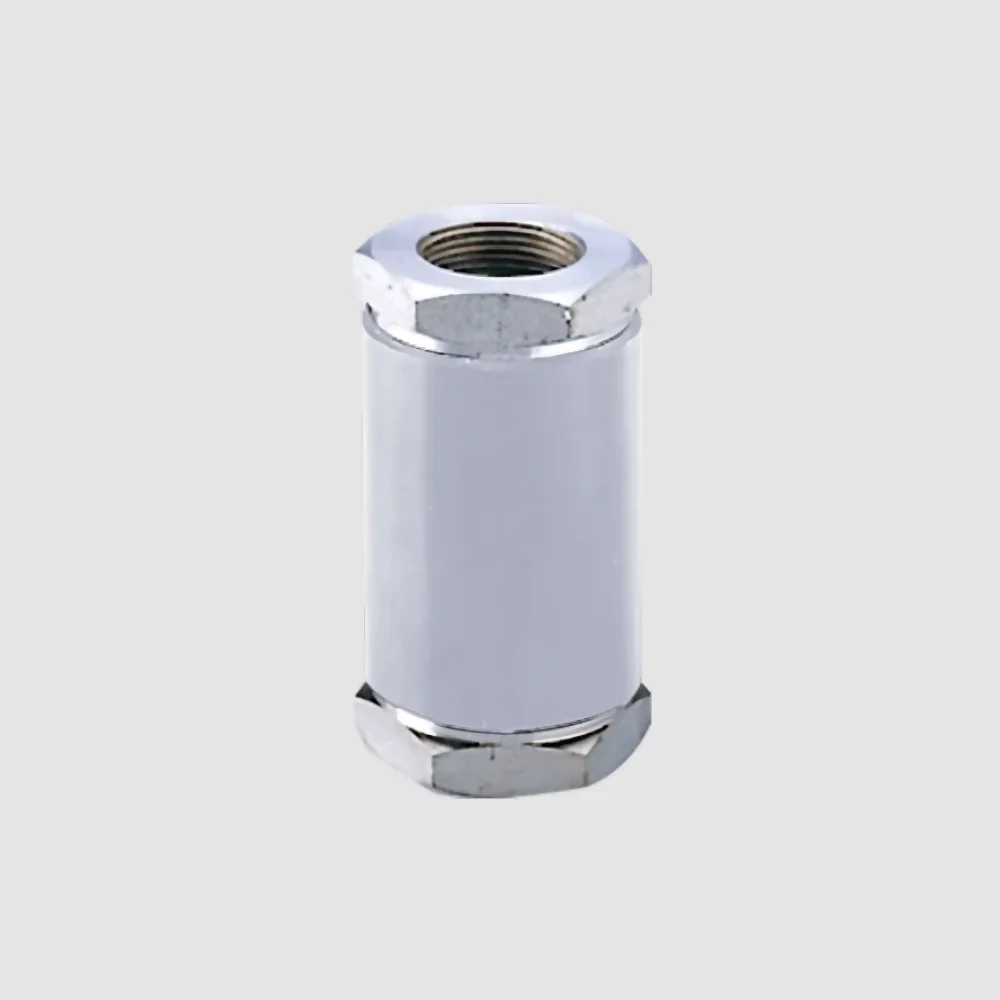

SOCLA 233X Guided Check Valves
High Pressure, Water, Hydrocarbons, Gas, & General Industrial Applications

The SOCLA 233X Guided Check Valve ensures effective backflow prevention for high-pressure fluids, water, hydrocarbons, oils, and gases. Operating at pressures up to 160 bar and temperatures from -20°C to 230°C, it features a stainless steel body, FKM seals, and PTFE components for enhanced durability and chemical resistance. Designed for female threaded connections, it complies with ISO 228 standards and provides precise axial guiding for optimal sealing and minimal head loss.

 Technical Datasheet

Pressure: PFA 160 Bar
Size Range: 8 ... 15 mm
Body Materials: Stainless Steel, FKM, & PTFE
Approvals: NFE 03-005 ISO 228
Weight Range (KG): 0.17 ... 0.41
Enquire Here

Frequently Asked Questions

What are SOCLA 03 HP Systems?

SOCLA 03 HP Systems are high-pressure piston check valves designed for applications involving high-pressure fluids, water, hydrocarbons, gas, and general industrial uses.

What materials are used in the construction of SOCLA 03 HP System valves?

The valve casing is made of carbon steel, with the closing system and spring constructed from stainless steel. The seals are typically NBR (nitrile).

What are the pressure ratings for SOCLA 03 HP System valves?

These valves can handle pressures up to 400 bar, making them suitable for high-pressure applications.

What is the operating temperature range for SOCLA 03 HP System valves?

The valves are designed to operate effectively at temperatures up to 100°C.

What are the available sizes for SOCLA 03 HP System valves?

The valves are available in sizes ranging from DN 8 mm to DN 50 mm.

What is the opening pressure for SOCLA 03 HP System valves?

The opening pressure for these valves is 0.5 bar.

Are there different material options for SOCLA 03 HP System valves?

Yes, the casing can be made from carbon steel or stainless steel AISI 304, with seals available in NBR (nitrile) or PTFE and FKM, depending on the application's temperature and fluid requirements.

What types of fluids are compatible with SOCLA 03 HP System valves?

These valves are suitable for high-pressure fluids, water, hydrocarbons, and gas, making them versatile for various industrial applications.

What are the connection types available for SOCLA 03 HP System valves?

The valves are available with female/female connections, facilitating easy integration into existing piping systems.

What standards do SOCLA 03 HP System valves comply with?

Specific compliance standards are not detailed in the provided sources. For precise information, please refer to the manufacturer's technical datasheets or contact their technical support.

Can SOCLA 03 HP System valves be used in both horizontal and vertical installations?

Yes, these valves are designed for flexible installation, allowing them to function efficiently in both horizontal and vertical pipe orientations.

How can I ensure the longevity of SOCLA 03 HP System valves in my application?

To maximize durability, follow the manufacturer’s maintenance guidelines, ensure proper alignment during installation, and use compatible fluids and pressure levels within the valve’s specified range.
