Single Union Standard U-PVC Imperial Manual Ball Valves

Single Union Standard U-PVC Imperial Manual Ball Valves come in sizes from 3/8" to 4" (DN08 to DN100), with weights between 100g and 4790g. Ideal for chemical processing, water treatment, irrigation, and wastewater management, these valves feature a single union design and PTFE seats for consistent performance. They are available with either plain or threaded connections, providing reliable flow control in various industrial settings.
Shop Help Me

Key Features

Key features and benefits of Single Union Standard U-PVC Imperial Manual Ball Valves
1

Key Features

These valves are available with either plain or threaded connections, making them adaptable for various industrial applications. This feature allows for easier installation and compatibility with different piping systems, enhancing their utility in diverse settings.
2

Key Features

With PTFE seats, these valves are engineered to deliver consistent performance even in challenging conditions. This makes them particularly suitable for chemical processing, water treatment, and wastewater management, where resistance to corrosive substances is crucial.
3

Key Features

The valves come in a wide range of sizes from 3/8" to 4" (DN08 to DN100) and weights from 100g to 4790g, accommodating different flow rates and system requirements. This versatility ensures that they can be tailored to meet specific operational needs across various industries.

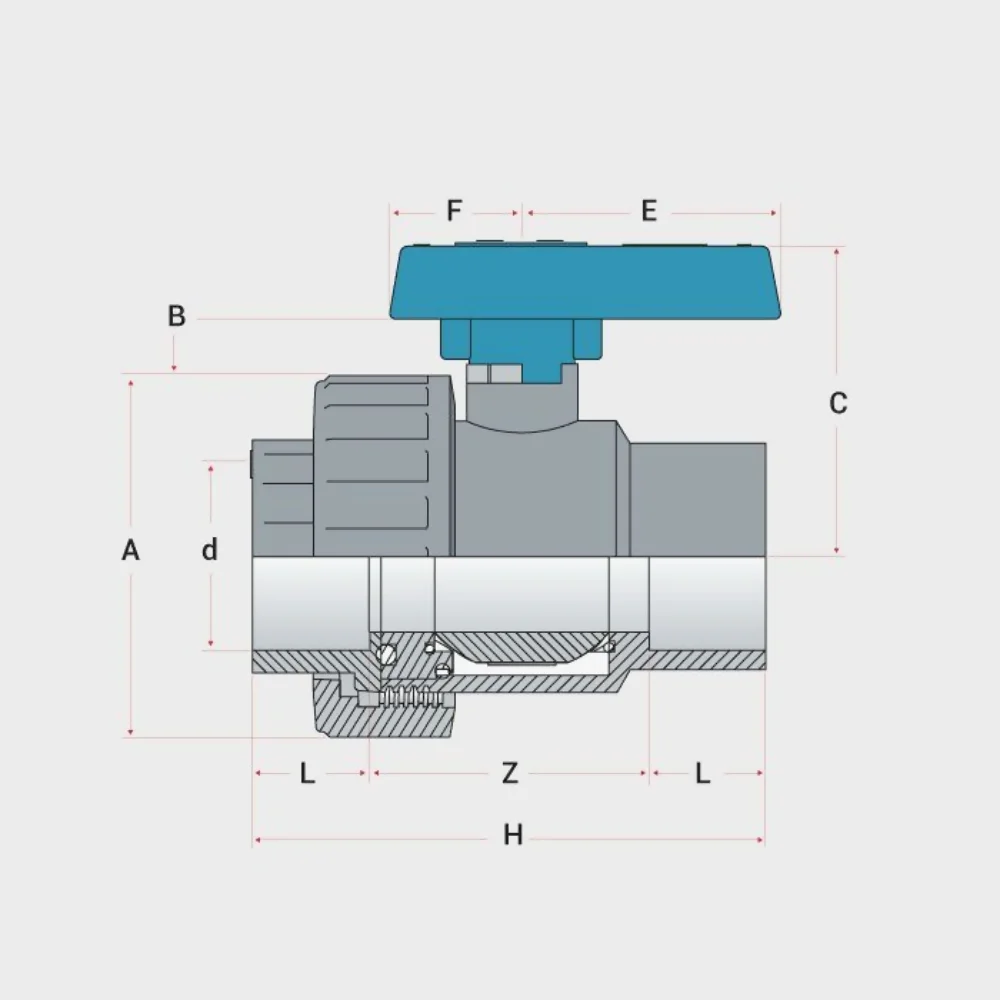

Valve Specifications

d L Z H A B C E F
3/8" 14 44 72 50 10 58 39 21
1/2" 16 44 76 50 10 58 39 21
3/4" 19 52 90 60 11 65 47 24
1" 22 58 102 68 13 75 55 27
1 1/4" 26 66 118 80 18 75 60 30
1 1/2" 31 74 136 96 20 87 68 35
2" 38 92 168 116 20 101 80 40
2 1/2" 44 126 214 145 25 123 90 45
3" 51 138 240 166 28 138 100 50
4" 61 153 275 210 28 160 120 60

Valve Documentation

  • Document
Instructions Manual

EPCO UPVC Jointing Procedures
  • Document
Certification

EPCO ISO 2009:2015
  • Document
Certification

U-PVC WRAS Certificate

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

These valves are available in sizes ranging from 3/8" to 4" (DN08 to DN100).

The weight of these valves ranges from 100g to 4790g, depending on the size.

These valves are available with both plain and threaded connection options.

The seat material used is PTFE, known for its durability and chemical resistance.

These valves are ideal for chemical processing, water treatment, irrigation, and wastewater treatment.

The single union design allows for easy installation and maintenance, enhancing operational efficiency.

Yes, they are suitable for chemical processing due to their PTFE seats and versatile design.

Yes, Single Union Standard U-PVC Imperial Manual Ball Valves are ideal for water treatment applications.

These valves are also available in sizes from 3/8" to 4" (DN08 to DN100).

They are available with plain and threaded connections for versatile installation options.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Their double union design, combined with Teflon-filled PE seats and EPDM & FPM seals, ensures durability and efficient operation in various industrial settings.
