Single Union Standard ABS Manual Ball Valves

Single Union Standard ABS Manual Ball Valves come in sizes from 3/8" to 4" (DN08 to DN100), weighing 80g to 3832g. These valves, featuring a single union design, are equipped with PTFE seats and EPDM seals, making them ideal for diverse uses such as chemical processing, water treatment, irrigation, and wastewater management. Their durable construction ensures consistent performance in various industrial settings.
Shop Help Me

Key Features

Key features and benefits of Single Union Standard ABS Manual Ball Valves
1

Key Features

The valves are available in a broad range of sizes from 3/8" to 4" (DN08 to DN100), with weights ranging from 80g to 3832g. This variety allows for flexible application across different piping requirements and scales, making it easier to find a suitable match for specific installation needs.
2

Key Features

Equipped with PTFE seats and EPDM seals, these valves offer excellent chemical resistance and durability. The use of PTFE and EPDM enhances the valve's capability to withstand aggressive chemicals and varying temperatures, which is crucial for applications in chemical processing, water treatment, and similar environments.
3

Key Features

The single union design simplifies maintenance and installation while ensuring robust performance. The durable construction of these valves guarantees reliable operation in various industrial settings, including wastewater management and irrigation, thus ensuring consistent performance and long service life under demanding conditions.

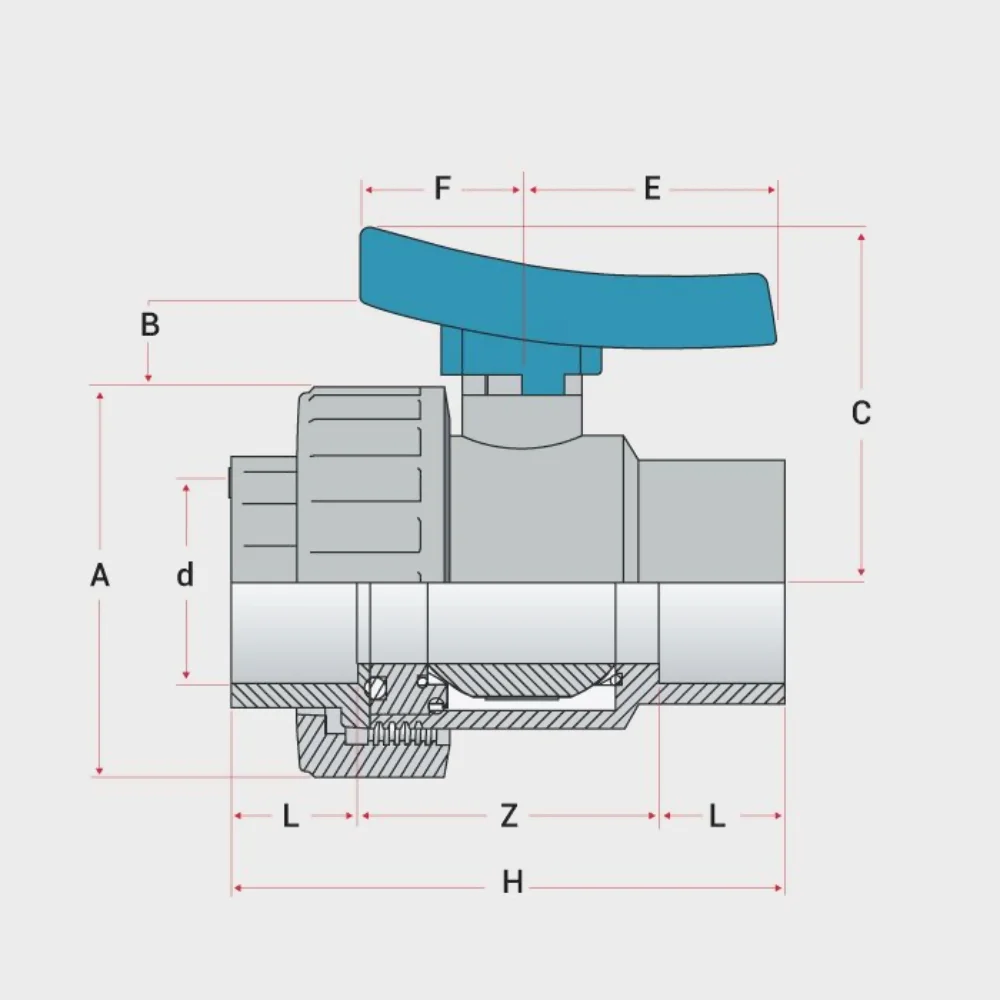

Valve Specifications

d L Z H A B C E F
3/8" 14 44 72 50 10 58 39 21
1/2" 16 44 76 50 10 58 39 21
3/4" 19 52 90 60 11 65 47 24
1" 22 58 102 68 13 75 55 27
1 1/4" 26 66 118 80 18 75 60 30
1 1/2" 31 74 136 96 20 87 68 35
2" 38 92 168 116 20 101 80 40
2 1/2" 44 126 214 145 25 123 90 45
3" 51 138 240 166 28 138 100 50
4" 61 1537 275 210 28 160 120 60

Valve Documentation

  • Document
Instructions Manual

EPCO ABS Jointing Procedures
  • Document
Certification

EPCO ISO 2009:2015
  • Document
Certification

ABS WRAS Certificate

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

ABS Manual Ball Valves are available in sizes ranging from 3/8" to 4" (DN08 to DN100).

ABS Manual Ball Valves weigh between 80g and 4800g, depending on the type and size.

Single Union valves have one connection point, while Double Union valves have two, offering easier maintenance and installation.

These valves are suitable for chemical processing, water treatment, irrigation, and wastewater treatment.

The seats are made of PTFE, and the seals are made of EPDM or FPM, depending on the model.

Yes, especially the Double Union Industrial ABS Manual Ball Valves, which are designed for more demanding industrial environments.

ABS Manual Ball Valves are designed for durability, with high-quality materials ensuring long-lasting performance in various applications.

Yes, they are designed to withstand the demands of chemical processing applications.

PTFE seats provide excellent sealing and chemical resistance, enhancing the valve's overall performance.

Double Union valves offer easier installation and maintenance, making them ideal for more complex systems.

The heaviest ABS Manual Ball Valve weighs 4800g, specifically the Double Union Industrial model.

These valves can be used in a wide range of environments, including water treatment plants, irrigation systems, and industrial facilities.
