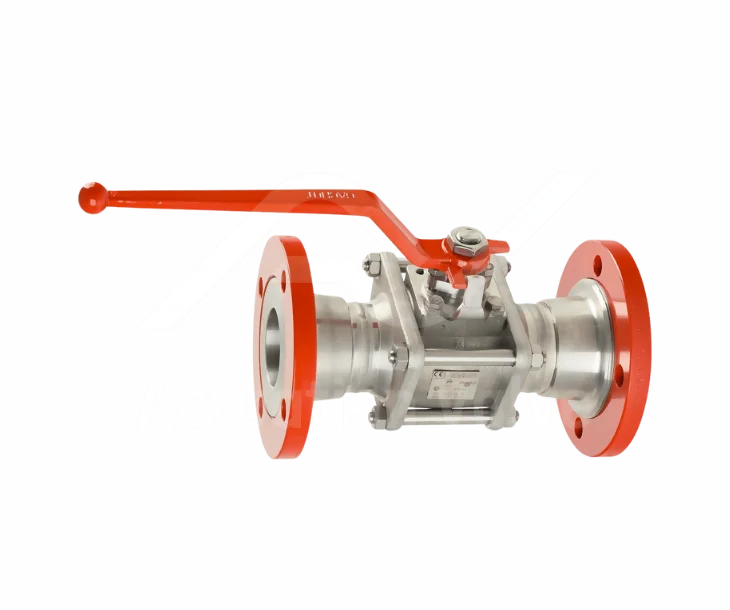

The SAPAG GACHOT® V16 3 Piece Ball Valves are designed for easy and quick installation and maintenance, ideal for general industry, chemical and petrochemical sectors, and shipbuilding. Available in sizes DN 8-200, they handle pressures up to 100 bar and temperatures from -50°C to +305°C. These valves feature reduced or full bore options, carbon or stainless steel versions, and multiple flange types. Optional features include 3-way ball valves, heating jackets, sight glasses, check valves, and electrical continuity, with superior leakage prevention adhering to EN12266-1 standards.

Shop Help Me

Key features and benefits of SAPAG GACHOT® V16 3 Piece Ball Valves

Key Features

The V16 Gachot® Three Piece Ball Valve is engineered with a unique design that simplifies both installation and maintenance processes. This innovative approach ensures that the valve can be quickly and efficiently serviced, reducing downtime and operational disruptions.

Key Features

This valve is versatile and suitable for a wide range of applications, including general industry, chemical and petrochemical industries, and shipbuilding. Its robust design makes it ideal for handling various fluids and gases in demanding environments.

Key Features

The valve offers multiple flange types to suit different installation requirements, including flange, butt weld (BW), socket weld (SW), and tapped connections. This flexibility allows for easy integration into existing piping systems.


Valve Size:	DN8 to DN200 (0.25" to 8")
Maximum Pressure:	100 bar
Temperature Range:	-50°C to 305°C
Design:	Reduced Bore / Full Bore
Leakage Rate:	EN12266-1 – Rate A (no leakage)
End Connections:	PN10/16/20/25/40/50, Flange, BW, SW, & Tapped
Approvals:	ATEX, Elmatec, & TA-Luft
General Applications:	General industry, Chemical & Petrochemical Industry, & Shipbuilding
Face to Face:	ISO5752-S01 (Flanged), & EN 12982 (BW/SW – Stainless Steel Version)

The SAPAG GACHOT® V16 3 Piece Ball Valves are available in sizes ranging from DN8 to DN200 (0.25" to 8").

These valves can handle a maximum pressure of up to 100 bar.

They can operate within a temperature range of -50°C to 305°C.

Yes, the valves are available in both reduced bore and full bore designs.

The leakage rate for these valves is EN12266-1 – Rate A, which means no leakage.

The end connections include PN10/16/20/25/40/50, Flange, BW (Butt Weld), SW (Socket Weld), and Tapped.

Yes, they have ATEX, Elmatec, and TA-Luft approvals.

These valves are suitable for general industry, chemical and petrochemical industry, and shipbuilding applications.

The face-to-face dimensions comply with ISO5752-S01 for flanged connections and EN 12982 for BW/SW (stainless steel version) connections.

Yes, these valves are ATEX approved, making them suitable for use in explosive atmospheres.
