SAPAG Elastomeric Seat Butterfly Valves

SAPAG Elastomeric Seat Butterfly Valves, available in the SAPAG JMC Butterfly Valves and SAPAG Counterweight Butterfly Valves categories, offer reliable performance and durability for various industrial applications. These valves ensure optimal flow control with their advanced elastomeric seating, providing excellent sealing and minimal leakage. Suitable for a wide range of pressures and temperatures, they are designed for ease of operation and maintenance, making them a versatile choice for efficient fluid management in diverse settings.

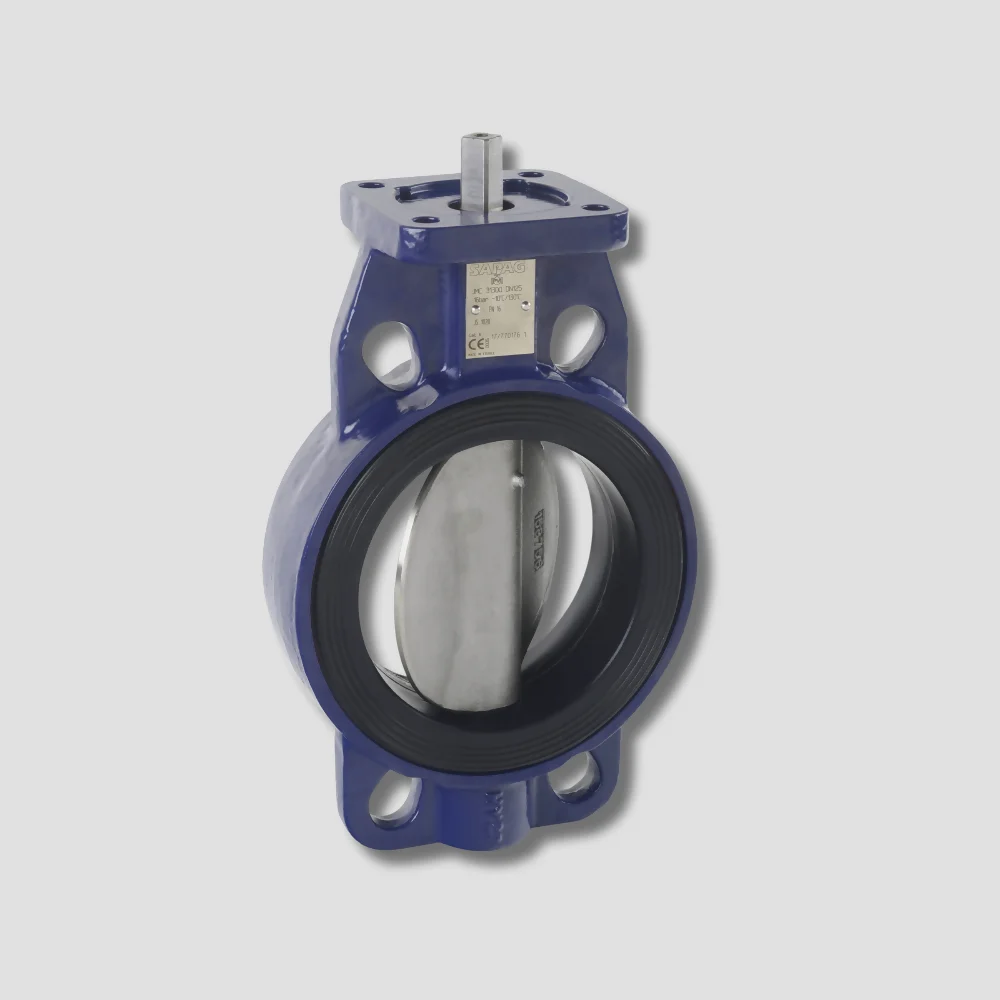

SAPAG JMC Butterfly Valves

The SAPAG JMC Butterfly Valve, available in sizes ranging from DN50 to DN3000 (2" to 120"), supports a maximum pressure of 25 bar and operates within a temperature range of -29°C to 170°C. It offers various end connections including Wafer, Lugged, Double Flange, and multiple PN and Class ratings. This valve holds numerous approvals such as ACS, DNV, Bureau Veritas, Elmatec, ABSA, WRAS, VdS, ATEX, UL, and more, ensuring its suitability for diverse industrial applications.

Size Range: DN50 to DN3000 (2" to 120")
Maximum Pressure: 25 bar
Temperature Range: -29°C to 170°C
End Connections: Wafer, Lugged, Double Flange, PN6/10/16/20/25, & Class 150/300
Approvals: ACS, DNV, Bureau Veritas, Elmatec, ABSA, WRAS, VdS, ATEX, UL & More
Find Out More

SAPAG Counterweight Butterfly Valves

The SAPAG Counterweight Butterfly Valve is designed for a size range of DN500 to DN2000 (20" to 80"), with a maximum pressure of 25 bar and a temperature range from -20°C to 80°C. It features double flange end connections with PN10/16/20/25, Class 150. This valve holds numerous approvals, including ACS, DNV, Bureau Veritas, Elmatec, ABSA, WRAS, VdS, ATEX, and UL, ensuring high standards and reliability for various industrial applications.

Size Range: DN500 to DN2000 (20" to 80")
Maximum Pressure: 25 bar
Temperature Range: -20°C to 80°C
End Connections: Double Flange, PN10/16/20/25, Class 150
Approvals: ACS, DNV, Bureau Veritas, Elmatec, ABSA, WRAS, VdS, ATEX, UL & More
Find Out More
