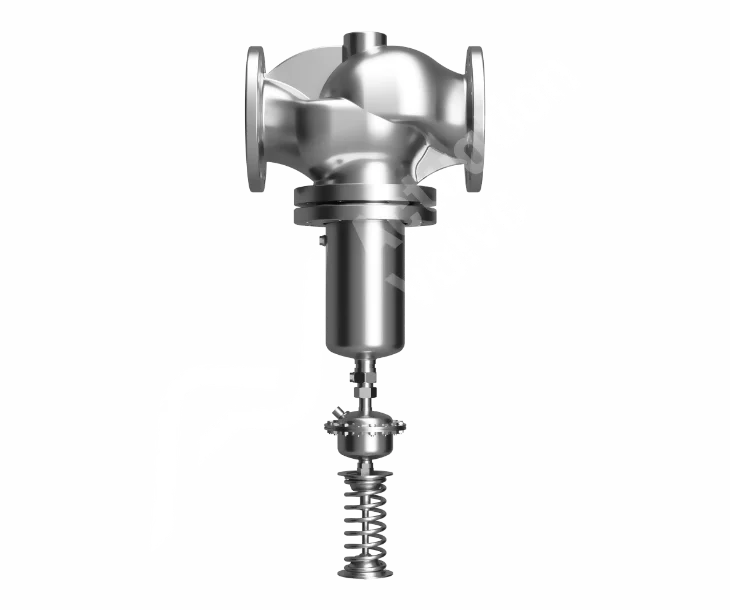

2422/2424 Type Large Pressure Reducing Regulator

The Type 2422/2424-Large Pressure Reducing Regulators represent a pinnacle in industrial pressure regulation technology, engineered to excel in a diverse array of industrial applications. These regulators, featuring sizes ranging from 6" to 10", epitomise reliability, precision, and adaptability. the Type 2422/2424 is a self-operated universal pressure reducing regulator, designed to maintain optimal downstream pressure, by adjusting it to a predetermined set point. Central to its functionality is the pressure reducing valve, a critical component tasked with modulating the downstream pressure to align with the desired level.
Shop Help Me

Key Features

Key features and benefits of 2422/2424 Type Large Pressure Reducing Regulators.
1

Key Features

At the heart of the Type 2422/2424 regulators lies their ability to deliver precise pressure regulation. Through the operation of the pressure reducing valve, these regulators maintain downstream pressure at a predefined set point, ensuring consistency and stability within the system. This precision control is essential for optimising process efficiency and safeguarding equipment integrity.
2

Key Features

The Type 2422/2424 regulators are engineered to cater to a broad spectrum of industrial applications. With sizes ranging from 6" to 10", these regulators offer versatility, making them suitable for diverse environments and operational requirements across various industries.
3

Key Features

A standout feature of these regulators is their self-operated design. By tapping into the downstream pressure and transmitting it via a control line to the operating diaphragm, these regulators eliminate the need for external power sources or complex control systems. This self-regulating capability enhances reliability and simplifies installation and maintenance processes.

Valve Standards & Stuff
Size: DN150-DN300 (6" - 12")
ANSI Class: 125 to 300
Set Point Range: 0.75 to 35psi (0.05 to 2.5 BAR)
Temperature Range: Upto 350°C
Materials: Cast Iron, Cast Steel, Stainless Steel, Spheroidal Graphite Iron

FAQs

A pressure regulator is a device designed to maintain a consistent pressure level in a system by controlling the flow of fluid or gas.

Pressure regulators work by reducing the input pressure to a desired output pressure, ensuring stability and control within a system.

Pressure regulators are widely used in various industries including oil and gas, pharmaceuticals, manufacturing, HVAC systems, and pneumatic equipment.

Pressure regulators come in various types including direct-acting, pilot-operated, and self-operated regulators, each suited to different applications and pressure ranges.

Factors to consider include the required pressure range, flow rate, temperature, compatibility with the fluid or gas, and environmental conditions.

Signs of a malfunctioning pressure regulator include inconsistent pressure output, leaks, excessive noise, or failure to maintain the desired pressure.

Regular inspection and maintenance are essential to ensure proper functioning. The frequency of maintenance depends on factors such as usage, environmental conditions, and manufacturer recommendations.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Datasheets and Certificates

  • PDF
Datasheets and Certificates

Datasheet
  • PDF
Datasheets and Certificates

Mounting
  • PDF
Datasheets and Certificates

Spare Parts
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
