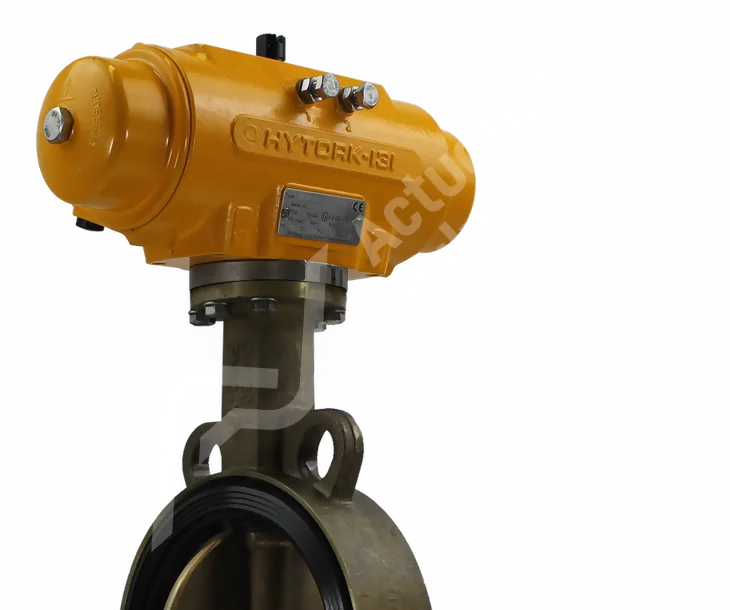

Wafer Bronze TTV/Hytork Actuated Butterfly Valves

Aluminium Bronze is favoured for its corrosion resistance and used in marine applications where it may be subject to salt water or brackish conditions. Ali Bronze maintains long term stability and is used on fire protection, potable water, cooling, ballast & HVAC systems. High-quality pneumatic components drastically improve your production line's efficiency. The Hytork XL range comes standard with a powder-coated surface treatment providing extra protection against aggressive environments. TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.

Key Features

Key features and benefits of the 80WM580XL Actuated Butterfly Valves.
1

Key Features

Hytork’s Pneumatic Actuator is designed with larger rack teeth than competitors' products, which provides superior strength and durability when compared to other brands on the market today. This innovative design allows our customers to have confidence in their equipment.
2

Key Features

Bronze butterfly valves are an excellent solution if you require a valve that will function properly even when exposed to corrosive media such as seawater or brackish water. These bronze valves offer maximum protection against erosion from aggressive liquids like saltwater.
3

Key Features

Easily integrated into existing systems using industry standard NAMUR mountings (VDE/VDI 3845). This standardisation allow users to integrate the unit with future upgrades or replacements without having to redesign entire systems.

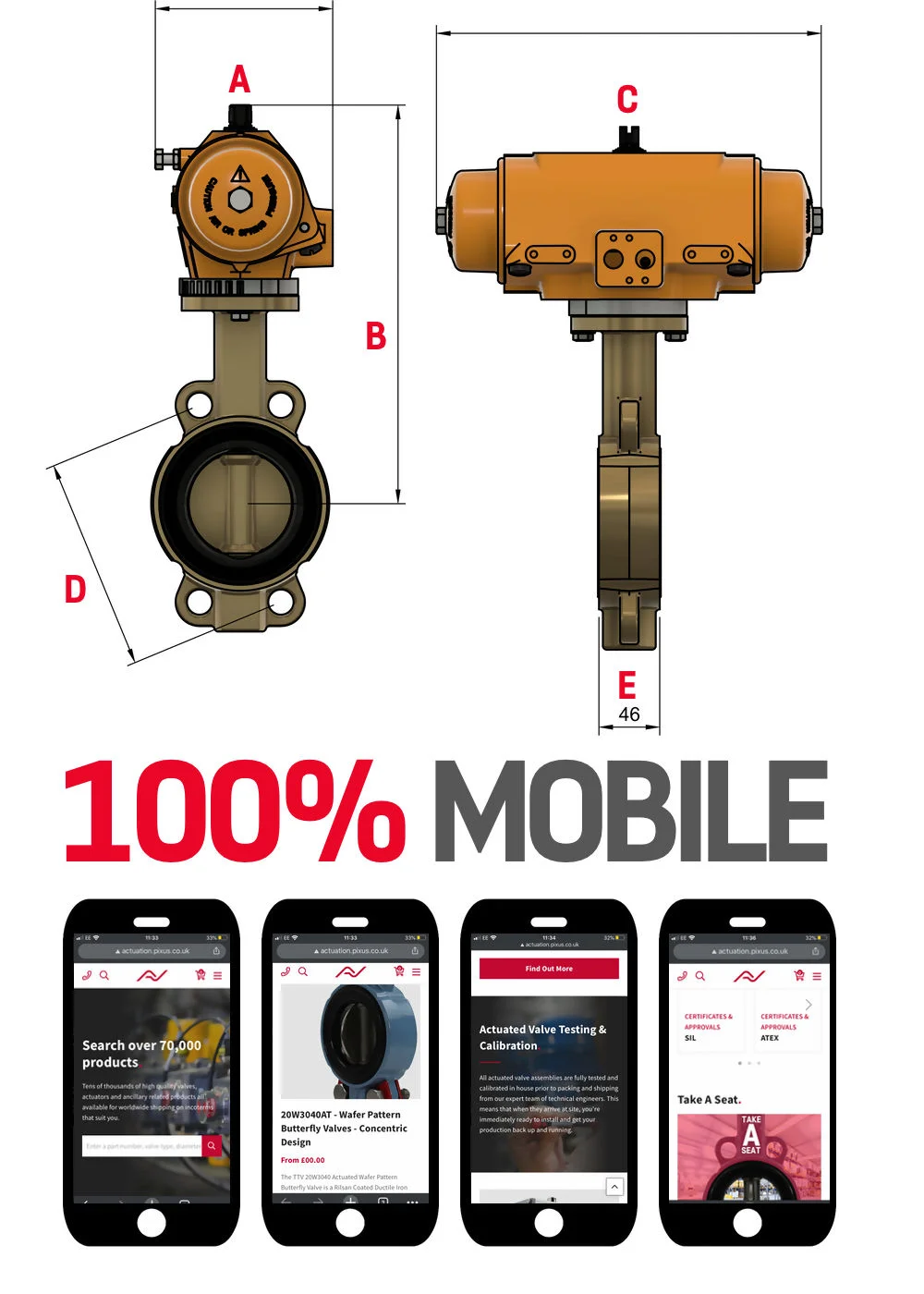

Wafer Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 97.00 244.50 165.00 97.00 244.50 165.00 TBA 33.00
2" 116.50 278.40 221.80 97.00 260.50 165.00 TBA 43.00
2.5" 116.50 283.40 221.80 116.50 283.40 221.80 TBA 46.00
3" 133.50 307.40 292.00 116.50 291.40 221.80 TBA 46.00
4" 143.10 331.05 331.60 133.50 325.40 292.00 TBA 52.00
5" 170.00 382.00 348.00 143.10 350.05 331.60 TBA 56.00
6" 174.00 384.00 462.00 158.50 374.90 349.80 TBA 56.00
8" 190.00 459.00 580.00 174.00 424.00 292.00 TBA 60.00
10" 240.00 482.00 647.00 190.00 452.00 324.00 TBA 68.00
12" 246.00 529.00 696.00 240.00 514.00 396.00 TBA 78.00
14" 253.00 594.00 862.00 246.00 549.00 407.00 TBA 78.00
16" 321.00 730.00 884.00 253.00 634.00 476.00 TBA 102.00
18" 321.00 780.00 884.00 321.00 780.00 515.00 TBA 114.00
20" TBA TBA TBA 321.00 830.00 515.00 TBA 127.00
24" TBA TBA TBA TBA TBA TBA TBA 154.00

Wafer Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: B148 C9500 Aluminium Bronze
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Hytork Actuator Videos

TopWorx Limit Switch Box

TopWorx Hytork Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Hytork Actuator prior to shipping.
