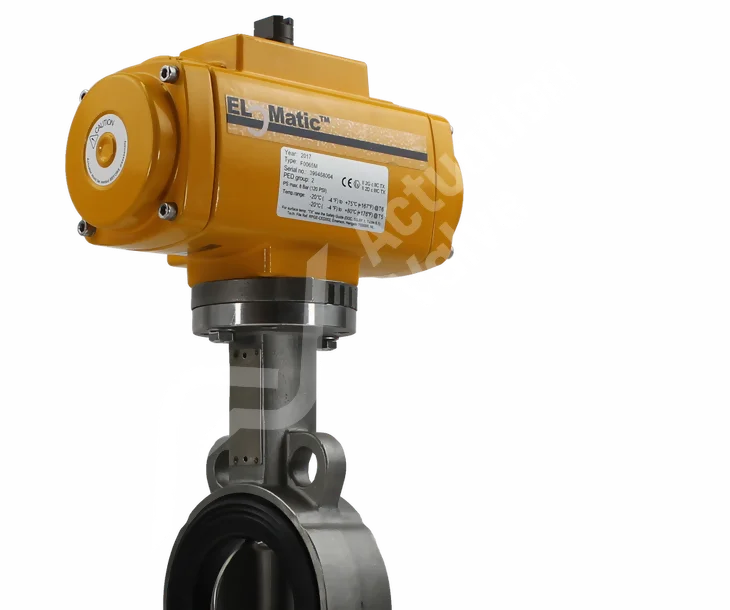

The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a very similar corrosion internal fluid resistance to that of the standard Valve whilst also providing external protection which may be too aggressive for standard products. This includes corrosive and wash down requirements, so it's no surprise these valves are best suited towards those applications where durability is key. EL-O-Matic actuator features an easy to use, modular air spring system that allows for simple spring or action changes on site by the end user without returning the unit to the assembler or manufacturer. This can be useful if valves need to be moved to alternate lines as well as scheduling maintenance procedures.

Shop Help Me

Key features and benefits of the 40W4040EL Actuated Butterfly Valves.

Key Features

With its long life springs and precision engineering, the EL-O-Matic Pneumatic Actuator offers safe & secure plant operations. Features include high durability, low maintenance and simple operation. These qualities make it an ideal choice for your application.

Key Features

The EL-O-Matic actuator has been designed from the ground up with safety in mind by a team of specialist engineers. It's made of strong materials so it will last longer than most competitors products, while still being lightweight enough to easily install.

Key Features

The EL-O-Matic Pneumatic Actuator features a hardened steel piston and utilise high quality materials that do not fail when when exposed to moisture, dust or dirt which makes this product ideal for outdoor use as well as harsh industrial environments where water spray may be present.

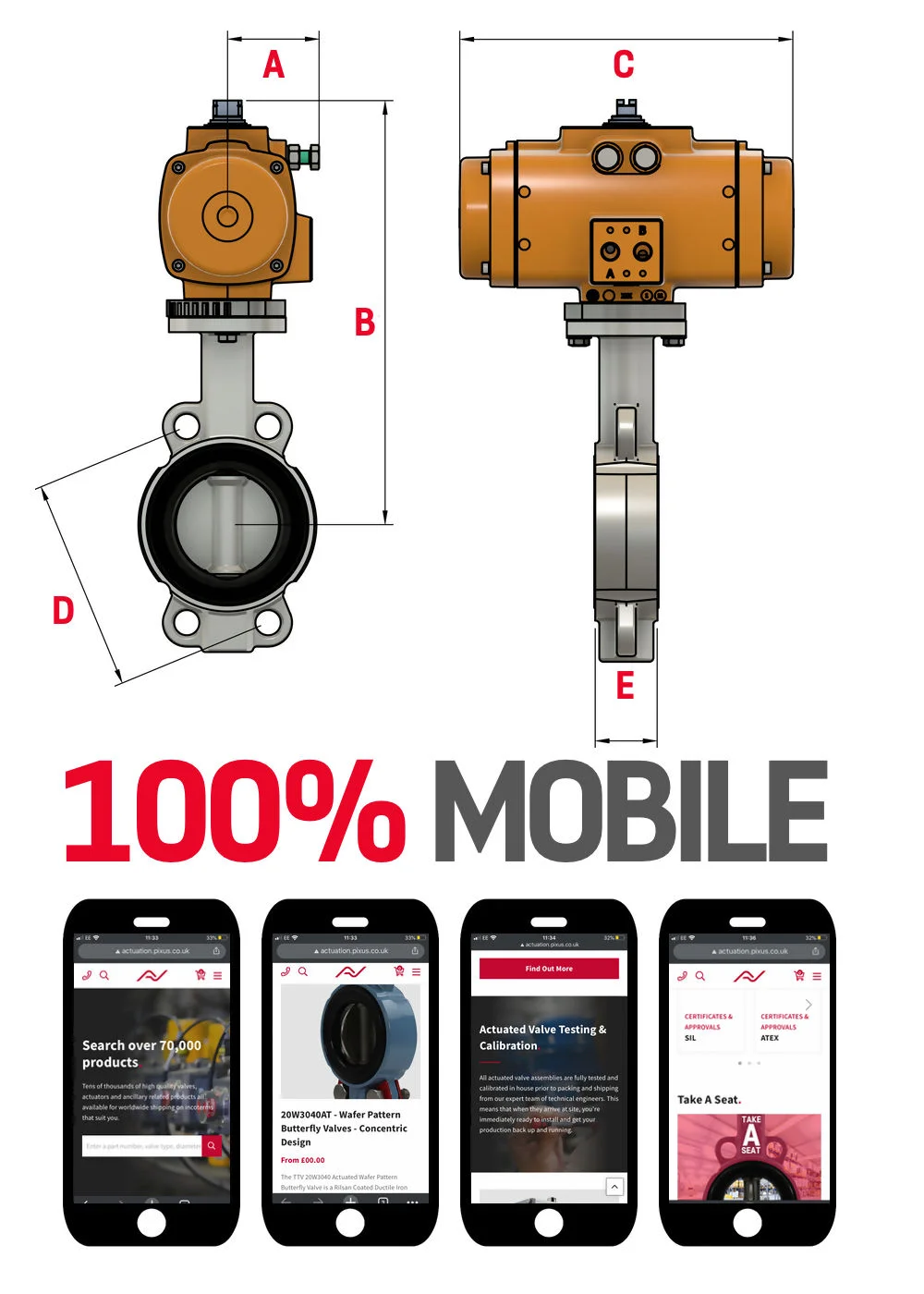

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	48.00	259.00	166.00	33.00	220.00	103.00	TBA	33.00
2"	48.00	275.00	166.00	48.00	275.00	166.00	TBA	43.00
2.5"	58.00	300.00	192.00	58.00	300.00	192.00	TBA	46.00
3"	69.00	320.00	217.00	58.00	308.00	192.00	TBA	46.00
4"	69.00	345.00	247.00	69.00	338.00	217.00	TBA	52.00
5"	75.00	391.00	304.00	75.00	391.00	235.00	TBA	56.00
6"	87.00	406.00	362.00	87.00	406.00	265.00	TBA	56.00
8"	109.00	485.00	385.00	109.00	485.00	284.00	TBA	60.00
10"	132.00	540.00	476.00	132.00	540.00	356.00	TBA	68.00
12"	131.00	585.00	658.00	132.00	572.00	356.00	TBA	78.00
14"	156.00	639.00	732.00	156.00	639.00	528.00	TBA	78.00
16"	175.00	767.00	959.00	181.00	732.00	605.00	TBA	102.00
18"	TBA	TBA	TBA	181.00	782.00	710.00	TBA	114.00
20"	TBA	TBA	TBA	175.00	867.00	812.00	TBA	127.00
24"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS


Body Material:	CF8M Stainless Steel
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C

Elomatic Actuator Videos

Elomatic Overview

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.
