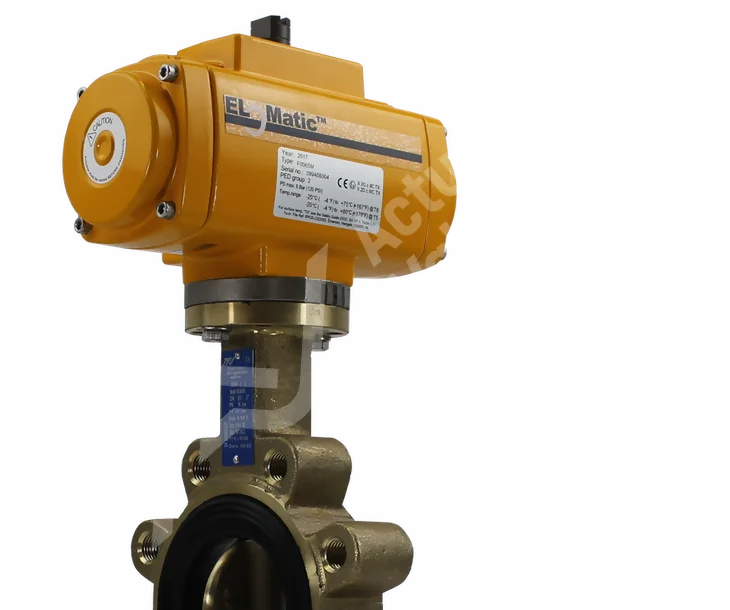

Lugged Aluminium Bronze TTV Actuated Butterfly Valves

The TTV range of bronze butterfly valves are an ideal solution to most marine applications and come with approvals from recognised bodies such as DNV, Bureau Veritas, Lloyds & ABS. Our products are corrosion resistant with the highest quality of foundry raw materials. The EL-O-Matic Pneumatic Actuator uses a high grade aluminum (7075 T6) pinion that provides the best combination of corrosion resistance, high strength and lightweight construction available today. Ideal for any application where durability is required over many years of service life. Lugged Butterfly Valves are commonly used in piping systems as a dead end service Valve or where regular/predicted disconnecting of the pipe on either side may need to be removed for maintenance and installation without disruption to both sides of the line.
Shop Help Me

Key Features

Key features and benefits of the 80LM580EL Actuated Butterfly Valves.
1

Key Features

Actuator tested to function properly after just 1,000 hours of salt spray testing (C5 Medium). This is an accelerated test that puts the product under conditions much harsher than those it would normally encounter during its average use cycle.
2

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.
3

Key Features

The bronze alloy of these TTV Butterfly valves’ bodies offer a higher level of corrosion resistance than their competitors. This makes them ideal for use within the marine environment, where they are exposed to salt water and other corrosive fluids.

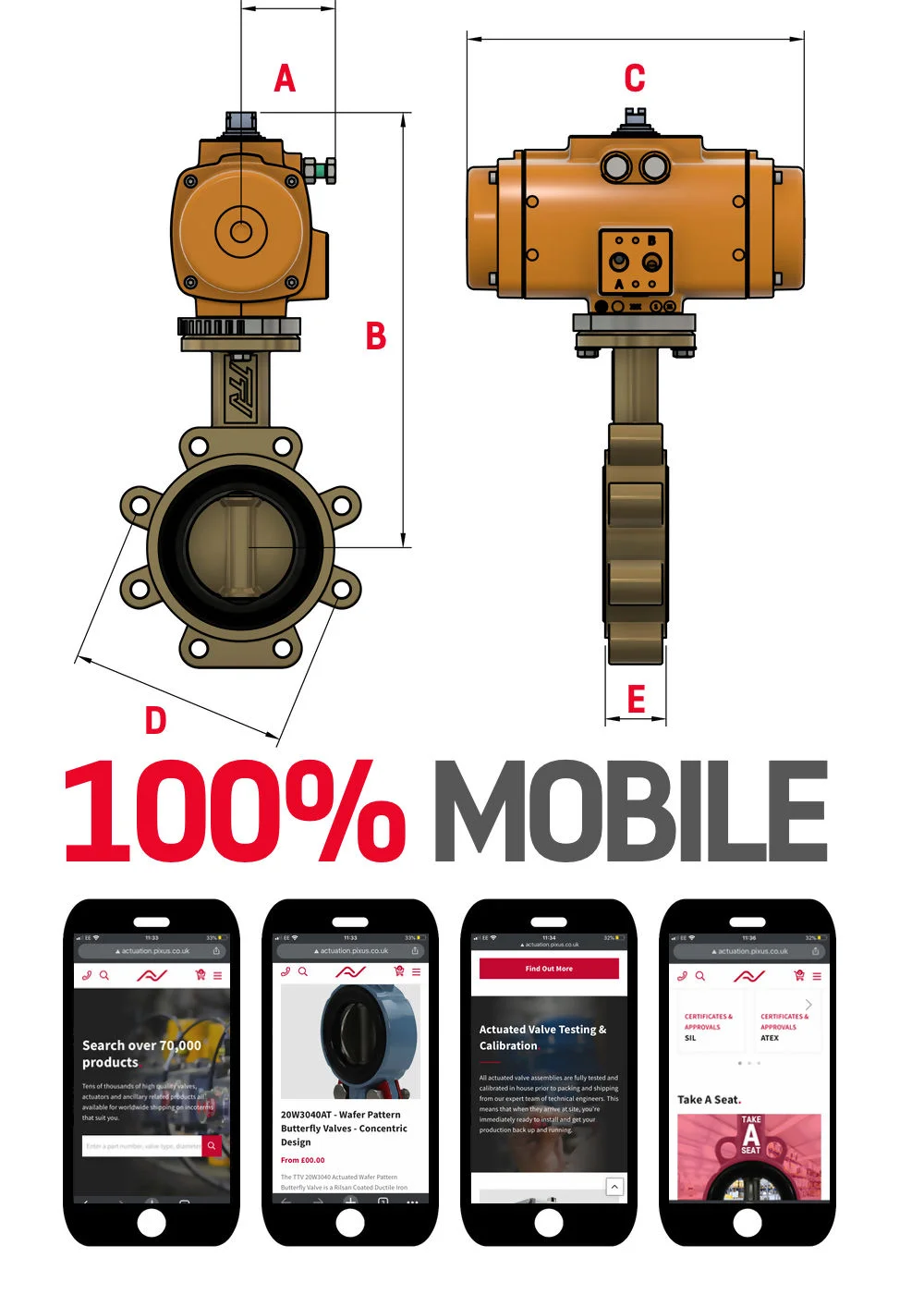

Fully Lugged Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 48.00 259.00 166.00 33.00 220.00 103.00 TBA 33.00
2" 48.00 275.00 166.00 48.00 275.00 166.00 TBA 43.00
2.5" 58.00 300.00 192.00 58.00 300.00 192.00 TBA 46.00
3" 69.00 320.00 217.00 58.00 308.00 192.00 TBA 46.00
4" 69.00 345.00 247.00 69.00 338.00 217.00 TBA 52.00
5" 75.00 391.00 304.00 75.00 391.00 235.00 TBA 56.00
6" 87.00 406.00 362.00 87.00 406.00 265.00 TBA 56.00
8" 109.00 485.00 385.00 109.00 485.00 284.00 TBA 60.00
10" 132.00 540.00 476.00 132.00 540.00 356.00 TBA 68.00
12" 131.00 585.00 658.00 132.00 572.00 356.00 TBA 78.00
14" 156.00 639.00 732.00 156.00 639.00 528.00 TBA 78.00
16" 175.00 767.00 959.00 181.00 732.00 605.00 TBA 102.00
18" TBA TBA 710.00 181.00 782.00 710.00 TBA 114.00
20" TBA TBA 950.00 175.00 867.00 812.00 TBA 127.00
24" TBA TBA 950.00 TBA TBA TBA TBA 154.00

Fully Lugged Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

SMALL Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

SMALL Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0012
  • ZIP
DRAWINGS & SCHEMATICS

0025
  • ZIP
DRAWINGS & SCHEMATICS

0040
  • ZIP
  • Size 0100
DRAWINGS & SCHEMATICS

0065
  • ZIP
DRAWINGS & SCHEMATICS

0100
  • ZIP
DRAWINGS & SCHEMATICS

0150

Valve Standards & Stuff
Body Material: B148 C9500 Aluminium Bronze
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

BIG Actuator DA

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

BIG Actuator SR

  • ZIP
DRAWINGS & SCHEMATICS

0200
  • ZIP
DRAWINGS & SCHEMATICS

0350
  • ZIP
DRAWINGS & SCHEMATICS

0600
  • ZIP
DRAWINGS & SCHEMATICS

0950
  • ZIP
DRAWINGS & SCHEMATICS

1600
  • ZIP
DRAWINGS & SCHEMATICS

2500

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

ABS
  • PDF
CERTIFICATES & APPROVALS

ATEX 2014/34/UE
  • PDF
CERTIFICATES & APPROVALS

ACS
  • PDF
CERTIFICATES & APPROVALS

PED 2014/68/UE
  • PDF
CERTIFICATES & APPROVALS

Lloyds ISO 9001

Actuator Stuff

  • PDF
Brochures

F-Series Elomatic
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

Safety Manual
  • PDF
CERTIFICATES & APPROVALS

Declaration Of Conformity
  • PDF
CERTIFICATES & APPROVALS

Attestation Of Conformity

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Elomatic Actuator Videos

Elomatic Overview

TopWorx Limit Switch Box

TopWorx Elomatic Valve Limit Switch Box available for this product. Keep everything within the Emerson Group of products with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Elomatic Actuator prior to shipping.
