Lugged Type Actuated SS Air Torque Butterfly Valves

The Stainless Steel Butterfly Valves from TTV are a perfect fit for any application that requires an extremely durable and versatile concentric design. These valves can handle harsh conditions like those found in chemical plants due to their CF8M stainless steel body. Certificate of conformities can be supplied by Air Torque along with your actuator or actuated valve package and each individual actuator is factory tested and inspected prior to packing and despatch to us in the UK form their Italian factory. The Lugged Valve Bodies have threaded inserts on both sides with the design allowing you to easily disconnect either side of the piping system without having to remove the valve itself.

Key Features

Key features and benefits of the 40L4040AT Actuated Butterfly Valves.
1

Key Features

For safety or security reasons the Air Torque actuator can be provided as locked in a permanent position through the manufacturers Lock-Out Capability. This has proven popular for many actuated valve applications and utilises a bespoke design to prevent unwanted operation.
2

Key Features

Air Torque offer a full range of pneumatic actuators that will meet your requirements exactly. Our actuators come at competitive prices so you can get the most value when it comes to our products. They’re perfect for all kinds of industrial automation projects.
3

Key Features

The circular shaped disk turns about a dia­metrical axis within the cylindrical bore of the valve body and a quarter turn rotation of the disk opens or closes the valve. The basic simplicity of the design provides a compact and relatively low weight valve having few component parts.

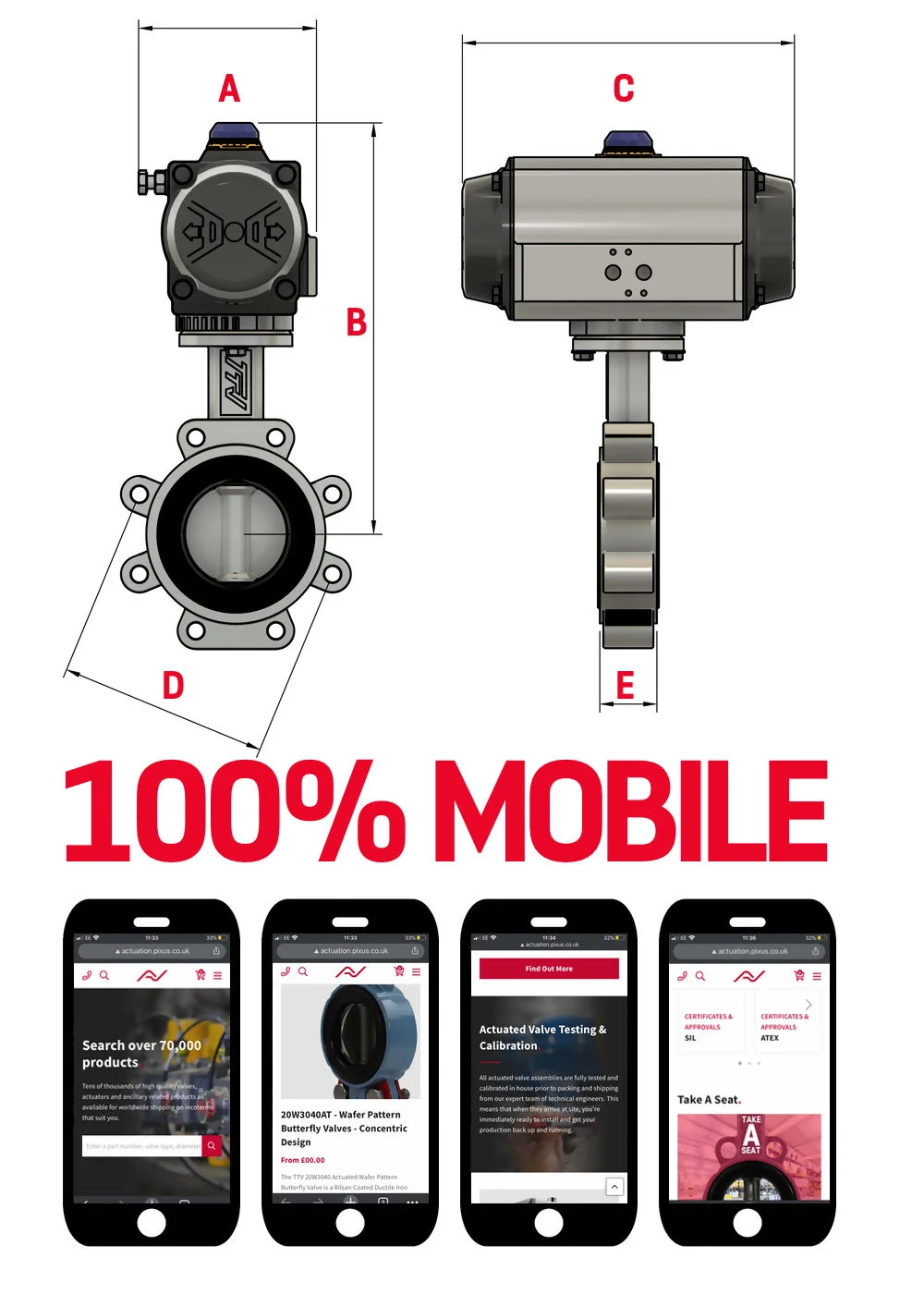

Fully Lugged Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 84.50 245.00 153.50 84.50 245.00 153.50 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.50 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.50 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 353.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.50 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.00 528.00 TBA 78.00
16" 330.00 720.00 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770.00 710.00 330.00 770.00 710.00 TBA 114.00
20" 528.00 1038.00 950.00 371.00 873.00 812.00 TBA 127.00
24" 528.00 1105.00 950.00 418.00 967.00 876.00 TBA 154.00

Fully Lugged Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: CF8M Stainless Steel
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C
