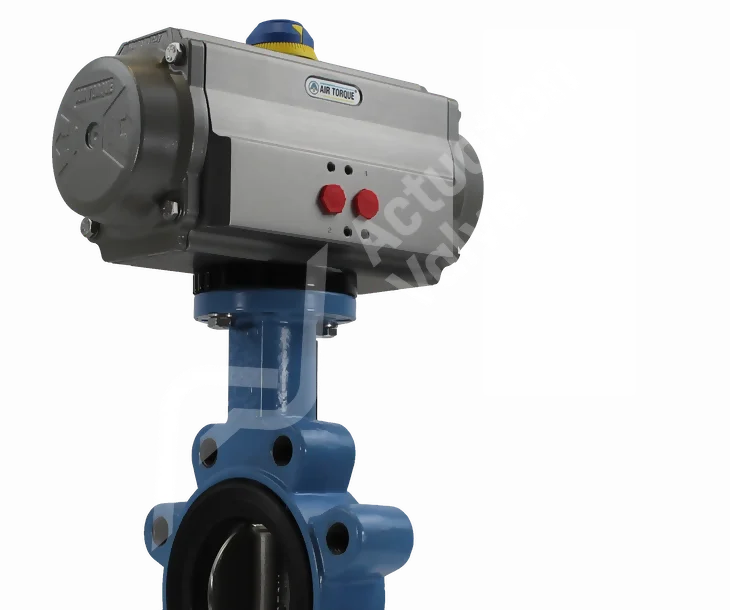

The TTV 20L3040 and Air Torque actuator are the most popular butterfly valve assembly on today's market. This proven combination provides maximum flow with with robust construction features. It has been designed using rilsan-coated body butterfly valve and anodised aluminium pneuamtic actuator providing maximum life capacity for protection against non aggressive external factors whilst out in the field. Replaceable valve seats ensure maximum life capacity and sustainability for ongoing preventative maintenance schedules.

Shop Help Me

Key features and benefits of the 20L3040AT Actuated Butterfly Valves.

Key Features

Air Torque offer a full range of pneumatic actuators that will meet your requirements exactly. Our actuators come at competitive prices so you can get the most value when it comes to our products. They’re perfect for all kinds of industrial automation projects.

Key Features

Lugged butterfly valves are a great choice for applications where you need to be able to disconnect the piping from either side of the valve. These lugged connect style butterfly valves feature a built in alignment guide through its bolt holes on both sides.

Key Features

Low operational torque reduces the costs of actuation with low friction contact extending the life of the self cleaning seal. Replaceable seals offer flexibility and cost effective solutions without the cost of a complete new valve for future maintenance requirements.

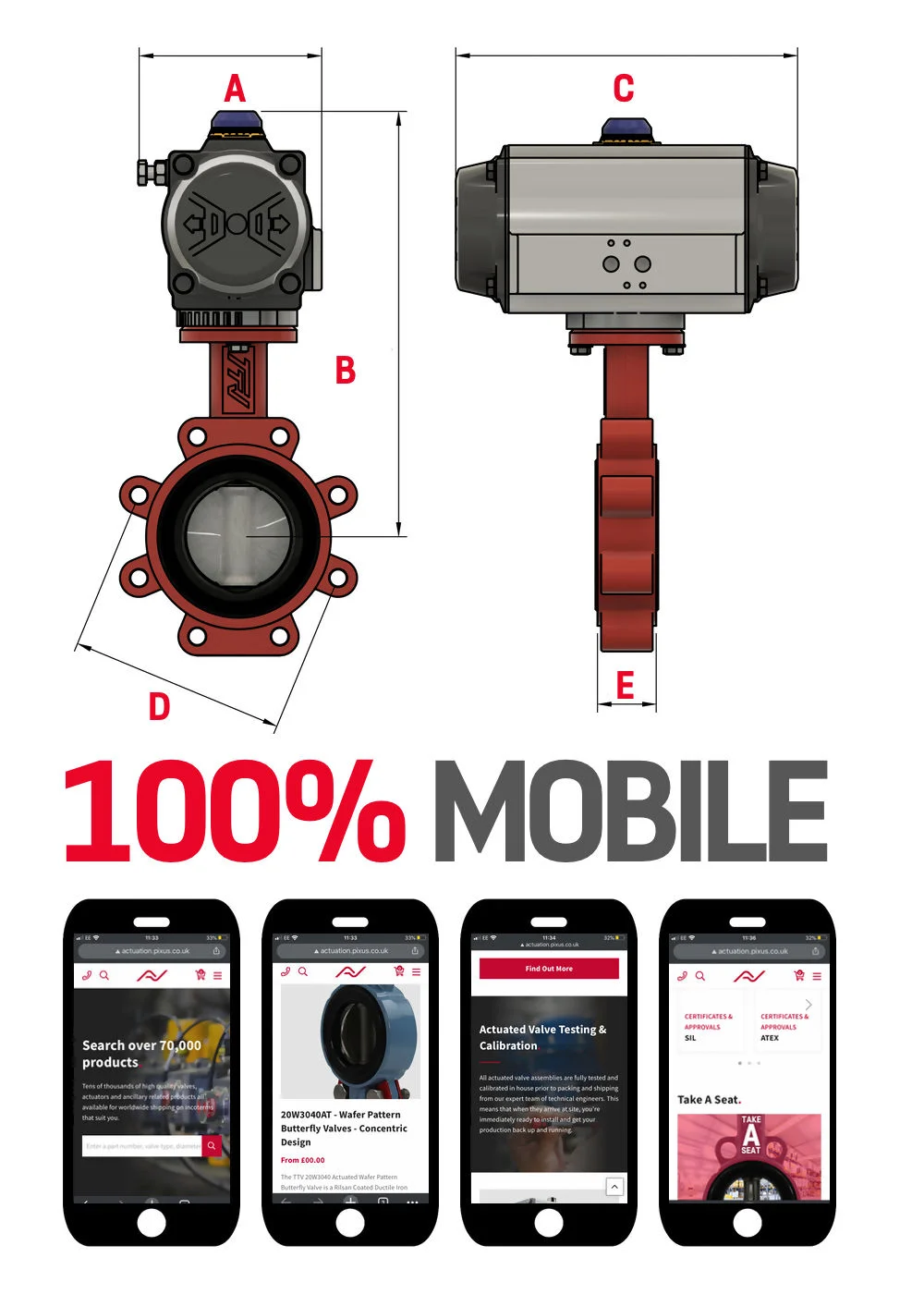

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	84.50	245.00	153.50	84.50	245.00	153.50	TBA	33.00
2"	84.50	261.00	153.50	84.50	261.00	153.50	TBA	43.00
2.5"	93.00	283.00	203.50	84.50	266.00	153.50	TBA	46.00
3"	106.50	304.00	241.00	93.00	291.00	203.50	TBA	46.00
4"	108.50	334.00	259.00	106.00	322.00	241.00	TBA	52.00
5"	135.00	381.00	304.00	108.50	353.00	259.00	TBA	56.00
6"	166.00	422.00	394.50	136.00	390.00	304.00	TBA	56.00
8"	181.00	481.00	422.50	166.00	432.00	394.50	TBA	60.00
10"	221.50	543.00	528.00	181.00	474.00	422.50	TBA	68.00
12"	262.00	628.50	605.00	200.00	550.50	474.00	TBA	78.00
14"	262.00	648.50	605.00	221.50	595.00	528.00	TBA	78.00
16"	330.00	720.00	710.00	262.00	688.50	605.00	TBA	102.00
18"	330.00	770.00	710.00	330.00	770.00	710.00	TBA	114.00
20"	528.00	1038.00	950.00	371.00	873.00	812.00	TBA	127.00
24"	528.00	1105.00	950.00	418.00	967.00	876.00	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

DRAWINGS & SCHEMATICS

Document

Drawings & Schematics

Document

Drawings & Schematics

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

drawings & schematics

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	GJS500-7 Ductile Iron Rilsan Coated
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Certificates and Approvals

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C
