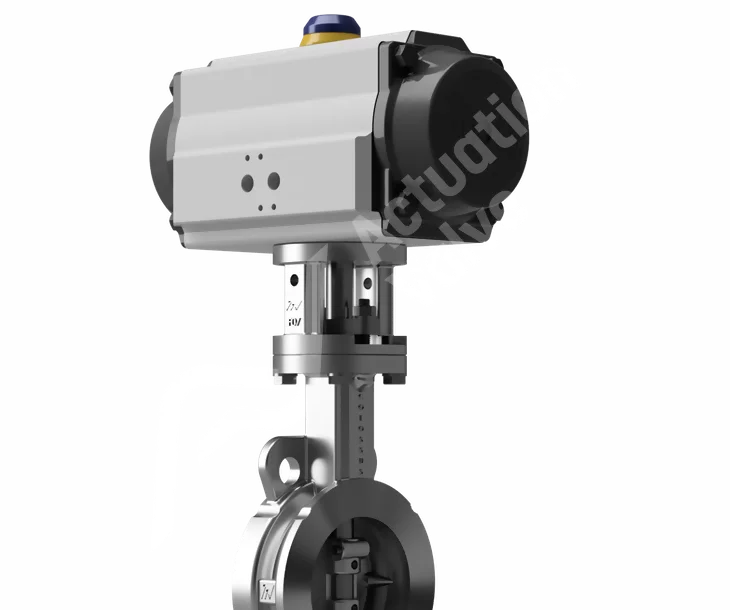

Double offset butterfly valves are designed for use in exceptionally harsh conditions with critical shutoff isolation and throttling control applications. The Colossus is available in Metal Seated or PTFE seated designs depending on the application needs of the End User. For safety or security reasons the Air Torque actuator can be provided as locked in a permanent position through the manufacturers Lock-Out Capability. This has proven popular for many actuated valve applications and utilises a bespoke design to prevent unwanted operation. At Actuation Valve & Control, all of our in-house assembly and testing is done by highly skilled team engineers. We offer Direct Mount valves as well as custom build bracket/shaft assemblies for many applications.

Shop Help Me

Key features and benefits of the Colossus Air Torque Wafer Actuated High Performance Butterfly Valves.

Key Features

Stock range of couplings and brackets available to suit the Air Torque range of actuators and any valves that require the linkages. This enables Actuation Valve to offer a quick lead time and turnaround for all actuated valve packages involving the air torque unit.

Key Features

The Air Torque Pneumatic Actuator is designed to offer an economical, compact and lightweight alternative to traditional hydraulic systems. They can be used in a variety of situations also where electric power is not available or suitable for the application.

Key Features

All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing.

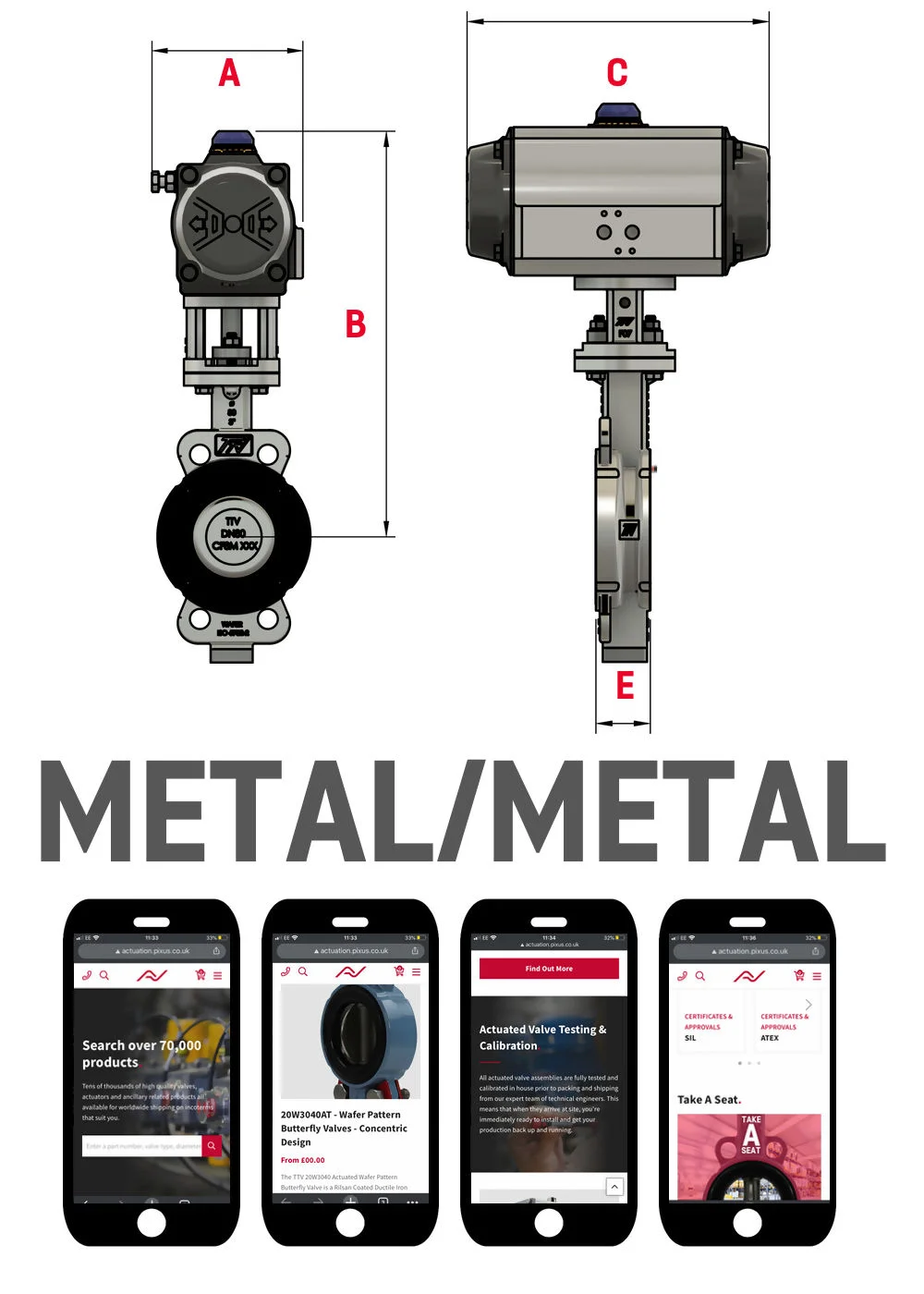

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
2"	93.00	250.00	203.50	84.50	233.00	153.50	TBA	43.00
2.5"	106.50	275.00	241.00	93.00	262.00	203.50	TBA	46.50
3"	108.50	295.00	259.00	106.00	283.00	241.00	TBA	47.00
4"	135.00	344.00	304.00	106.00	304.00	241.00	TBA	52.00
5"	166.00	407.00	394.50	136.00	375.00	304.00	TBA	56.00
6"	181.00	446.00	422.50	166.00	397.00	394.50	TBA	56.00
8"	262.00	598.50	605.00	200.00	520.50	605.00	TBA	63.00
10"	262.00	653.50	605.00	221.50	600.00	528.00	TBA	71.00
12"	330.00	722.00	710.00	262.00	690.50	605.00	TBA	78.00
14"	330.00	706.00	710.00	262.00	674.50	605.00	TBA	92.00
16"	330.00	750.00	710.00	330.00	750.00	710.00	TBA	102.00
18"	414.00	850.00	876.00	330.00	775.00	710.00	TBA	114.00
20"	528.00	1028.00	950.00	370.00	863.00	812.00	TBA	127.00
24"	528.00	1088.00	950.00	418.00	950.00	876.00	TBA	154.00

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

Document

Drawings & Schematics

Document

Drawings & Schematics

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

Document

drawings & schematics

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.


Body Material:	Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials:	Stainless steel (CF-8M)
Shaft Materials:	Stainless Steel F-316
Design:	API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing:	ISO 5208 / API 598
Connections:	ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials:	Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications:	Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

We can. The final is product customizable at the bottom of the page! Have a look down there or get us on 0151 547 1221. We have everything from Safe Area to ATEX in multiple voltages.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boxes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Air Torque Actuator Videos

CERTIFICATES & APPROVALS

TopWorx Valve Limit Switch Box available for this product. Enable remote Valve monitoring of your High Performance Butterfly Valves with a world leading Valve Position Monitor. Safe Area, Explosion Proof, Intrinsically Safe. All available from stock with fitting and calibration to your Pneumatic Actuator prior to shipping.

Certificates and Approvals

Please feel free to request information and advice using the form below or call us on 0151 547 1221

UK 24/48 Hour	£12.00
UK Saturday	£34.00
N. Ireland	£28.00
Insurance	£7.95
Full Details

High Performance Air Torque Actuated Butterfly Valves

Key Features

Key Features

Key Features

Key Features

High Performance Metal-Metal Valves

Colossus Double Offset Butterfly Valve

Need More Dimensions?

SMALL Actuator Data

AT101

AT201

AT251

AT301

AT351

AT401

BLX Datasheets

V100

V100

V200

V200

Big Actuator Data

AT451

AT501

AT551

AT601

AT651

AT701

Actuated Valve Testing & Calibration

Why Air Torque

We have stock!

Superior Durability and Reliability

3D Step Files Available

Expert Customer Support

4-20mA Control Available On This Product

Valve Standards & Stuff

Frequent Interrogation

Air Torque Actuator Videos

Valve Stuff

TTV Colossus

Torque

IOM

PED 2014/68/UE

More Valve Stuff

Bureau Veritas

EU COC

ABS

ATEX 2014/34/EU

TopWorx Limit Switch Box

Actuator Certificates and Approvals

ISO 9001

ATEX

SIL

High Performance Wafer Air Torque Actuated Butterfly Valves
