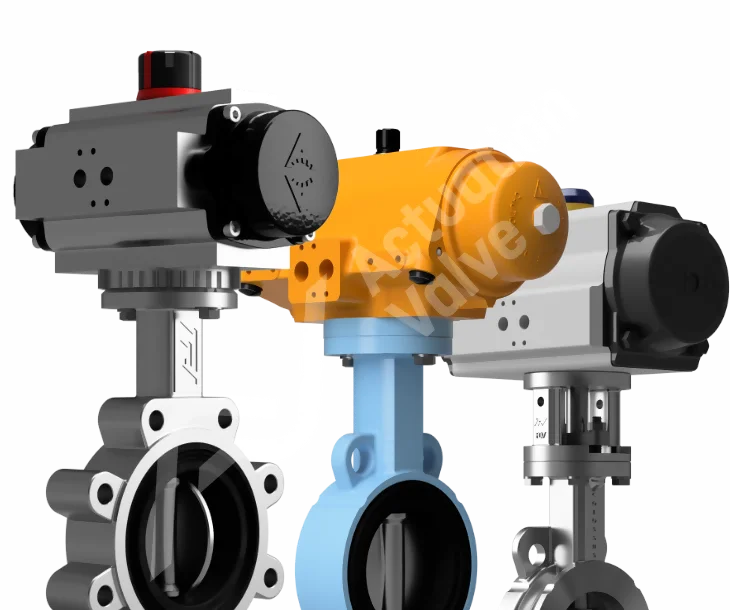

Pneumatic Actuators

Whether your application is in need of an actuator capable of executing numerous cycles daily or a component that operates intermittently, possibly just a few times each month, our selection of pneumatic actuators are available to meet your requirements. Our actuators are designed to promptly respond and, in case of air or signal failure, can default to a closed position using spring mechanisms.

Key Features

Key features and benefits of Pneumatic Actuators.
1

Key Features

The small and lightweight design allows for effortless installation, offering a virtually maintenance-free unit that you can install and forget. No matter where you are, this is the ideal option for a trouble-free setup.
2

Key Features

Manufacturers offer a range of protection coatings, either as standard options or available for OEM customization. These coatings include materials like PTFE, Epoxy, Enamel, and specialized Marine RAL coatings.
3

Key Features

The Air Torque Actuator stands as a next-generation pneumatic actuator capable of thriving in the most challenging settings, all while upholding the most rigorous performance benchmarks.
4

Key Features

Our Pneumatic Actuators can be used with other common ancillary components such as solenoid valves, position switches, gauges and pressure regulators.
5

Key Features

Enhance both production and profitability with minimal downtime and maximum efficiency whilst using the Hytork XL actuator.
6

Key Features

The Actreg Pneumatic Actuator meets ISO 5211 standards and features a star drive design, which offers increased versatility and ease for straightforward attachment to valve spindles or output shafts.

Actreg Actuator Rack And Pinion Valve Actuators

The Actreg Pneumatic Actuator adheres to ISO 5211 standards, featuring a star drive that offers added versatility and ease for direct attachment to valve spindles or output shafts. This design facilitates a straightforward transition from an electric system to a pneumatic one when necessary. Combining easy installation, a compact form factor, and remarkable power, the Actreg Pneumatic Actuator proves perfect for scenarios where space is limited but automation demands remain substantial.

Function: Spring Return, Double Acting
Body Material: Anodized Aluminium, Epoxy Coating C3 / C4 / C5
Rotation: 90°
Torque Levels: 5-6,500 NM
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: 2.5 Bar (36 PSI) Minimum – 8 Bar (116 PSI) Maximum
Certifications: SIL3, ATEX 94/9/EC, GOST
Find Out More

Air Torque Pneumatic Rack And Pinion Valve Actuators

The Air Torque actuator is meticulously crafted, assembled, and rigorously tested in Bergamo, Italy, adhering to the most stringent international standards and certifications. In just over two decades since its establishment in 1990, the Air Torque brand has gained global recognition for its exceptional aluminum, rack & pinion, and scotch yoke pneumatic actuators, renowned for their top-tier quality and unwavering reliability. All manufacturing and construction materials are exclusively procured from Western European countries, further emphasizing our commitment to excellence.

Function: Spring Return, Double Acting
Body Material: Anodized Aluminium, PTFE Coating, Epoxy Coating, Stainless Steel
Rotation: 90°, 120°, 135°, 180°
Torque Levels: 8-10,000 NM
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: 2.5 Bar (36 PSI) Minimum – 8 Bar (116 PSI) Maximum
Certifications: SIL3 IEC 61508, ATEX 94/9/EC, GOST, GOST-R, EN 60529 IEC 529
Find Out More

Hytork Pneumatic Rack And Pinion Valve Actuators

The Hytork XL Rack And Pinion Pneumatic Actuators offer a compact and cost-effective solution that seamlessly blends reliability and high-quality pneumatic valve actuation. Featuring a robust heavy-duty body design crafted from high-strength aluminum casting, these actuators are engineered to withstand the rigors of demanding process industry environments, protecting them from dents, impacts, and extreme usage. Additionally, the Hytork XL Range Pneumatic Actuator boasts a modular design, allowing for easy field conversion.

Function: Spring Return, Double Acting
Body Material: Powder Coated LM25 Aluminium Casting
Rotation: 90°
Torque Levels: 19-3232NM, (167 to 28500 lbf.in)
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: Max 8.3 Bar-Pneumatic/120 PSI
Certifications: ATEX, PED, Machine Directive, TR010, SIL
Find Out More

Elomatic Pneumatic Rack And Pinion Valve Actuators

Elomatic's Fit and Forget pneumatic actuators, when paired with their outstanding valves, create a powerful actuated valve system. Elomatic offers a variety of F-Series rack and pinion quarter-turn actuators, available in both spring return and double-acting configurations, allowing for flexible valve assembly options to suit your budget and specific application needs. These actuators feature a high-quality powder-coated finish, ensuring exceptional corrosion resistance against external factors.

Function: Spring Return, Double Acting
Body Material: Powder Coated Cast Aluminium
Rotation: 90°
Torque Levels: 12-4100NM, (106 to 36474 lbf.in)
Operating Media: Dry/Lubricated Air, Inert/Non-Corrosive Gases
Pressure Rating: Max 8.3 Bar-Pneumatic/120 PSI
Certifications: ATEX, PED, Machine Directive, TR010, SIL3
Find Out More

Festo Pneumatic Rack And Pinion DFPD Valve Actuators

The Festo DFPD series of pneumatic quarter-turn valve actuators is designed to automate butterfly valves and ball valves with a compact and modular design. These actuators offer customisable spring options for precise calibration and torque output, including options for spring return and double-acting functionality with in-field interchangeability. With 13 different variants available, this Italian-manufactured actuator can meet over 80% of process automation needs. We maintain substantial stock levels for rapid delivery of both standalone units and fully assembled, tested actuated valve units.

Function: Spring Return, Double Acting
Body Material: Anodized Wrought Aluminium Alloy, Epoxy Coating
Rotation: 90°, 120°, 135° & 180°
Torque Levels: 4-3,248 NM
Operating Media: Compressed Air
Pressure Rating: 2.0 Bar (29 PSI) Minimum – 8 Bar (116 PSI) Maximum
Certifications: SIL2, ATEX 94/9/EC
Find Out More
