Wafer Type Aluminium Bronze TTV Actuated Butterfly Valves

Actreg's Actuator is built for long-lasting, reliable performance with a wide variety of materials and options that allow you to specify alternate coatings that are best suited for your application requirements. The pneumatic actuators combine quality parts designed over many years by in field experts. All available at a competitive price point. This makes it perfect for automating valves in industries like chemical production or pharmaceuticals where safety is paramount. The TTV Aluminium Bronze butterfly valve is particularly suited to the marine industry where corrosion resistance is paramount. Bronze body and Monel stem offers a high resistance to corrosion and seawater with additional soft seat material to suit a range of mediums.
Shop

Key Features

Key features and benefits of the 80WM580AC Actuated Butterfly Valves.
1

Key Features

Stock range of couplings and brackets available to suit the Actreg range of actuators and any valves that require the linkages. This enables Actuation Valve to offer a quick lead time and turnaround for all actuated valve packages involving the Actreg unit.
2

Key Features

Position indicators available for the Actreg actuator include direct mounting puk sensors such as P&F, IFM and other manufactures depending on end user approved vendor lists (AVL’s). Position monitoring switch boxes and sensors are also available from stock for quick assembly.
3

Key Features

The TTV wafer pattern bronze butterfly valve is made of high quality bronze with bubble tight shutoff, strong corrosion resistance, long service life and is widely used in various industries including petroleum, chemical industry and marine.

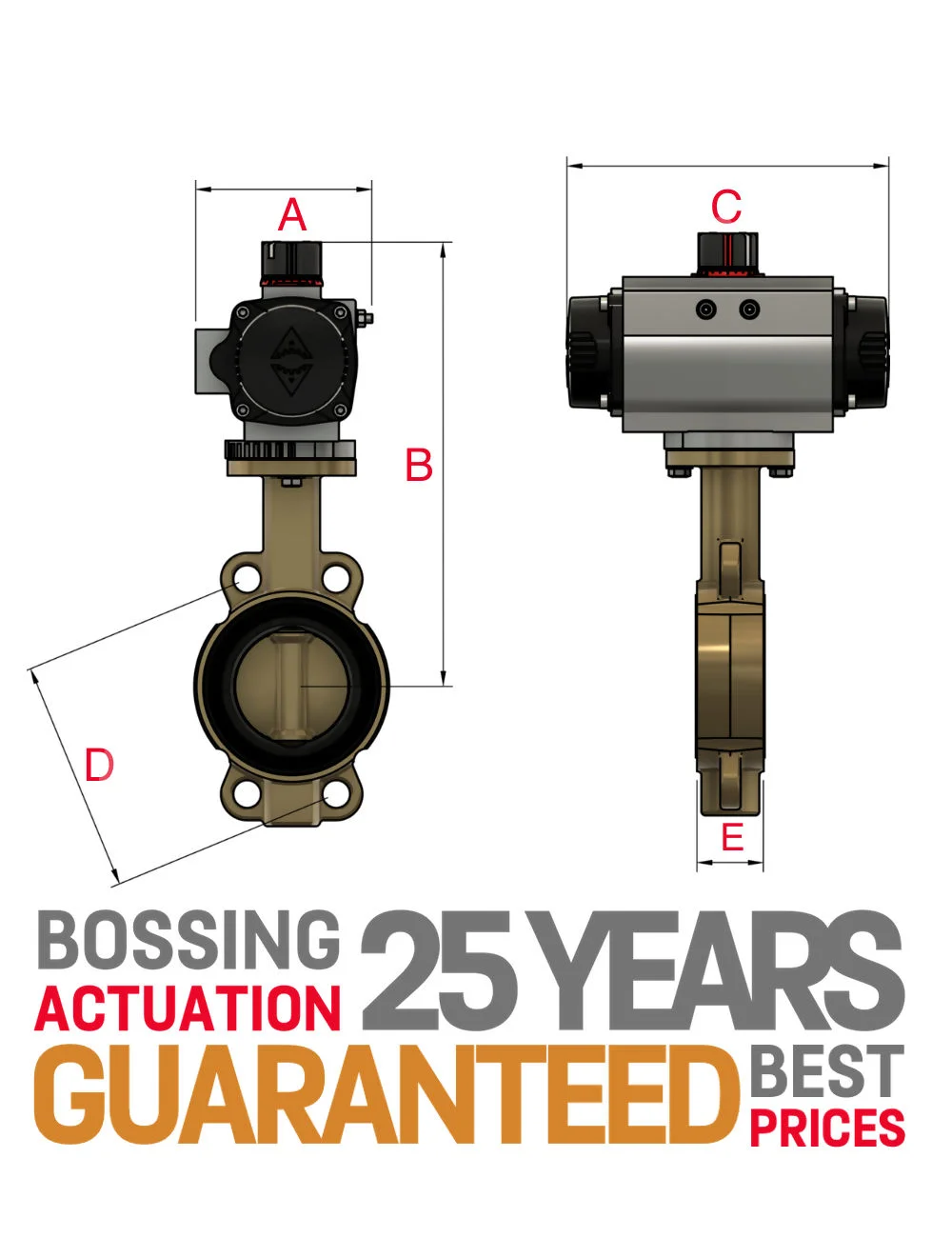

Wafer Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 84.50 245.00 153.50 84.50 245.00 153.50 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.50 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.50 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 253.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.50 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.50 528.00 TBA 78.00
16" 330.00 720.00 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770.00 710.00 330.00 770.00 710.00 TBA 114.00
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

Wafer Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

SMALL Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

010
  • PDF
DRAWINGS & SCHEMATICS

020
  • PDF
DRAWINGS & SCHEMATICS

040
  • PDF
DRAWINGS & SCHEMATICS

080
  • PDF
DRAWINGS & SCHEMATICS

130
  • PDF
DRAWINGS & SCHEMATICS

200

BIG Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

300
  • PDF
DRAWINGS & SCHEMATICS

500
  • PDF
DRAWINGS & SCHEMATICS

850
  • PDF
DRAWINGS & SCHEMATICS

1200
  • PDF
DRAWINGS & SCHEMATICS

1750
  • PDF
DRAWINGS & SCHEMATICS

2100

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: B148 C9500 Aluminium Bronze
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for sea water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Valve Rubber Stamps

  • PDF
CERTIFICATES & APPROVALS

Bureau Veritas
  • PDF
CERTIFICATES & APPROVALS

ABS
  • PDF
CERTIFICATES & APPROVALS

ATEX 2014/34/UE
  • PDF
CERTIFICATES & APPROVALS

ACS
  • PDF
CERTIFICATES & APPROVALS

PED 2014/68/UE
  • PDF
CERTIFICATES & APPROVALS

Lloyds ISO 9001

Massive Actuators & Other STUFF

  • PDF
DRAWINGS & SCHEMATICS

2500
  • PDF
DRAWINGS & SCHEMATICS

4000
  • PDF
CERTIFICATES & APPROVALS

ATEX
  • PDF
CERTIFICATES & APPROVALS

SIL
  • PDF
CERTIFICATES & APPROVALS

O&M
  • PDF
CERTIFICATES & APPROVALS

SPARES

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C

Take A Seat

Actreg Actuator Videos

Spring Change
Stroke Adjustment
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
