The Wafer Pattern TTV Stainless Steel Butterfly Valves offer a very similar corrosion internal fluid resistance to that of the standard Valve whilst also providing external protection which may be too aggressive for regular products. This includes corrosive and wash down requirements. The Actreg actuator design incorporates features which allow for use under adverse conditions such as high and Low temperatures. This includes special FKM o’rings for high temperature (150ºC) and Silicone o’rings for ambient operation conditions as low as -55Cº. This package is a perfect choice for those who need to deal with medium aggressive water conditions and harsh external environments. It has been designed using only high quality materials from the Spanish Valve Manufacturer TTV.

Shop

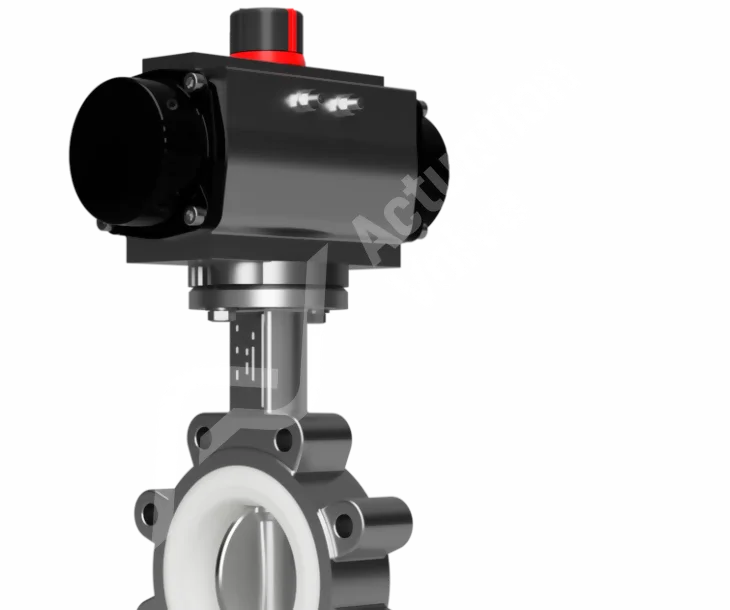

Key features and benefits of the 40L4040AC Actuated Butterfly Valves.

Key Features

The TTV Stainless Steel Butterfly Valves are perfect for use in harsh or corrosive environments that aren't suitable to standard ranges. With their CF8M body and disc made from high quality stainless steel, these valves can withstand even the most demanding conditions, including those where you might need a little extra protection against corrosion.

Key Features

The Actreg Pneumatic Actuator features a specially coated steel piston and utilises high quality materials that do not fail when when exposed to moisture, dust or dirt. A 3-Way guide enables low friction between the body and pistons extending life expectancy and reliability.

Key Features

Optional installation for both across line. The design of the Actreg actuator allows for both setups depending on application requirements where space saving may be required. A typical inline mounting would be for uses involving hopper line actuation and bagging lines.

	A	B	C	A	B	C	D	E
	SR	SR	SR	DA	DA	DA	SR/DA	SR/DA
1.5"	84.50	245.00	153.50	84.50	245.00	153.50	TBA	33.00
2"	84.50	261.00	153.50	84.50	261.00	153.50	TBA	43.00
2.5"	93.00	283.00	203.50	84.50	266.00	153.50	TBA	46.00
3"	106.50	304.00	241.00	93.00	291.00	203.50	TBA	46.00
4"	108.50	334.00	259.00	106.00	322.00	241.00	TBA	46.00
5"	135.00	381.00	304.00	108.50	353.00	259.00	TBA	52.00
6"	166.00	422.00	394.50	136.00	390.00	304.00	TBA	56.00
8"	181.00	481.00	422.50	166.00	432.00	394.50	TBA	60.00
10"	221.50	543.00	528.00	181.00	474.00	422.50	TBA	68.00
12"	262.00	628.50	605.00	200.00	550.50	474.00	TBA	78.00
14"	262.00	648.50	605.00	221.50	595.00	528.00	TBA	78.00
16"	330.00	720.00	710.00	262.00	688.50	605.00	TBA	102.00
18"	330.00	770.00	710.00	330.00	770.00	710.00	TBA	114.00
20"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA
24"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	CF8M Stainless Steel
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

DRAWINGS & SCHEMATICS

CERTIFICATES & APPROVALS

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C

Actreg Actuator Videos

Spring Change

Stroke Adjustment
