Pneumatic Actreg/TTV Actuated Butterfly Valves

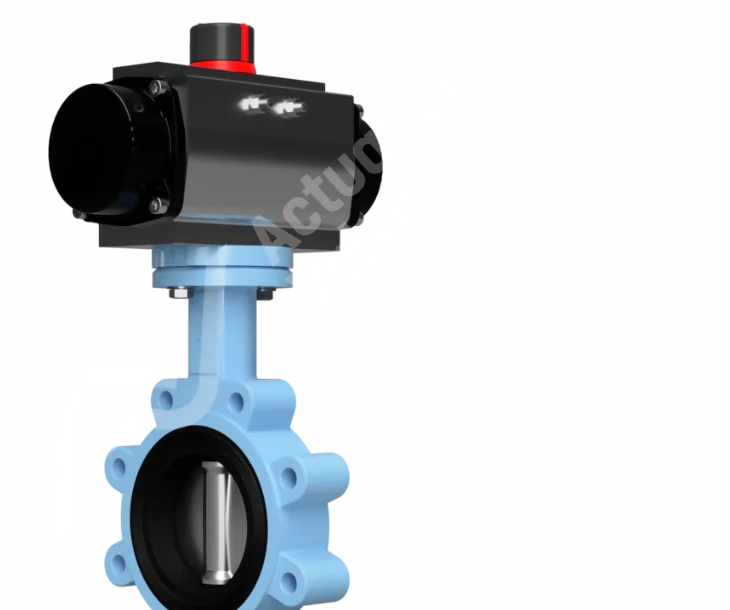

The Actreg pneumatic is actuator available in double acting and spring return models with torque capabilities of up to 6500NM for for their rack and pinion design. All actuators come complete with manual adjustment stops for accurate valve actuation up to 5º in open and closed positions. At Actuation Valve & Control all of our assembly and testing of actuated butterfly valves is done in-house by our highly skilled team engineers offering Direct Mount, Plate Adaptor & Custom Build Bracket/Shaft Assemblies. TTV Butterfly Valves concentric design features an elastic, replaceable seat that takes the shape of both the inside and partially outer side of the body of the valve to form a perfect seal. This TTV Butterfly Valve is suitable for both on and off or throttling applications.

Key Features

Key features and benefits of the 20L3040AC Actuated Butterfly Valves.
1

Key Features

Our Actreg pneumatic actuators combine quality materials that have been designed and engineered for many years of reliable valve operation service. Optional coatings and material combinations include epoxy painting, SS 304/316 stem adaptors and hard anodised ENP body and end caps.
2

Key Features

The single piece body with threaded lugs is installed using two sets of bolts (One set for each flange) and enables the installer precise self centering capabilities of the valve due to the body design between flanges.
3

Key Features

The Actreg Pneumatic Actuator features a specially coated steel piston and utilises high quality materials that do not fail when when exposed to moisture, dust or dirt. A 3-Way guide enables low friction between the body and pistons extending life expectancy and reliability.

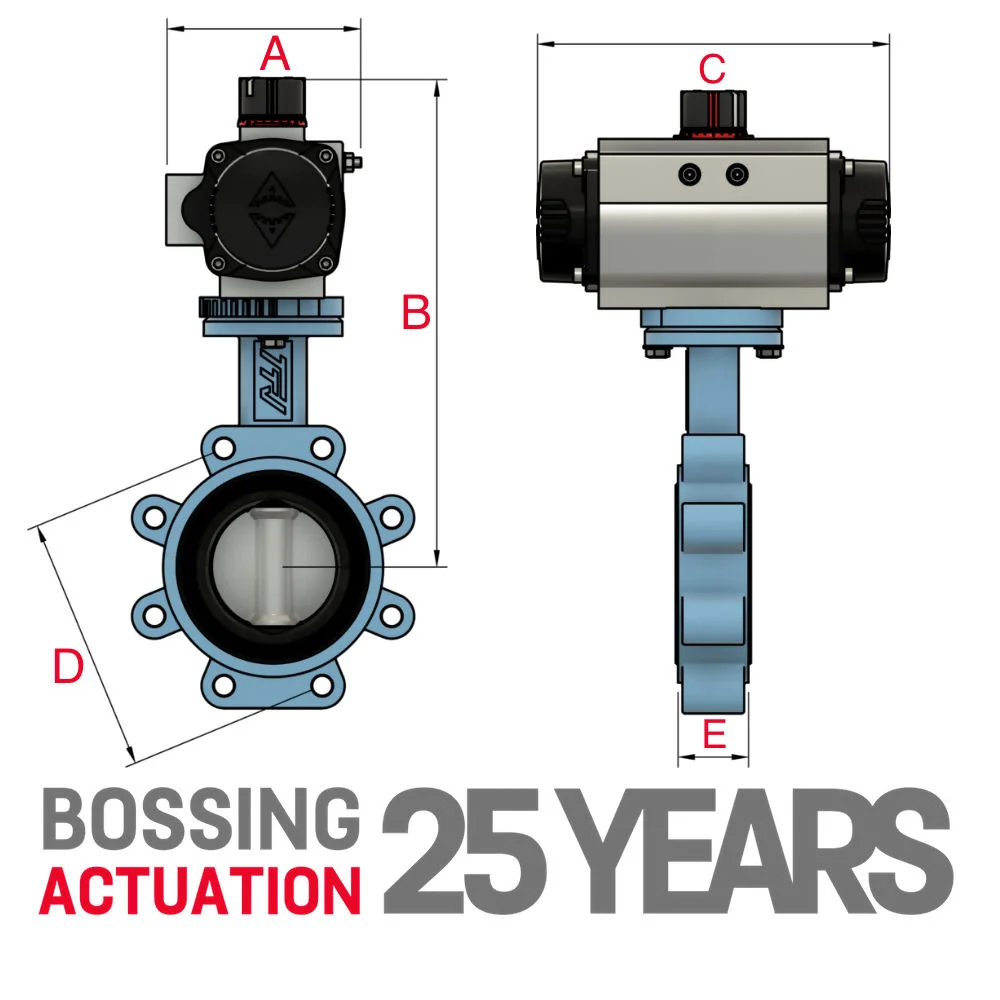

Lugged Type Butterfly Valve Technical

A B C A B C D E
SR SR SR DA DA DA SR/DA SR/DA
1.5" 84.50 245.00 153.50 84.50 245.00 153.00 TBA 33.00
2" 84.50 261.00 153.50 84.50 261.00 153.00 TBA 43.00
2.5" 93.00 283.00 203.50 84.50 266.00 153.00 TBA 46.00
3" 106.50 304.00 241.00 93.00 291.00 203.50 TBA 46.00
4" 108.50 334.00 259.00 106.00 322.00 241.00 TBA 52.00
5" 135.00 381.00 304.00 108.50 353.00 259.00 TBA 56.00
6" 166.00 422.00 394.50 136.00 390.00 304.00 TBA 56.00
8" 181.00 481.00 422.50 166.00 432.00 394.00 TBA 60.00
10" 221.50 543.00 528.00 181.00 474.00 422.50 TBA 68.00
12" 262.00 628.50 605.00 200.00 550.50 474.00 TBA 78.00
14" 262.00 648.50 605.00 221.50 595.00 528.00 TBA 78.00
16" 330.00 720 710.00 262.00 688.50 605.00 TBA 102.00
18" 330.00 770 710.00 330.00 770.00 710.00 TBA 114.00
20" TBA TBA TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA TBA TBA

Lugged Type Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actreg Actuator Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

Choose Your Rubber

Material Applications Temperature
EPDM Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines -20°C +110°C
High Temperature EPDM Super Heated Water -20°C +130°C
NBR Buna Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air -10°C +80°C
Hypalon Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions -10°C +80°C
Viton Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels -5°C +180°C
Polyisoprene Water, Alcohols, Abrasive Substances (Call To Check), Ketones, -10°C +60°C
Silicone Low & High Temperature Resistance Applications -30°C +150°C
High Temp Silicone Super Heated Water -50°C +160°C
Epichlorohydrin Ozone Resistance, Hydrocarbons, Aromatic Oils -25°C +145°C
