Due to the double offset movement, the rotation of the disc is eccentric over the seat. The rotational circular movement of the disc turns into an elliptical movement. So, the disc achieves just a few degrees contact with the seat before the valve is fully closed. Koei UNIC electric actuators are engineered specifically for 100% continuous operation in harsh environments where reliability is key. They deliver consistent performance over time with no maintenance or downtime required. The Actuator's rugged construction of high quality Die-Cast Aluminium Body encased with a grey stove enamel finish provides protection up to IP65/NEMA4X offering increased durability in harsh condition industries and applications.

Shop Help Me

Key features and benefits of the Colossus Koei UNIC Fully Lugged Actuated High Performance Butterfly Valves.

Key Features

Lugged butterfly valves are a great choice for applications where you need to be able to disconnect the piping from either side of the valve. These lugged connect style butterfly valves feature a built in alignment guide through its bolt holes on both sides.

Key Features

The Actuator is an all-metal device, constructed from high quality die-cast aluminium and covered in a grey stove enamel finish. IP65 rated for water resistance up to 4X protection against dust or other particles this Koei UNIC can handle anything you throw at it!

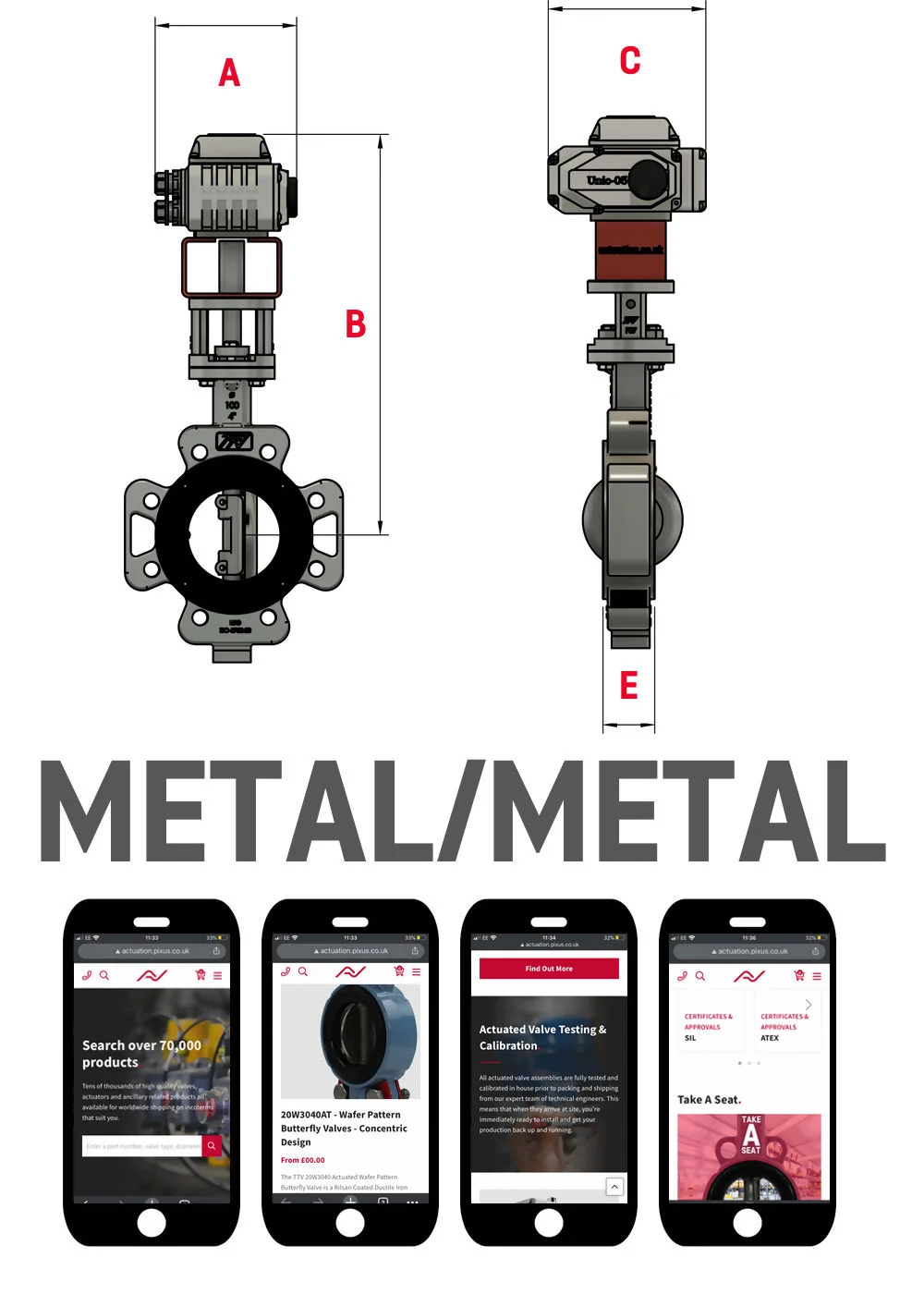

	A	B	C	E	Model

2"	145.00	304.00	159.00	43.00	UNIC 05
2.5"	155.00	342.00	208.00	46.50	UNIC 10
3"	155.00	350.00	208.00	47.00	UNIC 10
4"	155.00	371.00	208.00	52.00	UNIC 10
5"	187.00	410.00	257.00	56.00	UNIC 20
6"	187.00	430.00	257.00	56.00	UNIC 40
8"	272.00	486.00	381.00	63.00	UNIC 100
10"	272.00	541.00	381.00	71.00	UNIC 100
12"	TBA	TBA	TBA	78.00	TBA
14"	TBA	TBA	TBA	92.00	TBA
16"	TBA	TBA	TBA	102.00	TBA
18"	TBA	TBA	TBA	114.00	TBA
20"	TBA	TBA	TBA	127.00	TBA
24"	TBA	TBA	TBA	154.00	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

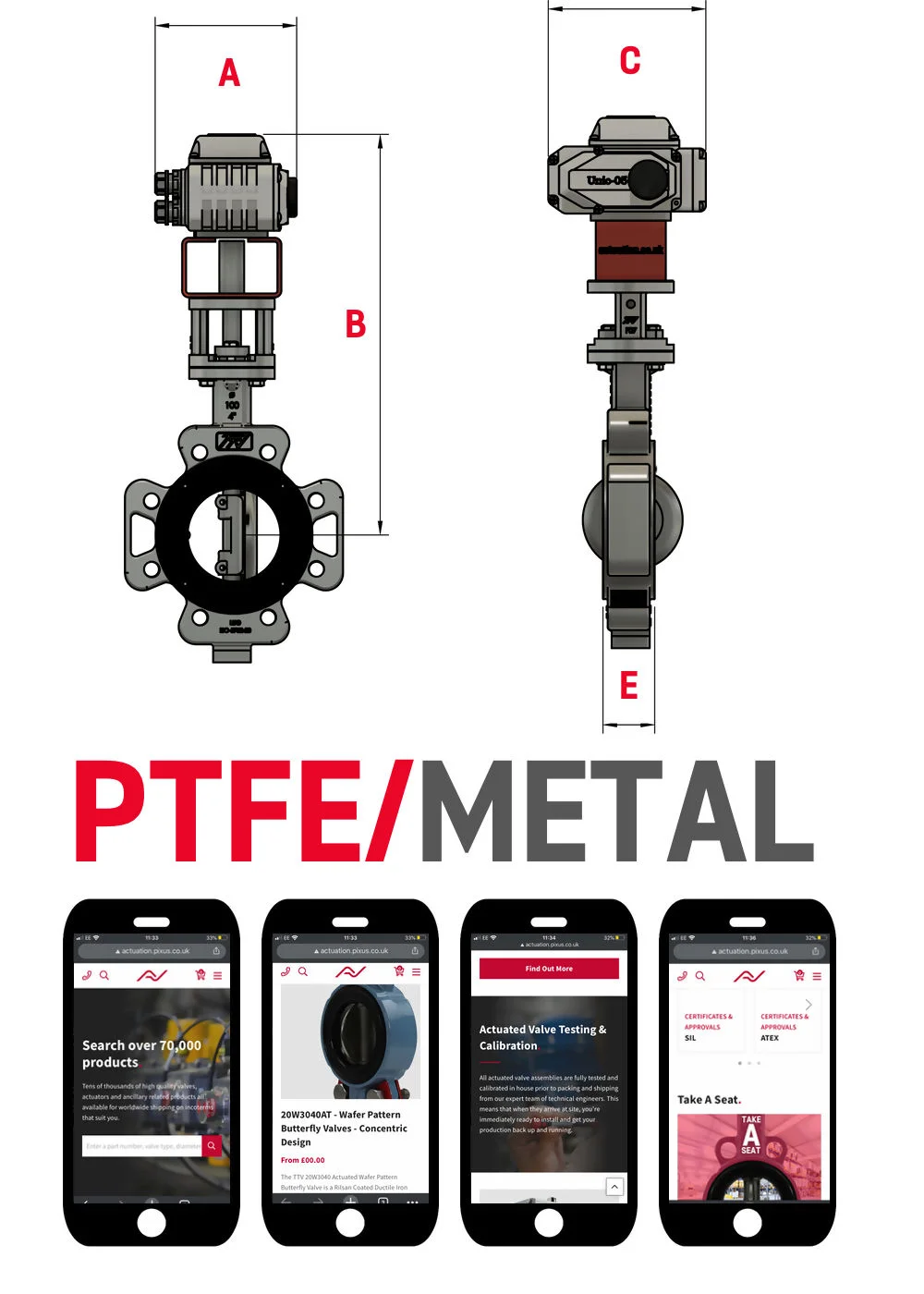

	A	B	C	E	Model

2"	145.00	304.00	159.00	43.00	UNIC 05
2.5"	145.00	316.00	159.00	46.50	UNIC 10
3"	155.00	350.00	208.00	47.00	UNIC 10
4"	155.00	371.00	208.00	52.00	UNIC 10
5"	155.00	402.00	208.00	56.00	UNIC 20
6"	187.00	430.00	257.00	56.00	UNIC 40
8"	187.00	460.00	257.00	63.00	UNIC 100
10"	272.00	541.00	381.00	71.00	UNIC 100
12"	272.00	578.00	381.00	78.00	TBA
14"	272.00	562.00	381.00	92.00	TBA
16"	TBA	TBA	TBA	102.00	TBA
18"	TBA	TBA	TBA	114.00	TBA
20"	TBA	TBA	TBA	127.00	TBA
24"	TBA	TBA	TBA	154.00	TBA

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.


Body Material:	Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials:	Stainless steel (CF-8M)
Shaft Materials:	Stainless Steel F-316
Design:	API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing:	ISO 5208 / API 598
Connections:	ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials:	Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications:	Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

Is this butterfly valve suitable for use on chemicals?

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

Can this valve be supplied as a spring return electric or battery backup?

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

Does this butterfly valve come with operation and maintenance manuals?

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

I need position feedback. Is this included?

Yes! Position feedback is included as standard with switches for open and closed positions.

Can you give me extra discount if I need more than one Colossus Butterfly valve?

Maybe. Give us a call to find out.

Is this Valve Fire Safe?

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

I need a bigger size that is not listed. Can you help?

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Can you deliver direct to my customer?

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

I don't have the funds right now. Do you also offer credit accounts?

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Can I collect my order from you?

Collections are welcomed. Give us a call in advance and we can get you a time that suits.
