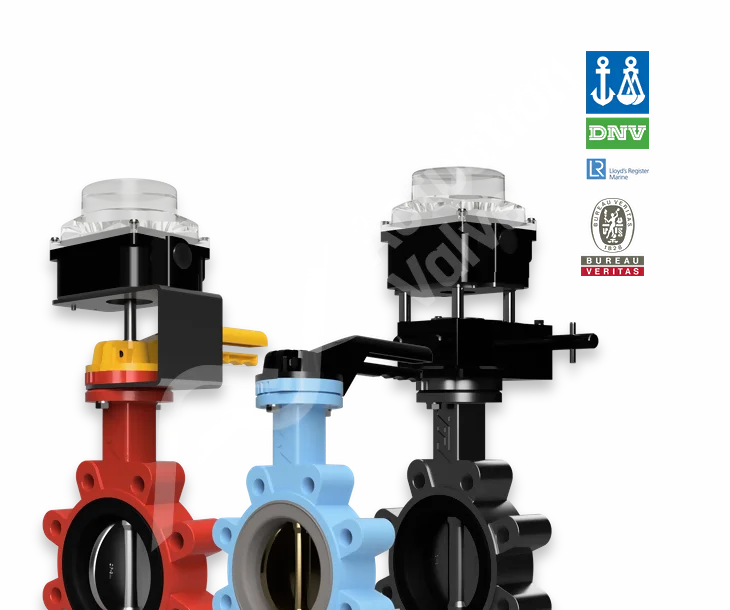

Lugged Butterfly Valves are commonly used in piping systems that require dead-end service or where the pipe needs to be disconnected on either side for regular maintenance and installation, without disrupting the flow on both ends. These valves feature a single-piece body made of ductile iron material, ensuring durability and strength. The body is equipped with threaded lugs, allowing for easy installation using two sets of bolts for each flange. This design allows for precise self-centering capabilities, ensuring true alignment between the flanges. Moreover, the stainless steel disc and shaft offer corrosion resistance and extended longevity.

Lug Butterfly Valves valves offer a convenient solution for in field repairs, making future maintenance as hassle-free as possible. The 50L3040 features threaded inserts on both sides of the body, eliminating the need for nuts during installation. When one side of the pipeline requires servicing, simply detach the appropriate side without any complications. The use of WCB carbon steel for the body, with rilsan coating meets End User requirements, while the stainless steel disc and shaft provide corrosion resistance and durability. Thanks to the streamlined design, the 50L3040 offers minimal pressure drops whislt in the fully open position.

The 40L4040 Lugged Butterfly Valve design is particularly well suited for protecting against external corrosive environments, ensuring the longevity and reliability of the valve. This is made possible by using stainless steel for both the body and the disc. Stainless steel is known for its excellent corrosion resistance properties, making it a suitable material choice for applications where exposure to harsh environments or corrosive fluids is a concern. The threaded inserts on both sides of the valve provide accurate installation alignment and allow for easy disconnection of either side of the piping system, without the need to remove the valve itself. With the flexibility of soft seat materials the valve can be adapted to suit a wide range of temperatures and mediums.

The Lugged PTFE Lined Manual Butterfly Valve serves as a versatile solution, capable of fulfilling both end-of-line shut-off isolation and predictive maintenance requirements without causing disruptions to the process on either side. The PTFE seat and disc are fully encapsulated, ensuring a clean, FDA-approved contact surface with exceptional durability for extended service life. Thanks to its innovative split body design, the 20LP4040F0T offers practical options for replacing seat spares whenever required, providing cost-effective and convenient maintenance solutions. The TTV PTFE Seat Butterfly Valves are well-suited for various applications involving slurries, liquids, and bulk solids. Industries such as chemical, food and beverage, pulp and paper, as well as applications requiring resistance to seawater or aggressive media where standard materials would not suffice, can benefit from these valves' exceptional performance and reliability.

This TTV Lugged Butterfly Valve not only facilitates end-of-line shut-off isolation but also seamlessly integrates predictive maintenance schedules without disrupting the entire process. One of the notable highlights of the 20LP4040F0 Butterfly Valve is its split body design. This innovative feature offers multiple benefits, including replacement seat spares options when required. By allowing individual components to be replaced, this reduces overall downtime and extends the valve life, ultimately bringing savings and improved efficiency. Compared to full PTFE lined valves, this Lugged Butterfly Valve offers lower torque values. This  translates to reduced actuation costs, overall package size and weight as well as running costs.

The lugged design of the 40LP4040 Lugged Butterfly Valve brings versatility to the table and allows for convenient replacement of valves seats to tie in with scheduled maintenance, significantly reducing downtime. Having the advantage of reduced torque values as compared to fully PTFE lined valves, you can expect to see a lower energy consumption for automated Valves, without compromising on sealing performance. The valve's stainless steel body offers strong external corrosion resistance, ensuring its durability and extended product life. At its core, the valve boasts a PTFE seat and a CF8M disc, forming an FDA-approved contact surface that ensures utmost cleanliness and prolonged longevity. The 40LP4040F0 excels even under extreme temperatures, making it a reliable choice for demanding applications.

The TTV PTFE Lined Stainless Steel Butterfly Valve offers a bi-directional sealing solution with threaded screwed body lugs that allows for downstream pipe removal with maintenance schedules. The CF8M 316 stainless steel body material is extemely corrosion resistant to extternal deisgn factors and prolongs the life of the vlave. PTFE seats are replaceable as standard with easy interchangeability through the split body design. TTV's valve seat design offer alsmost universal chemical application coverage (Please check if not detailed) and in non toxic as standard. The TTV PTFE Lined and PTFE Seat Butterfly Valves are mainly used for highly corrosive applications that require optimum material resistance as well as clean or food grade requirements. The TTV PTFE material is approved by FDA.

One of our flagship products in the lugged butterfly valves category is the Colossus, a testament to reliability and performance. Manufactured from high quality materials with full traceability, it is built to withstand harsh environemnts and demanding applications, ensuring consistent and dependable operation over extended periods with minimal maintenance required. The Colossus is your ideal solution when reliability and longevity are paramount. The double offset movement sets the soft seat and high performance valves apart. As the disc rotates, it follows an eccentric path over the seat, converting the rotational circular movement into an elliptical motion. This unique design ensures that the disc makes only minimal contact with the seat before the valve reaches a fully closed position, reducing wear and prolonging the valve's lifespan.

The TTV 80LM580 Lugged Butterfly Valve is a highly certified addition to the previously successful 80LK8N & TTV-ABABM ranges of Aluminum Bronze Butterfly Valves. These valves are specifically engineered to excel in seawater applications and environments exposed to the challenging conditions of the open marine environment. Aluminum Bronze, renowned for its exceptional corrosion resistance, is the material of choice for many marine applications subjected to saltwater or brackish service duties. Its stability over the long term makes it ideal for marine systems including fire protection, potable water, cooling, ballast, and HVAC.
