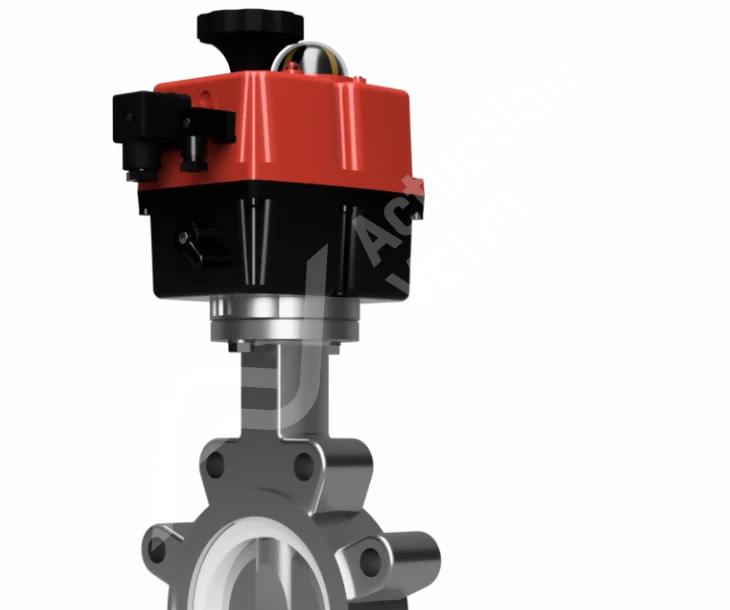

PTFE Seat SS Disk JJ Actuated Butterfly Valve

A quality package from both J&J and TTV's concentric butterfly valves. The highly visible 360 degree visual position indicator offers immediate local valve open or closed identification. This offers complete assurances for operators with critical line applications on site with clear visibility available at all times. The lugged design of the TTV valves is great as it allows you to easily disconnect either side of the piping system without having to remove the valve itself. Lugged Butterfly Valves are used to control the flow of fluids in a piping system. They have threaded inserts on both sides.

Key Features

Key features and benefits of the 40LP4040F0JJ Actuated Butterfly Valves.
1

Key Features

J&J Electric Actuators provides password protected diagnostics directly available through bluetooth technology connection. This allows the end user technical information relating to the operations as well as current status, read parameters or functional errors.
2

Key Features

The J&J J4CS electric valve actuators are designed for 75% duty rating and has been proven reliable by thousands of customers around the world. The actuator comes with a 3 year 60000 cycle warranty as a result of continuous research and development.
3

Key Features

The High Performance Lugged Pattern PTFE Butterfly Valve is a high-temperature, chemical resistant valve that can handle extreme conditions. The internal seal of this unit consists of non-toxic and durable material.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff

Body Material: 316L Stainless Steel
Seats Material: PTFE
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
