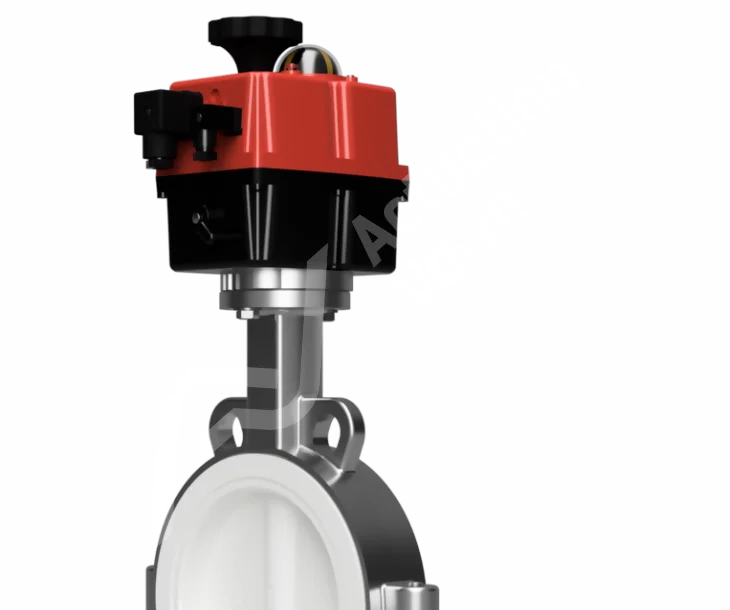

PTFE Lined SS Actuated JJ Electric Butterfly Valves

The J&J J4CS electric valve actuators are designed for 75% duty rating. The electric actuator offers significant cost savings compared to that of pneumatic valve actuators with little ongoing maintenance costs from initial purchase. Wafer Pattern TTV Stainless Steel Actuated Full PTFE Lined Butterfly Valves offer external protection as well as the standard corrosion resistance and food grade option to that of the Ductile Iron PTFE Lined Butterfly Valve Valve.
Shop

Key Features

Key features and benefits of the 40WP4040F0TJJ Actuated Butterfly Valves.
1

Key Features

Fail Safe Battery Backup option eliminates the need for use of the manual override in the event of a power or system failure to the actuator. Commonly used in critical application lines where failure is not an option. The Actuator will return the Valve to either open or closed position.
2

Key Features

True multi voltage plug and play operation allows for site standardisation without the need for changing models if local voltages change. The J4CS features a built in auto conversion sensor voltage kit capable of receiving 24-240V AC or DC supply.
3

Key Features

TTV Butterfly Valves feature an innovative disc design that greatly increases Cv values resulting in lower energy costs and improved efficiency with no sacrifice in performance or durability compared to other manufacturers valves on the market.
JJ Actuated Stainless Steel PTFE Lined Butterfly Valve

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: 316L Stainless Steel
Seats Material: PTFE
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
