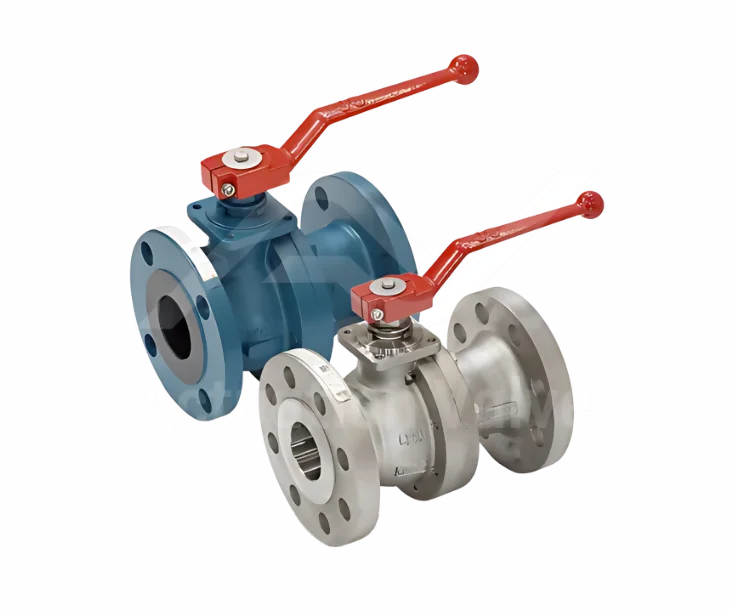

JC Valves 515/530 Full Bore Floating ANSI Ball Valves

The JC Valves 515/530 Full Bore Floating ANSI Ball Valves are versatile solutions for industries such as oil & gas, chemical, and energy. The 515 series is available in sizes from ½” to 8” for Class 150, while the 530 series ranges from ½” to 6” for Class 300. These valves feature a split-body design, ensuring easy maintenance, and include a blowout-proof stem for safety. They meet international safety and quality standards, making them suitable for applications in food, pharmaceuticals, marine, mining, and waste treatment industries.

Key Features

Key features and benefits of JC Valves 515/530 Full Bore Floating ANSI Ball Valves
1

Key Features

The JC Valves 515/530 ball valves are designed with a split body and full bore construction, allowing for optimal flow and minimal pressure drop across the valve. This design enhances the efficiency of fluid handling in various applications, making these valves suitable for industries requiring precise flow control.
2

Key Features

Safety is a key feature of the JC Valves 515/530, equipped with a blowout-proof stem and non-removable antistatic devices. These features provide enhanced protection against accidents and ensure that the valves remain safe and secure during operation.
3

Key Features

The JC Valves 515/530 series meets stringent international standards, including fire-safe certifications such as API 607 and ISO 10497. The valves are also compliant with fugitive emissions standards, making them environmentally friendly and suitable for industries focused on sustainability.

Immense Stocks

Powerful Specifications

Size Range: DN15 to DN200 (1/2" to 8")
Valve Design: Full Bore API 6D
Body Design: ASME VIII Div.1
Shell Thickness: ASME B16.34
Flanges: ASME B16.5 Raised Face
Face to Face: ASME B16.10 Long Pattern
Pressure Testing: API 598 - API 6D
Weight Range: 2 to 155 KG
Certifications: CE Marking, EAC, TA-LUFT, Bureau Veritas, ATEX, SIL Approval, & More
Applications: Pumping Stations, Water & Wastewater Treatment, Oil & Gas, & More

Why Choose JC Valves

Wide Variety of Valve Types

JC Valves specialises in a diverse array of valve types, including ball, gate, globe, and check valves, catering to the specific requirements of different industrial applications.

Customisable Options

The company offers customisable valves in various sizes, materials, and pressure ratings, allowing clients to tailor products to their unique specifications and operational environments.

High-Performance Materials

JC Valves uses top-grade materials such as stainless steel, carbon steel, and special alloys to ensure durability and performance under demanding conditions.

Advanced Sealing Technologies

Their products incorporate advanced sealing technologies, enhancing leak prevention and operational efficiency, making them suitable for critical applications in industries like oil & gas and chemical processing.

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Frequently Asked Questions

Ball valves consist of a spherical ball with a bore that is rotated to open or close the valve. When aligned with the valve body, the bore allows fluid flow; when perpendicular, it seals the valve. The ball seals against seats in the valve body when closed to stop flow. Ball valves are quick opening, achieve full bore operation, and have low pressure drop. They can be automated or manually operated, with the handle indicating open/closed status. Ball valves come in 2-way, 3-way and multi-way configurations and are commonly used for shutoff, throttling and flow control of liquids, gases, and slurries in various industries. Key advantages are tight sealing, quick on-off operation, and full bore flow when open.

A ball valve works by utilising a perforated spherical ball that rotates within the valve body to control flow. When the valve is open, the ball's bore is aligned parallel with the flow path, allowing fluid to travel through the valve's inlet, through the ball's bore, and out the outlet. When closed, the ball is rotated 90 degrees by the handle or actuator so that the bore is perpendicular to the flow, sealing off the inlet and outlet ports. As the ball rotates, it presses against valve seats on either side to form a tight seal and stop flow. The open/close state is clearly indicated by the handle position. Ball valves achieve tight shutoff and can be opened/closed quickly with a 1/4 turn of the ball. Their uncomplicated operation, full bore flow, and low pressure drop make ball valves ideal for shutoff, throttling and control applications.

The common types include full port, reduced port, V-port, trunnion, and multiport ball valves, each designed for specific flow control conditions and applications.

Ball valves are ideal for applications requiring low-pressure drop and quick, on-off service. They are commonly used in applications involving water, natural gas, and in certain industrial processes.

Ball valves are typically made from materials like brass, stainless steel, PVC, and CPVC, offering various levels of strength, corrosion resistance, and suitability for different temperatures and pressures.

The correct size depends on the pipeline size and the flow requirements. It's essential to match the valve size with the flow rate, pressure, and the physical properties of the fluid.

While primarily designed for on/off control, certain types of ball valves, like V-port valves, can modulate flow. However, they may not offer the precise control of a globe or needle valve.

Maintenance involves regular cleaning, inspecting for leaks or damage, and lubricating the valve components. It's crucial to follow the manufacturer's guidelines for maintenance.

The term "full bore" refers to the fact that the valve has a larger internal diameter, providing minimal resistance to the flow of the fluid. In other words, the internal diameter of the valve is the same as the internal diameter of the pipeline it is installed in.

Yes, specific types of ball valves are designed to withstand high temperatures, but it's important to choose a valve made from materials suitable for the intended application's temperature range.

Ball valves offer faster shut-off, better durability for frequent operation, and generally have a smaller footprint. However, gate valves provide better throttling capabilities and are better for sustained shutoff.

The lifespan of a ball valve depends on its material, usage, and the conditions it's exposed to. Generally, ball valves are known for their durability and can last for many years with proper maintenance.
