Hygienic Tri Clamp-Weld OD Air Torque Actuator Valves

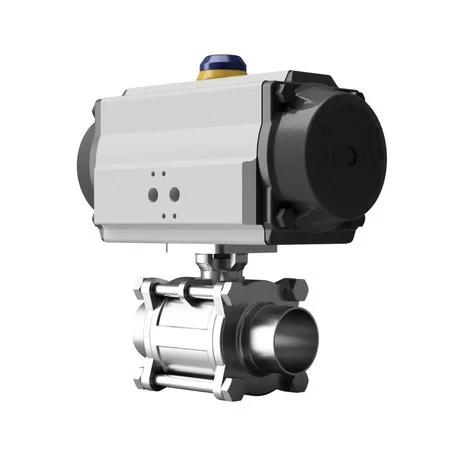

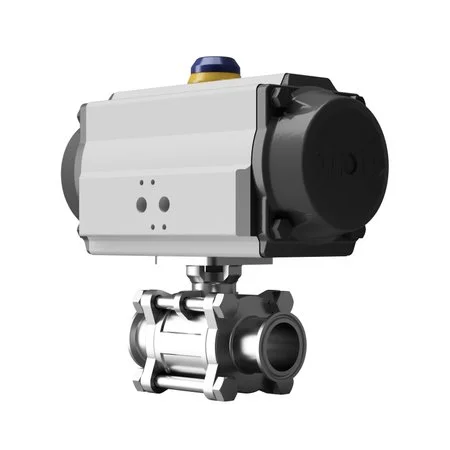

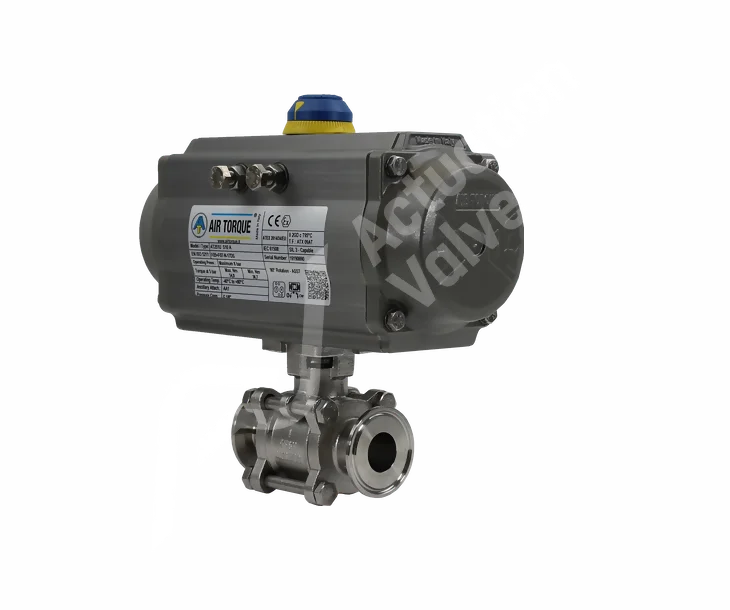

The AV-L91B0AT & AV-L9CB0AT form part of the sanitary and hygienic full bore actuated valve packages from actuation valve. This 3 piece body valve has a swing out centre section that is perfect for scheduled maintenance and seat replacements. The full bore body design and cavity filled seats create a free flow path that does not allow debris or contaminants to build up with temperatures suitable for up to 200 DegC steam cleaning CIP and SIS. Various approvals include FDA & WRAS approved seats with a bovine free supply.

Key Features

Key features and benefits of AV-L91B0AT & AV-L9CB0AT Actuated Ball Valves.
1

Key Features

Air Torque actuators have a range of protection levels available other than the standard anodised alum housing. These include a full stainless steel body version, alodur coating for body and end caps, ENP plated carbon steel drive shafts and PTFE body coating.
2

Key Features

Air torque pneumatic actuators have been optimised for performance and durability at every stage of its development, from design through production and testing. With over 30 years of experience designing durable, reliable components, you can trust us with your project's success.
3

Key Features

Air Torque Pneumatic Actuators provide the same functionality as hydraulic actuators at a fraction of the cost while also providing increased reliability and reduced maintenance costs. This lightweight and compact device has been designed specifically with valves in mind.

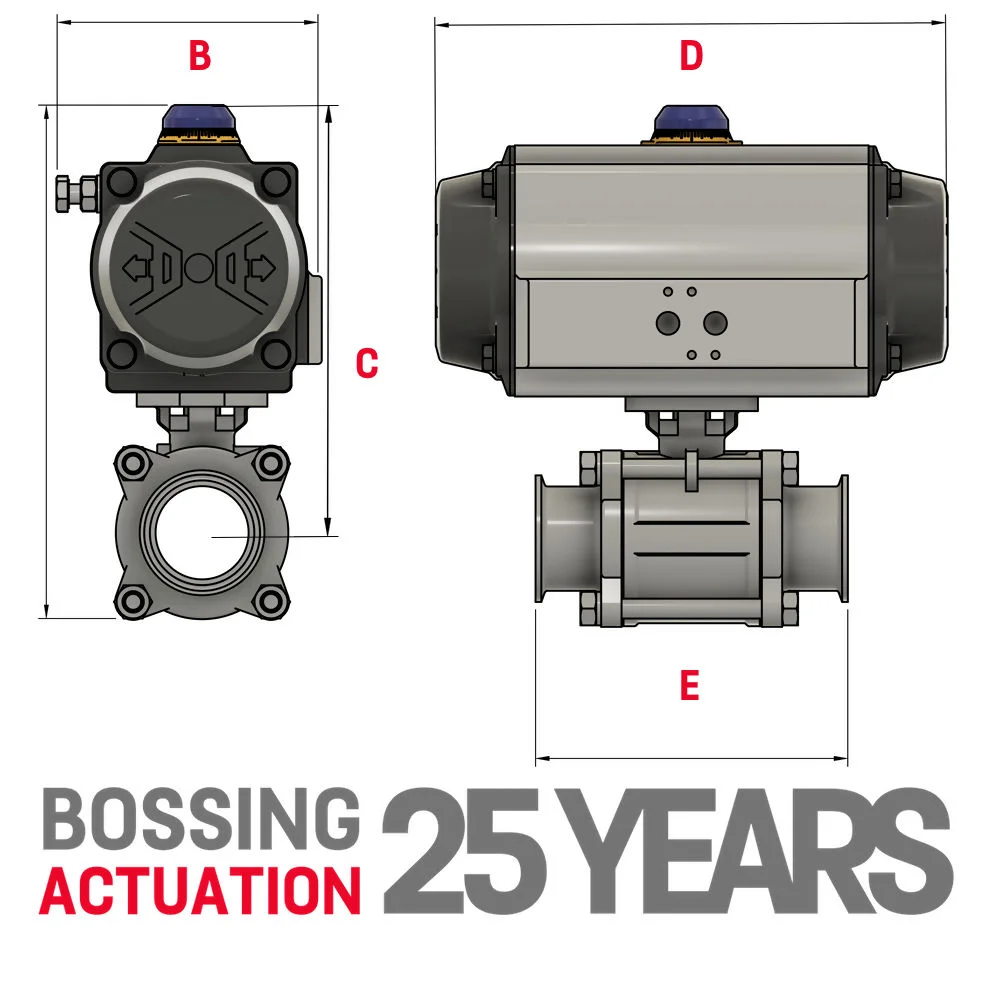

Tri Clamp Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 131.00 137.00 90.00 72.00 131.00 137.00 90.00
3/4" 84.50 154.00 135.50 90.00 72.00 138.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 84.50 163.00 153.50 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 106.00 206.00 241.00 125.00 84.50 176.00 153.50 125.00
2" 118.50 225.00 259.00 150.00 93.00 200.00 203.50 150.00
2 1/2" 136.00 275.00 304.00 190.00 106.00 235.00 241.00 190.00
3" 136.00 284.00 304.00 220.00 106.00 244.00 241.00 220.00
4" 166.00 347.00 394.50 270.00 136.00 315.00 304.00 270.00

Tri Clamp 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Weld OD 3D Stuff

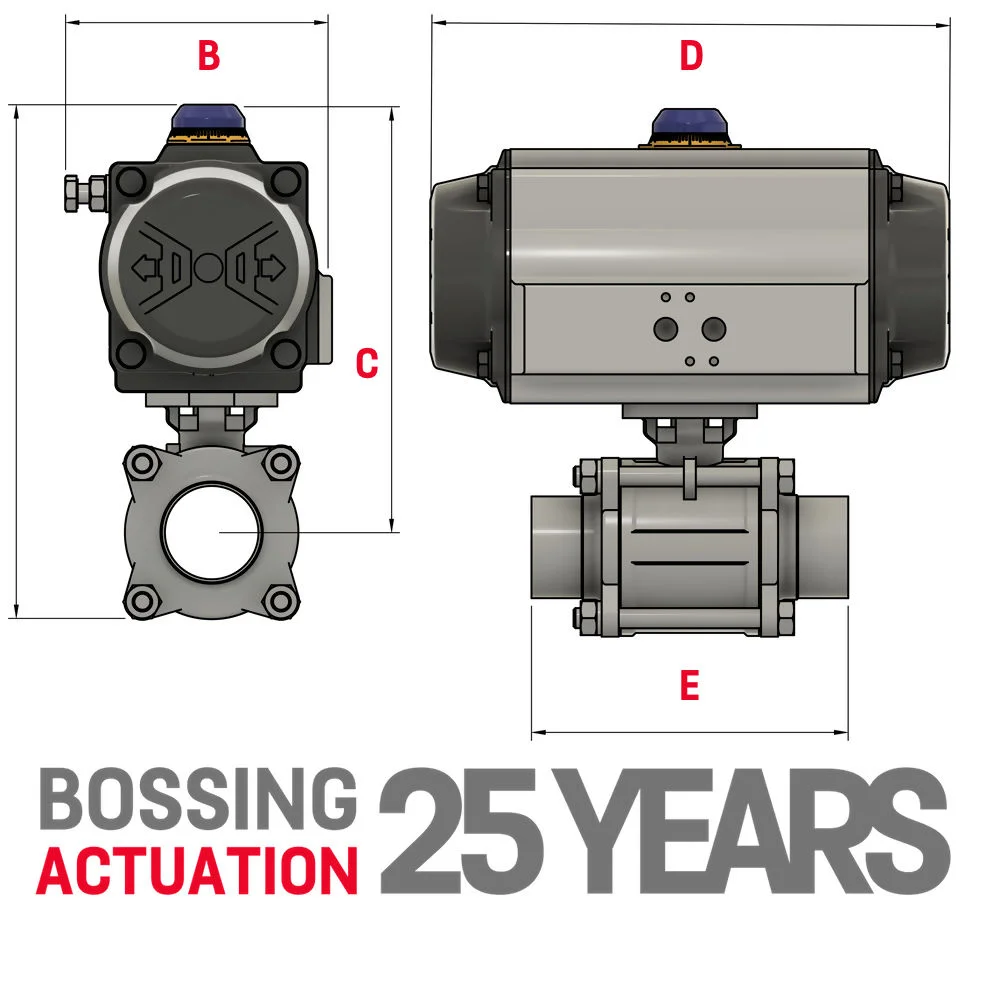

Weld OD Technical Stuff

B C D E B C D E
SR SR SR SR DA DA DA DA
1/2" 72.00 131.00 137.00 90.00 72.00 131.00 137.00 90.00
3/4" 84.50 154.00 153.50 90.00 72.00 138.00 137.00 90.00
1" 93.00 180.00 203.50 100.00 84.50 163.00 153.50 100.00
1 1/4" TBA TBA TBA TBA TBA TBA TBA TBA
1 1/2" 106.00 206.00 241.00 125.00 84.50 176.00 153.50 125.00
2" 118.50 225.00 259.00 150.00 93.00 200.00 203.50 150.00
2 1/2" 136.00 275.00 304.00 190.00 106.00 235.00 241.00 190.00
3" 136.00 284.00 304.00 220.00 106.00 244.00 241.00 220.00
4" 166.00 347.00 394.50 270.00 136.00 315.00 304.00 270.00

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Why Air Torque

We have stock!

We understand the importance of minimising downtime and ensuring seamless operations. That's why we maintain a comprehensive stock of Air Torque actuators, ready for immediate dispatch.

Superior Durability and Reliability

Air Torque actuators are built to last, featuring a robust anodised aluminium housing that offers excellent resistance to corrosion and wear.

3D Step Files Available

These detailed 3D models facilitate seamless integration into your design and engineering processes. By providing precise geometrical representations, these files allow for accurate planning and simulation within CAD software.

Expert Customer Support

When you choose Air Torque actuators from Actuation Valve, you gain access to our exceptional customer support team. Our experts are dedicated to providing comprehensive assistance, from selecting the right product to troubleshooting and maintenance guidance.

Valve Standards & Stuff

Body Material: ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material: TFM 1600® Cavity Filled Seats & Seals
Seat Approvals: 3A, FDA & Wras Approved
Cleaning: Suitable for Steam Cleaning & Sterilisation to 200 Deg C
Design Standard: MSS SP-110, BS4825
Surface Finish: Chemically Polished External/Mechanical Ra 32 / 0.8um Internal
Inspection & Testing: MSS SP-110
Face 2 Face: ASME B16.10
Pressure Rating: 400 PSI

Frequent Interrogation

A Hygienic Tri Clamp-Weld OD Valve is a specialised valve designed for use in sanitary applications. It features a tri-clamp connection and an outside diameter (OD) weld end, ensuring a secure and hygienic connection in systems like food processing, pharmaceuticals, and biotech industries.

Installation of a Tri Clamp-Weld OD Valve involves welding the OD end to your piping system and securing the tri-clamp connection. It's essential to follow proper welding procedures and use compatible clamps and gaskets to ensure a hygienic and leak-proof seal.

These valves offer numerous benefits, including easy assembly and disassembly, a secure and hygienic connection, minimal contamination risk, and high durability. They are ideal for industries requiring stringent hygiene standards.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

4-20mA Control Available On This Product

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.
