Cast Iron Gate Valves

Cast Iron Gate Valves are industrial valves constructed from cast iron, known for their robustness and durability. They feature a wedge-shaped gate mechanism, typically with a threaded stem, which can be raised or lowered to control the flow of fluids. These valves are often used in applications where a straight-line, full-flow path is required, allowing minimal pressure drop and efficient shut-off capabilities. Cast iron gate valves are suitable for a wide range of applications, including water supply systems, sewage, and industrial processes, and are favoured for their resilience in handling high-pressure and high-temperature environments. Their reliable performance, affordability, and long service life make them a popular choice in various industries.

Key Features

Key features and benefits of Cast Iron Gate Valves
1

Key Features

Cast Iron Gate Valves are known for their durable and sturdy construction, making them suitable for heavy-duty industrial applications.
2

Key Features

The gate design allows for precise flow control. When fully open, they provide a straight-line flow with minimal pressure drop.
3

Key Features

These valves can handle a wide range of fluids, including water, steam, oil, and more, making them versatile for various industries.

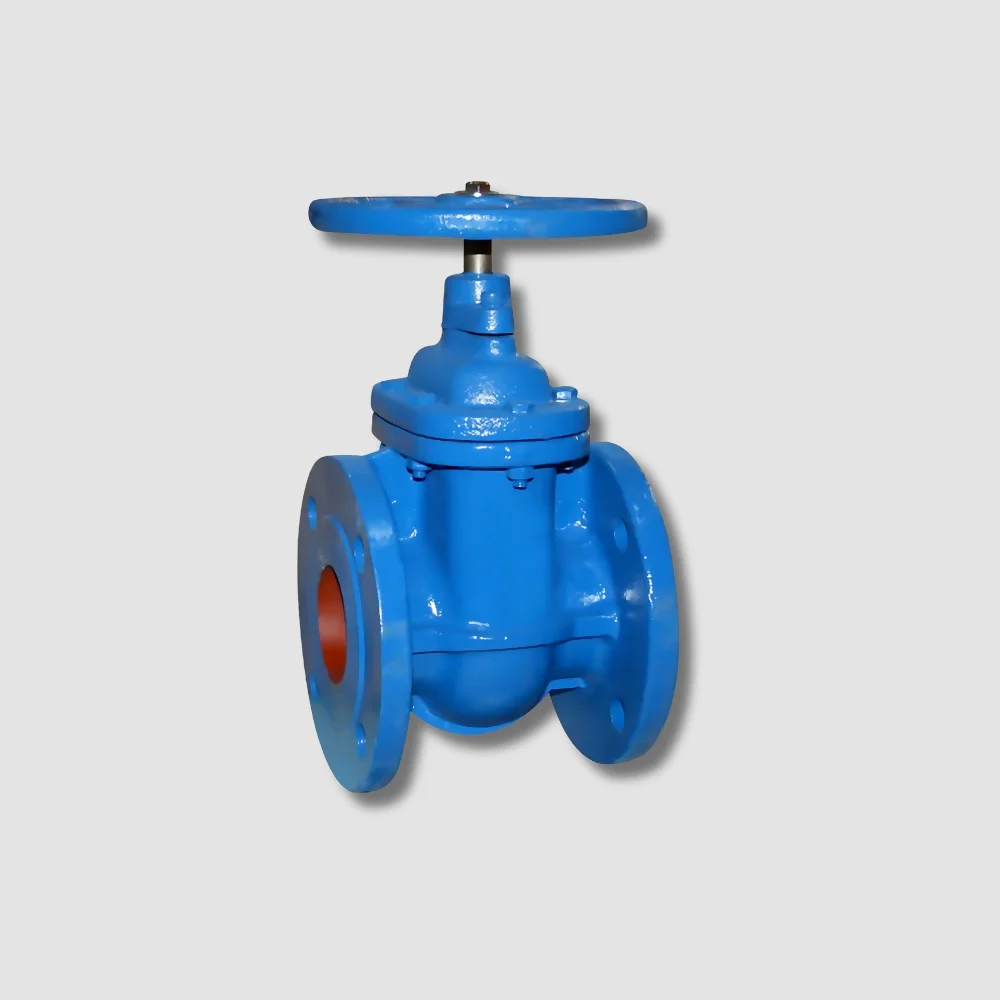

AV-9981 Cast Iron Flanged PN16 Gate Valve

The AV-9981 Cast Iron Flanged PN16 Gate Valve, available in sizes from 1½" to 12", is designed for temperatures between -10°C and 120°C with a pressure rating of PN16. Featuring flanged PN16 end connections and a cast iron body, this valve is ideal for AC units, fire fighting systems, water and sewer lines, and utility systems. Its reliable performance makes it suitable for various applications, ensuring durability and functionality across different environments.

Size Range: 1 1/2" to 12"
Temperature Range: -10°C to 120°C
Pressure Rating: PN16
End Connection: Flanged PN16
Body Materials: Cast Iron Body
Applications: AC Units, Plumbing, Fire Fighting, Water & Sewer Lines, & Utility Systems
Contact Us

Frequently Asked Questions

A gate valve is a type of valve used to control the flow of fluids (liquid or gas) within a pipeline or system. It is primarily designed to either fully open or fully close the flow, and it is not typically used for regulating the rate of flow like a globe valve or a ball valve.

One advantage of a gate valve is its ability to provide a tight seal, making it ideal for applications where a complete shut-off of fluid flow is required. When fully closed, the gate valve creates a secure and leak-proof seal, preventing the passage of fluids in either direction.

To open a gate valve, you typically turn the valve handle or operating mechanism in a counterclockwise direction (to the left). This action raises the internal gate or wedge to create an unobstructed pathway for fluid flow. Conversely, turning the handle in a clockwise direction (to the right) closes the valve by lowering the gate, obstructing the flow and sealing the passage.

The most commonly used type of gate valve is the "wedge gate valve." Wedge gate valves are widely employed in various industries due to their robust design, reliable performance, and the ability to provide a tight seal. They have a solid, flat gate or wedge-shaped disc that moves perpendicular to the flow direction to either fully open or fully close the valve.

Gate valves, when fully open, do not inherently reduce pressure. However, they can introduce some pressure drop due to the flow obstruction created by the gate or wedge. The extent of pressure drop or flow restriction depends on the design of the gate valve, including factors like the shape of the gate and the clearance around it.

Yes, gate valves can restrict flow, particularly when they are partially open. Gate valves are primarily designed as on/off valves, but they can be used to control flow to some extent. When a gate valve is partially closed, the gate or wedge inside the valve partially obstructs the flow path, creating a restriction in the pipeline. The extent of flow restriction depends on how far the gate is lowered into the flow path.

There are several alternatives to gate valves, each with its own characteristics and advantages. The choice of an alternative valve depends on the specific requirements of the application. At Actuation Valve we offer ranges of Ball Valves, Globe Valves, Butterfly Valves, & Check Valves, e.g.

To install a gate valve effectively, begin by preparing a clean work area and choosing the right valve for the application. Inspect the valve for defects and ensure the flange faces are clean and aligned properly. Secure the valve in place by bolting it to the flanges using the correct torque specifications, following a crisscross pattern. Conduct a pressure test if necessary and check for smooth valve operation. Proper alignment of the connected piping is essential.

Gate valves are not typically used for regulating water pressure. Their primary function is to provide on/off control of fluid flow. While you can partially close a gate valve to reduce the flow of water, it is not an effective or precise means of regulating water pressure. If you need to regulate water pressure in a plumbing system, it's better to use pressure-reducing valves or pressure control valves specifically designed for that purpose.

Yes, Actuation Valve offers sustainable spares and replacement parts for ongoing maintenance schedules.

To stop a gate valve from leaking, first identify the source of the leak, which could be around the valve stem, packing gland, or gate. If the leak is at the stem, try tightening the packing gland nut using a wrench, but avoid over-tightening. If the issue persists, inspect the valve stem for damage and replace it if necessary. Additionally, consider replacing the packing material, which may require removing the old material and installing new packing. Ensure that there are no obstructions or debris on the gate or valve seat.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
