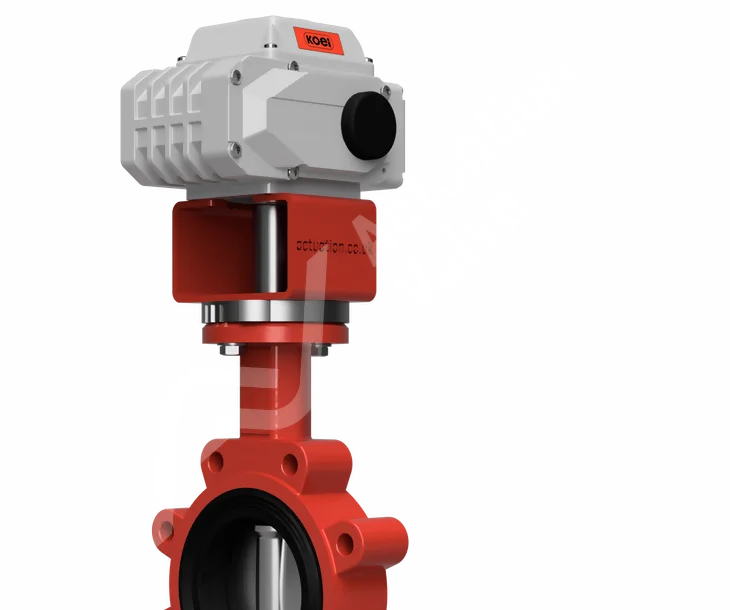

The Koei UNIC Electric Actuator is a long-life, high performance product that can be used with confidence in all operating conditions. Built to the highest quality standards and manufactured by an internationally recognised manufacturer from Japan. When choosing a valve for your system, it is important to take into account not only the quality of performance but also its longevity. The TTV & Koei Unic Actuated Butterfly Valve assemblies can provide significant total life cost savings. The Koei UNIC Electric Actuator comes standard with an easy manual override and stove enamel finish for protection against corrosion in harsh environments.

Shop Help Me

Key features and benefits of the 20L3040EK Actuated Butterfly Valves.

Key Features

During the closing movement, the rate of cut-off of the flow diminishes as the disk moves towards the closed position, making the valve well suited for flow regulation purposes. An extensive range of synthetic elastomers provide Positive shut-off with repeatability of performance.

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.

Key Features

A Koei UNIC Electric Actuator is a compact and innovative product that provides smooth operation over its entire speed range in high shock environments, making them the perfect solution for your next high impact project.

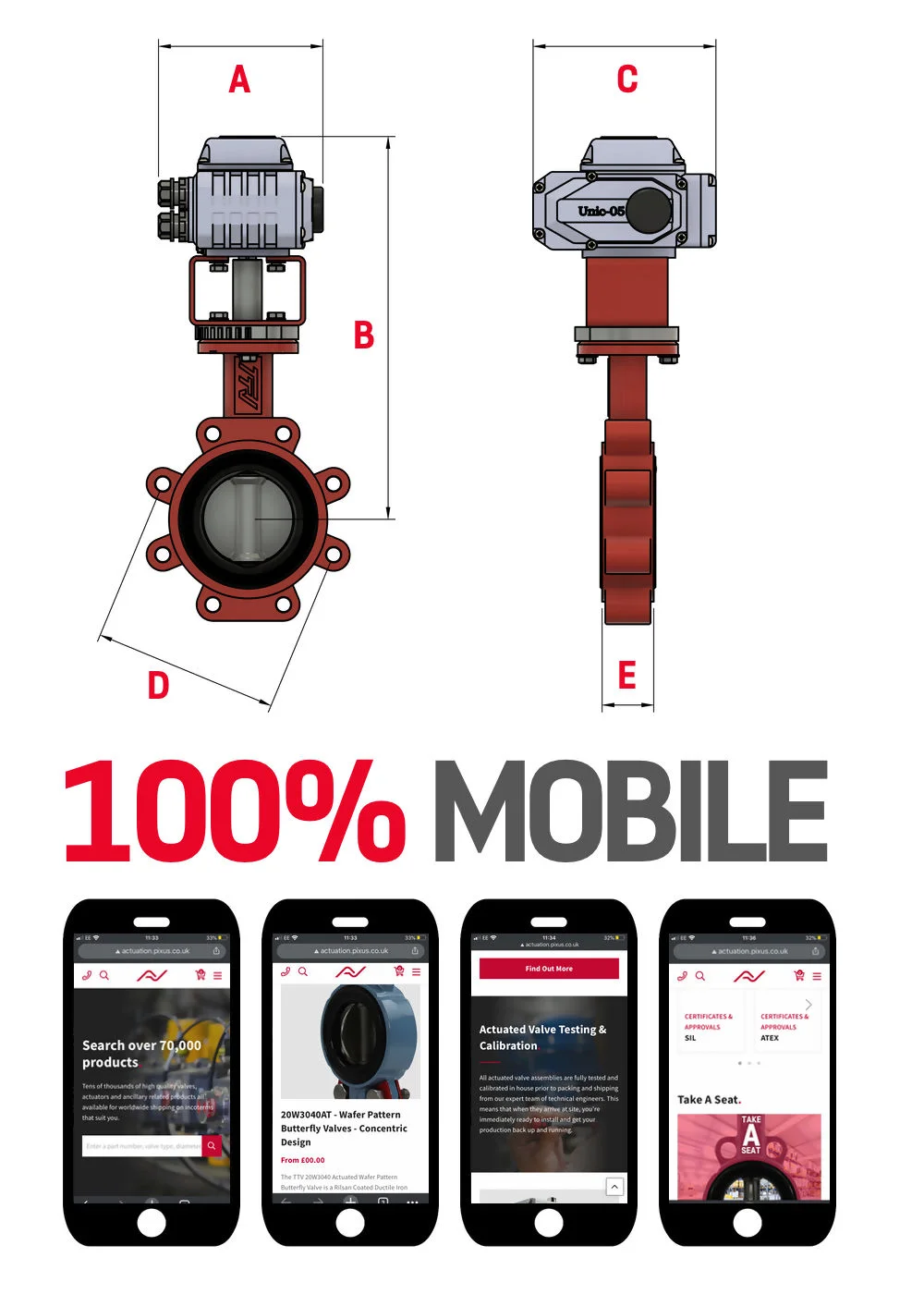

	A	B	C	D	E	Model
1.5"	145.00	316.00	159.00	TBA	33.00	UNIC 05
2"	145.00	332.00	159.00	TBA	43.00	UNIC 05
2.5"	145.00	337.00	159.00	TBA	46.00	UNIC 05
3"	145.00	345.00	159.00	TBA	46.00	UNIC 05
4"	155.00	389.00	208.00	TBA	52.00	UNIC 10
5"	187.00	416.00	257.00	TBA	56.00	UNIC 20
6"	187.00	425.00	257.00	TBA	56.00	UNIC 20
8"	187.00	465.00	257.00	TBA	60.00	UNIC 40
10"	272.00	484.00	381.00	TBA	68.00	UNIC 60
12"	272.00	516.00	381.00	TBA	78.00	UNIC 100
14"	272.00	536.00	381.00	TBA	78.00	UNIC 150
16"	TBA	TBA	TBA	TBA	TBA	TBA
18"	TBA	TBA	TBA	TBA	TBA	TBA
20"	TBA	TBA	TBA	TBA	TBA	TBA
22"	TBA	TBA	TBA	TBA	TBA	TBA
24"	TBA	TBA	TBA	TBA	TBA	TBA

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

DRAWINGS & SCHEMATICS

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.


Body Material:	GJS500-7 Ductile Iron Rilsan Coated
Seats Material:	EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard:	Concentric, Soft Seat
Face To Face:	EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing:	EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections:	PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing:	ISO 5208, 100% Tight Shut Off, API 598

Yes, this Valve is suitable for water within the pressure and temperature limitations.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

No.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

CERTIFICATES & APPROVALS

Brochures

Certificates & Approvals

Operations

Material	Applications	Temperature
EPDM	Water, Sea Water, Alcohols, Organic Salt Solutions, Mineral Acid Solutions, Mineral Based Alkalines	-20°C +110°C
High Temperature EPDM	Super Heated Water	-20°C +130°C
NBR Buna	Mineral & Vegetable Oils, Gas, Non Aromatic Hydrocarbons, Animal Fats, Vegetable Fats, Air	-10°C +80°C
Hypalon	Mineral Acid Solutions, Organic & In-Organic Acids, Oxidising Solutions	-10°C +80°C
Viton	Acids, Fats, Hydrocarbons, Vegetable & Mineral Oils, Fuels	-5°C +180°C
Polyisoprene	Water, Alcohols, Abrasive Substances (Call To Check), Ketones,	-10°C +60°C
Silicone	Low & High Temperature Resistance Applications	-30°C +150°C
High Temp Silicone	Super Heated Water	-50°C +160°C
Epichlorohydrin	Ozone Resistance, Hydrocarbons, Aromatic Oils	-25°C +145°C
