Electric Koei UNIC SS High Performance Butterfly Valves

Koei UNIC electric actuators are engineered specifically for 100% continuous operation in harsh environments where reliability is key. They deliver consistent performance over time with no maintenance or downtime required. This actuator is easy to install and operate. All units come complete with general operations and maintenance manuals as standard and free after sales support. You will receive all of the information available to keep equipment operating at peak performance. The Colossus is one of our most reliable products because it's made from high-quality materials that can withstand the harshest conditions while still working reliably over long periods of time with minimal maintenance required.

Key Features

Key features and benefits of the Colossus Koei UNIC Wafer Actuated High Performance Butterfly Valves.
1

Key Features

The Actuator is an all-metal device, constructed from high quality die-cast aluminium and covered in a grey stove enamel finish. IP65 rated for water resistance up to 4X protection against dust or other particles this Koei UNIC can handle anything you throw at it!
2

Key Features

All butterfly valves are rigorously tested to meet ever-changing industry requirements with our research and development team constantly creating design improvements to future proof the next generation. Typical applications include HVAC, Power Generation and Hydro Carbon Processing.
3

Key Features

One of the world's most advanced electric actuators and available for quick and easy installation. All units come complete with an operations manual that covers everything you need to know about your equipment, as well as free after sales support from our team of experts.

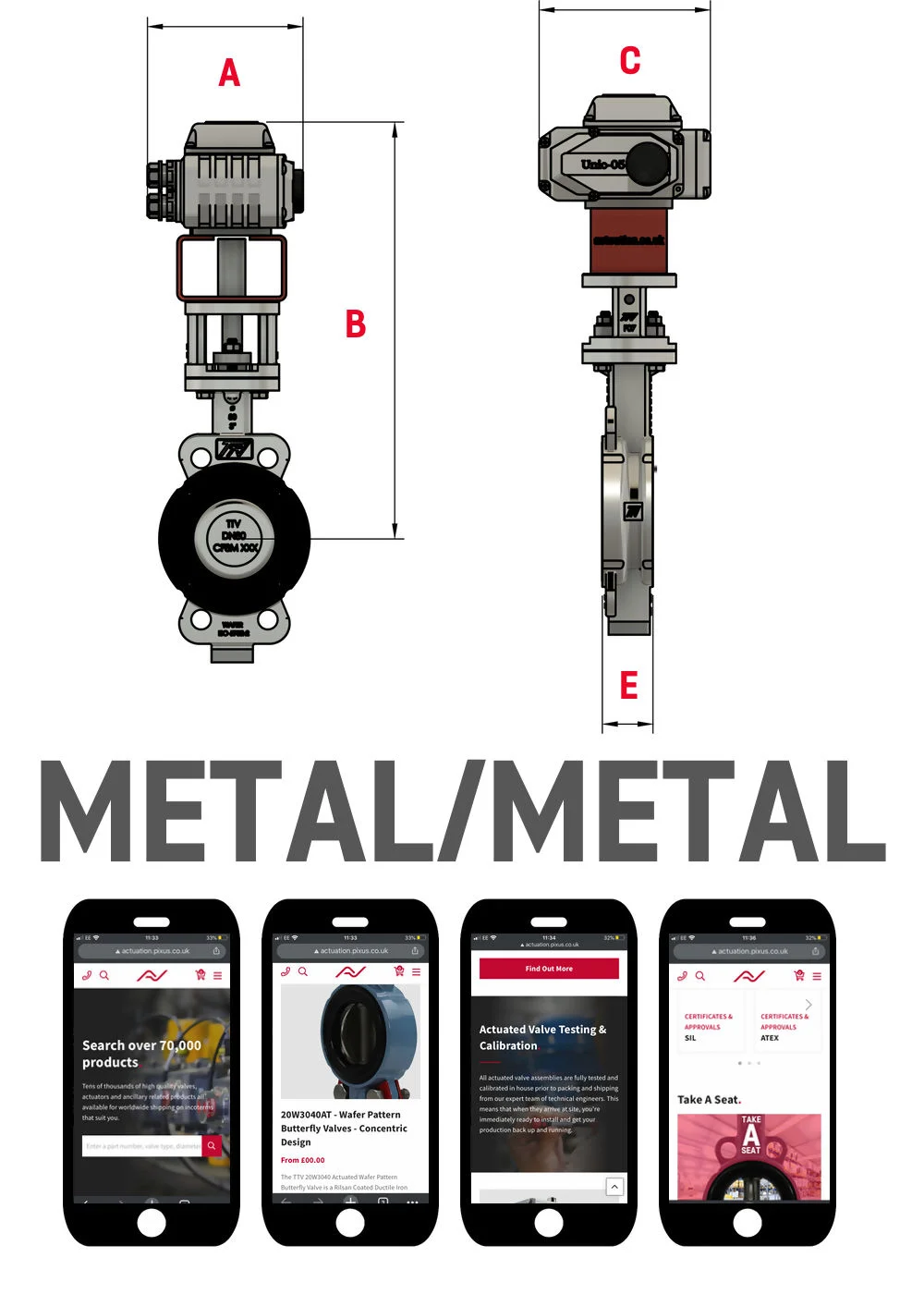

High Performance Metal-Metal Valves

A B C E Model
2" 145.00 304.00 159.00 43.00 UNIC 05
2.5" 155.00 342.00 208.00 46.50 UNIC 10
3" 155.00 350.00 208.00 47.00 UNIC 10
4" 155.00 371.00 208.00 52.00 UNIC 10
5" 187.00 410.00 257.00 56.00 UNIC 20
6" 187.00 430.00 257.00 56.00 UNIC 40
8" 272.00 486.00 381.00 63.00 UNIC 100
10" 272.00 541.00 381.00 71.00 UNIC 100
12" TBA TBA TBA 78.00 TBA
14" TBA TBA TBA 92.00 TBA
16" TBA TBA TBA 102.00 TBA
18" TBA TBA TBA 114.00 TBA
20" TBA TBA TBA 127.00 TBA
24" TBA TBA TBA 154.00 TBA

Colossus Double Offset Butterfly Valve

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

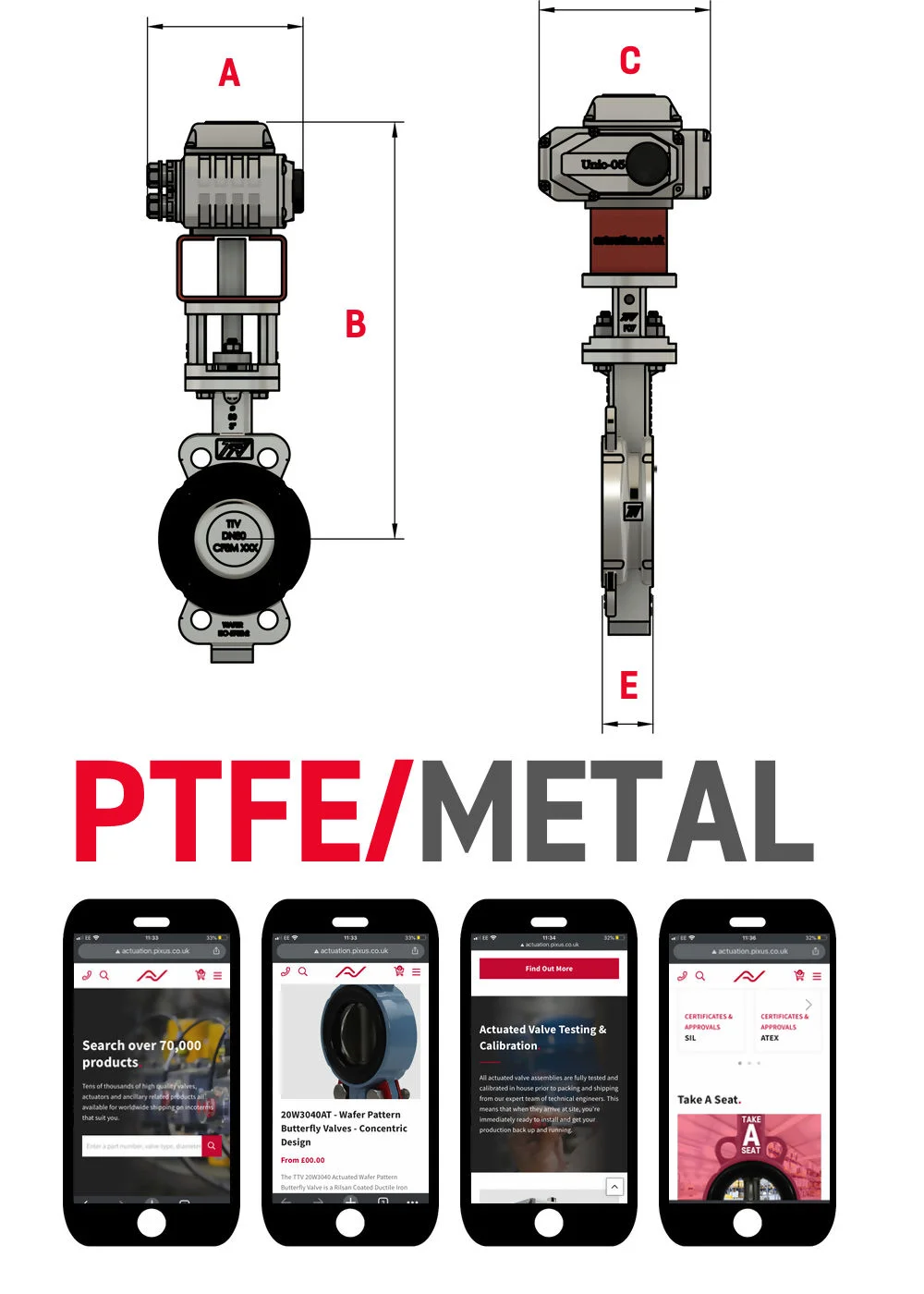

High Performance PTFE-Metal Valves

A B C E Model
2" 145.00 304.00 159.00 43.00 UNIC 05
2.5" 145.00 316.00 159.00 46.50 UNIC 10
3" 155.00 350.00 208.00 47.00 UNIC 10
4" 155.00 371.00 208.00 52.00 UNIC 10
5" 155.00 402.00 208.00 56.00 UNIC 20
6" 187.00 430.00 257.00 56.00 UNIC 40
8" 187.00 460.00 257.00 63.00 UNIC 100
10" 272.00 541.00 381.00 71.00 UNIC 100
12" 272.00 578.00 381.00 78.00 TBA
14" 272.00 562.00 381.00 92.00 TBA
16" TBA TBA TBA 102.00 TBA
18" TBA TBA TBA 114.00 TBA
20" TBA TBA TBA 127.00 TBA
24" TBA TBA TBA 154.00 TBA

Colossus Double Offset Butterfly Valve

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.

Valve Standards & Stuff

Body Material: Stainless Steel CF8M, Cast/Carbon Steel A216 WCB
Disc Materials: Stainless steel (CF-8M)
Shaft Materials: Stainless Steel F-316
Design: API 609, ASME B16.34, MSS SP-67, EN 593, Nace MR 0175
Inspection & Testing: ISO 5208 / API 598
Connections: ISO 5752 series 20, BS 5155 series 4, DIN PN 10/16/25, ANSI 150/300
Seat Materials: Soft seat: R-PTFE (-50ºC / +220ºC), Hard seat: F-316L (-100ºC / +500ºC)
Applications: Chemical, Vacuum, LPG/LNG, Hydrocarbons, Steam, Gas, Bitumen, Thermal Oil

Frequent Interrogation

The valve is suitable for almost all chemical applications. Send in an email of pick up the phone. One of our super tech guys will check it over for you.

Not in its current format however we can offer both options. Get in touch through sales@actuation.co.uk or 0151 547 1221 and we will run through some safety options with you for quoting.

It certainly does. All of our PTFE butterfly valves come complete with a full set of operations and maintenance manuals from the manufacturer.

Yes! Position feedback is included as standard with switches for open and closed positions.

Maybe. Give us a call to find out.

Metal - Metal Seat complies with BS 6755 Part 2 or API 6FA/607 (Fire Safety). Valve only.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Job done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.
Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
