Lugged Bronze Disc Koei Unic Actuated Butterfly Valves

The Koei UNIC Electric Actuator is a long-life, high performance product that can be used with confidence in all operating conditions. Built to the highest quality standards and manufactured by an internationally recognised manufacturer from Japan. When choosing a valve for your system, it is important to take into account not only the quality of performance but also its longevity. The TTV & Koei Unic Actuated Butterfly Valve assemblies can provide significant total life cost savings. The Koei UNIC Electric Actuator comes standard with an easy manual override and stove enamel finish for protection against corrosion in harsh environments.
Shop

Key Features

Key features and benefits of the 20L3080EK Actuated Butterfly Valves.
1

Key Features

The Koei UNIC electric actuator has a maintenance-free design, which eliminates one of the biggest expenses in using an electric actuator. It also boasts an average of 50% longer lifespan than other models on the market today.
2

Key Features

With lugged butterfly valves If one side needs repair, you can simply disconnect it from the piping system and leave the other side connected until repairs are complete. This makes maintenance easier and faster compared to wafer pattern butterfly valves.
3

Key Features

Thanks to its high-performance motor, this product is capable of operating at temperatures of -25 to 55 Deg C without sacrificing speed or power consumption. With its ability to operate in extreme environments this electric actuator is sure to deliver on all fronts.

Fully Lugged Butterfly Valve Technical

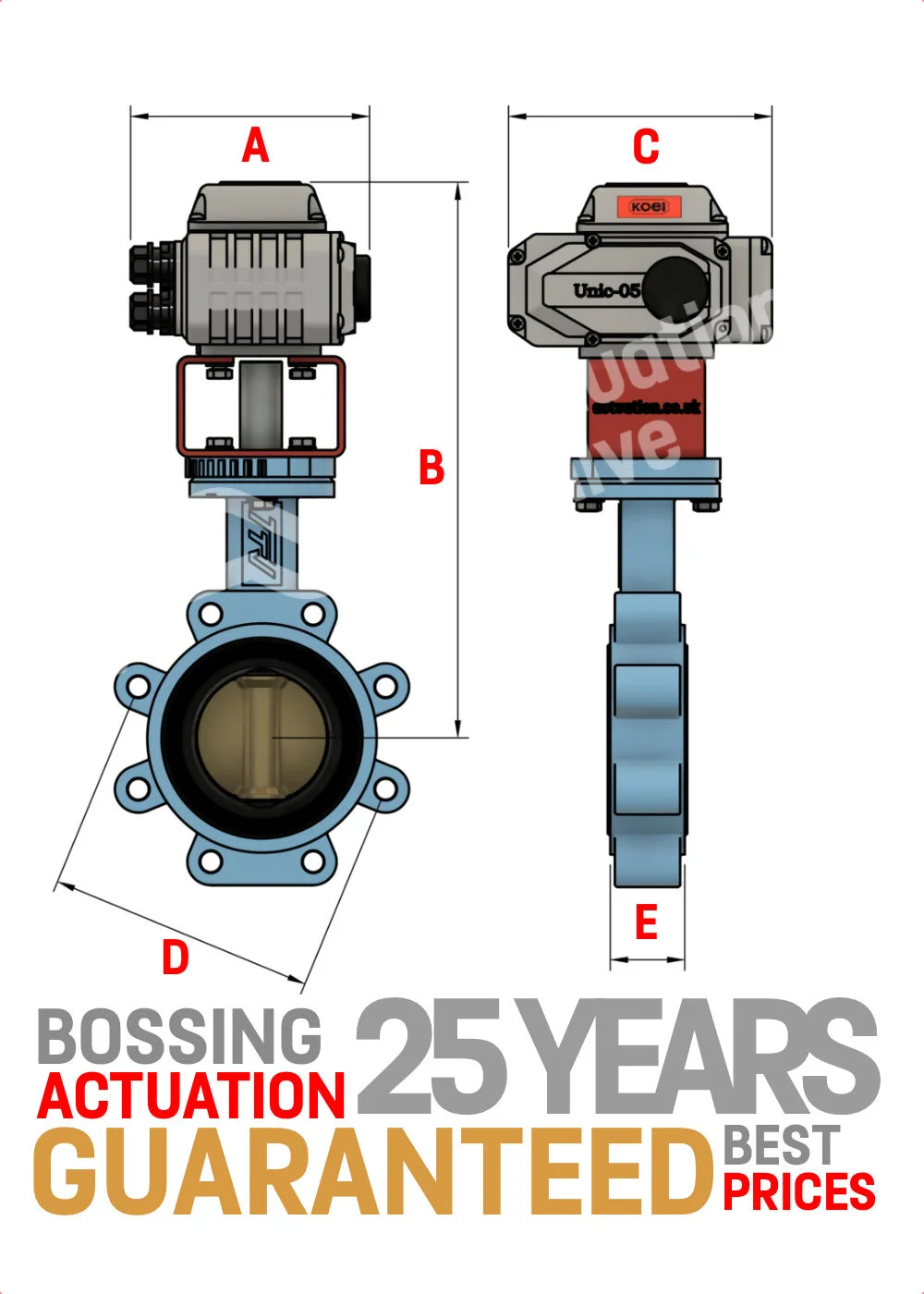

A B C D E Model
1.5" 145.00 316.00 159.00 TBA 33.00 UNIC 05
2" 145.00 332.00 159.00 TBA 43.00 UNIC 05
2.5" 145.00 337.00 159.00 TBA 46.00 UNIC 05
3" 145.00 345.00 159.00 TBA 46.00 UNIC 05
4" 155.00 389.00 208.00 TBA 52.00 UNIC 10
5" 187.00 416.00 257.00 TBA 56.00 UNIC 20
6" 187.00 425.00 257.00 TBA 56.00 UNIC 20
8" 187.00 465.00 257.00 TBA 60.00 UNIC 40
10" 272.00 484.00 381.00 TBA 68.00 UNIC 60
12" 272.00 516.00 381.00 TBA 78.00 UNIC 100
14" 272.00 536.00 381.00 TBA 78.00 UNIC 150
16" TBA TBA TBA TBA TBA TBA
18" TBA TBA TBA TBA TBA TBA
20" TBA TBA TBA TBA TBA TBA
22" TBA TBA TBA TBA TBA TBA
24" TBA TBA TBA TBA TBA TBA

Fully Lugged Butterfly Valve 3D Stuff

Need More Dimensions?

No time for fancy software or your tekkers are just pretty substandard? We offer a full technical drawing service for our actuated valves. The Artists are ready to draw. Tell us what you need.

Small Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-05
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20
  • PDF
DRAWINGS & SCHEMATICS

UNIC-40
  • PDF
DRAWINGS & SCHEMATICS

UNIC-60
  • PDF
DRAWINGS & SCHEMATICS

UNIC-100

Big Actuator Data

  • PDF
DRAWINGS & SCHEMATICS

UNIC-150
  • PDF
DRAWINGS & SCHEMATICS

UNIC-05 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-10 GEAR OP
  • PDF
DRAWINGS & SCHEMATICS

UNIC-20 GEAR OP

This is an example heading

Actuated Valve Testing & Calibration

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

Valve Standards & Stuff
Body Material: GJS500-7 Ductile Iron Rilsan Coated
Seats Material: EPDM, NBR Buna, Hypalon, Viton, Silicone, High Temperature, Polyisoprene, Epichloridine
Design Standard: Concentric, Soft Seat
Face To Face: EN 558 Series 20, ISO 5752 Series 20, API 609 Table 1, BS 5155 Series 4
Pressure Testing: EN 12266-1, DIN 3230, BS 6755, ISO 5208
Connections: PN10/16 ANSI 150, ISO 7007, DIN 2501, BS 4504, ANSI Class 150 ANSI B16.5
Sealing Testing: ISO 5208, 100% Tight Shut Off, API 598

Frequent Interrogation

Yes, this Valve is suitable for water within the pressure and temperature limitations.
Great. The Namur standard interface is perfect for direct mounting a pilot solenoid valve. We can supply this actuated valve for you with or without a solenoid valve.
It certainly does. All of our actuated valves come complete with a full set of operations and maintenance manuals from both the valve and actuator manufacturers.

Yes we can. If you cant find what you are looking for on the website get in touch. We have valve switch boes for all zoned and safe areas including LED visual indication.

Maybe. Give us a call to find out.
No.
Most definitely. We will require some more information. Drop us an email or get in touch on the blower.
Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.
We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.
Collections are welcomed. Give us a call in advance and we can get you a time that suits.

Fail-Safe Battery Backup

Fail-Safe Battery Backup is available for this product. In the event of a possible power failure the Actuator will return the Valve to a desired position. Ideal for critical line applications where safety is paramount. Will need some additional details from you. Pick up the phone and we will get you sorted faster than it takes Kipchoge to run a Marathon fuelled by 5 Red Bulls. Supercharged Customer Service.
