In valve and actuator systems, a drive shaft adaptor is an essential mechanical component that connects the actuator to the valve's drive shaft, ensuring smooth rotational motion for valve operation. It aligns the actuator with the valve, prevents misalignment, and transmits torque for efficient functionality. Available in rigid or flexible designs, drive shaft adaptors accommodate different configurations and minor adjustments, making them versatile and crucial for seamless valve and actuator performance in industrial settings.

Key features and features of Drive Shaft Adaptors

Key Features

The drive shaft adaptor acts as the crucial link between the valve and actuator, ensuring a secure and stable connection. This interface is essential for transmitting rotational motion without slippage or detachment, allowing the system to function efficiently.

Key Features

A key feature is its ability to align the actuator’s output shaft with the valve's input shaft, preventing misalignment that could cause operational inefficiencies or damage over time. This ensures smooth and precise operation of the valve.

Key Features

The drive shaft adaptor is designed to transmit the torque generated by the actuator to the valve efficiently. This allows the valve to respond effectively to the actuator's force, opening, closing, or modulating the flow as required in industrial processes.

Sizes available...

A drive shaft adapter is an essential component for ensuring compatibility between a valve and an actuator when their drive shafts differ in size.

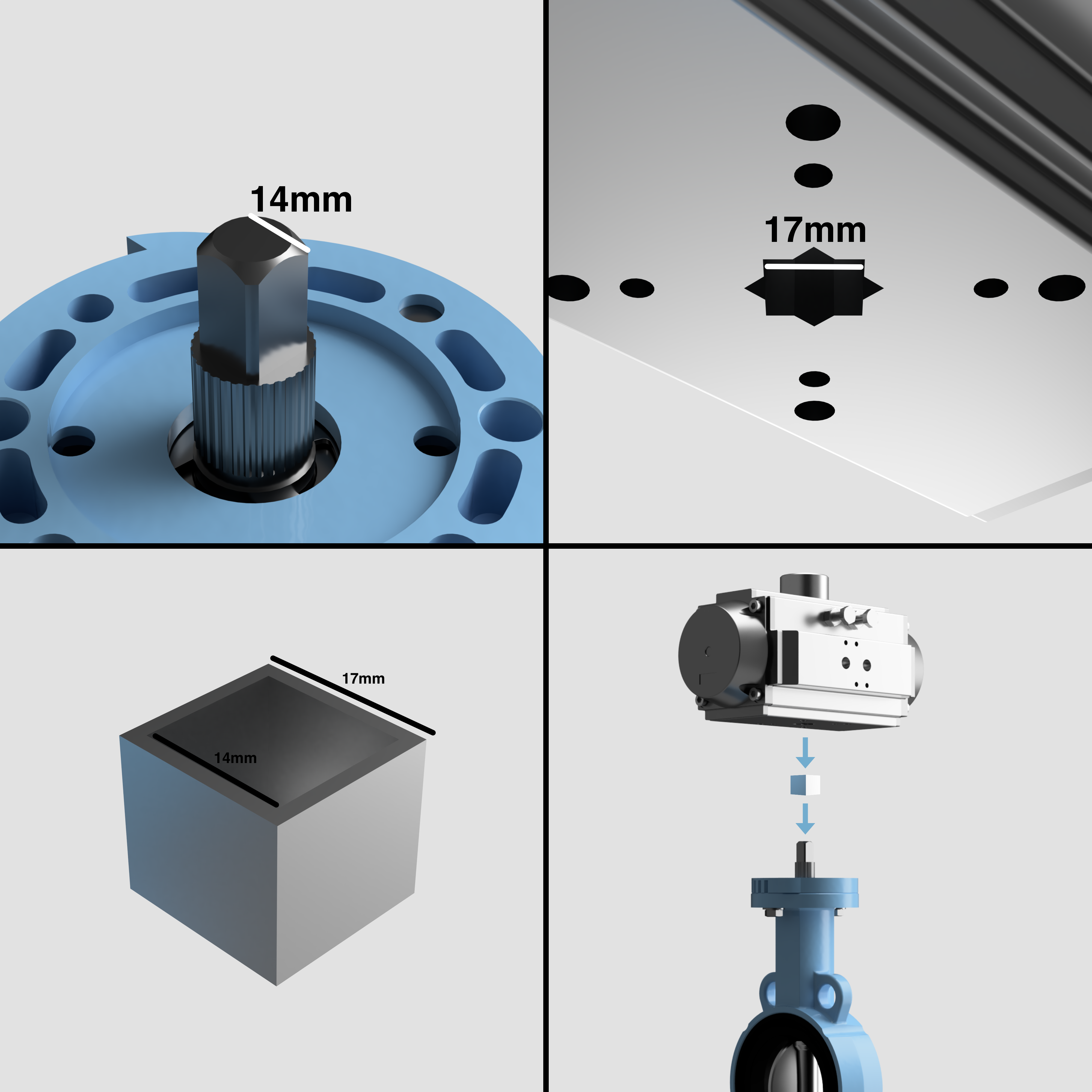

In this example, the butterfly valve has a 14mm drive shaft, while the pneumatic actuator has a 17mm drive shaft. The drive shaft adapter, which measures 14mm by 17mm, serves as a connecting piece that accommodates both components. This adapter ensures that the smaller valve drive shaft can effectively transmit torque to the larger actuator shaft, resulting in a snug, secure fit and seamless operation.

By utilising a drive shaft adapter, you can easily overcome dimensional differences, ensuring both the valve and actuator work together efficiently without compromising performance or reliability.

Drive shaft adapters are versatile components and can be used on a wide range of valves beyond butterfly valves. They are commonly applied to ball valves, globe valves, and plug valves, all of which may require precise torque transmission between the valve stem and the actuator. For example, in ball valves, where a spherical closure element is rotated to control the flow, the adapter ensures that the actuator can properly engage with the valve’s stem, even when the shaft sizes are mismatched. This allows for smooth, consistent operation whether the valve is being used in automated systems or manual override situations.

In addition to ball and butterfly valves, drive shaft adapters are also essential in more complex applications such as in gate valves and control valves, where accurate movement and alignment are critical for system performance.

A drive shaft adaptor connects two drive shafts of different sizes or types, ensuring smooth transmission of power in mechanical systems.

When selecting a drive shaft adaptor, consider factors such as shaft size, type, torque requirements, and material compatibility for your specific application.

No, drive shaft adaptors are not universal. They are designed to match specific sizes and types of shafts, so it's important to select the correct adaptor for your system.

Drive shaft adaptors are typically made from durable materials like steel, aluminium, or reinforced polymers to withstand various operational stresses.

Installation of a drive shaft adaptor involves aligning both shafts, securing the adaptor with set screws or bolts, and ensuring proper torque for a secure fit.

While a drive shaft adaptor facilitates torque transfer, it does not increase torque. It ensures efficient power transmission between mismatched shafts.

Drive shaft adaptors provide flexibility in connecting shafts of different sizes or designs, reduce downtime, and simplify repairs or upgrades in mechanical systems.

Yes, drive shaft adaptors are often used in systems powered by electric motors, helping to connect the motor's shaft to other mechanical components.

Yes, custom-made drive shaft adaptors can be manufactured to meet specific requirements, ensuring compatibility and optimal performance in specialized applications.

Regular maintenance involves checking for wear, ensuring secure connections, and lubricating the adaptor if required to prevent damage or failure.
